Home > Products > Directional Valves > Other Valve

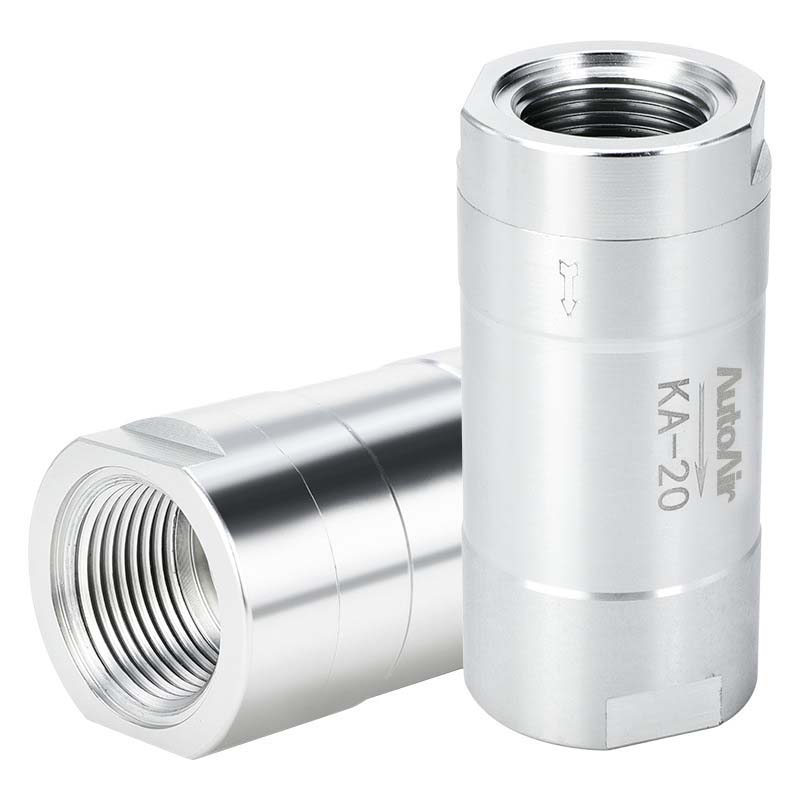

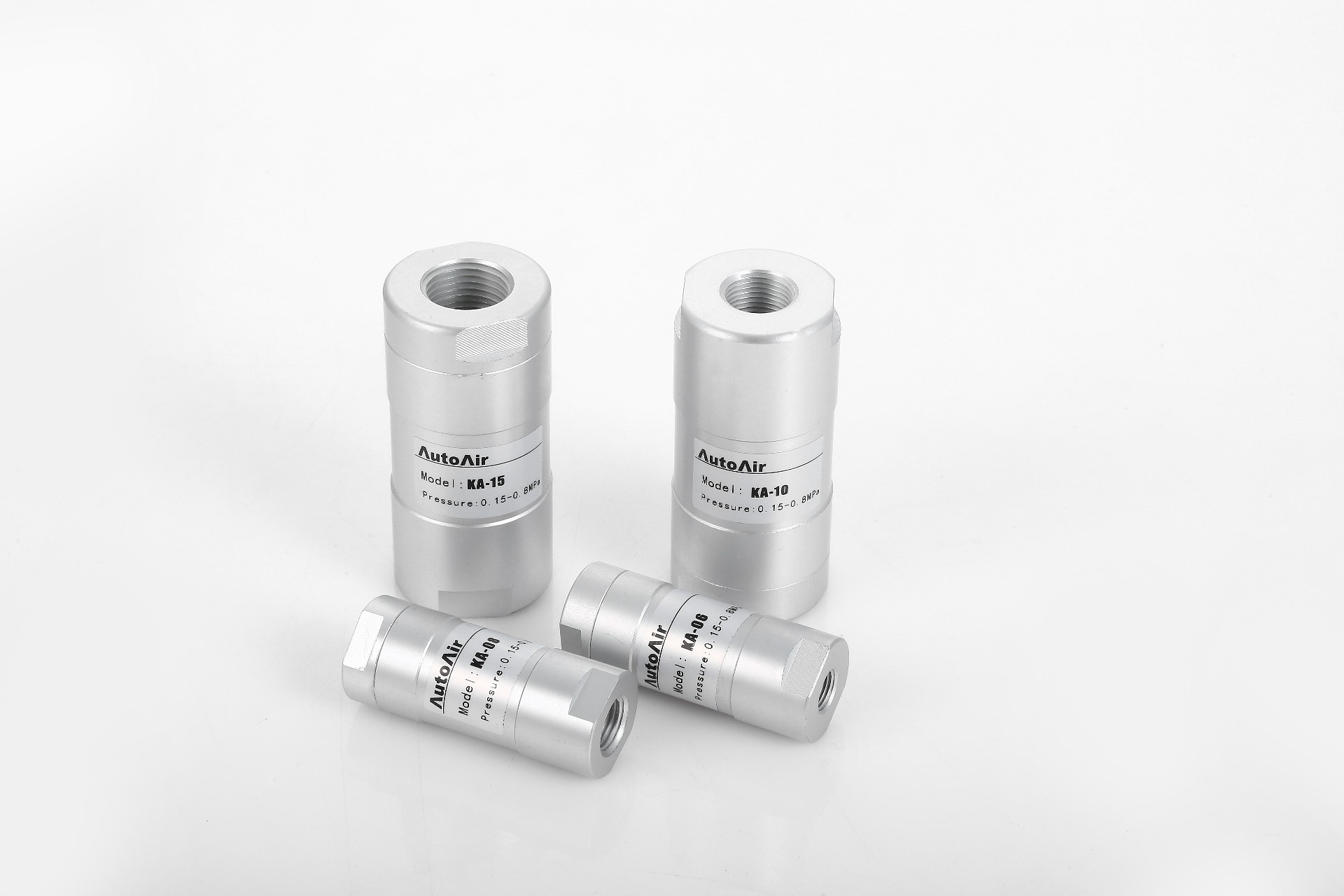

KA Series Check Valve

< >

KA Series Check Valve

~~Consult Immediately~~

Product Details

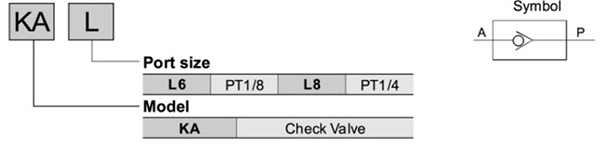

Ordering Code


Specifications

Model	KA-L6	KA-L8	KA-L10	KA-L15	KA-L20	KA-L25
Fluid	Air
Operating pressure range	0.05~1.2 MPa
Proof pressure	0.05 MPa
Ambient and fluid temperature	-5~60℃(No freezing)

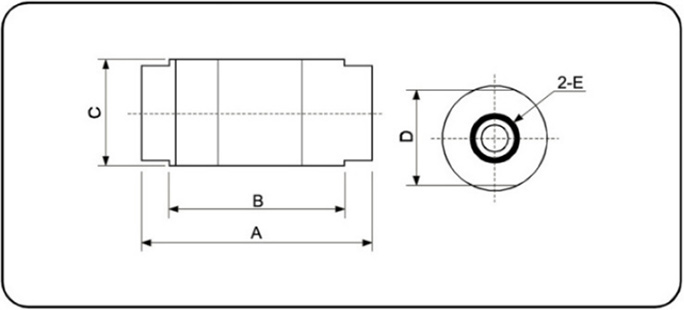

Dimensions


Type	A	B	C	D	E
KA-L6	64	53	φ28	24	PT1/8
KA-L8	64	53	φ28	24	PT1/4
KA-L10	86	66	φ39.5	36	PT3/8
KA-L15	86	66	φ39.5	36	PT1/2
KA-L20	112	90	φ53.5	46	PT3/4
KA-L25	112	90	φ53.5	46	PT1
