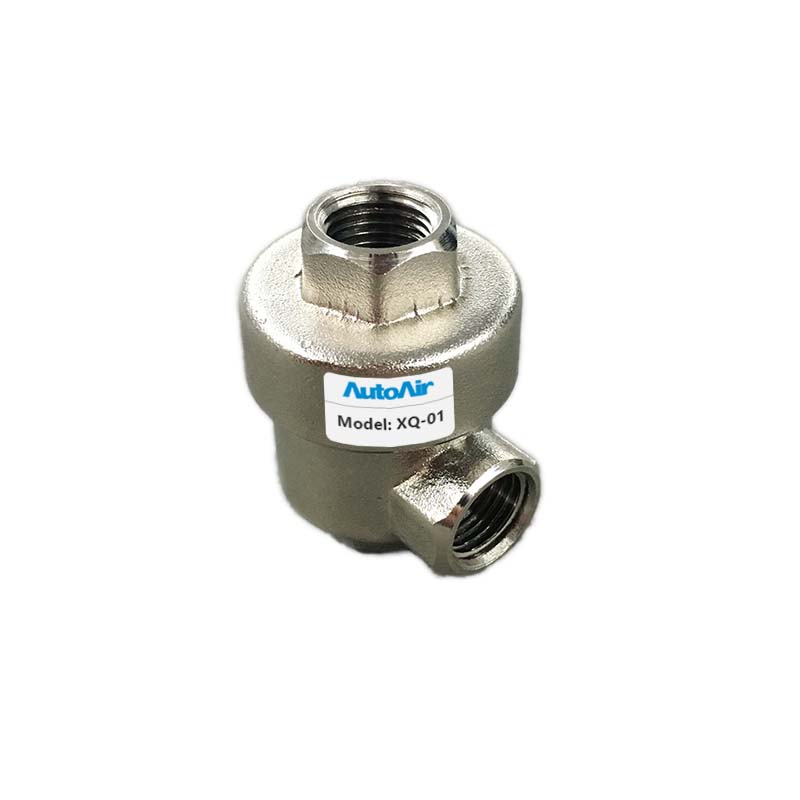

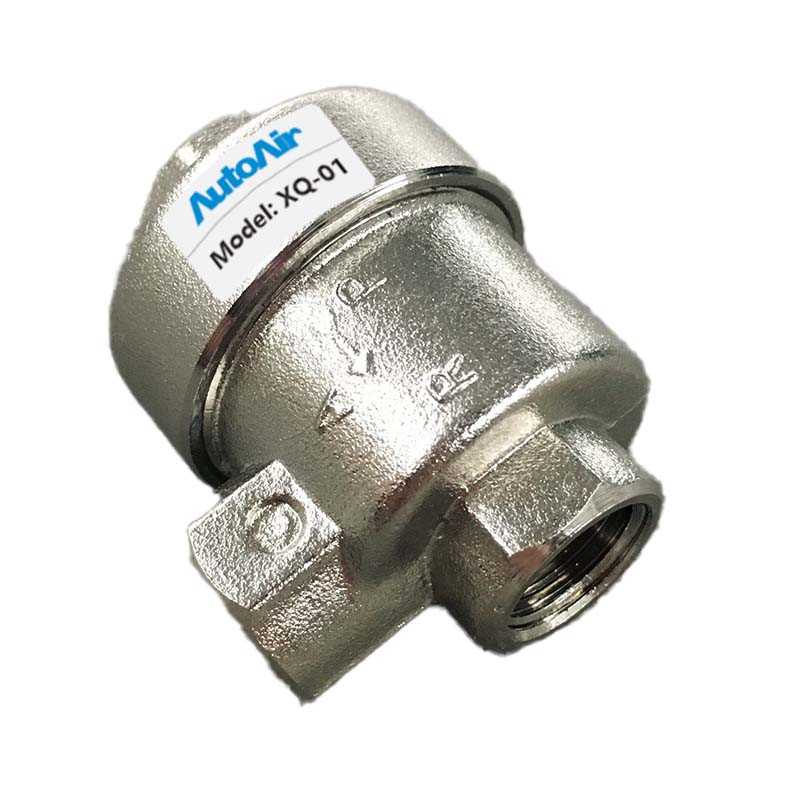

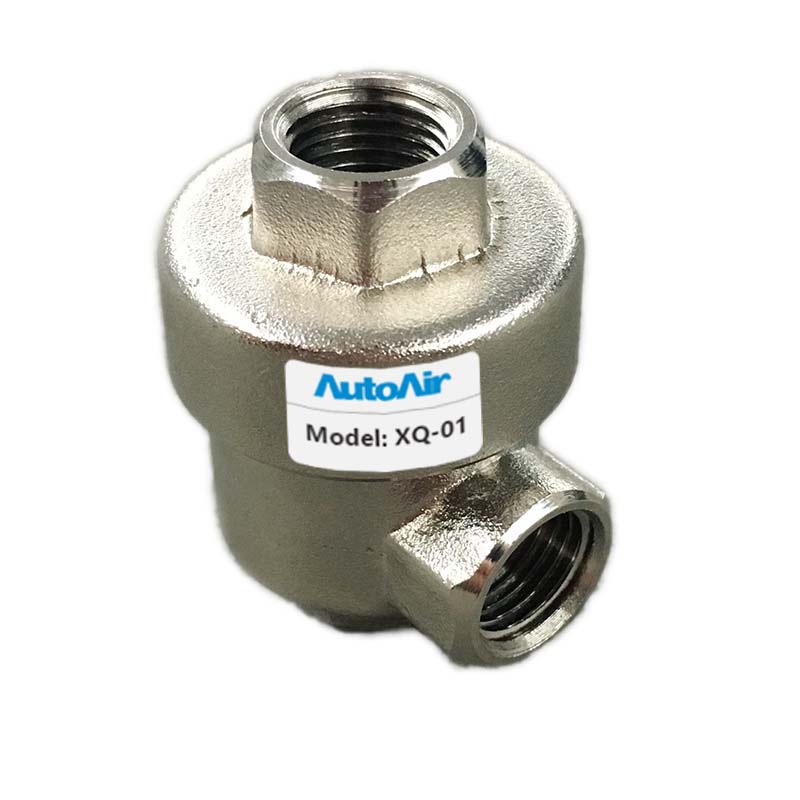

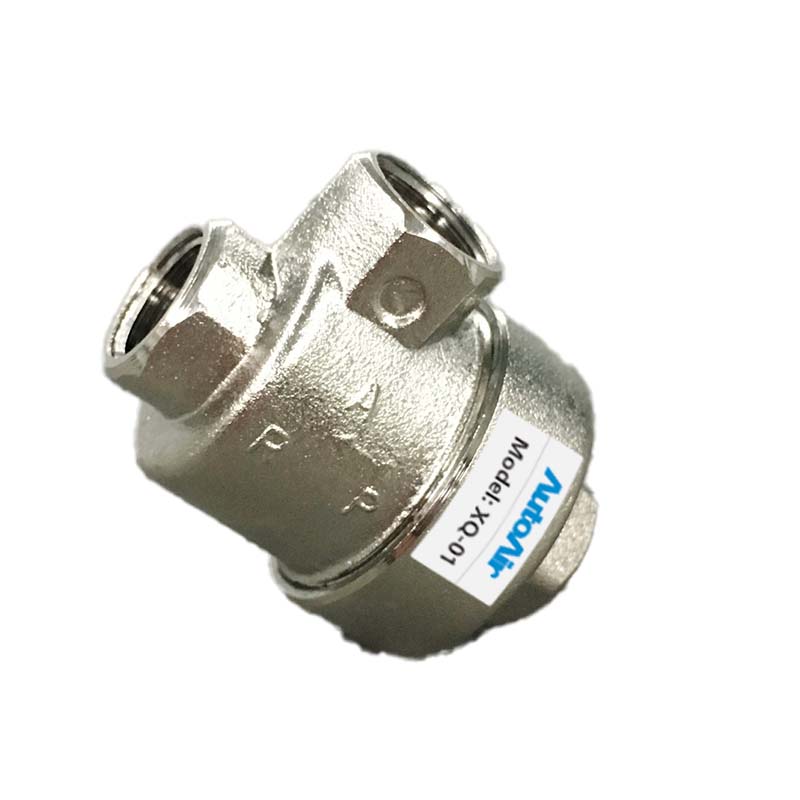

XQ Series Quick Exhaust Valve
  • XQ Series Quick Exhaust Valve
  • XQ Series Quick Exhaust Valve
  • XQ Series Quick Exhaust Valve

XQ Series Quick Exhaust Valve

Timerate(Ten Thousand Times)

≤200

Working Pressure Range

0.12~1.0MPa

Consult Immediately

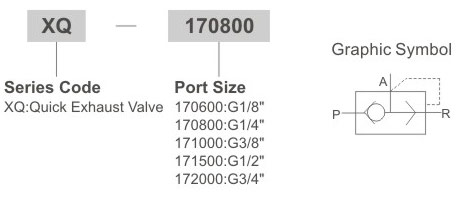

Ordering Code



Specification

Model

XQ170600

XQ170800

XQ171000

XQ171500

Joint Threaded

G1/8"

G1/4"

G3/8"

G1/2"

Port Size

6mm

6mm

8mm

15mm

Flow

≥0.9m3/min

≥0.9m3/min

≥2.5m3/min

≥4.5m3/min

Timerate(Ten Thousand Times)

≤200

Working Pressure Range

0.12~1.0MPa

Exchange Times(S)

≤0.03

≤0.03

≤0.04

≤0.05

Overall Dimensions


Model

T

H

L

XQ170600

G1/8”

39

32

XQ170800

G1/4”

51

45

XQ171000

G3/8”

68

62

XQ171500

G1/2”

77

86
