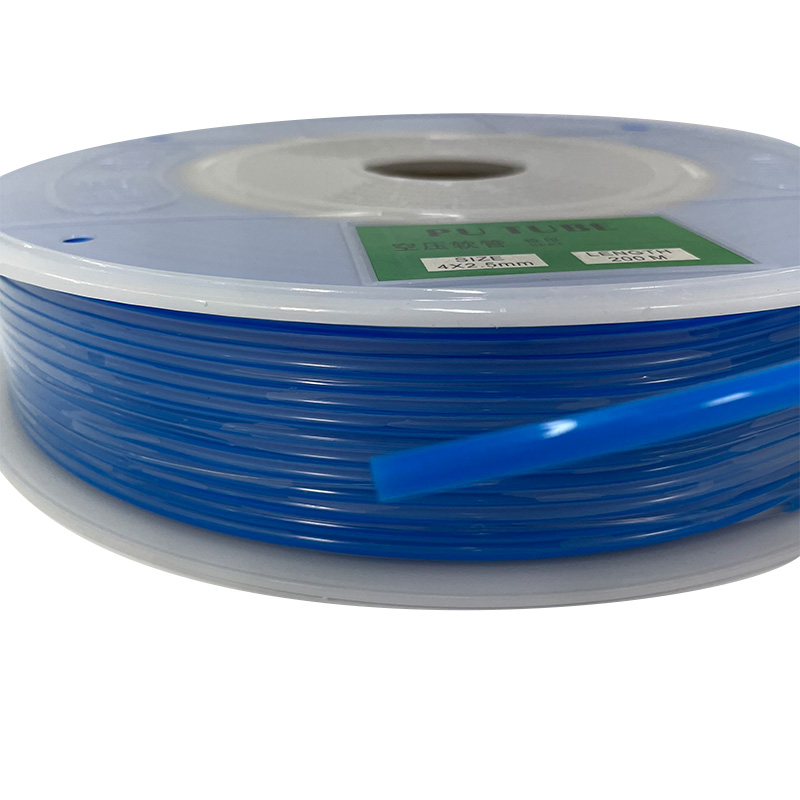

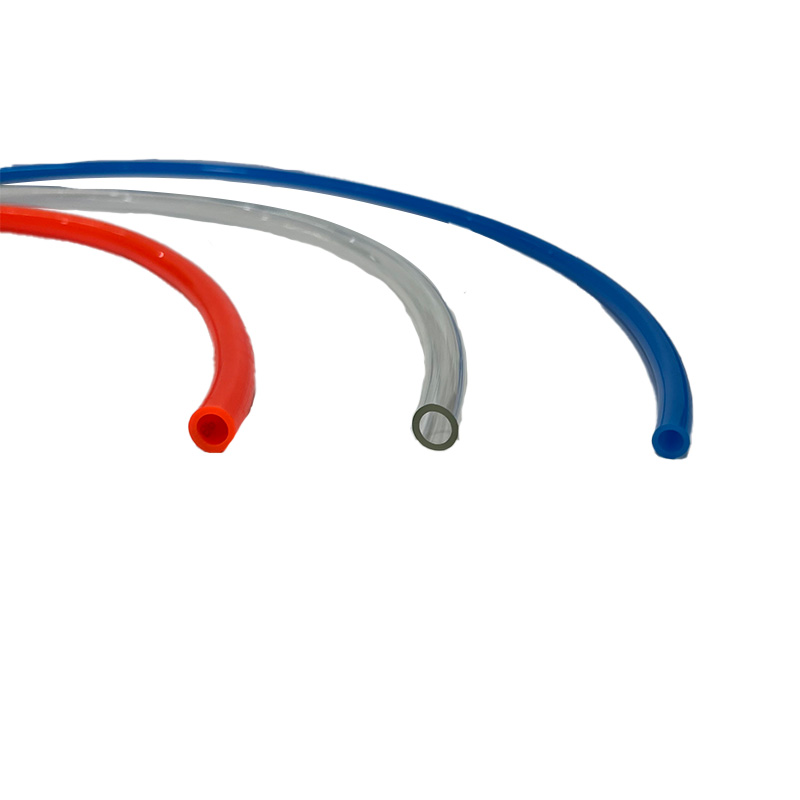

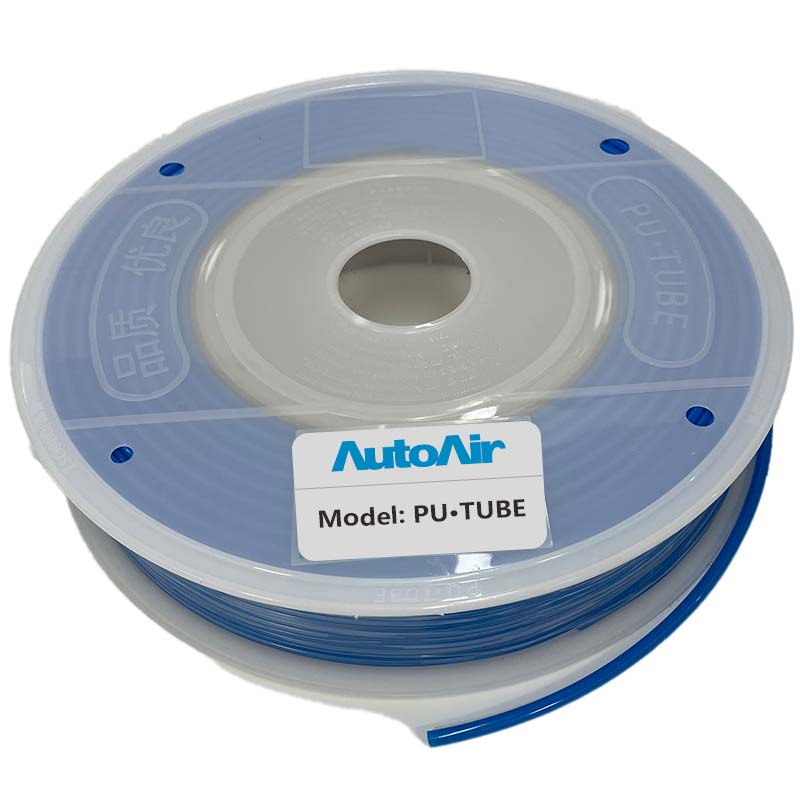

Polyurethane Tube(PU tube)

< >

Polyurethane Tube(PU tube)

Pneumatic system, air toolss

Vacuum

Automation

Plant Imstrumentation

Paint supply Lines

Construction applications

Motion control devices

~~Consult Immediately~~

Product Details

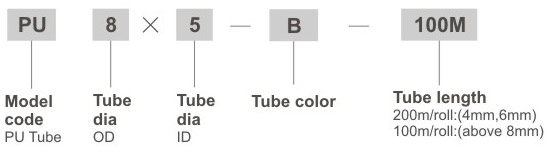

Ordering Code

Specification

Working Medium	Air
Working-Pressure	0~1.0MPa
Ambient Temperature	-15~60℃

Item No	D1	D2	L	Net Weight (Kg Roll)	MAX working pressure at 20℃(bar)	MAX burst pressure at 20℃(bar)	MAX bend radius pressure at 20℃(mm)
PU-0425	4mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-0640	6mm	4mm	200m	3.9	10bar	30bar	15mm
PU-0850	8mm	5mm	100m	3.8	10bar	30bar	20mm
PU-1065	10mm	6.5mm	100m	5.6	10bar	30bar	30mm
PU-1280	12mm	8mm	100m	7.8	10bar	30bar	35mm
PU-1410	14mm	10mm	100m	9.4	8bar	24bar	55mm
PU-1612	16mm	12mm	100m	11	8bar	24bar	65mm

RecoilHose

Model	Inside Diameter	Outer side Diameter	Length	Working Pressure	(20℃)Disruptive Pressure	Material	Working Temperature
Model	mm	mm	M	MPa	MPa	PU	℃
PU0604-3M	4	6	3	0.8	2.4	PU	—30~70
PU0604-6M	4	6	6	0.8	2.4	PU
PU0604-7.5M	4	6	7.5	0.8	2.4	PU
PU0604-9M	4	6	9	0.8	2.4	PU
PU0604-12M	4	6	12	0.8	2.4	PU
PU0604-15M	4	6	15	0.8	2.4	PU
PU0805-3M	5	8	3	0.8	2.4	PU
PU0805-6M	5	8	6	0.8	2.4	PU
PU0805-7.5M	5	8	7.5	0.8	2.4	PU
PU0805-9M	5	8	9	0.8	2.4	PU
PU0805-12M	5	8	12	0.8	2.4	PU
PU0805-15M	5	8	15	0.8	2.4	PU
PU1065-3M	6.5	10	3	0.8	2.4	PU
PU1065-6M	6.5	10	6	0.8	2.4	PU
PU1065-7.5M	6.5	10	7.5	0.8	2.4	PU
PU1065-9M	6.5	10	9	0.8	2.4	PU
PU1065-12M	6.5	10	12	0.8	2.4	PU
PU1065-15M	6.5	10	15	0.8	2.4	PU
PU1208-3M	8	12	3	0.8	2.4	PU
PU1208-6M	8	12	6	0.8	2.4	PU
PU1208-7.5M	8	12	7.5	0.8	2.4	PU
PU1208-9M	8	12	9	0.8	2.4	PU
PU1208-12M	8	12	12	0.8	2.4	PU
PU1208-15M	8	12	15	0.8	2.4	PU
