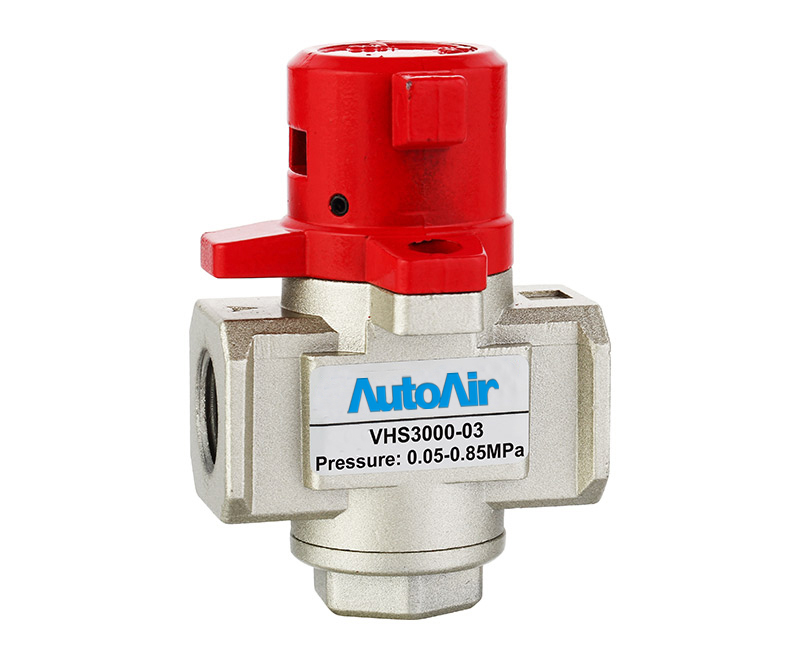

VHS Series Venting Safety Lock-out Valve

< >

VHS Series Venting Safety Lock-out Valve

It is easy to be maintained because it can realse the pressure of the hypo-pressure side when it is working.It can ensure the safty of the maintenance man bceasue of the lockup functinon.

~~Consult Immediately~~

Product Details

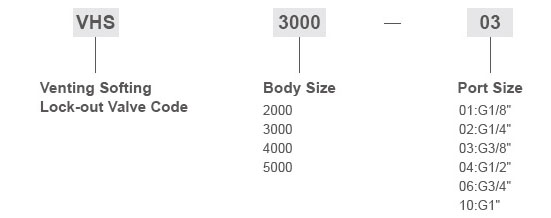

Ordering Code

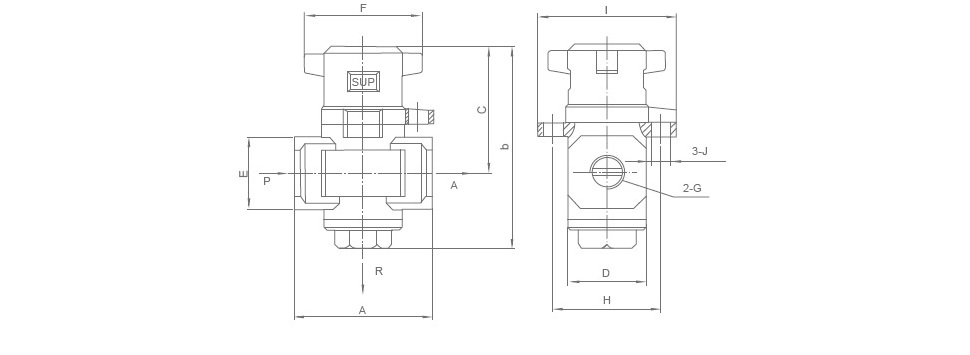

Overall Dimensions

Model	G	Vent size	A	B	C	D	E	F	H	I	J
VHS2000-01	G1/8	G1/8	40	59	39	28	22	40	32	41	￠6
VHS2000-02	G1/4	G1/8	40	59	39	28	22	40	32	41	￠6
VHS3000-02	G1/4	G1/4	53	78	49	30	28	45	41.5	53	￠7.5
VHS3000-03	G3/8	G1/4	53	78	49	30	28	45	41.5	53	￠7.5
VHS4000-03	G3/8	G3/8	70	84	52	36	36	45	41.5	53	￠7.5
VHS4000-04	G1/2	G3/8	70	84	52	36	36	45	41.5	53	￠7.5
VHS5000-06	G3/4	G1/2	90	136	72	54	48	68	77	90	￠8.5
VHS5000-10	G1	G1/2	90	136	72	54	48	68	77	90	￠8.5
