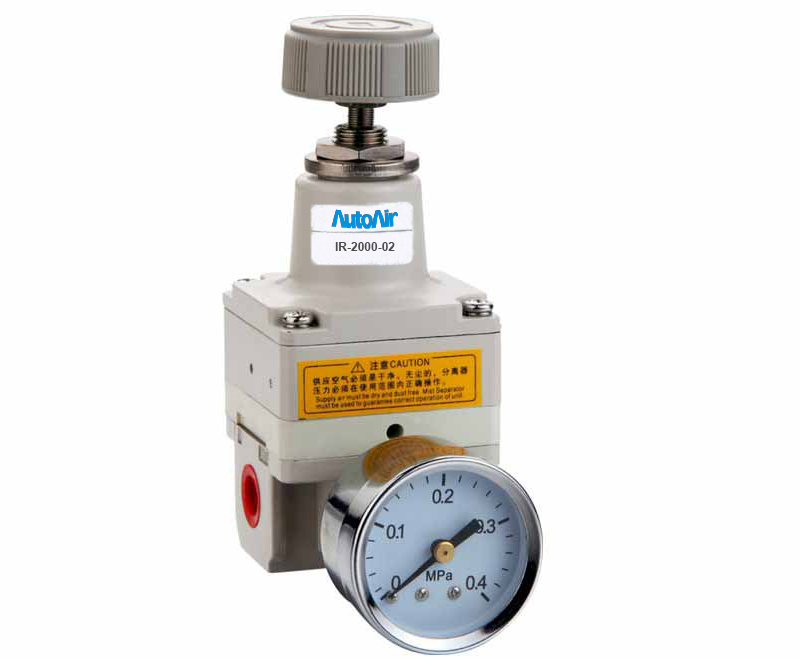

IR Series Precision Regulator
  • IR Series Precision Regulator

IR Series Precision Regulator


Maximum pressure


1.0MPa


Sensitivity


Within 0.2% of full span


Repeatability


Within ±0.5% of full span


Ambient and Fluid Temperature


-5~+60(With no freezing)


Pressure Gange Port


G1/8

Consult Immediately

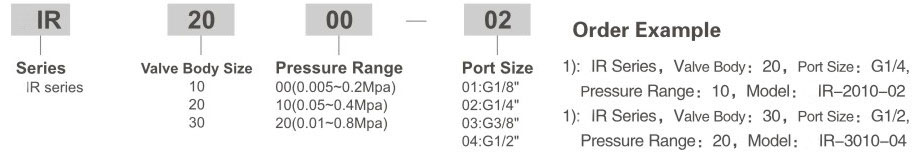

Ordering Code


Specification

Specification

IR1000-01

IR1010-01

IR1020-01

IR2000-02

IR2010-02

IR2020-02

IR3000-03/04

IR3010-03/04

IR3020-03/04

Pressure Range

0.005~0.2

0.01~0.4

0.01~0.8

0.005~0.2

0.01~0.2

0.01~0.8

0.01~0.2

0.01~0.4

0.01~0.8

Port Size

G1/8

G1/4

G3/8. G1/2

Air consumption

Max 3.5L/min

Max 3.1L/min

Max 9.5L/min Outlet: Max 2L/min

Minimum pressure

Setting pressure+0.05

Setting pressure+0.05

Setting pressure+0.05

Maximum pressure

1.0MPa

Sensitivity

Within 0.2% of full span

Repeatability

Within ±0.5% of full span

Ambient and Fluid Temperature

-5~+60(With no freezing)

Pressure Gange Port

G1/8

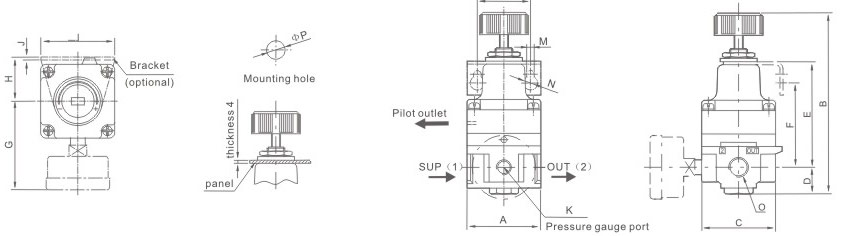

Overall Dimensions


Model

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

IR1000-01

35

90

35

10

51

44

43

25

42

2

G1/8

28

4.5

Φ8.5

G1/8

Φ10.5

IR1010-01

35

90

35

10

51

44

43

25

42

2

G1/8

28

4.5

Φ8.5

G1/8

Φ10.5

IR1020-01

35

90

35

10

51

44

43

25

42

2

G1/8

28

4.5

Φ8.5

G1/8

Φ10.5

IR2000-02

50

123

50

18

71

63

60

30

50

2

G1/8

36

5.5

Φ9.5

G1/8

Φ12.5

IR2010-02

50

123

50

18

71

63

60

30

50

2

G1/8

36

5.5

Φ9.5

G1/8

Φ12.5

IR2020-02

50

123

50

18

71

63

60

30

50

2

G1/8

36

5.5

Φ9.5

G1/8

Φ12.5

IR3000-03

66

148

66

22

76

76

68

48

82

2.3

G1/8

60

9

Φ15.5

G3/8

Φ12.5

IR3010-03

66

148

66

22

76

76

68

48

82

2.3

G1/8

60

9

Φ15.5

G1/2

Φ12.5

IR3020-03

66

148

66

22

76

76

68

48

82

2.3

G1/8

60

9

Φ15.5


Φ12.5
