Selecting the right pneumatic fittings is critical to ensuring the efficiency, safety, and longevity of your pneumatic system. The choice primarily depends on your specific working conditions—especially operating pressure—and environmental requirements. Below is a guide to help you pick the ideal pneumatic fitting for your needs:
For Working Pressure Below 10bar (1MPa)
When your pneumatic system operates at pressures below 10bar, regular pneumatic push-in fittings are an excellent choice. These standard pneumatic fittings offer a perfect balance of performance and cost-effectiveness, making them ideal for most low-pressure applications. Their straightforward design ensures easy installation, while their reliable sealing and locking mechanisms keep pneumatic tubing securely connected—all at a budget-friendly price point.
For Working Pressure Between 10~30bar (1~3MPa)
For systems with pressures ranging from 10 to 30bar, opt for more robust pneumatic fittings. We recommend either full brass nickel-plated one-touch pneumatic fittings or stainless steel push-to-connect fittings. Both types are engineered to withstand higher pressure loads than regular push-in models, with enhanced durability and sealing capabilities to prevent leaks under increased stress. Whether you need the corrosion resistance of nickel-plated brass or the ruggedness of stainless steel, these pneumatic fittings deliver consistent performance in medium-pressure environments.
For Working Pressure Above 30bar (3MPa)

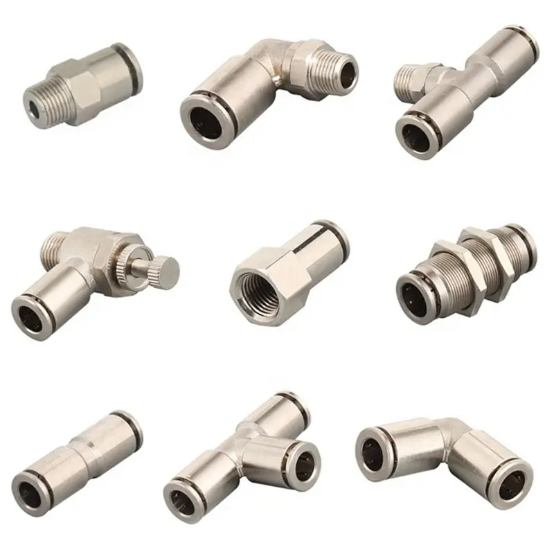

When operating pressures exceed 30bar, the integrated-style full brass nickel-plated one-touch pneumatic fittings are the go-to option. Unlike reed-style pneumatic fittings, which rely on a separate locking reed, the integrated design combines the locking mechanism and push button into a single, reinforced structure. This makes them far more resistant to high-pressure forces, ensuring a secure connection even in extreme conditions where lower-grade pneumatic fittings would fail.
For Special Environments
Certain industrial settings demand pneumatic fittings with specialized properties:

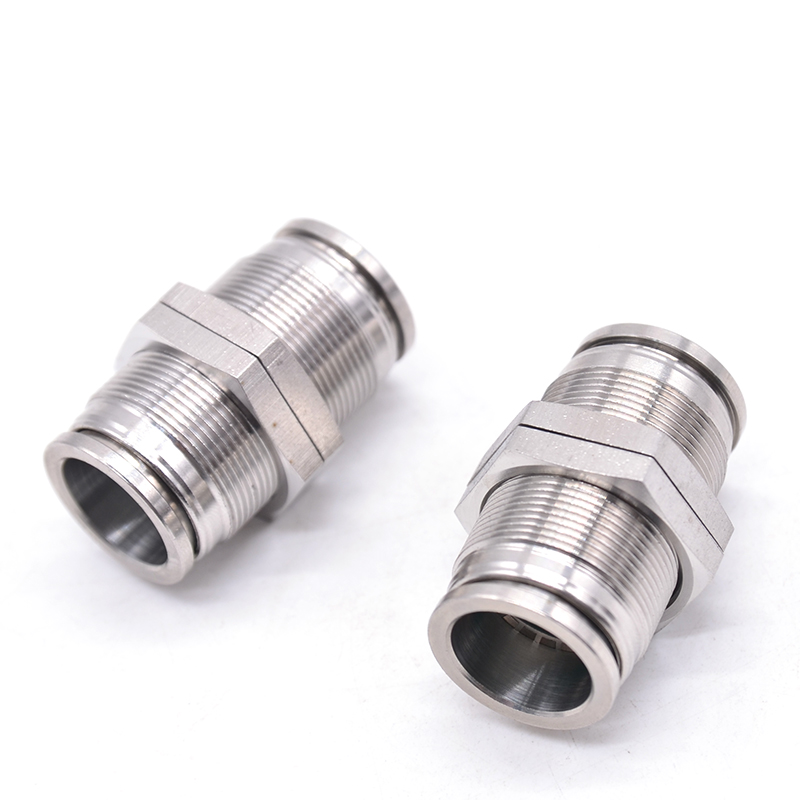

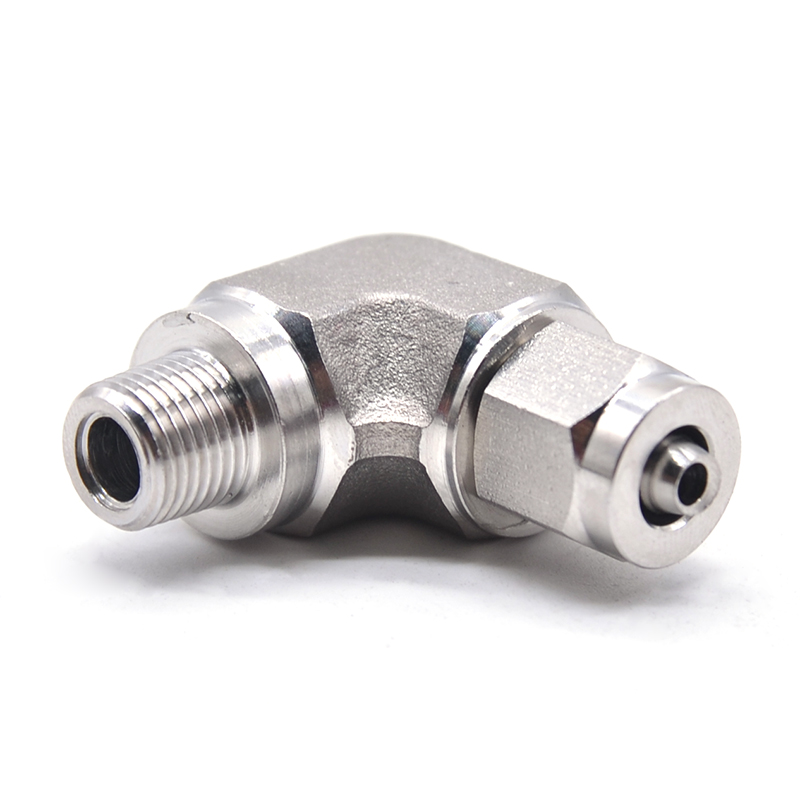

Corrosive environments (e.g., exposure to acids, alkalis, or harsh chemicals): Choose full stainless steel push-to-connect fittings. Their all-stainless-steel construction (304, 316, or 316L) and FKM seals resist corrosion, maintaining integrity even in aggressive conditions.
Food, beverage, or pharmaceutical industries: Stainless steel pneumatic fittings are also preferred here, as they meet strict hygiene standards, are easy to clean, and avoid contamination—critical for applications where purity is non-negotiable.
By aligning your choice of pneumatic fitting with your system’s working pressure, environmental conditions, and industry requirements, you can ensure optimal performance, minimize downtime, and extend the life of your pneumatic system. Always prioritize compatibility between the pneumatic fitting, tubing, and operating parameters to achieve the best results.
