Pneumatic control valves are essential pneumatic components that regulate the pressure, flow rate, and direction of airflow in pneumatic systems. Their key function is to ensure the stable and proper operation of pneumatic actuators or mechanical mechanisms.
The element that controls and regulates the pressure of compressed air is called a pressure control valve; the one that controls and regulates the flow of compressed air is known as a fluid solenoid valve; and the element that changes and controls the direction of airflow is referred to as a directional control valve.
Below is a detailed breakdown of three key types: pressure control valves, flow control valves, and directional control valves, including their functions, types, and usage scenarios.
Pressure control valves
Function
Pressure control valves regulate and stabilize air pressure in pneumatic systems, preventing excessive pressure spikes or drops. They ensure system safety and maintain consistent operation of connected equipment.
Common Types
Pressure Regulator: Reduces and stabilizes high-pressure input gas to a preset low-pressure outpu.
Relief Valve: Automatically opens to release excess gas when system pressure exceeds a set threshold, protecting components from overpressure damage.
Sequence Valve: Controls multiple actuators to operate in a specific order based on preset pressure levels, coordinating sequential actions in automated processes.
Typical Applications
Ideal for pneumatic systems requiring precise pressure control, such as clamping devices and pressing equipment.
Flow Control Valve
Function
Flow control valves regulate the flow rate of gas in pneumatic systems, by adjusting the speed of actuator movements (e.g., cylinder extension or retraction).
Common Types
One-Way Flow Control Valve: Restricts flow in one direction (to control speed) while allowing unrestricted flow in the another direction, suitable for single-action cylinder speed adjustment.
Throttle Valve: Adjusts flow bidirectionally.
Typical Applications
Widely used to regulate the speed of cylinder push rods, ensuring smooth, energy-efficient movement in applications.
Directional Control Valve
Function
Directional control valves manage the on/off status and flow direction of compressed air, determining the movement direction of cylinders or whether they operate at all.
Common Types
2/2 Valve: Features 2 ports and 2 positions (on/off).
3/2 Valve: Equipped with 3 ports (intake, working, exhaust) and 2 positions.
5/2 or 5/3 Valve: Commonly used for double-acting cylinders, with 5 ports and 2/3 positions to control telescopic movements (extension/retraction).
Typical Applications
Essential in automation equipment for controlling single/double-acting cylinders, pneumatic motors, and valve actuators—critical for tasks like lifting, pushing, or rotating in manufacturing and packaging lines.
Common pneumatic control valves mainly include angle seat valve, pneumatic drain valve, pneumatic filling valve, pneumatic globe valve, pneumatic actuator, pneumatic actuator ball valve, pneumatic three-way ball valve, quick exhaust valve, etc.
Our pneumatic control valves have characteristics of compact structure, light weight, easy installation, high operating frequency, long service life and stable working performance.These features make our pneumatic control valves suitable for manufacturing, automation, chemical processing,etc.
★Plastic Head Stainless Steel Angle Valve

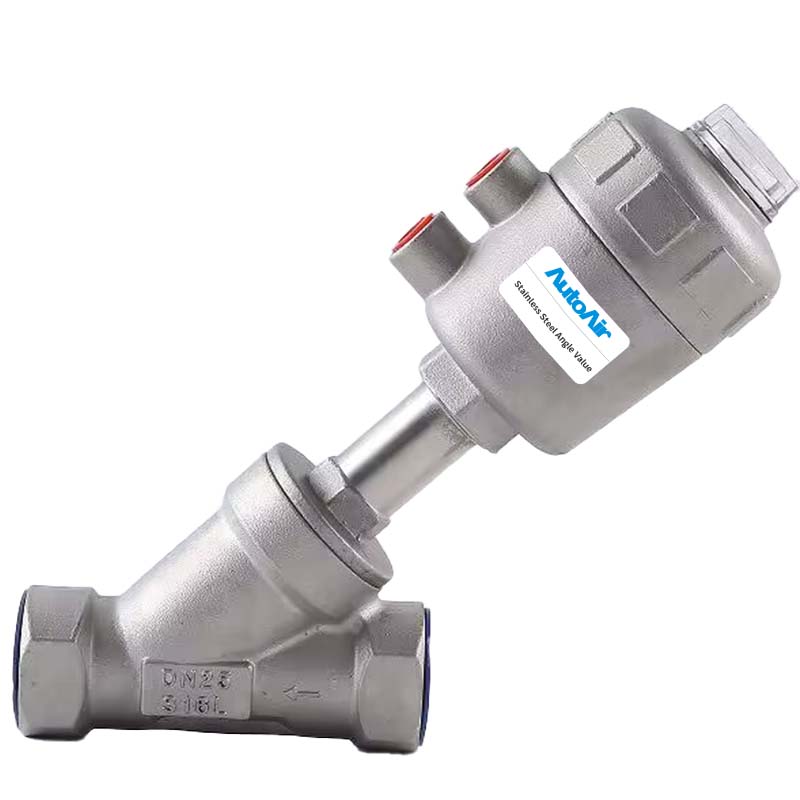

★Full Stainless Steel Angle Valve
★DMFZ Right Angle Pulse Valve
★DMF-Y In Line Pulse Valve
★DMF Series Insert Pipe Type Pulse Valve
★2Q Series Air Control Valve
Need pneumatic control valves? Autoair has a wide range of pneumatic control valves to meet your specific needs.
Feel free to contact us to learn more about our products, and we will recommend the most suitable pneumatic solution and the best price for you.
