What is a Mini Pneumatic Cylinder?
A mini pneumatic cylinder, also referred to as a miniature pneumatic actuator, is defined by its compact size and lightweight design. It is specifically engineered for automation applications where space is constrained and loads are light. Operating on the same fundamental principle as standard pneumatic cylinders, it uses compressed air to drive a piston in linear reciprocating motion. Its reduced dimensions make it particularly suitable for precision equipment or compact machinery.
In many automation control systems, pneumatic cylinders are paired with reed sensor switches to monitor piston travel. For mini pneumatic cylinders, reed switches from the CS1-U and CS1-S series are commonly used, though they require an additional fixing belt for installation.
Types of Mini Pneumatic Cylinders
Mini pneumatic cylinders, such as the MA, MAL, and DSN models, are all double-acting types, each with unique features tailored to specific applications:
MA Mini Pneumatic Cylinder: Boasting a compact and lightweight design, it excels in space-constrained installations while maintaining efficient performance.

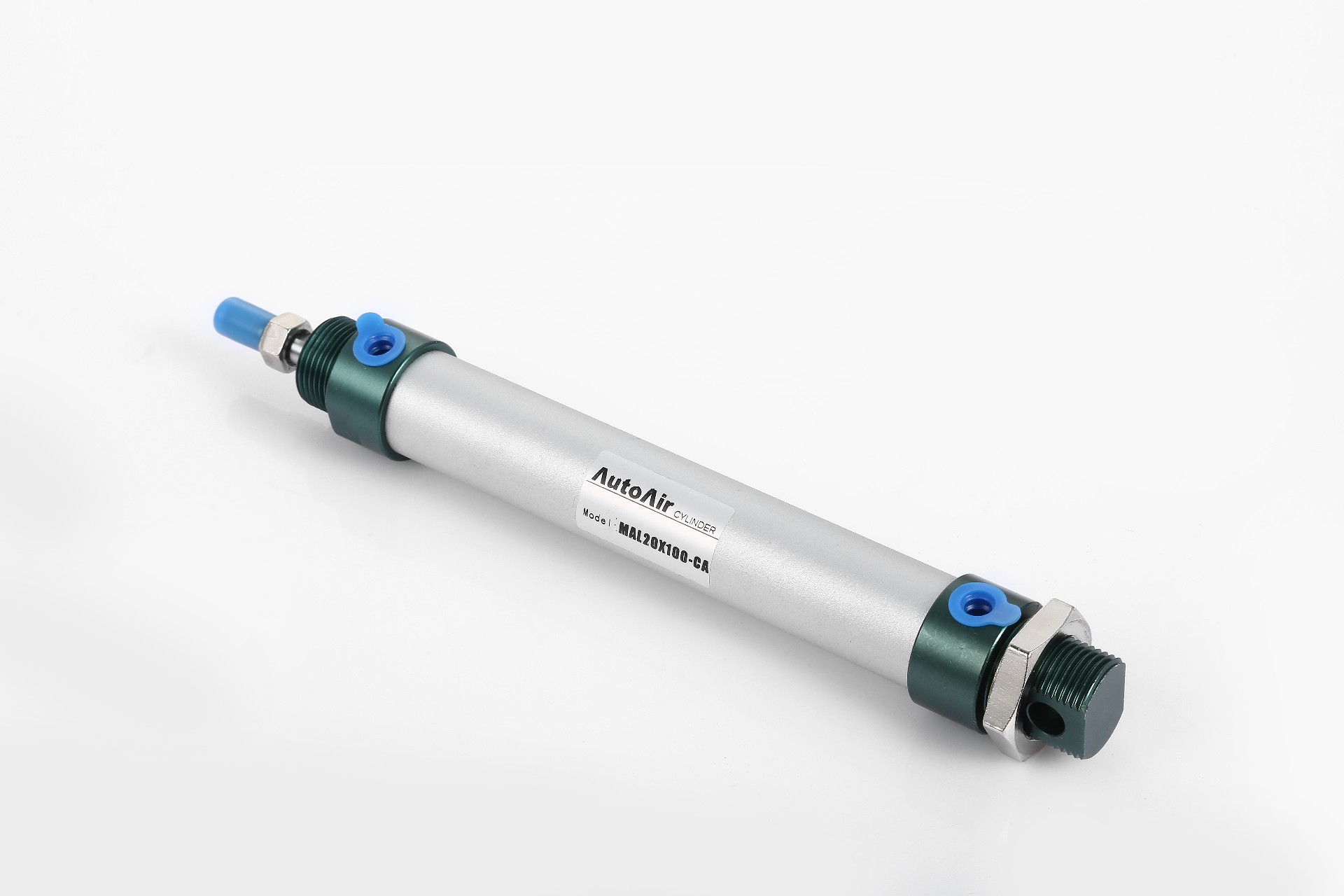

MAL Mini Pneumatic Cylinder: Constructed with an aluminum body, it offers enhanced corrosion resistance and durability, making it ideal for demanding pneumatic environments.
DSN Mini Pneumatic Cylinder: Compliant with the ISO6432 standard, it shares similar functionality with the MA cylinder but adheres to international specifications for broader compatibility.
Notable examples from SMC, a leading manufacturer in pneumatic components, include:
The stainless steel cylindrical CJ2 series,
The pen-style CJP series,
The ultra-thin CU series, among others.
These diverse mini pneumatic cylinders are widely utilized in automation, robotics, and precision equipment, meeting the demands for miniaturization, precision, and efficiency across industries. The Autoair team supplies a range of these models, including MA, MAL, and DSN cylinders.
Features of Mini Pneumatic Cylinders
Compact Bore and Stroke: Their small bore and stroke dimensions (typically ranging from 6mm to 32mm in bore diameter) make them perfect for applications with limited space, such as small-scale robotics or (precision instruments).
High-Precision Stainless Steel Tubes: Models like the DSN and MA feature high-precision stainless steel tubes, offering superior strength and corrosion resistance compared to MAL cylinders—ideal for durable, precise operation in challenging environments (e.g., humid or dusty settings).
Versatile End Cover Configurations: Multiple end cap designs (including flange, thread, and trunnion mounts) enhance installation convenience and flexibility, adapting to various mechanical setups.
Specialized Bidirectional Sealing Structure: This unique structure ensures airtightness while maintaining a compact footprint, enabling efficient operation with minimal air leakage.
Self-Lubricating Bearing Guide in Front Cover: Equipped with a self-lubricating bearing guide, it delivers consistent lubrication performance, reducing friction and ensuring smooth, low-maintenance operation over extended cycles.
Technical Parameters of Mini Pneumatic Cylinders
When selecting a mini pneumatic cylinder, key operational parameters should be carefully considered:
Working pressure: 0.1~1.0MPa
Ambient temperature: -20~80℃
Applicable fluid medium: Compressed air, non-corrosive gases
Operating speed: 30-800mm/s
Compatible reed switch types: CS1-S, CS1-U series, etc.
Conclusion
As a professional Chinese pneumatic cylinder distributor, Autoair specializes in the research, development, and production of mini pneumatic cylinders. We offer renowned products such as Festo mini cylinders and other classic models, solidifying our position as a leading manufacturer of miniature pneumatic cylinders in China. With a well-established factory and supply chain system, we are committed to providing customers with high-quality, competitively priced mini pneumatic cylinder products. Whether you require pressure control solutions, accessory kits, or custom-made designs, we can meet diverse market needs and strive to be your trusted supplier.
