Flow control valves are core components designed to regulate the volume of fluid (liquid or gas) passing through pipelines, ensuring stable flow rates for system performance. Used across hydraulic, pneumatic, water, and gas systems, they range from simple manual devices to sophisticated units that auto-adjust for pressure/temperature changes—becoming indispensable in machinery, electronics, and automation as manufacturing shifts toward intelligence, precision, and energy efficiency.
What is a Flow Control Valve?
A flow control valve (often abbreviated as FCV) is a mechanical device that manages fluid/gas flow in pipelines. Its typical structure includes a throttle needle, valve body, check valve disc, adjustment knob/screw, and sealing rings—enabling precise control over media like compressed air, water, hydraulic oil, and inert gases.
It comes in two main operation modes:
Manual: Adjusted by hand (the focus here), similar to traditional mechanical valves.
Automatic: Uses sensors/controllers for real-time, hands-free regulation.
Common Flow Control Valve Types
Different series cater to specific pneumatic system needs, with compressed air as the primary medium (some work for other gases or low-viscosity liquids):

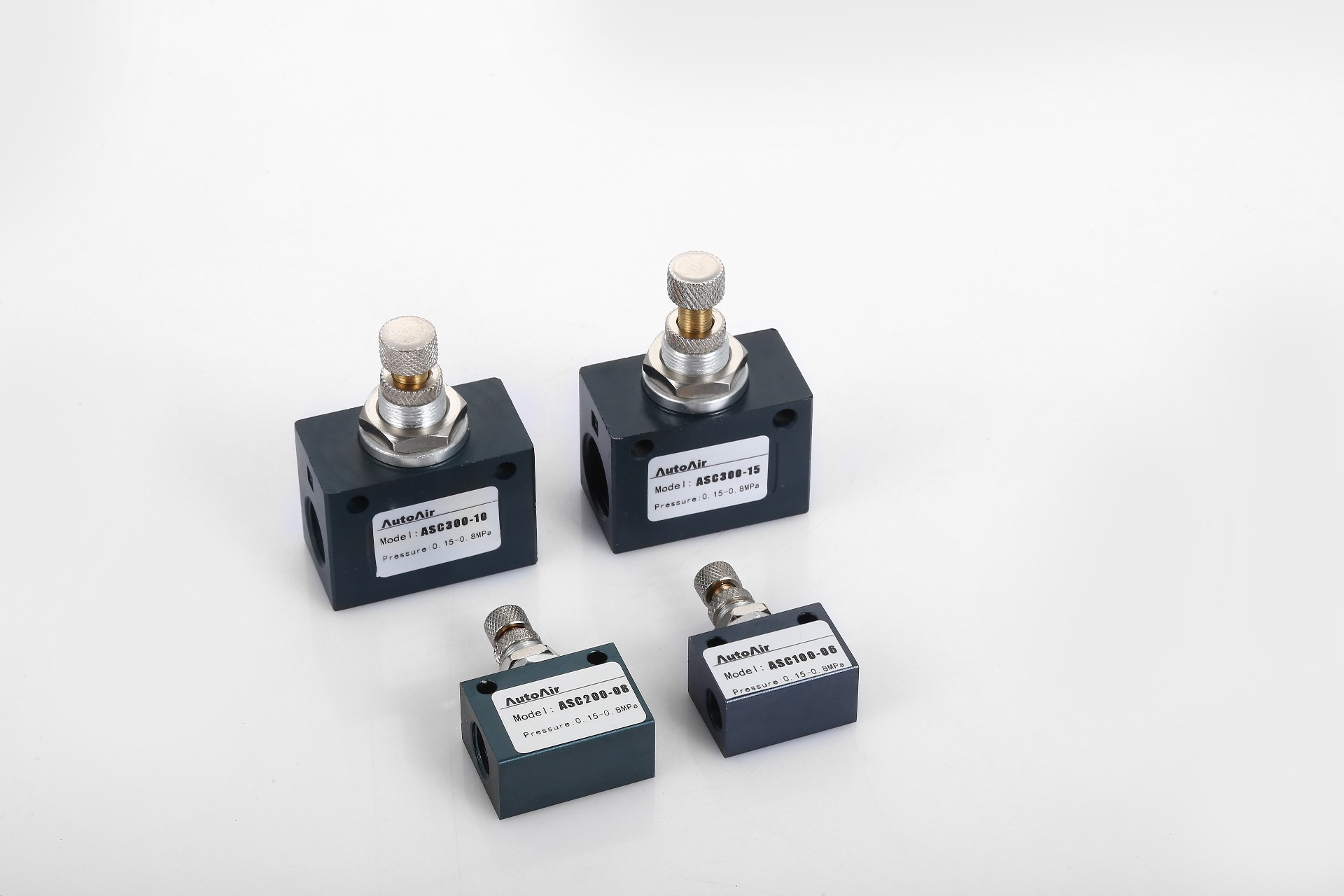

1. ASC Series Flow Control Valve
Regulates both fluid flow and pressure.
Responds to signals from external devices .
Customizable thread types (PT, NPT, etc.).
Controls liquid speed at the intake port.
2. RE Series Flow Control Valve
Manual adjustment, ideal for general pneumatic systems.
3. KLA Series Flow Control Check Valve
Manual internal structure adjustment for one-way flow control.
Includes a check function to prevent reverse flow.
Key Advantages of Flow Control Valves
Precise Flow Regulation: Ensures consistent media volume for system accuracy.
Boosted System Efficiency: Optimizes fluid/gas use, reducing energy waste.
Extended Equipment Lifespan: Stabilizes pressure/flow to minimize component wear.
Multi-Media Compatibility: Works with air, water, hydraulic oil, and inert gases.
Compact Design: Fits in space-constrained setups.
Reliable Performance: Maintains consistent operation under standard conditions.
How Do Flow Control Valves Work?
Regardless of the medium, FCVs follow core principles to regulate flow:
1. Flow Restriction
The valve adjusts the size of its internal opening (orifice) to create resistance. Narrowing the orifice reduces flow; widening it increases flow. Adjustments are made manually (via knobs) or automatically (via actuators).
2. Adjustable or Fixed Settings
Valves either lock into a fixed flow rate or allow on-the-fly adjustments via knobs, actuators, or electronic controllers to match system needs.
3. Pressure Compensation (for Advanced Models)
Pressure-compensated FCVs auto-adjust the orifice size when system pressure fluctuates, ensuring steady flow—vital for applications where stability is non-negotiable.
4. Manual vs. Automatic Control
Manual: Operators adjust the valve directly to set desired flow.
Automatic: Sensors feed real-time data to controllers, which tweak the valve without human input.
Modern flow control valves enhance system performance by working with external components (sensors, controllers, actuators). Whether manual or automated, they deliver precision, efficiency, and reliability—making them a cornerstone of diverse industries, from manufacturing to enviro
