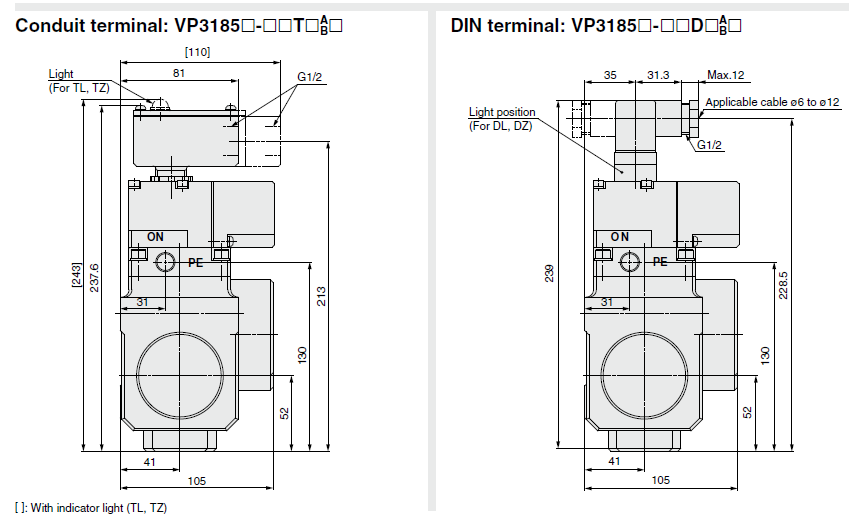

Large Size 3-Port Solenoid Valve VP3145/3165/3185

Type of actuation

N.C. or N.O. (Convertible)

Pilot type

Internal pilot

External pilot

For general

For vacuum/low pressure

For general

Operating pressure range (MPa)

Main pressure

0.2 to 0.8

–101.2 kPa to 0.2

0.2 to 0.8

Pilot pressure

0.2 to 0.3

Refer to
the graph left.

Ambient and fluid temperature (°C)

0 (No freezing) to 60

Response time (ms)
(at the pressure of 0.5 MPa)

ON

AC

30 or less

OFF

AC

30 or less

DC

40 or less

DC

30 or less

Max. operating frequency (Hz)

3

Lubrication

Required (Equivalent to turbine oil Class1 ISO VG32)

Manual override

Yes (Non-locking)

Mounting orientation

Unrestricted

Impact/Vibration resistance (m/s2)

150/50
