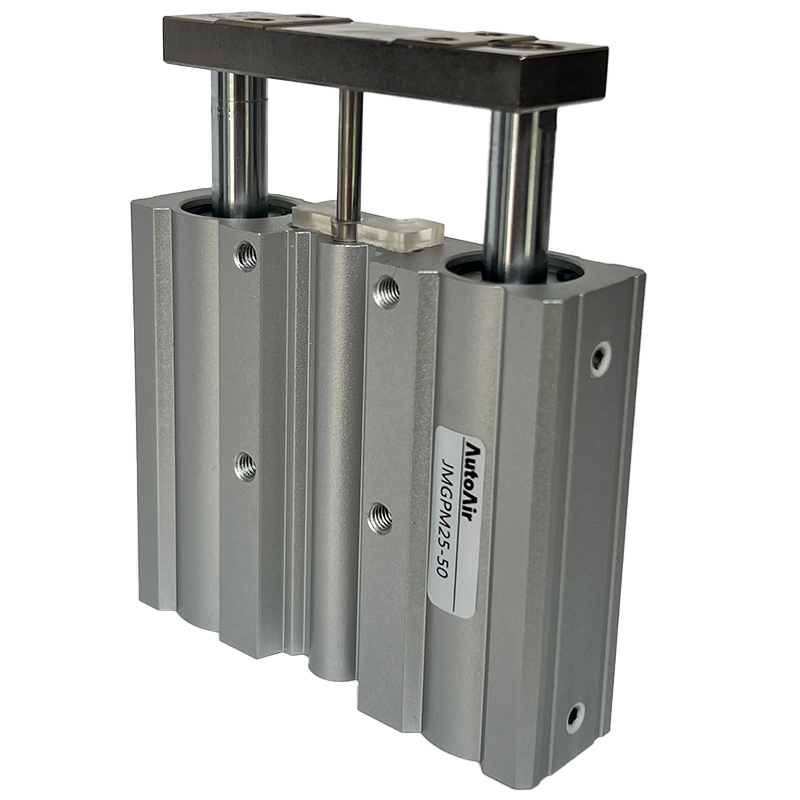

・Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm
・Weight: Max. 69% lighter (0.32 kg → 0.1 kg)
・3 mounting options:
Top mounting, Bottom mounting, Rear mounting
・Piping is possible in 4 directions.
・The solid state auto switch D-M9 is mountable.
・Suitable for pushing, lifting, or clamping in a transport line.
| Bore Size | φ12 | φ16 | φ20 | φ25 | φ32 | φ40 | φ50 | φ63 | φ80 | φ100 |
| Action | Double Acting | |||||||||
| Fluid | Air | |||||||||
| Proof pressure | 1.05MPa | |||||||||
| Max operating pressure | 0.7MPa | |||||||||
| Min operating pressure | 0.15MPa | |||||||||
| Ambint and fluid temperatures | 5 to 60℃ | |||||||||
| Piston speed | 50 To 300 mm/S | 50 to 250 mm/S | ||||||||
| Cushion | Not required(non-lube) | |||||||||
| Lubrication | Not required(non-lube) | |||||||||
