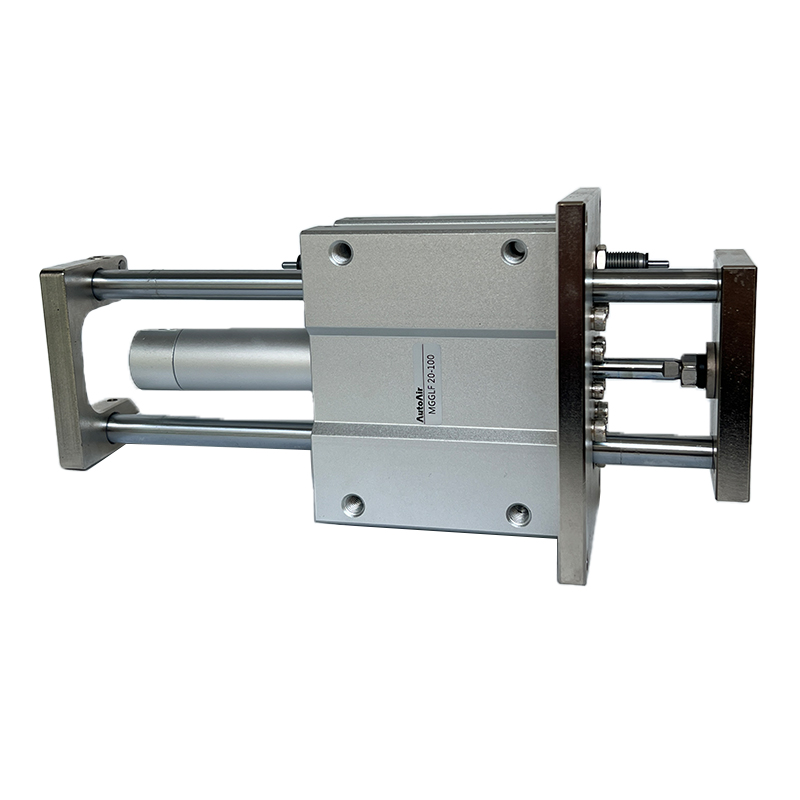

・Basic cylinder with integrated guide rods in a compact configuration
・A linear transfer unit that achieves lateral load resistance and high non-rotating accuracy
| Model | MGG 20 | MGG 25 | MGG 32 | MGG 40 | MGG 50 | MGG 63 | MGG 80 | MGG 100 | |
| Action | Double Acting | ||||||||
| Fluid | Air | ||||||||
| Proof pressure | 1.5MPa | ||||||||
| Max Pressure | 1.0MPa | ||||||||
| Min Pressure | 0.15MPa（Horizontal with no load） | ||||||||
| Cushion | Basic cylinder | Rubber bumper | |||||||
| Guide unit | Built-in shock absorbers（2pcs） | ||||||||
| Piping port size | 1/8 | 1/4 | 3/8 | 1/2 | |||||
