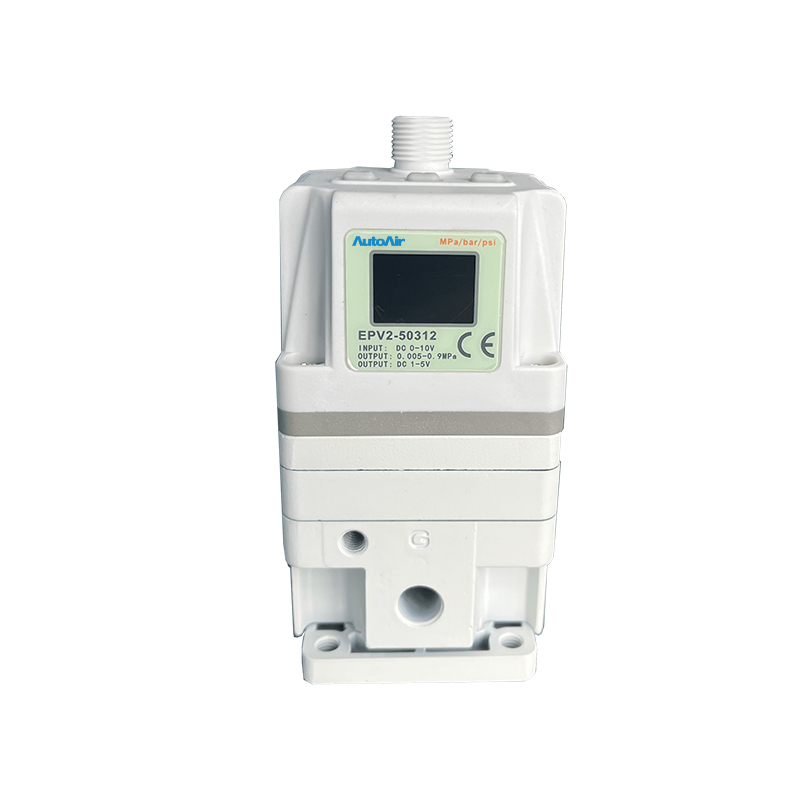

SMC Type EPV1 EPV2 EPV3 Electric Proportional Valve Electro-Pneumatic Regulator ITV Series Pneumatic Electronic Vacuum Pressure Regulator Proportional Valve

EPV2-5

EPV3-1

EPV3-5

Min.supply pressure

0.2Mpa

0.005-0.9Mpa

Power supply

DC:24V 10%

Current

Input Signal

Current Type

DC4-20mA DC0-20mA

Voltage Type

DC0-5V DC0-10V

Preset Type

4 point

Input Impedance

Current Type

Below 250Ω

Voltage Type

Approx 6.5KΩ

Preset Type

Preset input type 24VDC approx 4.7KΩ

Output Signal

Analog output

DC1~5V（load impedance:over 1KΩ）
DC4~20mA（load impedance:below250Ω）

Output Precision within range the range of 6%F.S.

Switch output

PNP-OC output type：30mA

Linear

1% F.S

Hysteresis

0.5%F.S

Repeatability

0.5%F.S

Temperature Characteristic

2%F.S

Display

Precision

2%F.S

Division

1000division

Ambient temperature

0~50℃

Protection class

IP65
