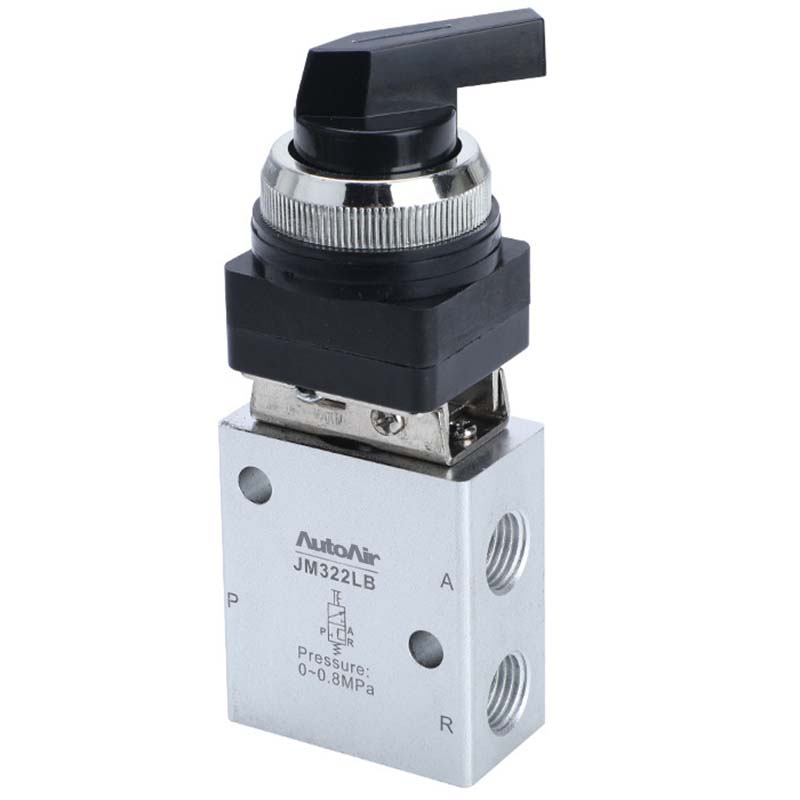

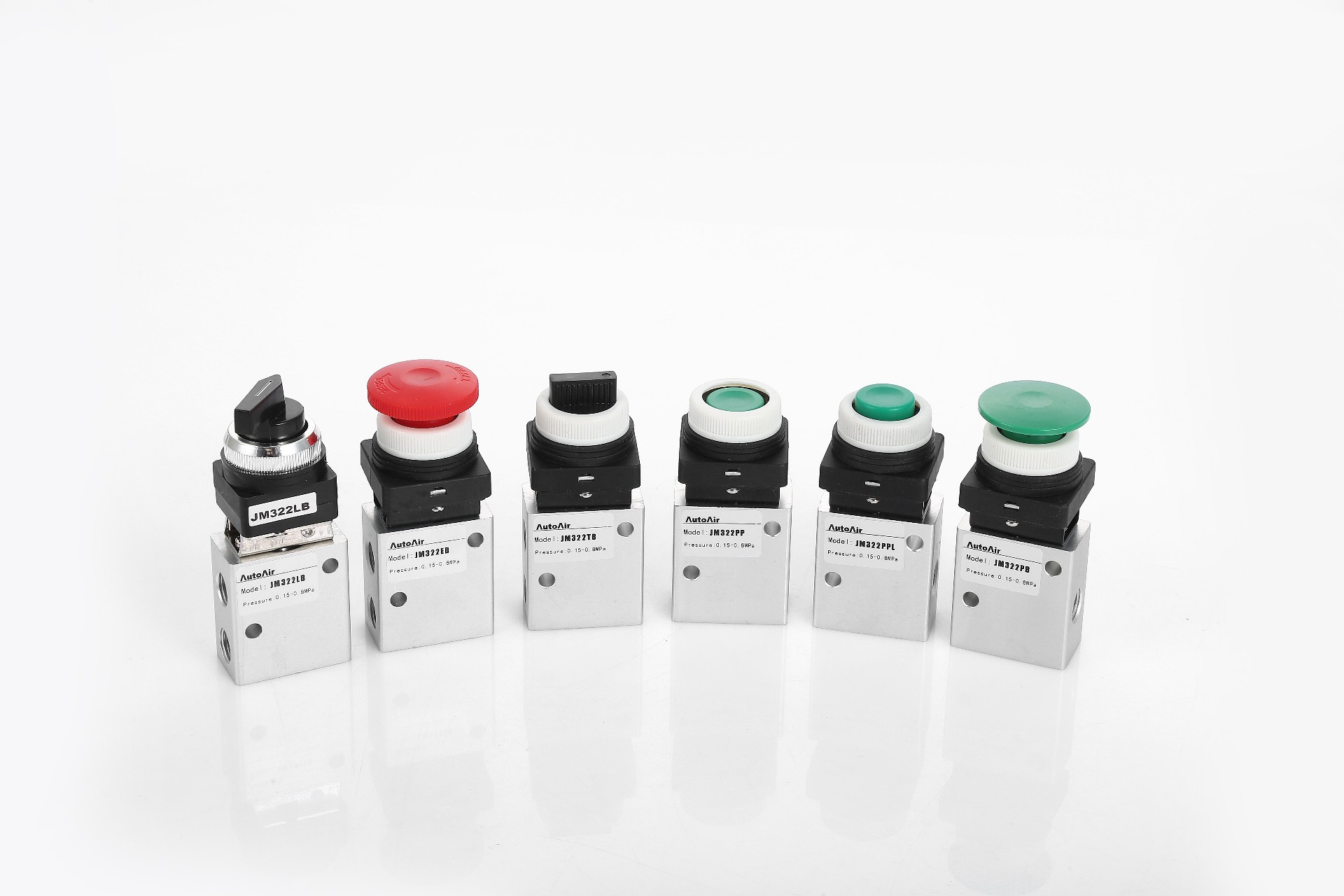

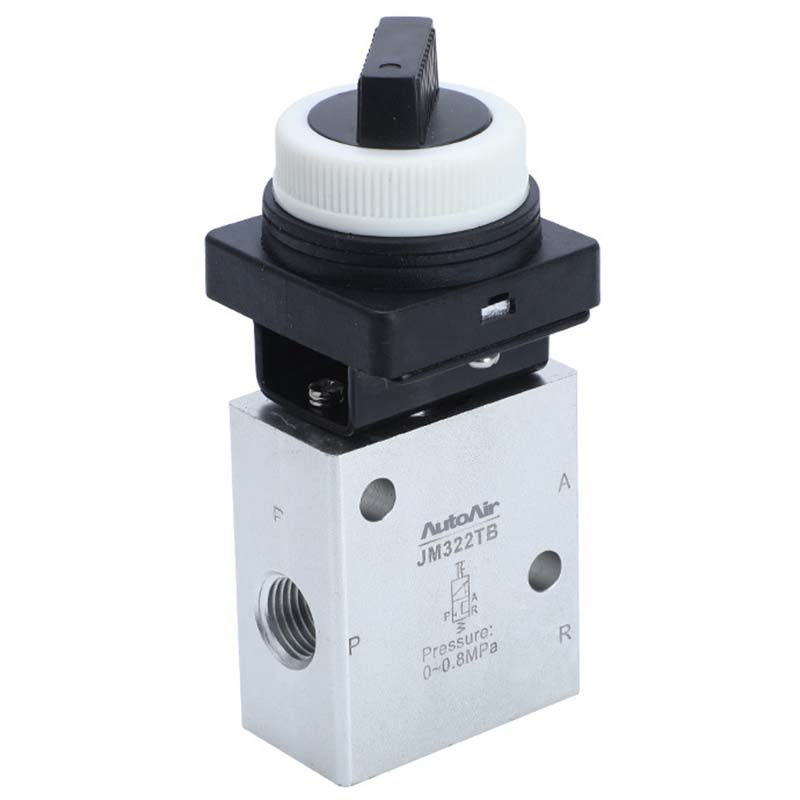

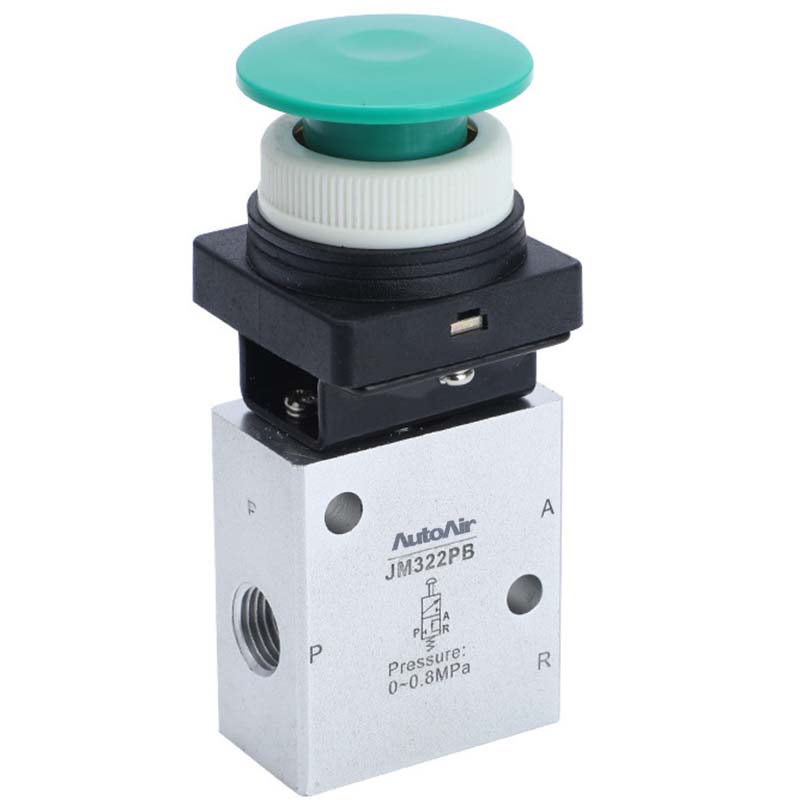

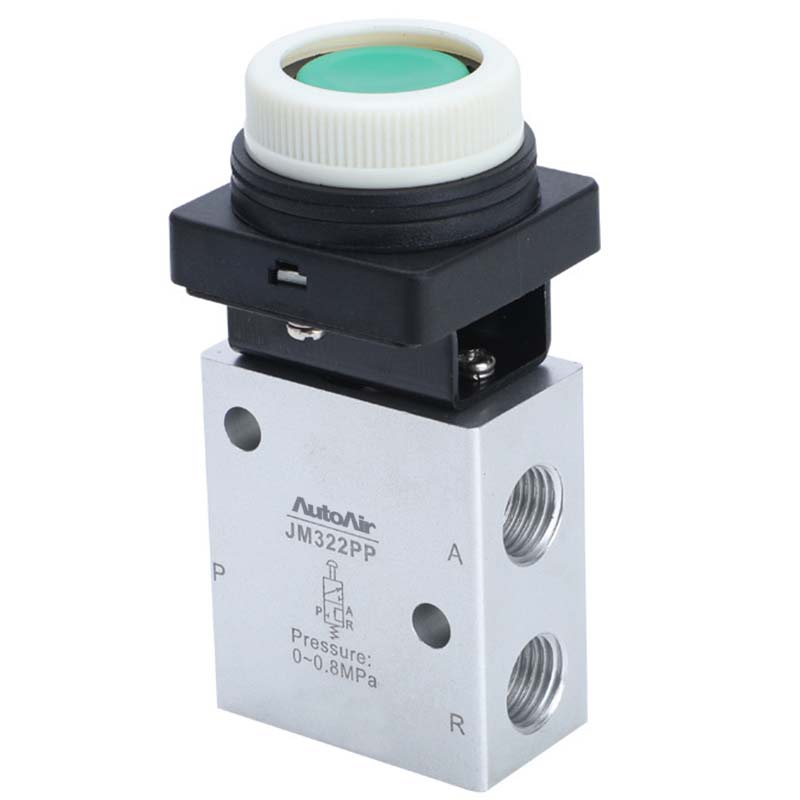

JM Series Mechanical Valve

< >

JM Series Mechanical Valve

Working Medium	40 Micron Filtered Air
Position and Way No.	0~0.8MPa
Port Size	G1/4"
Working-pressure Range	Two-position Three-way,Two-position Two-way
Operating Temperature	0~60℃

~~Consult Immediately~~

Product Details

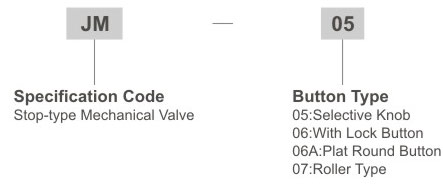

Ordering Code

Specification

working medium	Air (filtered through a filter over 40μm)
Action	External Control Direct Action
Port diameter	G1/4
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-5∼60
Body material	aluminum alloy

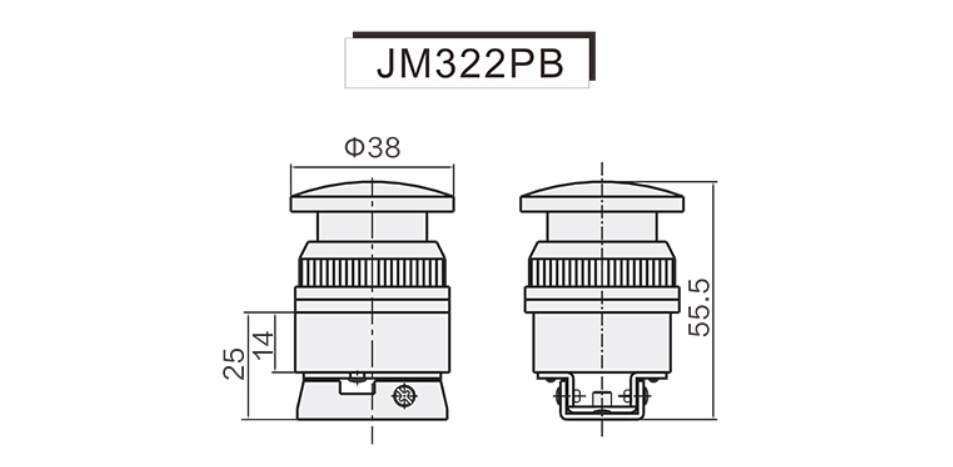

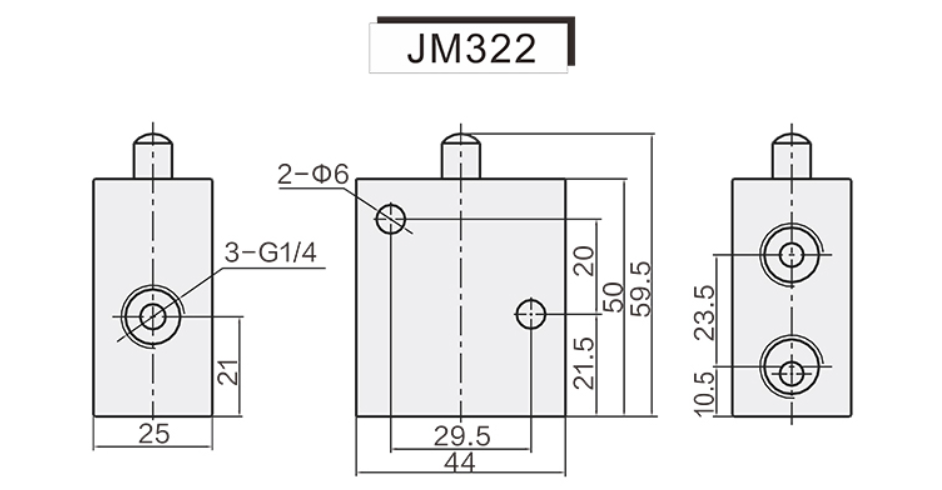

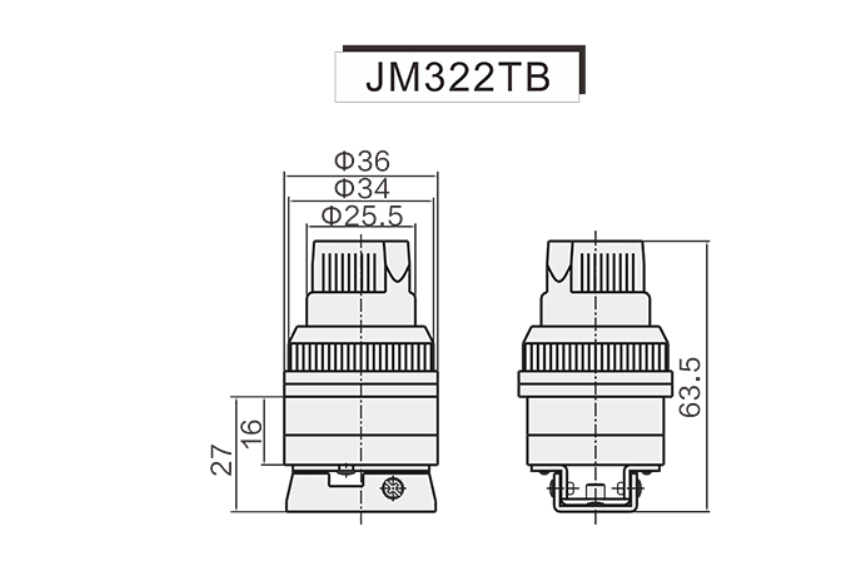

Overall Dimensions

Model	JM-05	JM-06	JM-06A	JM-07
A	114	111	96	84.5
B	36.5	39.5	39.5	42.5
