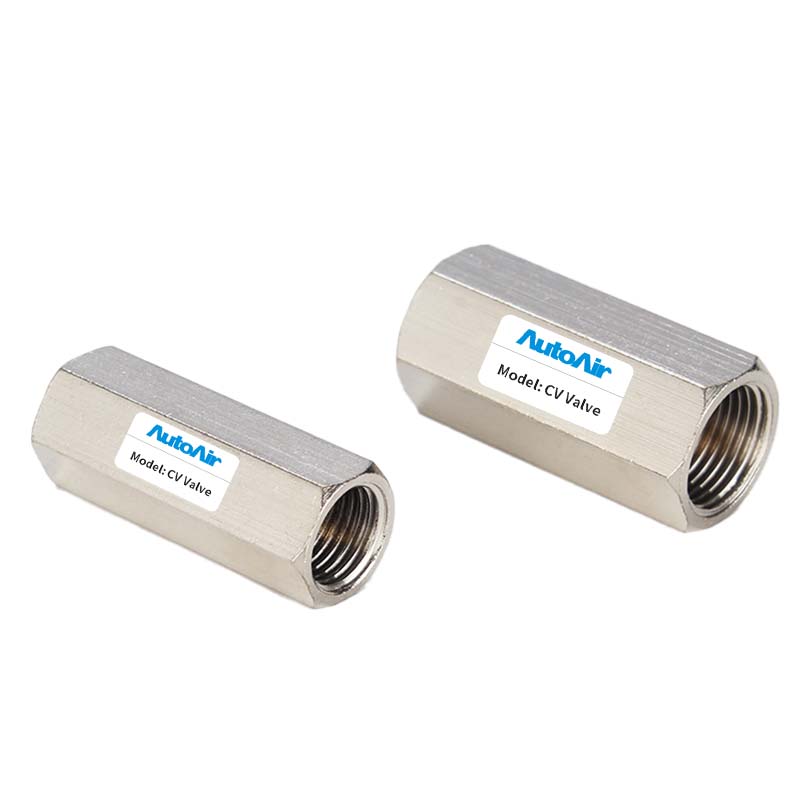

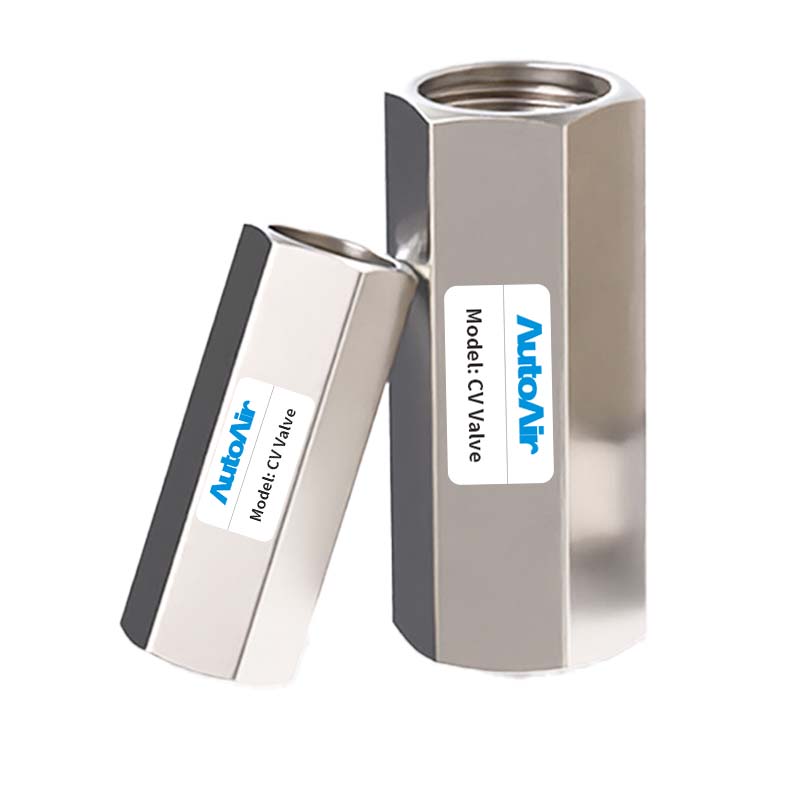

CV Series Check Valve
  • CV Series Check Valve
  • CV Series Check Valve

CV Series Check Valve

Operation Medium

Compress Air

Working Temperature Range

-5~60℃

Working Pressure

0.05~1.2MPa

Consult Immediately

Specification

Model

CV-06

CV-08

CV-10

CV-15

Port Size

G1/8"

G1/4"

G3/8"

G1/2"

Flow mm2/S

10

20

40

60

Leak Out Flow(cm2/min)

≤45

≤60

≤80

≤95

Operation Medium

Compress Air

Working Temperature Range

-5~60℃

Working Pressure

0.05~1.2MPa

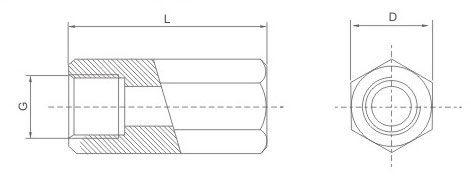

Overall Dimensions


Model

G

L

D

CV-03

M5

21

10

CV-06

G1/8”

37

14

CV-08

G1/4”

48

17

CV-10

G3/8”

50

21

CV-15

G1/2”

60

24
