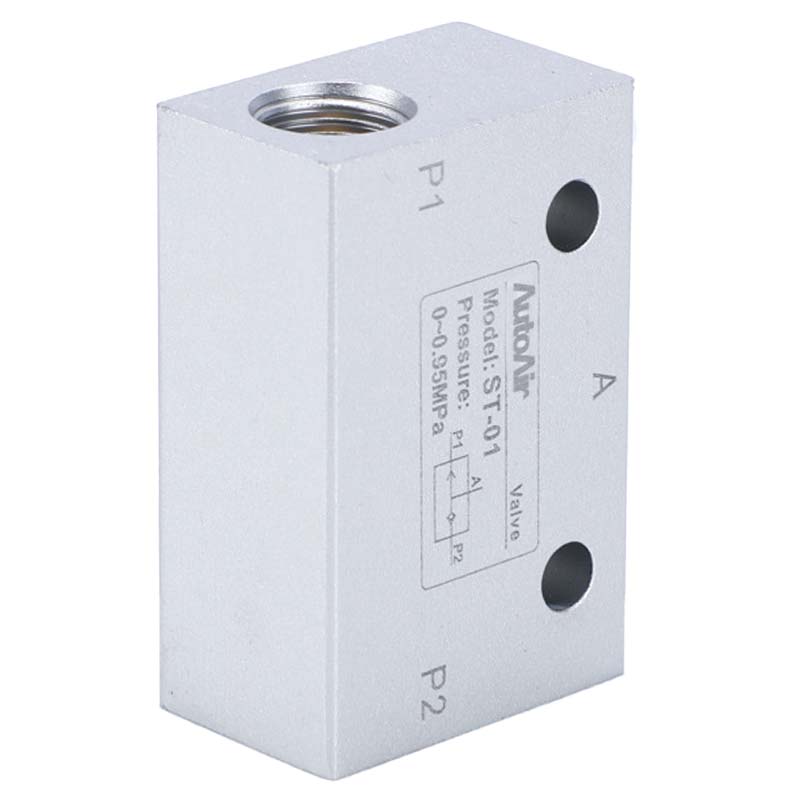

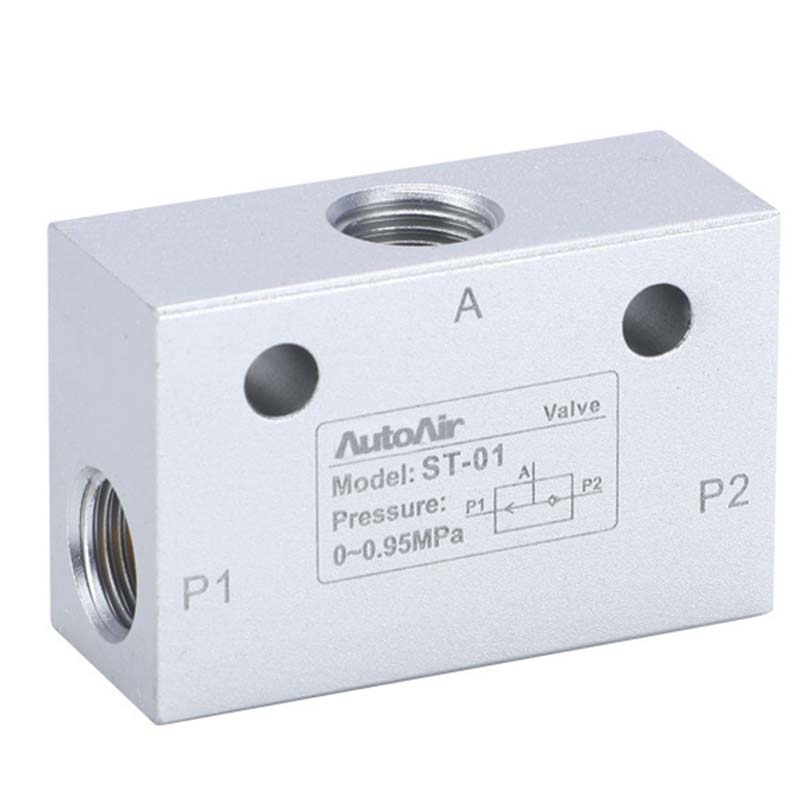

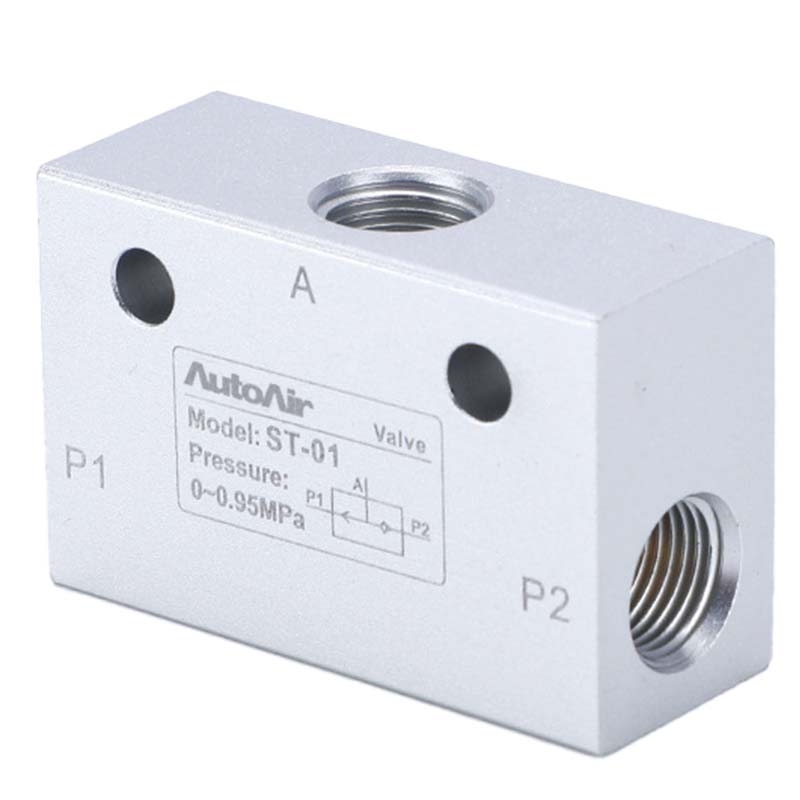

ST Series Shuttle Valve
  • ST Series Shuttle Valve
  • ST Series Shuttle Valve
  • ST Series Shuttle Valve

ST Series Shuttle Valve

Working Medium

Air

Working Pressure Range

0~1.0MPa

Operating Temperature Range

-5~60

Consult Immediately

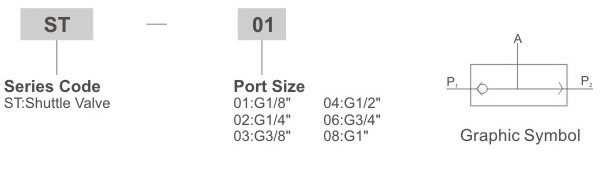

Ordering Code



Specification

Model

ST-01

ST-02

ST-03

ST-04

  Working Medium

  Air

  Effective Sectional Area

  7.5mm2

  21mm2

  40mm2

  60mm2

  Port Size

  G1/8"

  G1/4"

  G3/8"

  G1/2"

  Working Pressure Range

  0~1.0MPa

  Operating Temperature Range

  -5~60

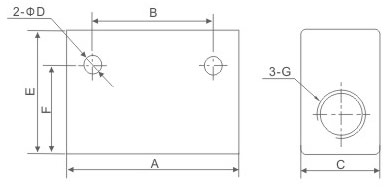

Overall Dimensions


Mode/Symbol

A

B

C

D

E

F

G

  ST-01

  40

  24

  16

  4.5

  25

  20.5

  G1/8”

  ST-02

  50

  35

  22

  5.5

  35

  25

  G1/4”

  ST-03

  75

  48

  30

  7

  50

  42

  G3/8”

  ST-04

  75

  48

  30

  7

  50

  42

  G1/2”

Inquiry

If you have any comments and suggestions to our company, please leave a message here.

Your message will give me a great help, we will reply as soon as possible. Sincerely thank you for your attention and support!

Products RecommendedMore popular products+
CV Series Vacuum Valve

CV Series Vacuum Valve

CV Series Vacuum Valve

Valve Accessories

Valve Accessories

Valve Accessories

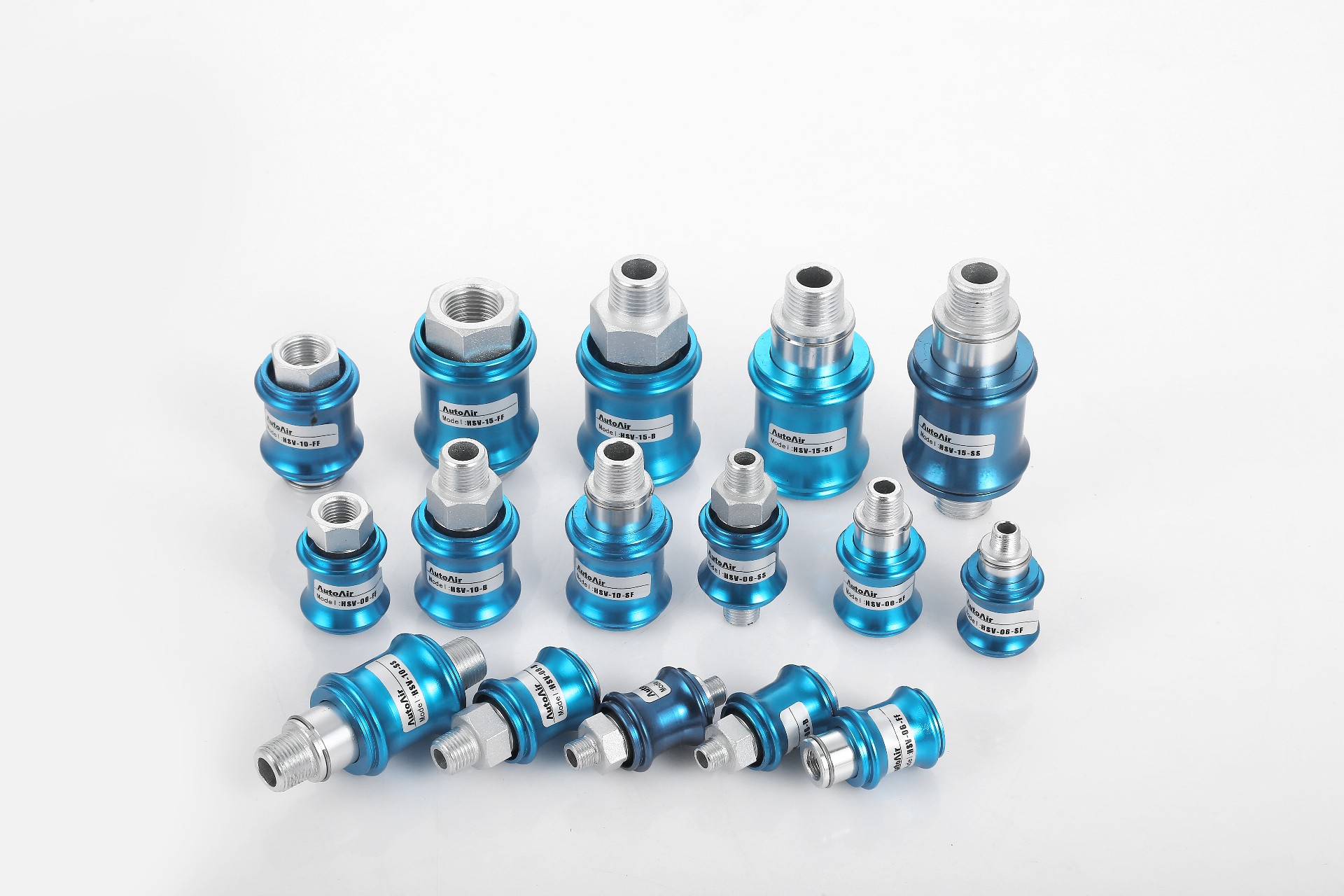

HSV Series Sliding Valve

HSV Series Sliding Valve

HSV Series Sliding Valve

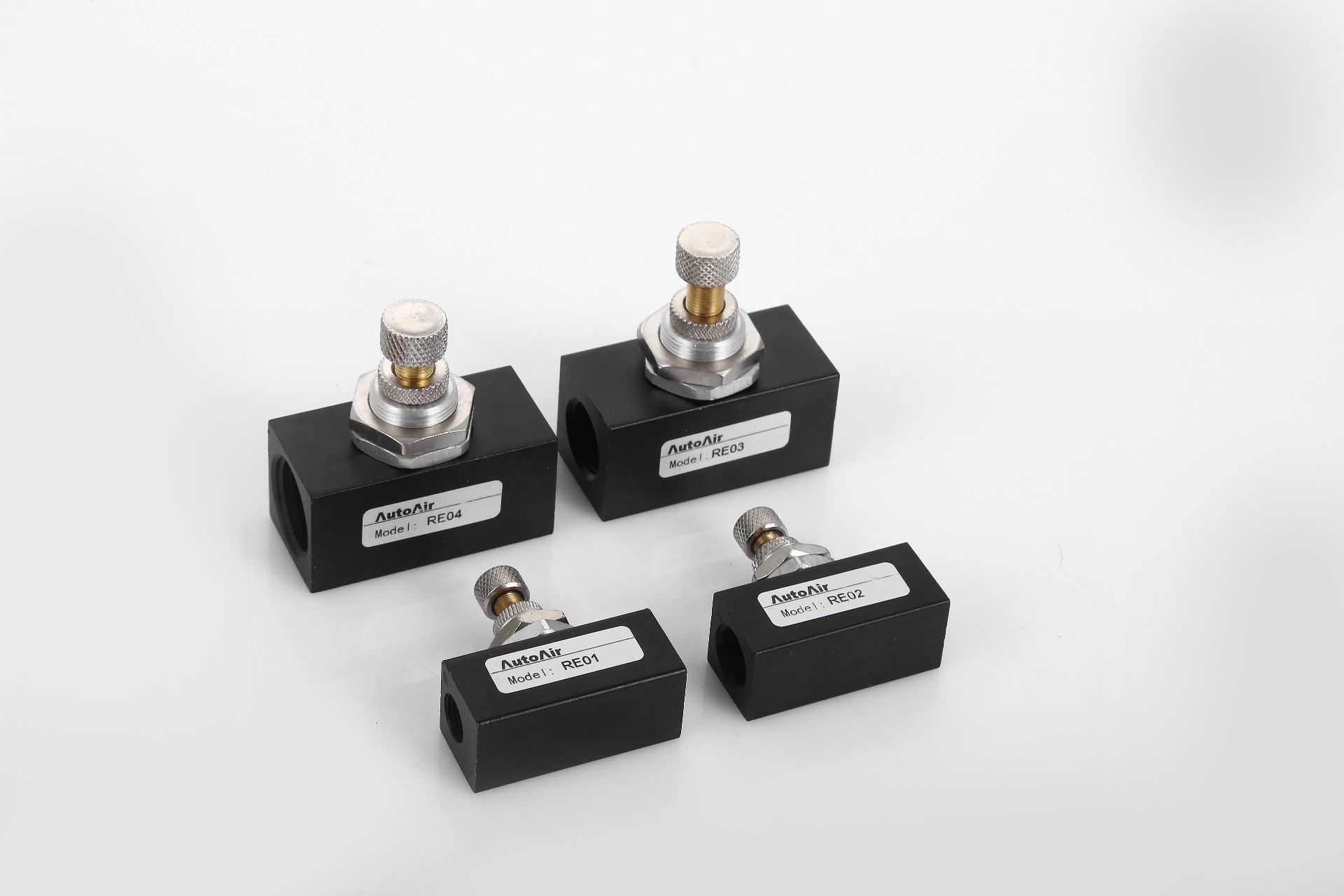

RE Series Flow control Valve
