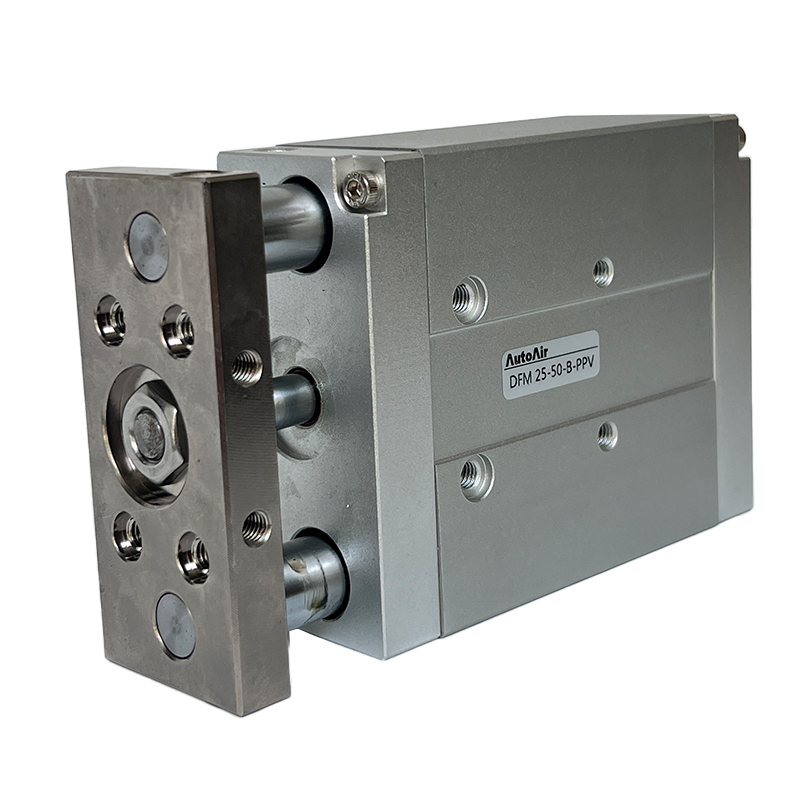

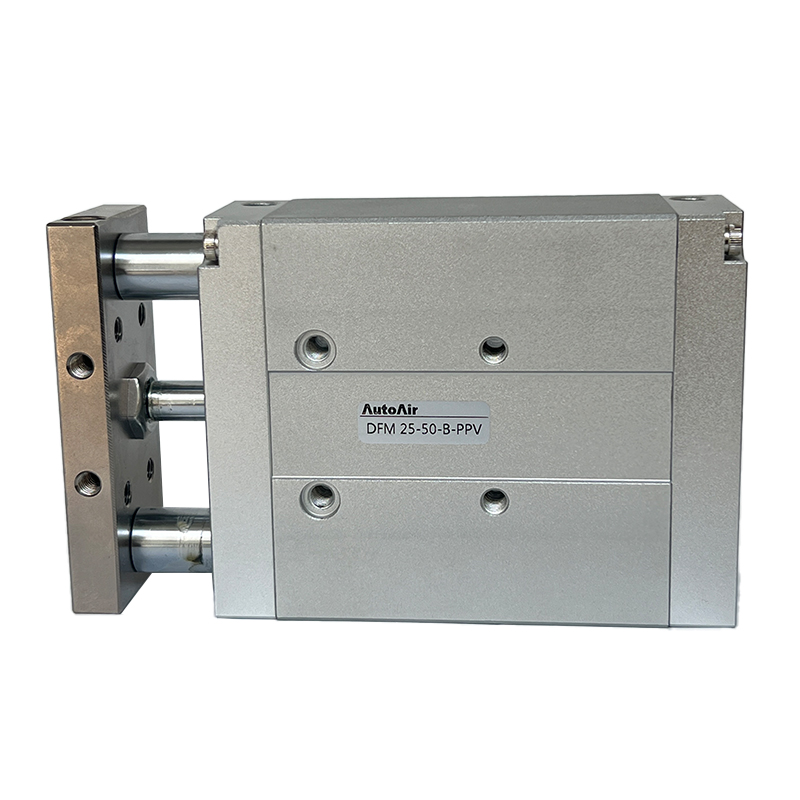

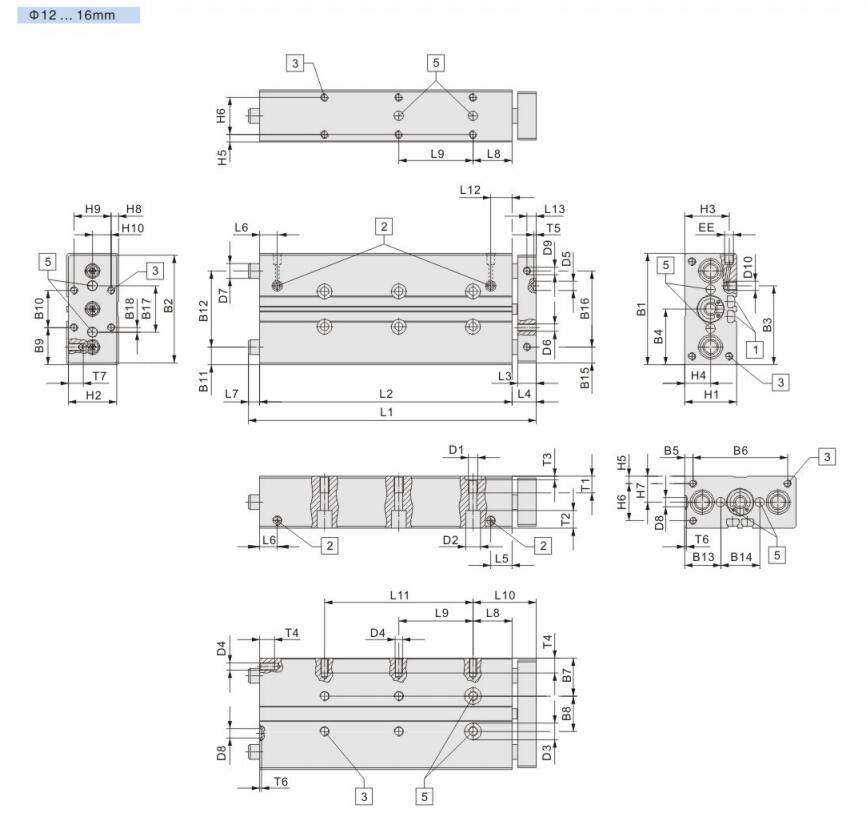

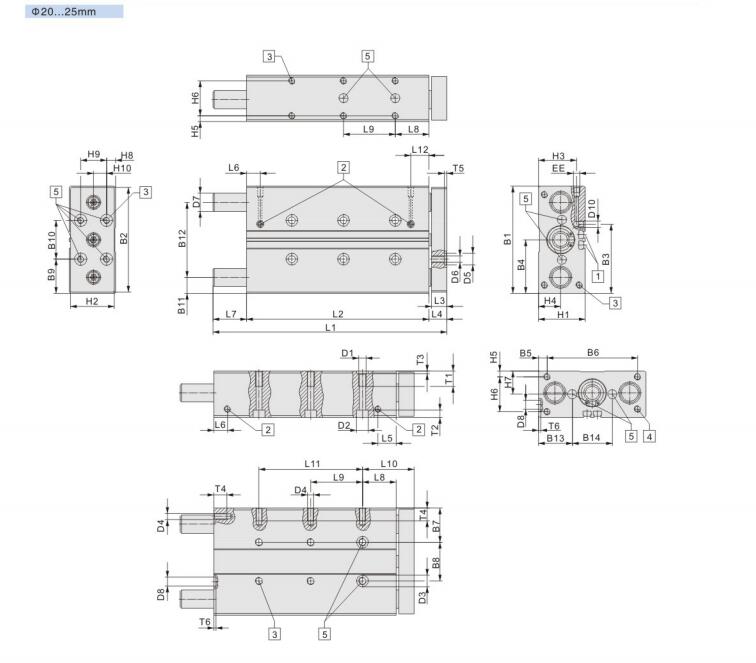

DFM Series Three-Rod Guide Pneumatic Cylinder - Three-Axis Pneumatic Cylinder with Guide Rod for Industrial Automation

·A variety of fixing and mounting methods

·A wide variety of derivative types to meet personalized applications

·High torque and shear load

·Three-Rod Pneumatic Cylinder with Guide Rod

Operating Pressure	0.2Mpa-0.8Mpa
Max.speed	1.3m/s
Ambient temperature	-10℃-60℃
Mode of operation	Double Acting
Cushioning	Elastic cushion rings/Plates at both ends
