MGP Series Three-Shaft Pneumatic Cylinder - Three-Rod Guide Actuator | Three-Axis Pneumatic Cylinder with Guide Rod-Autoair Pneumatic CO., LTD

Product Details

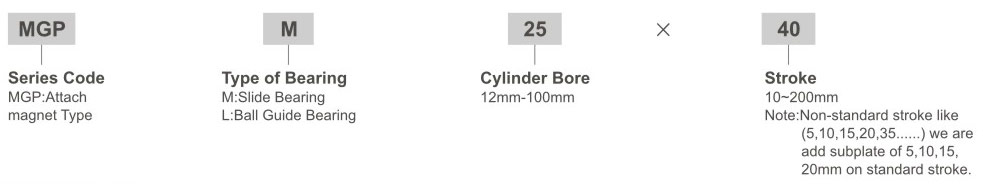

Ordering Code

Specification

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working Medium		Air
Motion Pattern		Double-action
Ensured Pressure Resistance		1.5Mpa(15.3kgf/cm2)
Max.Operating pressure		1.0Mpa(10.2kgf/cm2)
Min. Operating pressure		0.12Mpa(1.2kgf/cm2)
Ambient and Medium Temperature		-10~+60℃
Piston Speed		50~500mm/s								50~400mm/s
Buffer		Rubber Cushion
Tolerance of Stroke		+1.5 0 mm
Bearing		(Slide bearing/ball guide bdaring)
Precision of Piston rod Non-rotating	Slide Bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.04°
	Ball Guide Bearing	±0.10°		±0.09°		±0.08°		±0.06		±0.05°
Port size		M5×0.8		G1/8"				G1/4"		G3/8"

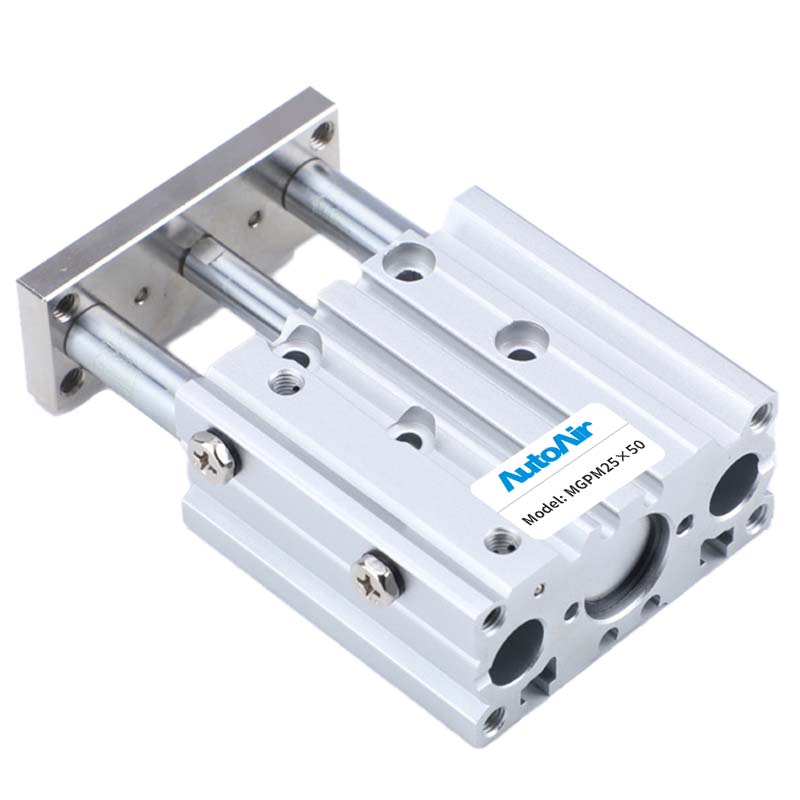

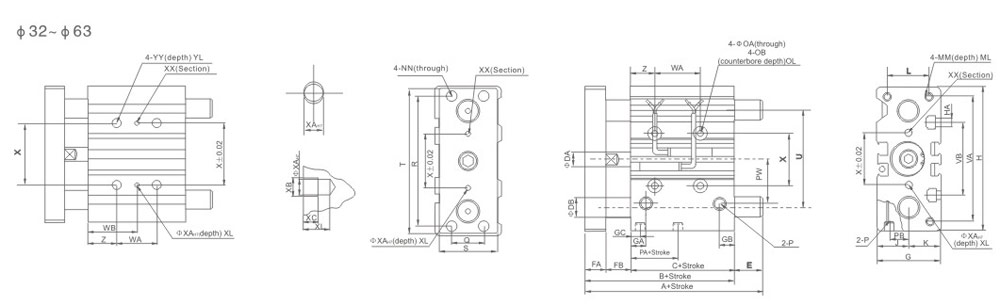

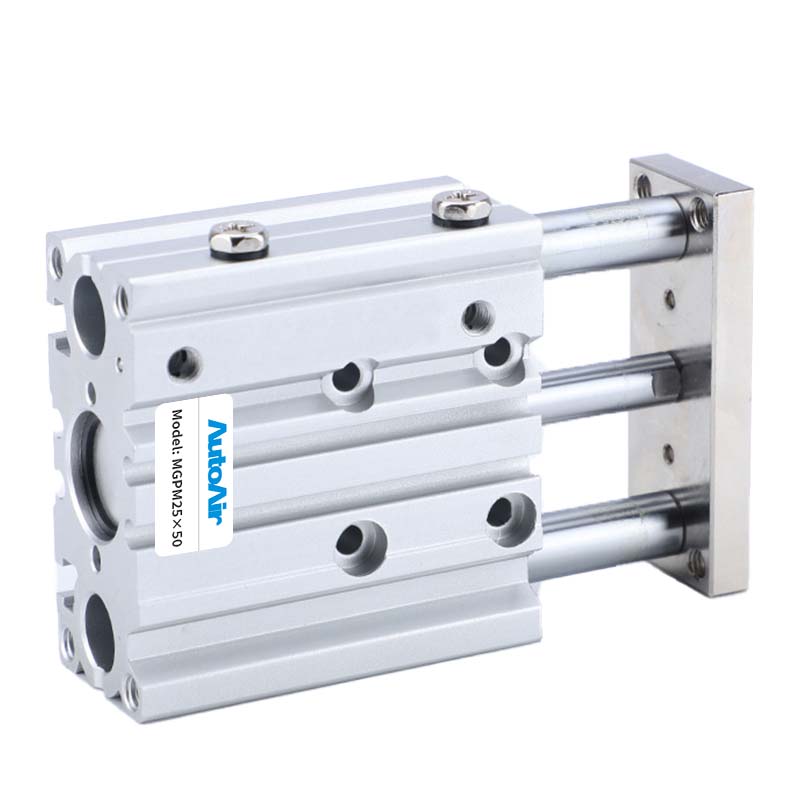

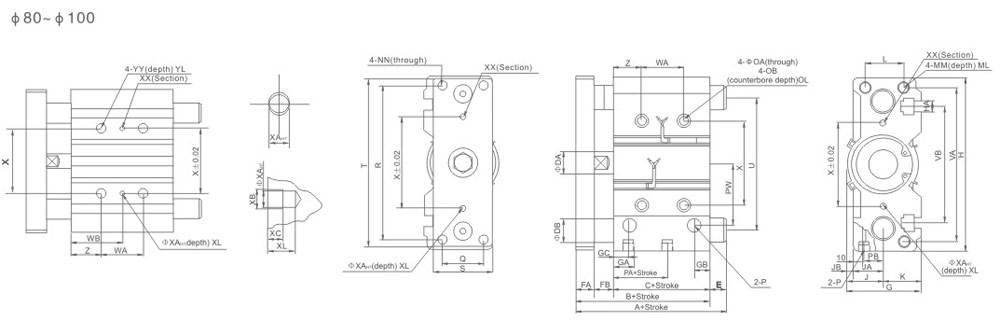

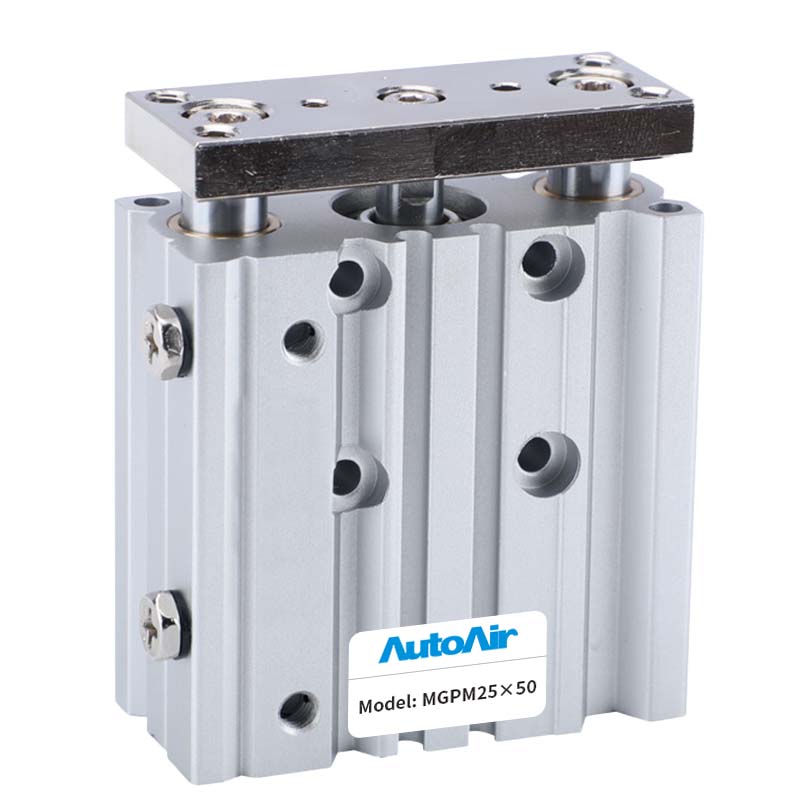

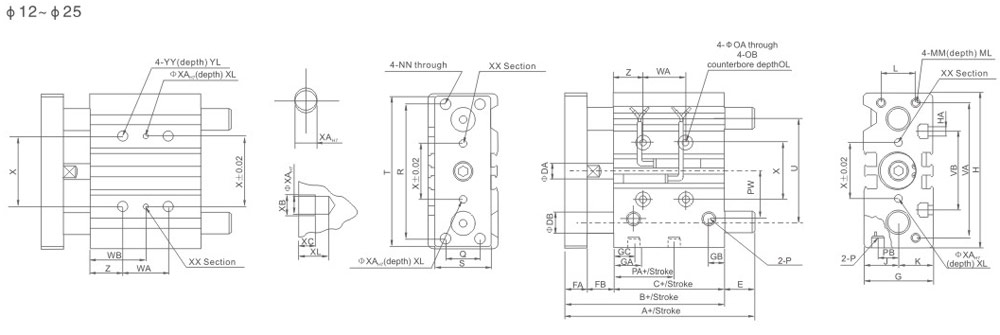

Overall Dimensions

Bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA
12	10 20 30 40 50 75 100	42	29	6	8	5	26	11	7.5	58	M4	13	13	18	M4×0.7	10	M4×0.7	4.3
16	10 20 30 40 50 75 100	46	33	8	8	5	30	11	8	64	M4	15	15	22	M5×0.8	12	M5×0.8	4.3
20	20 30 40 50 75 100 125 150 175 200	53	37	10	10	6	36	10.5	8.5	83	M5	18	18	24	M5×0.8	13	M5×0.8	5.6
25	20 30 40 50 75 100 125 150 175 200	53.5	37.5	12	10	6	42	11.5	9	93	M5	21	21	30	M6×1.0	15	M6×1.0	5.6

Bore size	Standard stroke (mm)	OB	OL	P	PA	PB	PW	Q	R	S	T	U	VA	VB	X	XA	XB	XC	YL	Z
12	10 20 30 40 50 75 100	8	4.5	M5×0.8	13	8	18	14	48	22	56	41	50	37	23	3	3.5	3	10	5
16	10 20 30 40 50 75 100	8	4.5	M5×0.8	15	10	19	16	54	25	62	46	56	38	24	3	3.5	3	10	5
20	20 30 40 50 75 100 125 150 175 200	9.5	5.5	RC1/8	12.5	10.5	25	18	70	30	81	54	72	44	28	3	3.5	3	12	17
25	20 30 40 50 75 100 125 150 175 200	9.5	5.5	RC1/8	12.5	13.5	28.5	26	78	38	91	64	82	50	34	4	4.5	3	12	17

Bore size	Standard stroke (mm)	WA			WB			XL	YY
Bore size	Standard stroke (mm)	30 st or less	Over 40 st to 100 st	125 st or less	30 st or less	Over 40 st to 100 st	125 st or less	XL	YY
12	10 20 30 40 50 75 100	20	40	-	15	25	-	6	M5×0.8
16	10 20 30 40 50 75 100	24	44	-	17	27	-	6	M5×0.8
20	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0
25	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0

MGPG Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜100st≥	100st＜	DB	50st≥	50st＜100st≥	100st＜
12	42	60.5	85	8	0	18.5	43
16	46	64.5	95	10	0	18.5	49

MGPL Ball bushing bearing

A			DB	E
30st≥	30st＜100st≥	100st＜	DB	30st≥	30st＜100st≥	100st＜
43	55	85	6	1	13	43
49	65	95	8	3	19	49

MGPM Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
20	53	84.5	122	16	0	31.5	69
25	53.5	85	122	20	0	31.5	68.5

MGPL Ball bushing bearing

A				DB	E
30st≥	30st＜100st≥	100st＜200st≥	200st＜	DB	30st≥	30st＜100st≥	100st＜200st≥	200st＜
63	80	104	122	10	16	27	51	69
69.5	80.5	104.5	122	13	16	32	51	68.5

Bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P	PA	PB	PW	Q
32	25,50, 70, 100,125, 150,175, 200	59.5	37.5	16	12	10	48	12.5	9	12.5	112	M6	24	24	34	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	7	15	34	30
40		66	44	16	12	10	54	14	10	14	120	M6	27	27	40	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	13	18	38	30
50		72	44	20	16	12	64	14	11	12	148	M8	32	32	46	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	9	21.5	47	40
63		77	49	20	16	12	78	16.5	13.5	16.5	162	M10	39	39	58	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	14	28	55	50

R	S	T	U	VA	VB	X	XA	XB	XC	XL	Z
96	44	110	78	98	63	42	4	4.5	3	6	21
104	44	118	85	106	72	50	4	4.5	3	6	22
130	60	146	110	130	92	66	5	6	4	8	24
130	70	158	124	142	110	80	5	6	4	8	24

MGPM Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
32	97	102	140	20	37.5	42.5	80.5
40	97	102	140	20	31	36	74
50	106.5	118	161	25	34.5	46	89
63	106.5	118	161	25	29.5	41	84

MGPL Ball bushing bearing

Bore size	A				DB	E
Bore size	50st≥	50st＜100st≥	100st＜200st≥	200st＜	DB	50st≥	50st＜100st≥	100st＜200st≥	200st＜
32	81	98	118	140	16	21.5	38.5	58.5	80
40	81	98	118	140	16	15	32	52	74
50	93	114	134	161	20	21	42	62	89
63	93	114	134	161	20	16	37	57	84

Bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	LA	LB	K	L	MM	ML	NN	OA	OB	OL	P	PA	PB
80	25,50,70, 100, 125,150,175,200	95.5	56.5	25	22	18	91.5	19	15.5	14.5	202	M12	45.5	38	7.5	46	54	M12×1.75	30	M12×1.75	10.6	17.5	8	RC3/8	14.5	25.5
100	25,50,70, 100, 125,150,175,200	116	66	30	25	111.5	23	23	19	18	240	M14	55.5	45	10.5	56	62	M14×2.0	32	M14×2.0	12.5	20	8	RC3/8	17.5	32.5

Bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	WA			WB			X	XA	XB	XC	XL	YY	YL	Z
Bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	25st	50,75,100st	100st or above	25st	50,75,100st	100st or above	X	XA	XB	XC	XL	YY	YL	Z
80	25,50,70, 100, 125,150,175,200	74	52	174	75	198	156	180	140	28	52	128	42	54	92	100	6	7	5	10	M12×1.75	24	28
100	25,50,70, 100, 125,150,175,200	89	64	210	90	236	188	210	166	48	72	148	35	47	85	124	6	7	5	10	M14×2.0	28	11

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
80	115	142	193	30	18.5	45.5	96.5
100	137	162	203	36	21	46	87

Bore size	A				DB	E
Bore size	50st≥	25st＜50st≥	50st＜200st≥	200st＜	DB	50st≥	25st＜50st≥	50st＜200st≥	200st＜
80	109.5	130	160	193	25	13	33.5	63.5	96.5
100	121	147	180	203	30	5	31	64	87

Other info

Bore size(mm)	Standard stroke(mm)
12, 16	10 20 30 40 50 75 100 125 150 175 200 250
20, 25	20 30 4050 75 100 125 150 175 200 250 300 350 400
32 to 100	25 50 75 100 125 150 175 200 250 300 350 400
