SMC Air Cylinders: Redefining Performance Standards for Pneumatic Industry Applications

SMC Air Cylinders: Redefining Performance Standards for Pneumatic Industry Applications

In the global pneumatic industry, where system reliability, energy efficiency, and operational precision directly determine production efficiency, SMC Corporation stands as a benchmark-setting leader in pneumatic control components. As the core actuator of pneumatic systems—responsible for converting compressed air energy into linear mechanical motion—air cylinders are the "power core" of industrial automation. SMC has gone beyond generic industry benchmarks to establish proprietary cylinder standards, which not only align with but surpass international norms like ISO 6431 (Pneumatic cylinders - Dimensions and mounting dimensions). These standards have become a de facto reference in the pneumatic industry, with high precision, energy efficiency, and environmental sustainability embedded in every SMC air cylinder—from design and material selection to manufacturing and testing—making them the first choice for pneumatic system integrators and end-users worldwide.

What Defines SMC Cylinder Standards in the Pneumatic Industry?

In the pneumatic industry, "standards" are not just dimensional specifications but a comprehensive framework that ensures cylinders integrate seamlessly with pneumatic systems, maintain long-term stable performance, and reduce lifecycle costs. SMC’s cylinder standards address two critical pain points in pneumatic system design and operation, setting them apart from conventional industry standards:

1. Unified Dimensional & Interface Compatibility for Pneumatic System Flexibility

Pneumatic systems often require cylinder replacements due to wear or process upgrades—unplanned downtime in this scenario can cost pneumatic-driven production lines (e.g., automotive assembly) up to $22,000 per minute. SMC’s standardized dimensional protocol eliminates this risk by aligning with ISO 15552 (Pneumatic fluid power - Cylinders - Mounting dimensions) while enhancing precision:

• Bore Size Standardization: Covering the full range of pneumatic industry needs—from 4mm (miniature cylinders for electronics) to 200mm (heavy-duty cylinders for machinery)—each bore size is machined to a tolerance of H8 (per ISO 8062), ensuring consistent air pressure distribution and output force.

• Interface Uniformity: Mounting interfaces (flange, foot, pivot, clevis) and air port threads (NPT, BSP, metric) follow global pneumatic industry conventions. For example, SMC’s CP96 series standard cylinder can directly replace competitors’ models without modifying pneumatic pipeline connections, bracket positions, or valve matching—reducing maintenance time by 40% and avoiding costly system reconfiguration.

2. Performance & Durability Benchmarks Exceeding Pneumatic Industry Norms

In the pneumatic industry, cylinder performance directly impacts the stability of the entire pneumatic system. SMC’s internal standards set rigorous thresholds for key pneumatic metrics, far exceeding typical industry requirements:

• Positioning Precision: Critical for pneumatic systems in precision applications (e.g., semiconductor wafer handling), SMC guided cylinders (e.g., MGPL series) achieve ±0.1mm repeatability—surpassing the industry average of ±0.5mm—thanks to integrated linear guides and precision-ground piston rods (surface roughness Ra ≤ 0.4μm). This ensures pneumatic systems maintain sub-millimeter accuracy even after millions of cycles.

• Durability for Pneumatic System Longevity: Pneumatic cylinders are exposed to compressed air moisture, mechanical wear, and environmental contaminants—SMC addresses this with high-grade materials tailored to pneumatic operating conditions:

• Cylinder Tubes: Hard-anodized 6063 aluminum alloy (thickness ≥ 15μm) resists corrosion from compressed air condensation, a common cause of cylinder failure in pneumatic systems.

• Seals: Polyurethane U-packing with PTFE scrapers minimizes air leakage (≤0.5 L/min at 0.7 MPa) and prevents dust ingress—extending seal life to 20 million cycles (vs. 10–15 million cycles for conventional cylinders).

• Environmental Sustainability for Modern Pneumatic Systems: Compressed air generation accounts for 10–15% of industrial electricity use, and leaks can waste 20–30% of this energy—a major cost driver for pneumatic systems. SMC’s low-leakage design cuts a typical factory’s pneumatic energy consumption by 15–20%, aligning with the pneumatic industry’s shift toward sustainability (e.g., ISO 50001 Energy Management Systems).

Core Technical Features of SMC Air Cylinders: Engineered for Pneumatic System Excellence

In the pneumatic industry, cylinders must adapt to diverse system requirements—from space-constrained semiconductor tools to high-load heavy machinery. SMC’s air cylinders are designed with pneumatic system performance at their core, featuring technical attributes that solve common industry challenges:

1. Versatile Product Range for Pneumatic System Diversity

The pneumatic industry serves sectors with vastly different needs—from microelectronics (requiring miniature actuators) to heavy manufacturing (needing high-force cylinders). SMC’s comprehensive product line covers every pneumatic application scenario:

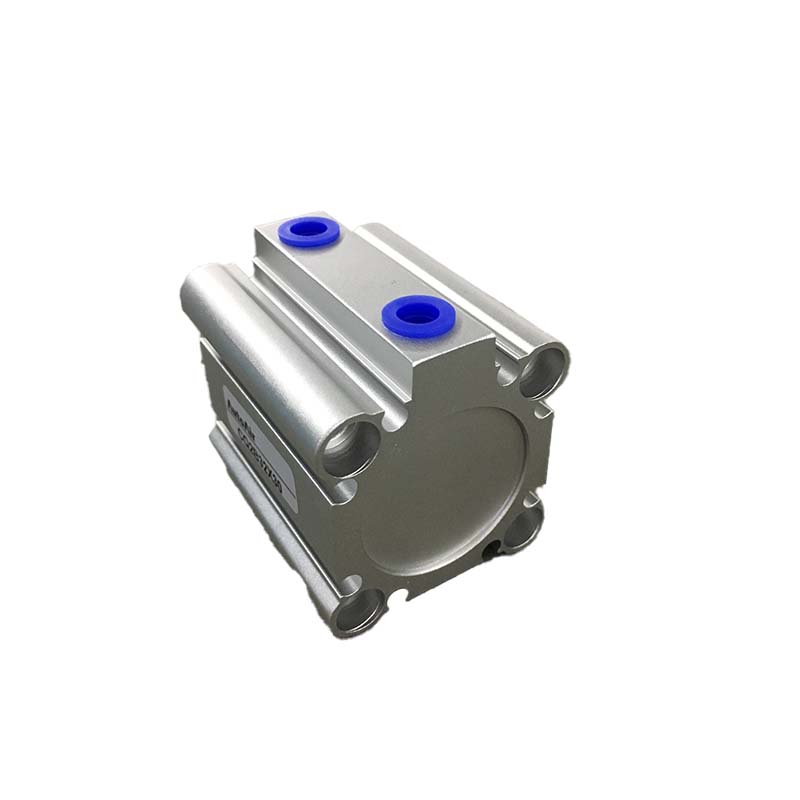

• Compact & Thin Cylinders (e.g., CQ2B series): Width as low as 12mm, ideal for pneumatic systems in tight spaces (e.g., PCB assembly machines) where conventional cylinders cannot fit.

• Twin-Rod Cylinders (e.g., CXSM series): Symmetrical dual rods eliminate rotational torque, critical for pneumatic systems requiring parallel motion (e.g., conveyor belt alignment).

• Locking Cylinders (e.g., CLK series): Integrate mechanical or air-driven locking mechanisms to hold position in case of air pressure loss—essential for pneumatic systems in safety-critical applications (e.g., robotic lift platforms).

• Stopper Cylinders (e.g., RS series): Designed for precise workpiece positioning in pneumatic-driven production lines (e.g., packaging machines), with repeatability of ±0.05mm to ensure consistent process quality.

2. Precision Engineering for Pneumatic Motion Control Reliability

Pneumatic systems rely on cylinders to deliver consistent motion—any deviation can cause product defects or system failures. SMC’s precision-focused design addresses this:

• Guide Bushings & Anti-Eccentric Load Structures: Most SMC cylinders (e.g., C85 series) include brass or composite guide bushings that reduce piston rod deflection by 30% under eccentric loads—a common issue in pneumatic systems that causes seal damage and uneven wear.

• Integrated Cushioning for Pneumatic System Protection: At the end of a cylinder’s stroke, impact forces can damage both the cylinder and connected pneumatic components. SMC’s adjustable air cushions (front/rear) absorb up to 80% of impact energy, reducing noise from 85 dB to 65 dB and extending the life of pneumatic valves and hoses. For high-speed pneumatic systems (e.g., packaging lines with cycle times <0.5s), magnetic cushioning (e.g., CJ2 series) provides automatic, consistent damping without manual adjustment.

3. Modular Design for Seamless Pneumatic System Integration

In the pneumatic industry, system flexibility is key—production lines often need reconfiguration for new products. SMC’s modular cylinder design simplifies integration with other pneumatic components:

• Sensor Compatibility: All SMC cylinders feature pre-drilled mounting slots for pneumatic industry-standard sensors, including magnetic proximity sensors (e.g., SMC D-M9B series) and reed switches. This enables real-time position feedback for closed-loop pneumatic control—critical for precision applications like pharmaceutical filling, where cylinder stroke must be monitored to ensure dosage accuracy.

• Accessory Integration: Standardized mounting brackets (flange, L-type, T-type), rod end attachments (clevis, yoke), and air fittings allow quick pairing with SMC’s pneumatic control components—such as 5-port solenoid valves (SY series) and FRL units (AC series, filter-regulator-lubricator). This modularity reduces pneumatic system assembly time by 30% and ensures compatibility across SMC’s product ecosystem.

4. Energy Efficiency: A Core Advantage for Pneumatic System Cost Reduction

Compressed air is one of the most expensive energy sources in manufacturing—SMC’s air cylinders are engineered to minimize waste, a top priority for pneumatic system operators:

• Low-Leakage Seal Technology: The combination of polyurethane U-seals and PTFE scrapers reduces air leakage by 50% compared to industry-standard cylinders. For a pneumatic system with 1,000 SMC cylinders, this translates to annual energy savings of $50,000–$100,000.

•


• Lightweight Construction: Compact cylinders (e.g., CQ2 series) use thin-walled aluminum tubes and glass-fiber-reinforced plastic end caps, reducing weight by 25% vs. conventional steel cylinders. This lowers the load on pneumatic valves and air compressors, cutting the compressor’s energy consumption by 8–12%.

• Low-Pressure Optimization: Many SMC cylinders (e.g., miniature C6 series) operate efficiently at 0.3–0.5 MPa, vs. 0.6–0.8 MPa for competitors. This reduces compressed air demand while maintaining sufficient output force for light-duty pneumatic applications (e.g., electronics component clamping).

Key Components of SMC Air Cylinders: Pneumatic Industry-Tailored Design

While SMC air cylinders share basic components with other pneumatic cylinders (cylinder tube, piston, piston rod, seals, cushioning elements), each part is optimized for the unique demands of the pneumatic industry:

• Cylinder Tube: Hard-anodized aluminum alloy (standard models) or 316 stainless steel (food/pharmaceutical models) resists corrosion from compressed air moisture and industrial chemicals—critical for pneumatic systems in harsh environments.

• Piston: Made of high-strength aluminum alloy with precision O-ring grooves, ensuring uniform air pressure distribution and minimizing friction (coefficient of friction ≤ 0.05 for polyurethane seals).

• Piston Rod: Chrome-plated S45C carbon steel (hardness ≥ HRC 50) with a ground surface (Ra ≤ 0.4μm) to prevent seal wear and bending—even under the lateral forces common in pneumatic system operation.

• Seals: Custom-engineered polyurethane U-seals and PTFE scrapers are compatible with pneumatic industry-standard lubricants (e.g., ISO VG 32 air tool oil) and maintain airtightness across a wide temperature range (-10°C to 80°C).

• Cushioning Components: Brass cushion sleeves and adjustable needle valves allow fine-tuning of damping—adapting to the varying speed and load requirements of different pneumatic systems.

For detailed specifications on SMC air cylinder components, or to request custom material options for specialized pneumatic applications (e.g., high-temperature environments), contact SMC’s pneumatic technical support team for the latest product catalog and engineering datasheets.

Advantages of SMC Air Cylinders in Pneumatic Industry Applications

In the competitive pneumatic industry, SMC air cylinders deliver tangible benefits that directly improve pneumatic system performance and reduce total cost of ownership (TCO):

SMC Air Cylinder Applications Across the Pneumatic Industry

The versatility and performance of SMC air cylinders make them indispensable in pneumatic systems across key industries. Their standardized interfaces simplify replacement, while their tailored designs meet industry-specific pneumatic requirements:

1. Automotive Manufacturing

• Pneumatic System Role: Robotic welding, door panel assembly, powertrain handling, and paint line actuation.

• SMC Solution: Heavy-duty standard cylinders (C95 series, 100–200mm bore) with high output force (up to 15 kN) and heat-resistant seals (120°C) for welding environments. Guided cylinders (MGPL series) ensure precise positioning of welding torches—critical for maintaining joint quality in automated production lines.

2. Electronics & Semiconductors

• Pneumatic System Role: Wafer transfer, chip packaging, PCB component placement, and cleanroom automation.

• SMC Solution: Miniature cylinders (C6 series, 6–16mm bore) and rodless cylinders (MY1 series) with ultra-compact designs and ISO Class 5 cleanroom compatibility. Magnetic coupling in rodless models prevents particle generation—essential for pneumatic systems in semiconductor fabs, where even micro-contaminants can damage wafers.

3. Food & Beverage

• Pneumatic System Role: Bottle capping, conveyor sorting, filling machine actuation, and washdown environments.

• SMC Solution: 316 stainless steel cylinders (C96S series) with FDA-approved seals and lubricants. These cylinders meet IP67/IP69K ratings for washdown resistance—preventing contamination in pneumatic systems that come into contact with food products.

4. Pharmaceuticals & Biotechnology

• Pneumatic System Role: Vial handling, tablet pressing, sterile packaging, and lab automation.

• SMC Solution: Corrosion-resistant cylinders (C85S series) with smooth surfaces (Ra ≤ 0.8μm) to prevent bacterial growth. Magnetic sensors integrate with pneumatic system controls to provide real-time position data—ensuring compliance with FDA 21 CFR Part 11 (data integrity for pharmaceutical manufacturing).

5. Chemical & Process Industries

• Pneumatic System Role: Valve actuation, tank stirring, and chemical transfer line automation.

• SMC Solution: Heavy-duty cylinders (C95 series) with chemical-resistant seals (compatible with acids/bases) and high-pressure ratings (up to 1.0 MPa). These cylinders withstand the harsh conditions of pneumatic systems in chemical plants—reducing the risk of leaks or component failure.

6. Packaging & Printing

• Pneumatic System Role: Labeling, carton sealing, web tension control, and high-speed product handling.

• SMC Solution: Compact cylinders (CQ2 series) with fast response times (≤0.1s) and adjustable air cushions. Their lightweight design allows pneumatic systems to achieve cycle times of <0.5s—critical for high-volume packaging lines.

Common Types of SMC Air Cylinders for Pneumatic System Design

SMC’s cylinder portfolio is tailored to the diverse motion requirements of pneumatic systems. Below are the most widely used types, with specifications optimized for pneumatic industry applications:

1. SMC Single-Acting Air Cylinder (e.g., CJP Series)

• Pneumatic System Application: Ideal for one-directional motion in space-constrained pneumatic systems (e.g., small-part clamping, valve actuation).

• Technical Specifications: Bore size 4–20mm; stroke 5–100mm; operating pressure 0.15–0.7 MPa; max speed 300 mm/s.

• Pneumatic Advantage: Spring-return mechanism reduces compressed air consumption by 50% vs. double-acting cylinders—lowering energy costs for pneumatic systems with frequent cycling.

2. SMC Miniature Air Cylinder (e.g., C6 Series)

• Pneumatic System Application: Precision motion in micro-pneumatic systems (e.g., electronics component placement, lab automation).

• Technical Specifications: Bore size 6–16mm; stroke 5–50mm; weight 10–50g; operating temperature -10°C to 60°C.

• Pneumatic Advantage: Ultra-compact profile (width ≤12mm) fits into tight spaces in miniaturized pneumatic systems, while high precision (±0.1mm repeatability) ensures accurate motion control.

3. SMC Standard Double-Acting Cylinder (e.g., CQ2 Series)

• Pneumatic System Application: The "workhorse" of general pneumatic systems—used for clamping, ejection, feeding, and conveyor pushing.

• Technical Specifications: Bore size 12–100mm; stroke 5–1000mm; output force 1.7–62.8 kN (at 0.7 MPa); service life up to 20 million cycles.

• Pneumatic Advantage: Versatile design integrates with all SMC pneumatic components (valves, FRL units) and meets ISO 6431 standards—ensuring compatibility with existing pneumatic systems.

4. SMC Rodless Pneumatic Cylinder (e.g., MY1 Series)

• Pneumatic System Application: Long-stroke motion in space-limited pneumatic systems (e.g., AGV positioning, automated handling, slide tables).

• Technical Specifications: Bore size 16–80mm; stroke up to 6000mm; max speed 1500 mm/s; moment load capacity 50–500 N·m.

• Pneumatic Advantage: Magnetic or mechanical coupling eliminates external rods, reducing the cylinder’s footprint by 50% vs. standard cylinders—critical for pneumatic systems with limited horizontal space.

5. SMC Guided Cylinder (e.g., MGPL Series)

• Pneumatic System Application: High-precision linear motion in pneumatic systems with eccentric loads (e.g., robotic end-effectors, assembly line positioning, pushing).

• Technical Specifications: Bore size 12–100mm; stroke 5–500mm; positioning accuracy ±0.1mm; max eccentric load 50–500 N.

• Pneumatic Advantage: Dual guide rods with linear ball bearings increase moment load capacity by 300% vs. standard cylinders—preventing piston rod bending and ensuring smooth motion in pneumatic systems with lateral forces.

Compliance & Certification: Meeting Pneumatic Industry Standards Globally

In the pneumatic industry, compliance with international and regional standards is non-negotiable—ensuring safety, compatibility, and regulatory adherence. SMC air cylinders meet or exceed the most rigorous standards:

• International Pneumatic Standards: ISO 6431 (Pneumatic cylinders - Dimensions and mounting dimensions), ISO 15552 (Mounting dimensions), ISO 4413 (Pneumatic fluid power - General rules and safety requirements).

• Regional Certifications: CE (EU, compliant with PED 2014/68/EU), UL (North America, for electrical components like sensors), SASO (Middle East), and CCC (China).

• Industry-Specific Certifications: FDA (for food/pharmaceutical contact), ATEX (for hazardous environments in chemical industries), and IP67/IP69K (water/dust resistance for washdown applications).

These certifications ensure SMC air cylinders integrate seamlessly into pneumatic systems worldwide, regardless of industry or regional regulatory requirements.

Conclusion

In the pneumatic industry, where the performance of air cylinders directly dictates the efficiency and reliability of pneumatic systems, SMC has established itself as a leader through proprietary standards, precision engineering, and industry-tailored designs. From miniature cylinders for microelectronics to heavy-duty actuators for automotive manufacturing, SMC air cylinders solve the unique challenges of pneumatic system operation—reducing energy waste, minimizing downtime, and ensuring compliance with global standards.

For pneumatic system integrators, engineers, or end-users seeking to optimize their automation processes, SMC offers not just products but comprehensive pneumatic solutions—including custom cylinder designs, system simulation tools, and on-site technical support. Contact SMC today to request the latest product catalog, technical datasheets, or a personalized pneumatic system consultation, and experience how SMC air cylinders elevate the performance of your pneumatic applications.
