4F Series Foot Valve

< >

4F Series Foot Valve

Model	4F210-08	4F210-08L	4F210-08G	4F210-08LG
Fluid	Air
Type of actuation	5 port 2 position
Action	Direct
Port size	In=Out=PT1/4
Operating pressure range	0~0.8 MPa
Ambient and fluid temperature	-5~60℃(No freezing)
Lubrication	No required

~~Consult Immediately~~

Product Details

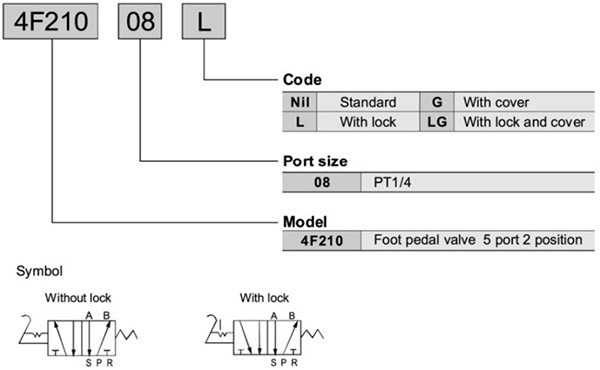

Ordering Code


Specification

Model	4F210-08	4F210-08L	4F210-08G	4F210-08LG
Fluid	Air
Type of actuation	5 port 2 position
Action	Direct
Port size	In=Out=PT1/4
Operating pressure range	0~0.8 MPa
Ambient and fluid temperature	-5~60℃(No freezing)
Lubrication	No required

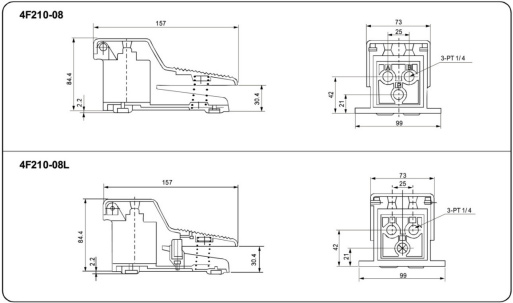

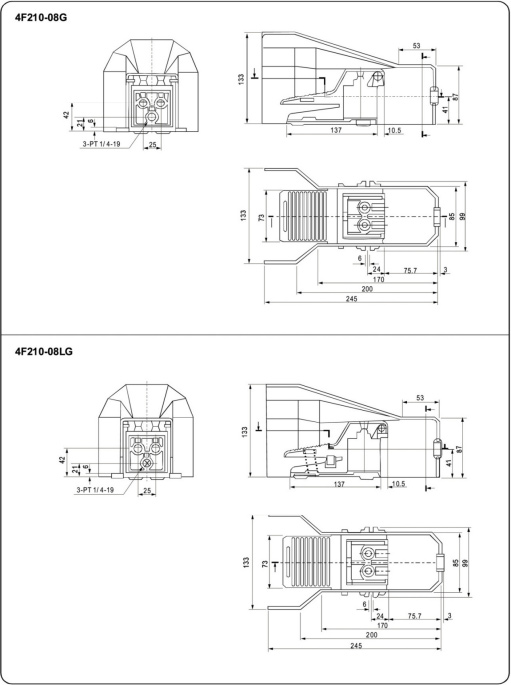

Overall Dimensions
