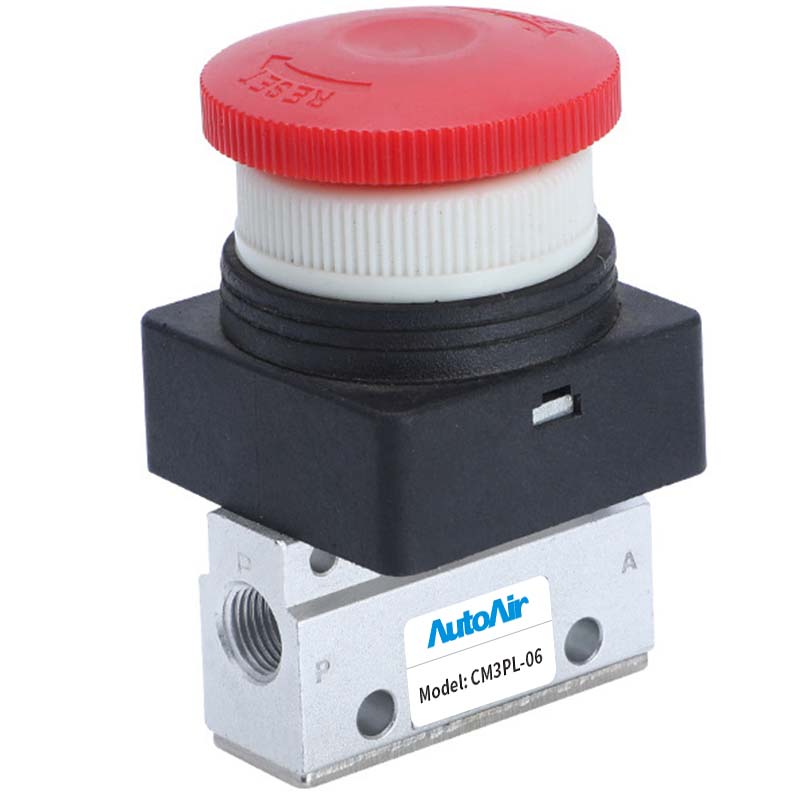

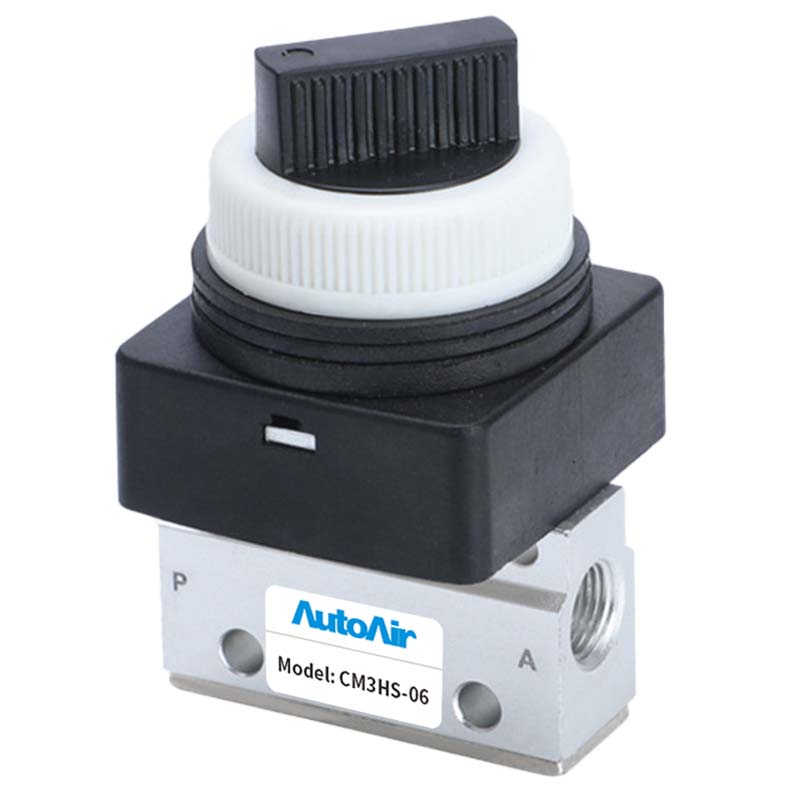

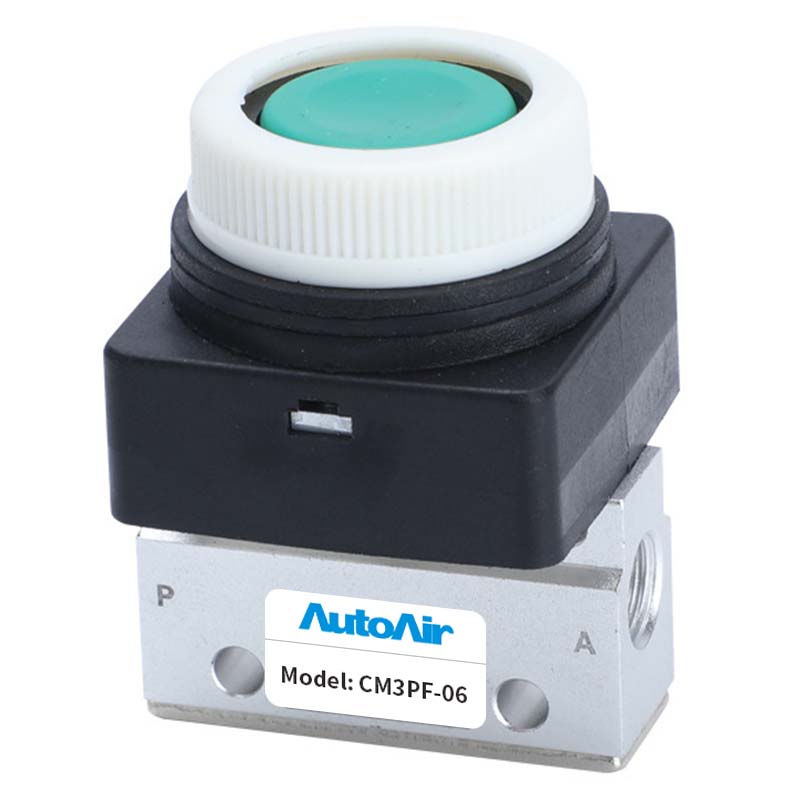

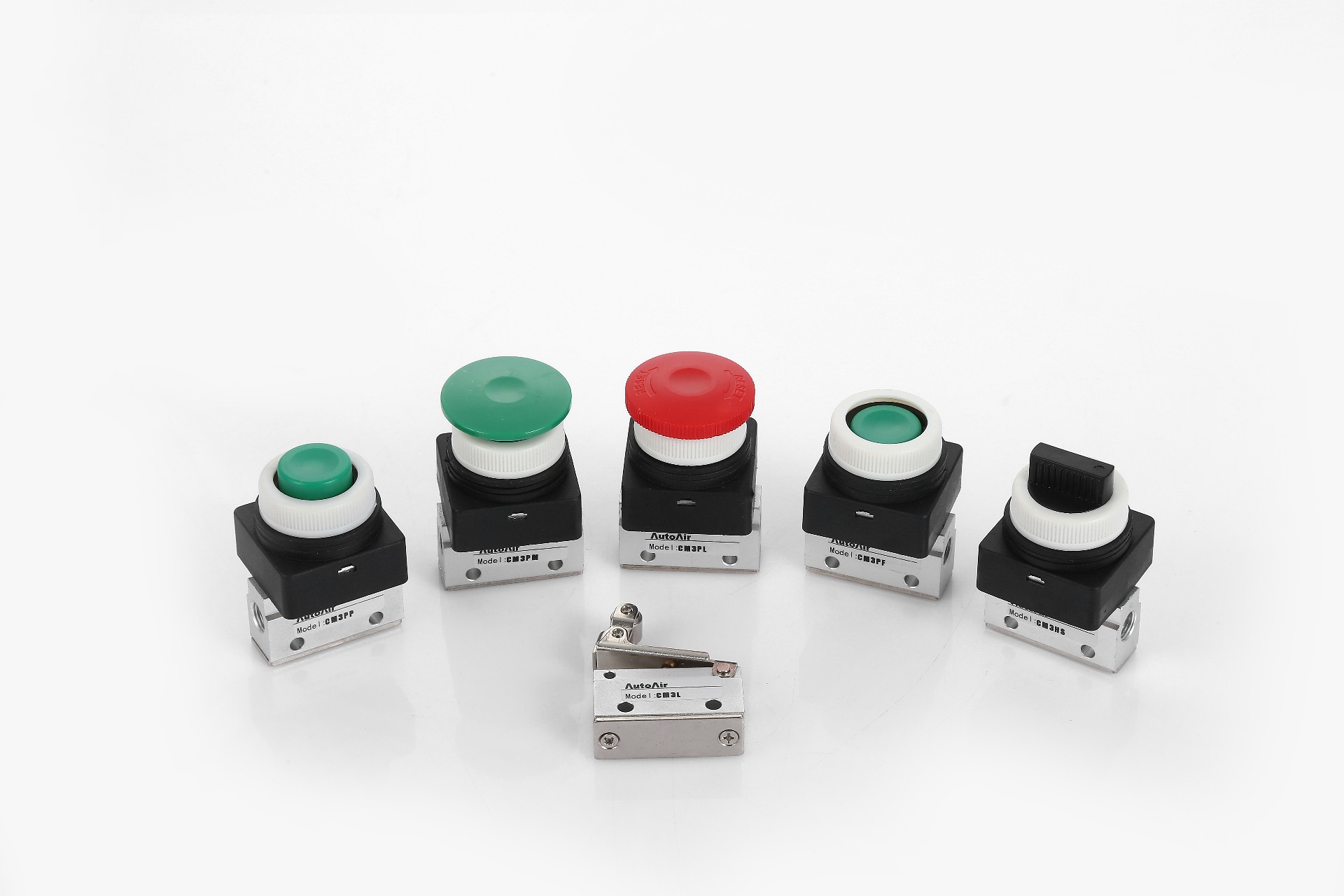

CM3/S3 Series Control Valve（3/2Way）

< >

CM3/S3 Series Control Valve（3/2Way）

Working Medium	Fittered 40μm Air
Motion Pattern	External Direct Action Contorl
Port Size	05：M5; 06: PT1/8"; 08: PT1/4"
Lubrication	Not required
Working Pressure Resistance	0~0.8MPa

~~Consult Immediately~~

Product Details

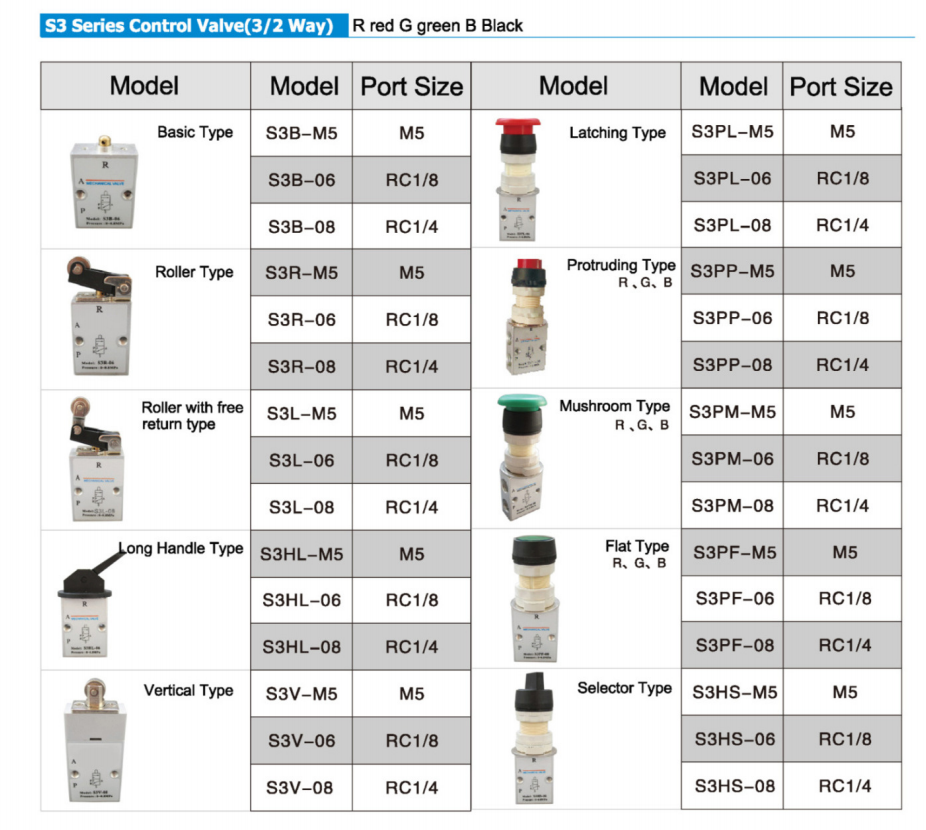

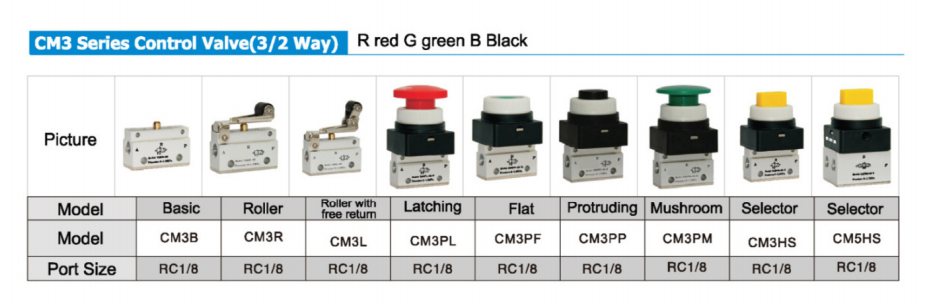

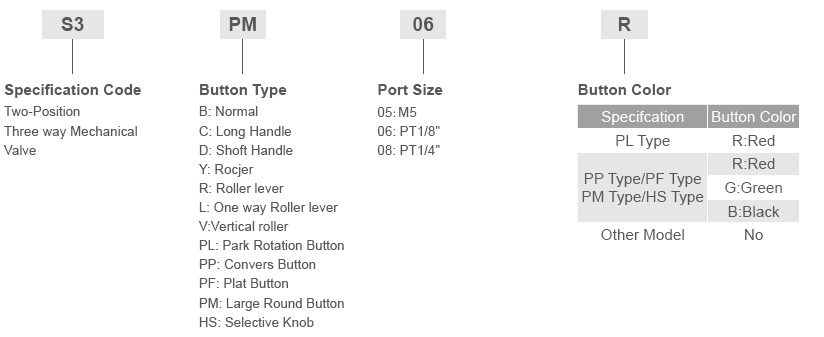

Ordering Code

Specification

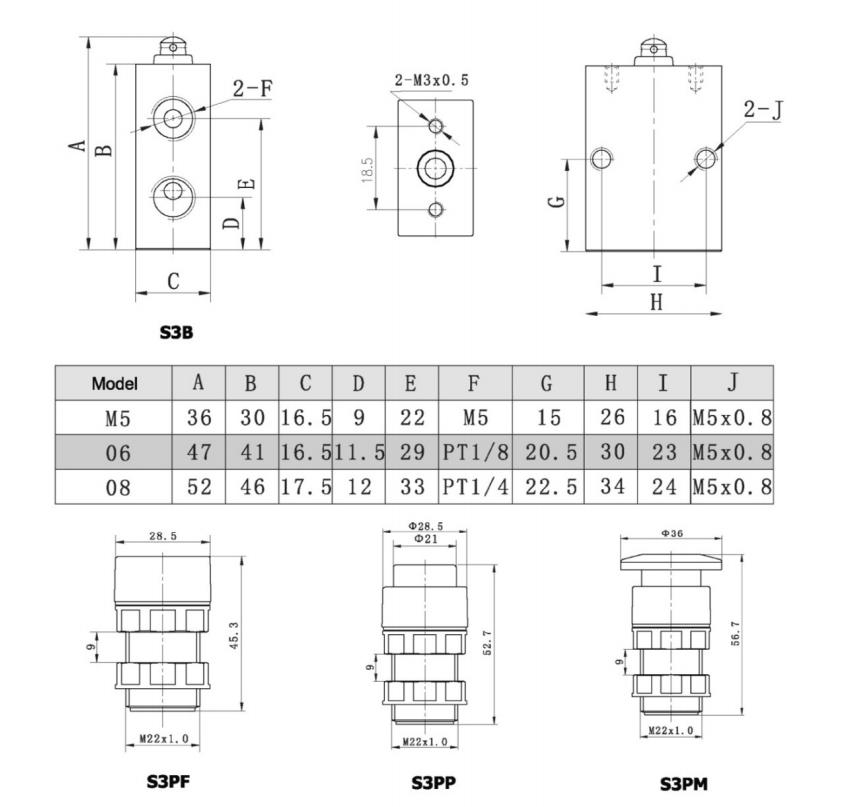

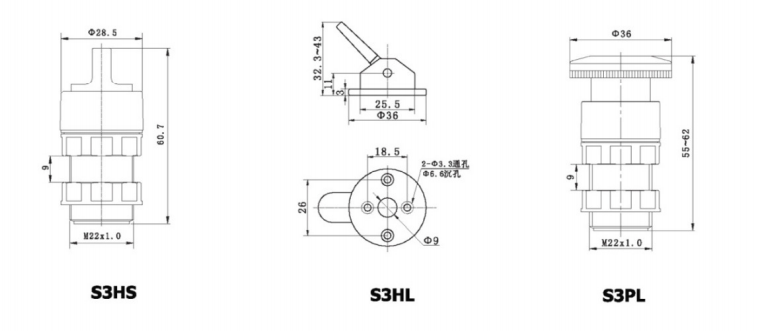

Overall Dimensions
