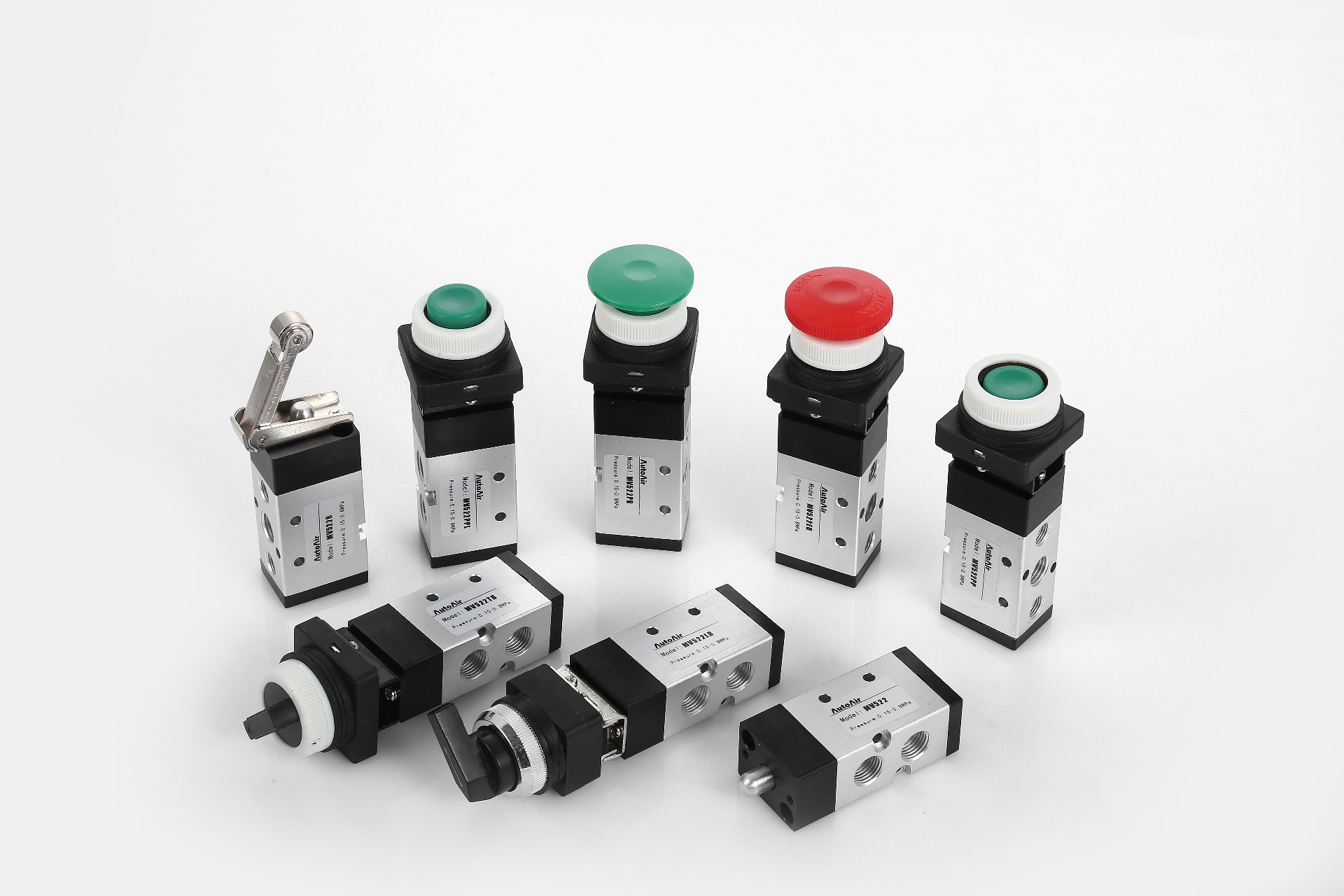

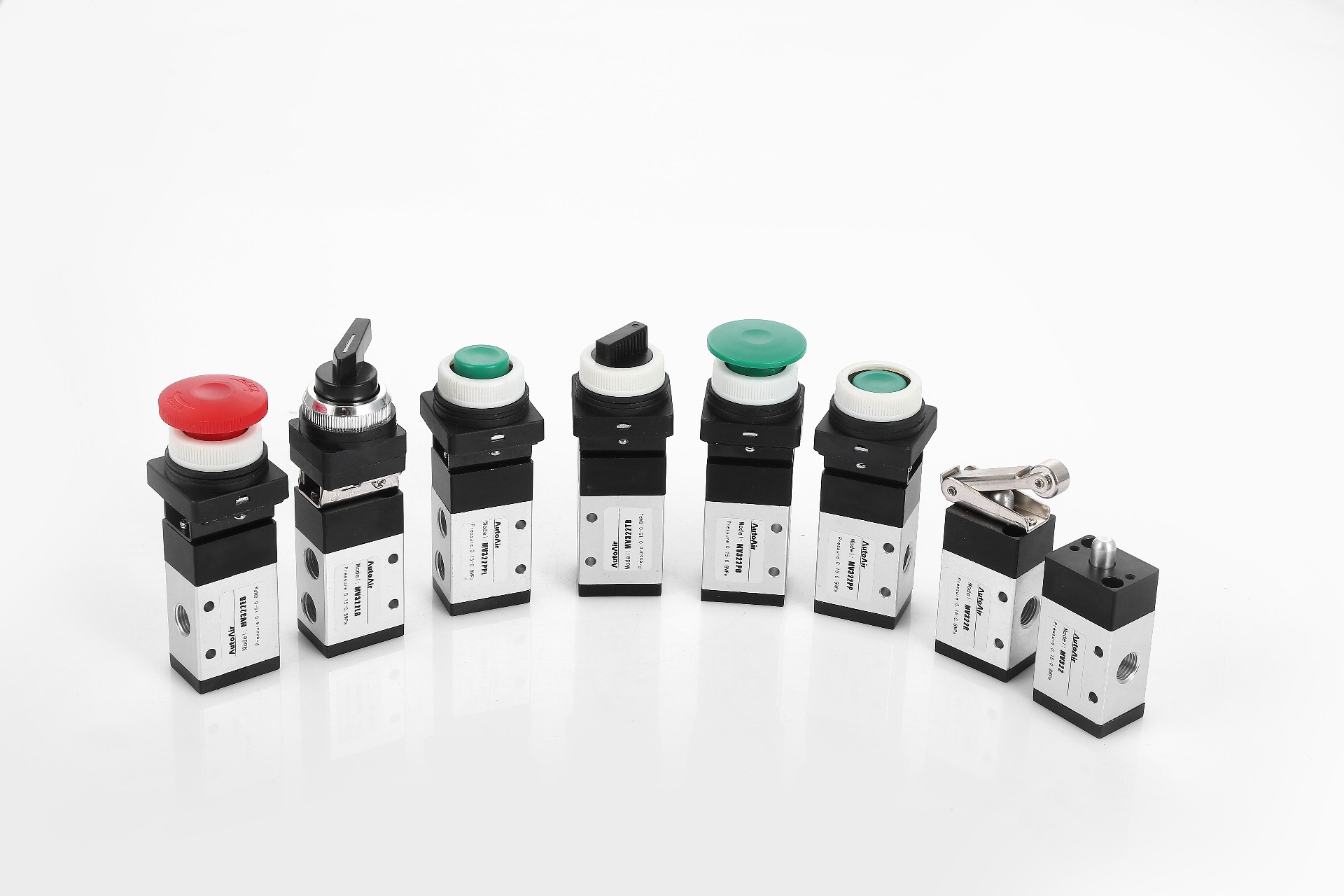

MV522 Series Control Valve(5/2 Way)

< >

MV522 Series Control Valve(5/2 Way)

Fluid	Air
Material Body	Aluminum Alloy
Port Size	08:G1/4
Lubrication	Not required
Working Pressure Resistance	0~0.8MPa

~~Consult Immediately~~

Product Details

Specification

working medium	Air (filtered through a filter over 40μm)
Action	External Control Direct Action
Port diameter	G1/4
number of positions	2 position 5 way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-5∼60
Body material	aluminum alloy

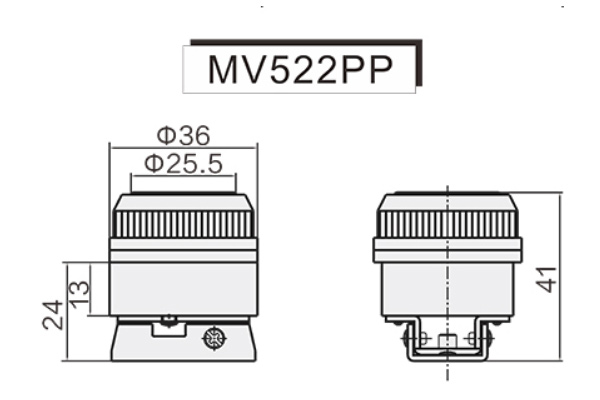

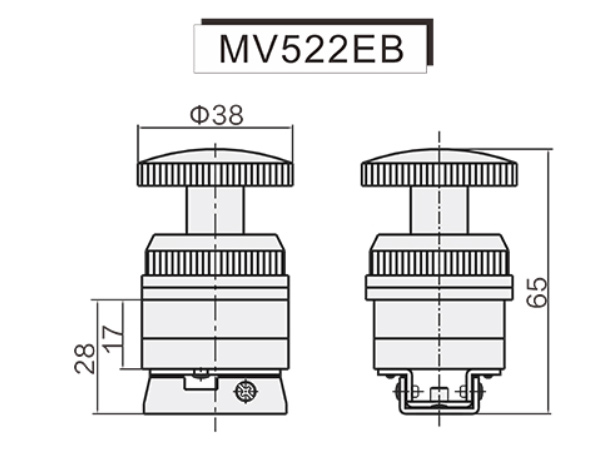

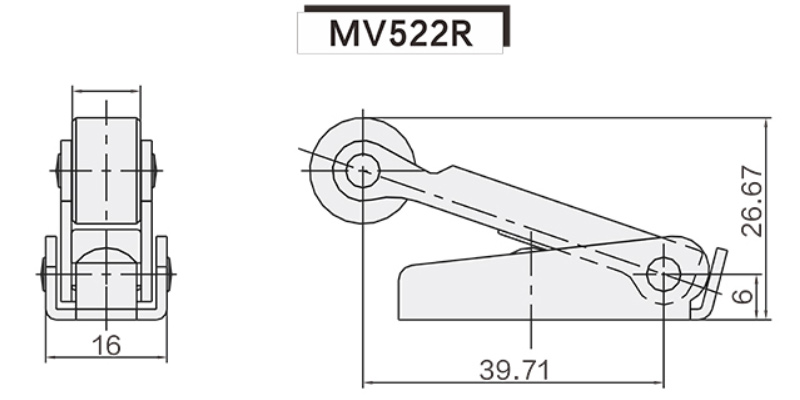

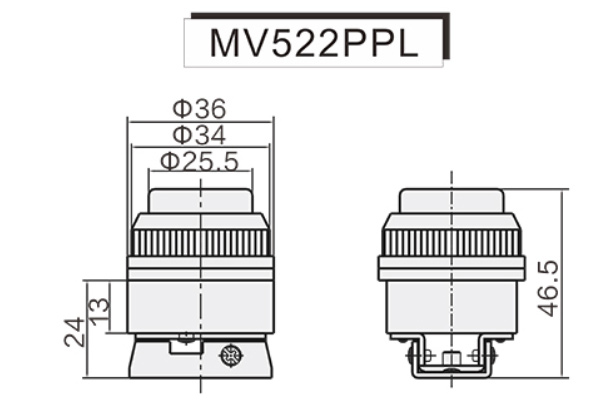

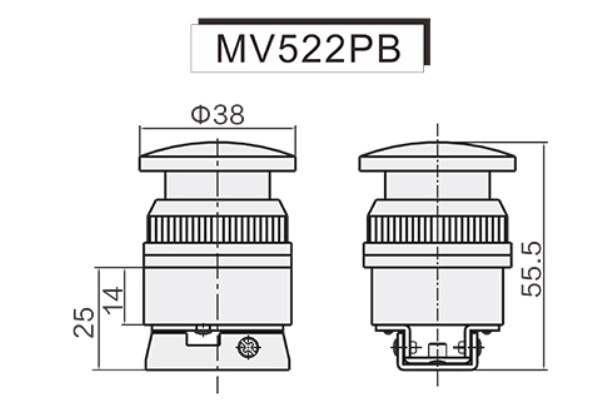

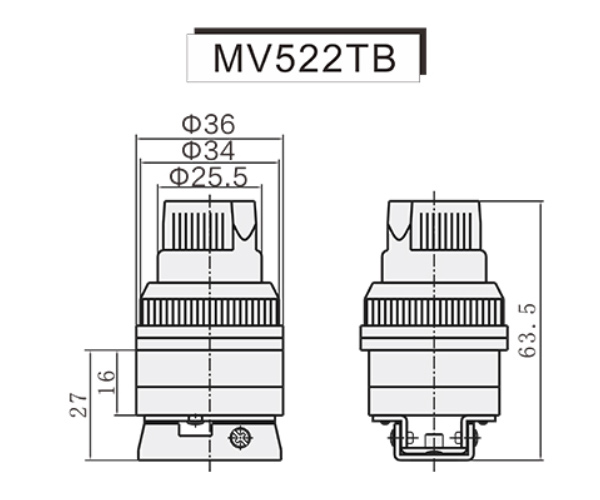

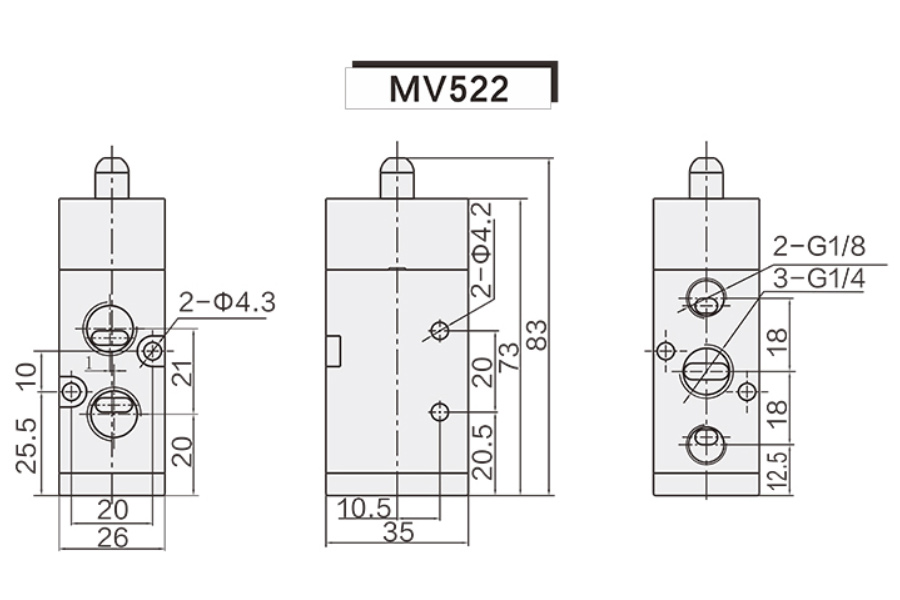

Overall Dimensions
