MA6432 Series Mini Cylinder(ISO6432)
  • MA6432 Series Mini Cylinder(ISO6432)
  • MA6432 Series Mini Cylinder(ISO6432)
  • MA6432 Series Mini Cylinder(ISO6432)

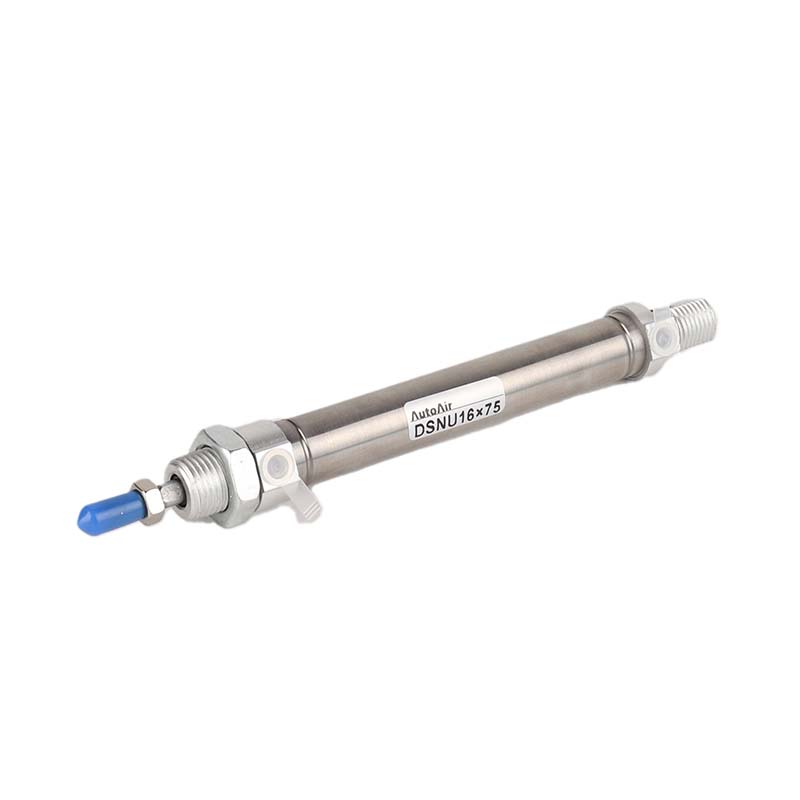

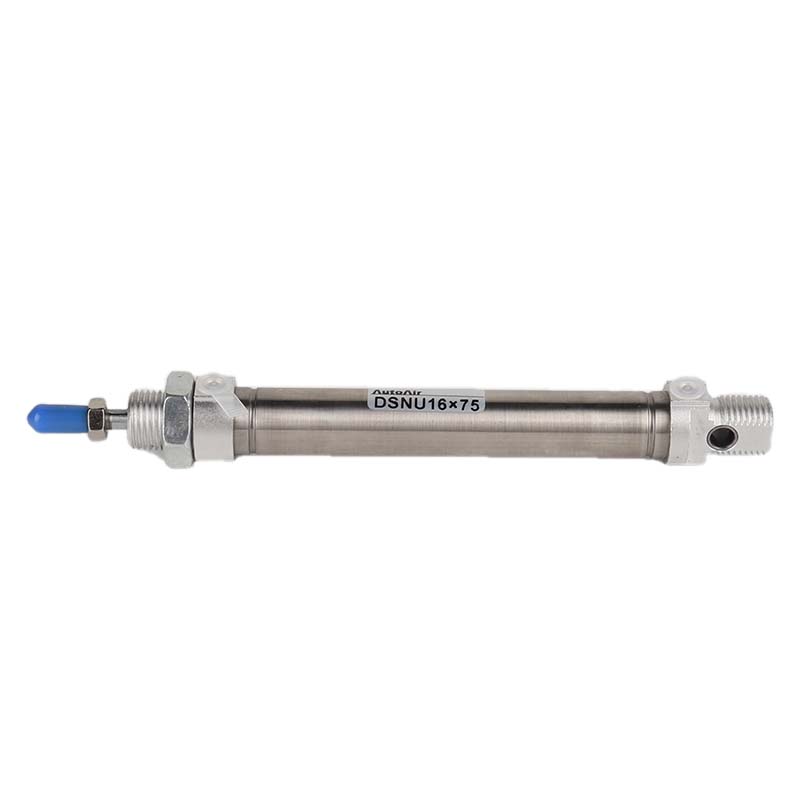

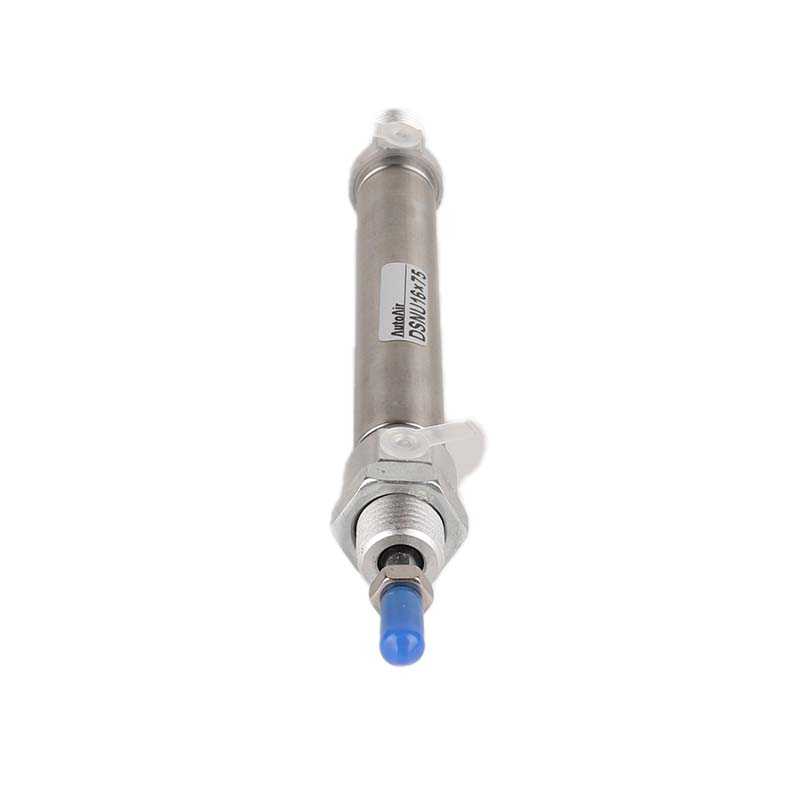

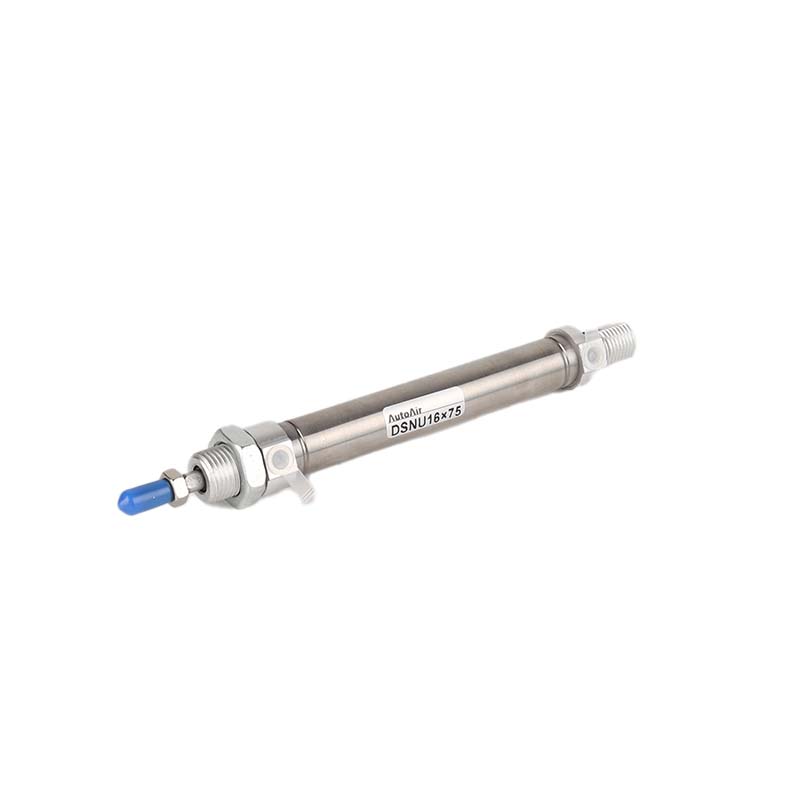

MA6432 Series Mini Cylinder(ISO6432)

Working Medium: Air
Motion Pattern: Double Action or single Action
Ensured Pressure Resistance: 1.5Mpa
Max.pressure: 1.0Mpa
Min.pressure: 0.05Mpa/0.1Mpa
Buffering: 50~750mm/s


Consult Immediately

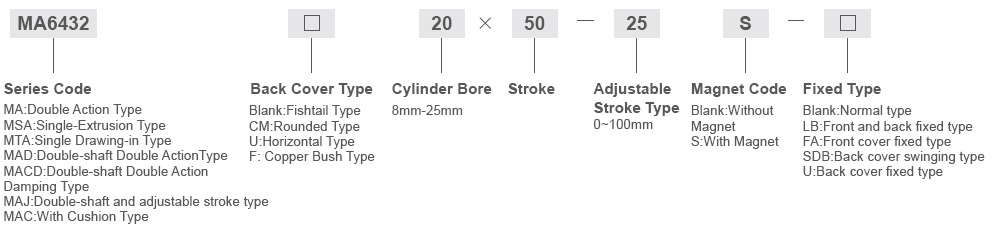

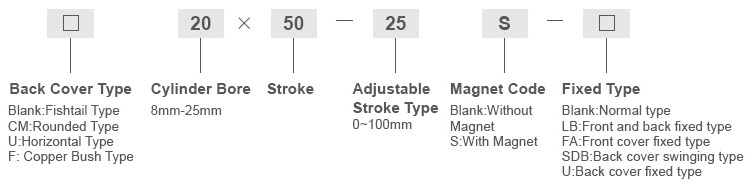

Ordering Code

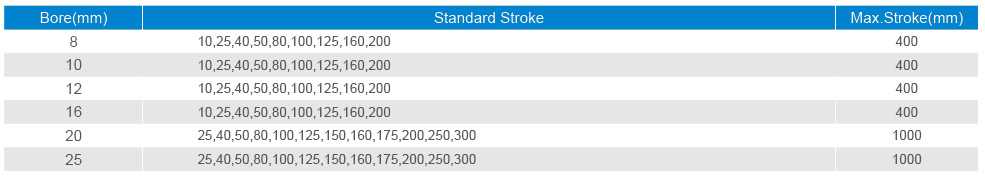

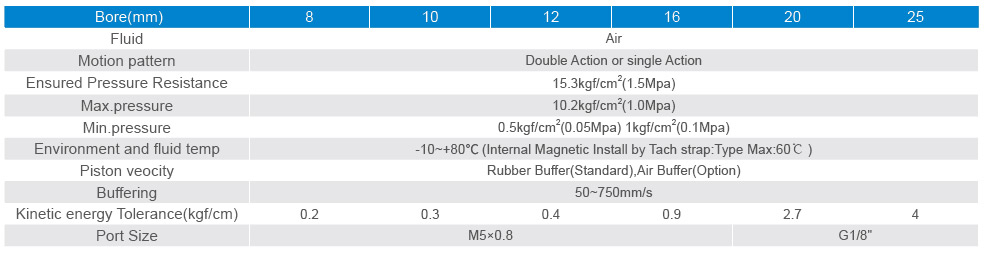

Specification

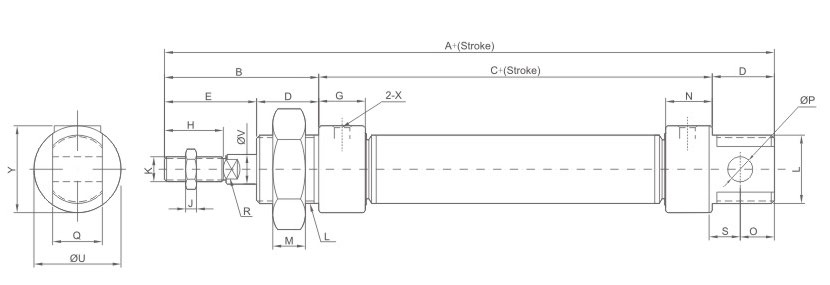

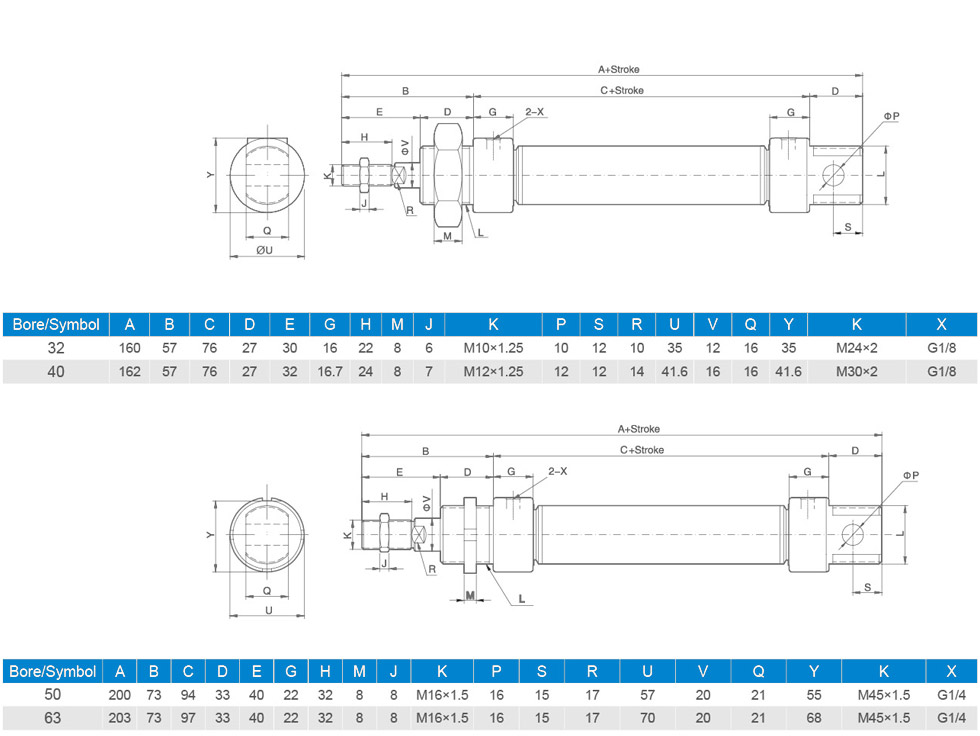

Overall Dimensions



Bore/Symbol

A

B

C

D

E

G

H

M

J

O

K

N

P

S

R

U

V

Q

Y

L

X

8

86

28

46

12

16

9

12

7

3

10

M4×0.7

9

4

6

-

15

4

8

15

M12×1.25

M5

10

86

27

47

12

15

9

12

7

3

10

M4×0.7

9

4

6

-

15

4

8

15

M12×1.25

M5

12

105

37

51

17

20

9

16

6

4.5

14

M6x1

9

6

9

5

20

6

12

20

M16x1.5

M5

16

111

38

56

17

21

12.5

16

6

4.5

13

M6x1

10.5

6

9

5

20

6

12

20

M16x1.5

M5

20

128

45

63

20

25

15

20

8

6

11

M8×1.25

15

8

12

6

27

8

16

27

M22×1.5

G1/8"

25

137

50

65

22

28

15

22

8

6

11

M10×1.25

15

8

12

8

27

10

16

27

M22×1.5

G1/8"




MA6432-N25X150


Bore

AM

BE

ΦC

ΦCD

ΦD

EE

EW

F

φ8

12

M12×1.25

4

4

17

M5×0.8

8

12

φ10

12

M16×1.25

4

4

17

M5×0.8

8

12

φ12

16

M16×1.5

6

6

20

M5×0.8

12

17

φ16

16

M16×1.5

6

6

20

M5×0.8

12

17

φ20

20

M22×1.5

8

8

28

G1/8"

16

20

φ25

22

M22×1.5

8

8

33.5

G1/8"

16

22

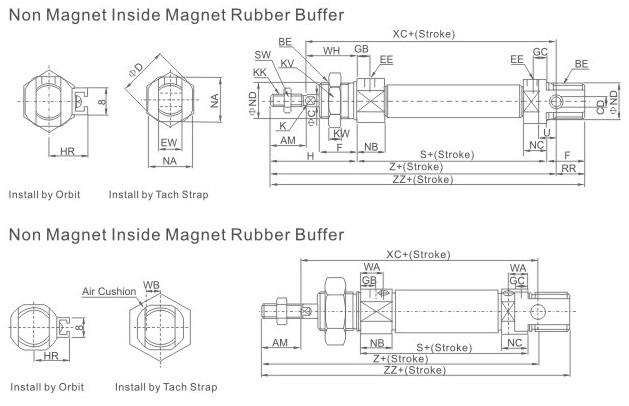

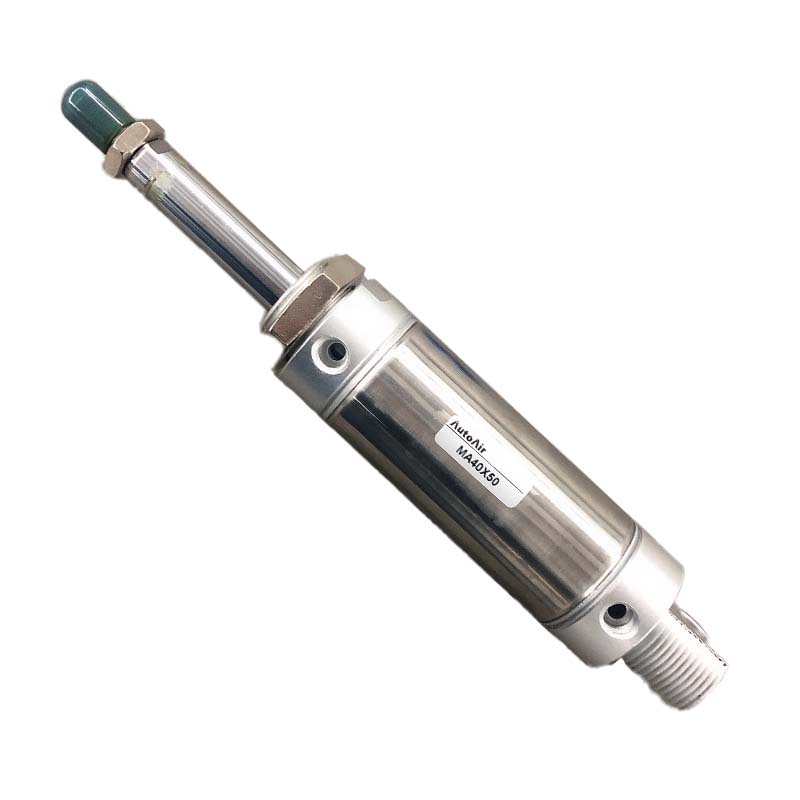

MA6432(ISO 6432 Big Bore)


Other info

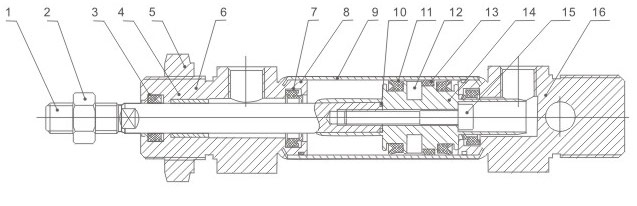

NO. Designation   1 Piston Rod 2 Piston Rod Nut 3 Front Cover Seal 4 Bearing 5 Hexagon Screw 6 Front Cover 7 Cushion Ring 8 O-ring
NO. Designation   9 Barrel 10 Piston rod O-ring 11 Piston O-ring 12 Magnet(Optional) 13 Wear Ring 14 Piston 15 Hex Socket Screw 16 Back Cover
