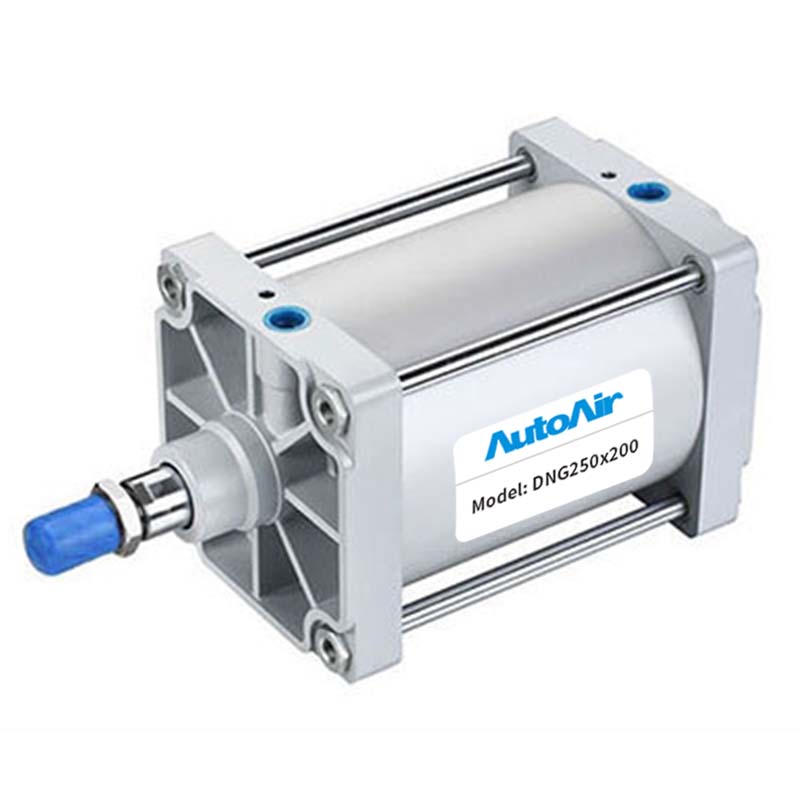

DNG Series Standard Cylinder(ISO15552)

Bore(mm)

160

200

250

320

Motion Pattern

Double Action

Working Medium

Air

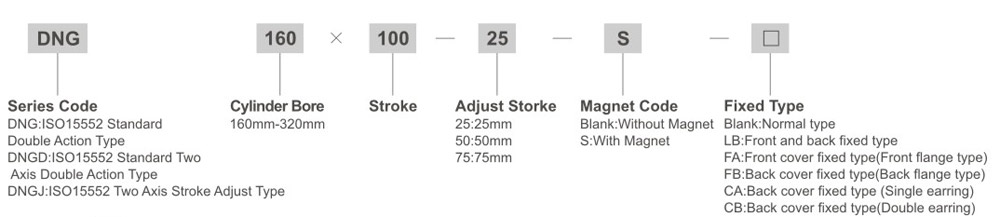

Fixed Type

Normal type FA type FB type CA type CB type LB type TC type

Working Pressure Range

0.1~1.0MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

-5~60℃

Operating Speed Range

50~500mm/s

Buffer Type

Adjustable Buffer

Port Size

G3/4"

G1"

Lubrication

Not required (Use Turbine oilISO Vg32 when necessary)

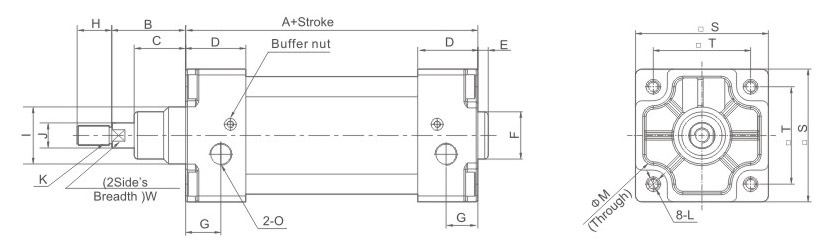

Bore

A

B

C

D

E

F

G

H

I

J

K

L

M

S

T

O

160

180

80

60

50

6

φ65

25

72

φ65

40

M36×2

M16

φ25dp30

180

140

G3/4"

200

180

95

70

50

6

φ75

25

72

φ75

40

M36×2

M16

φ25dp30

220

175

G3/4"

250

200

105

67

52

10

90

31

84

90

50

M42×2

M20

φ30

270

220

G1"

320

218

120

82

52

10

110

31

96

110

63

M48×2

M24

φ34

340

270

G1"
