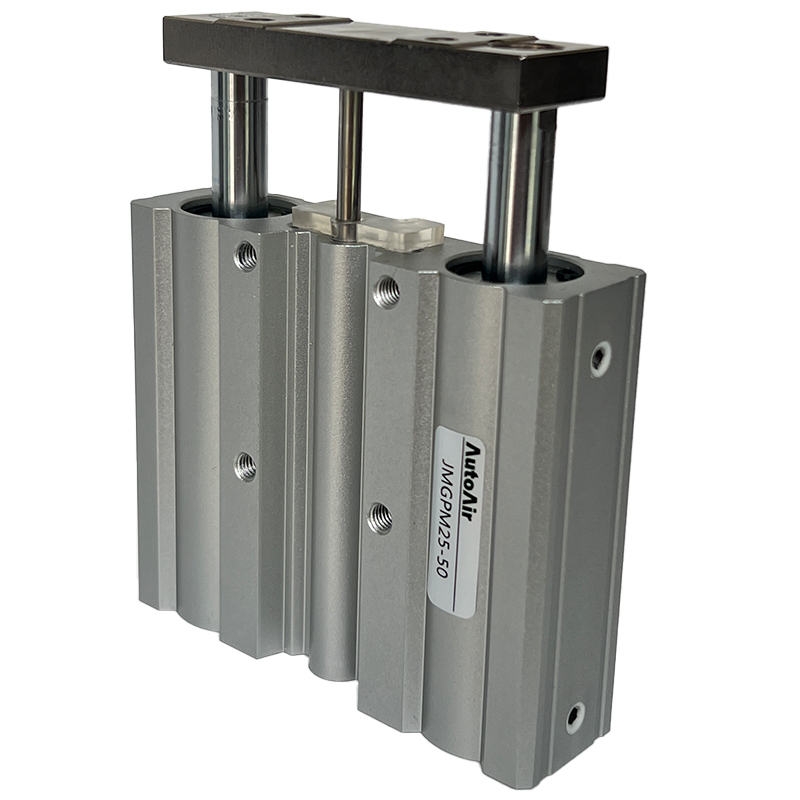

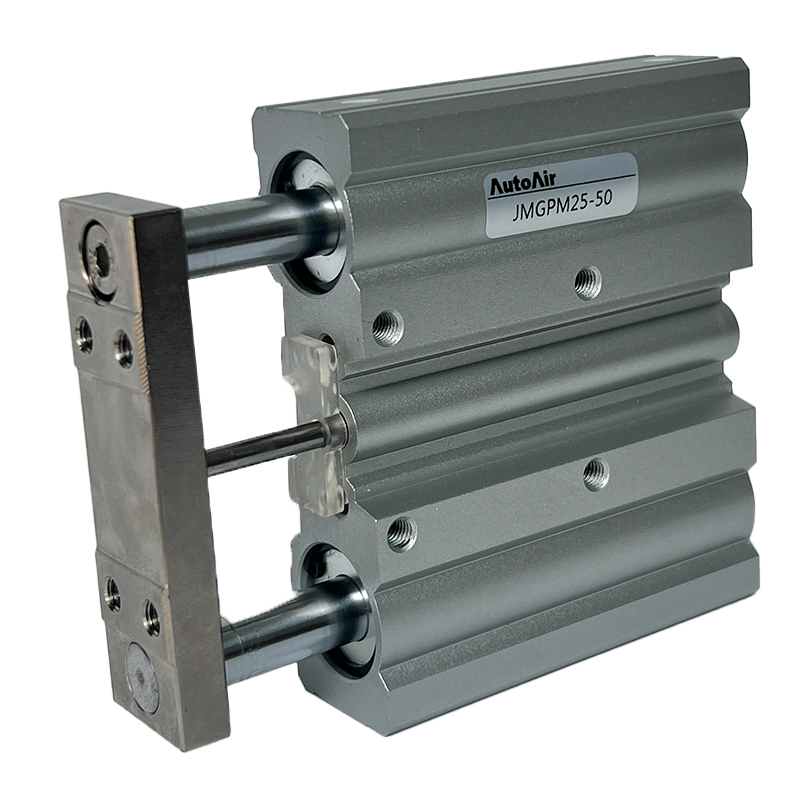

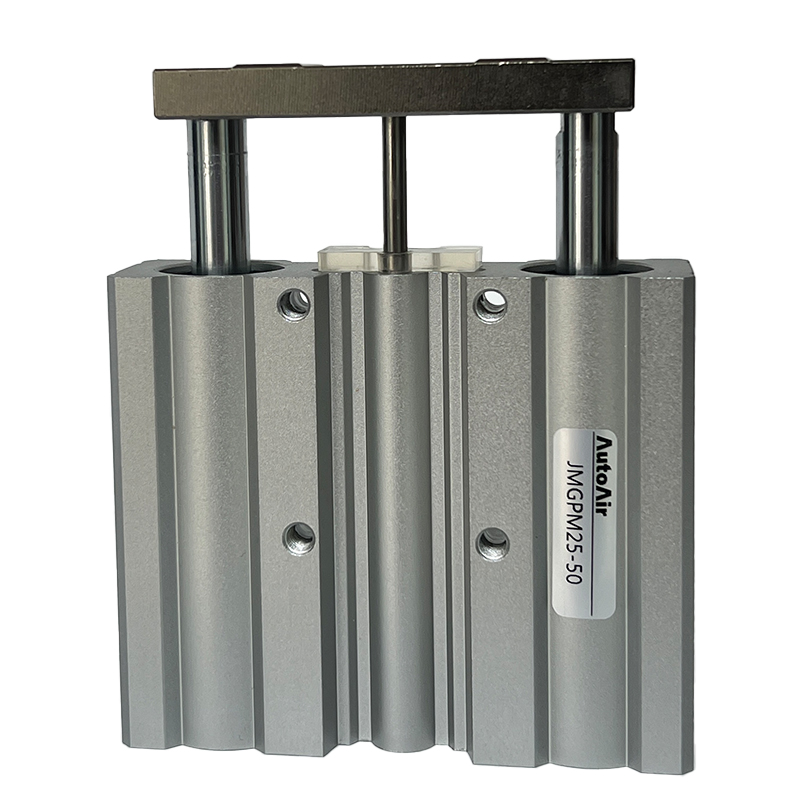

JMGP Series Three-Rod Guide Pneumatic Cylinder - Three-Axis Slide Cylinder with Guide Rod for Industrial Applications

・Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm

・Weight: Max. 69% lighter (0.32 kg → 0.1 kg)

・3 mounting options:

　Top mounting, Bottom mounting, Rear mounting

・Piping is possible in 4 directions.

・The solid state auto switch D-M9 is mountable.

・Suitable for pushing, lifting, or clamping in a transport line.

・Guided pneumatic cylinder dual rod double

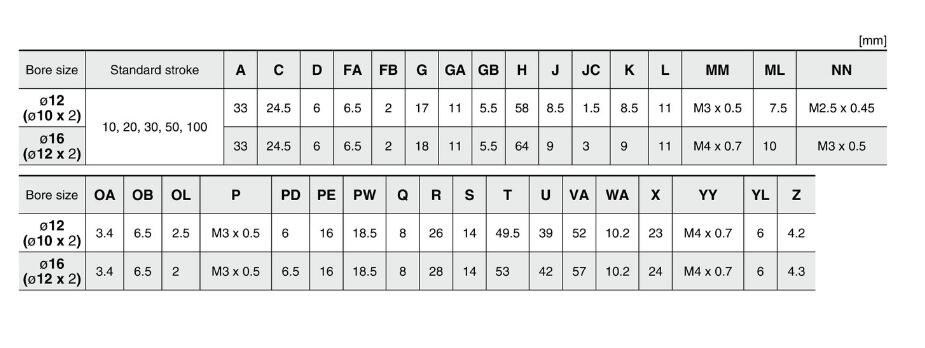

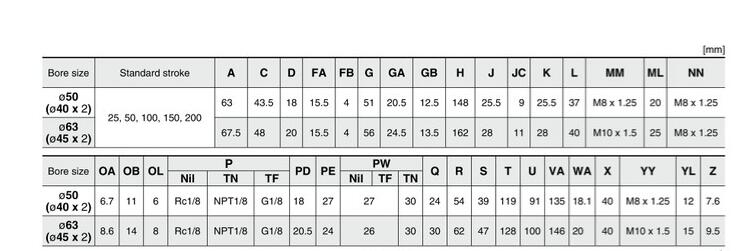

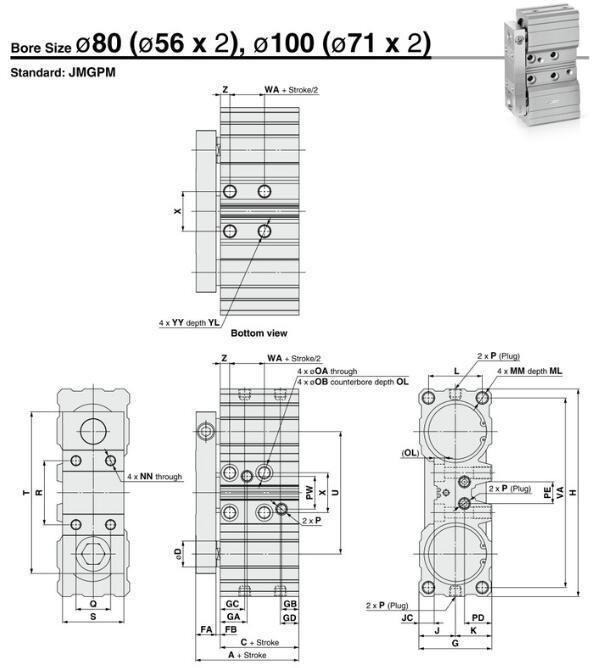

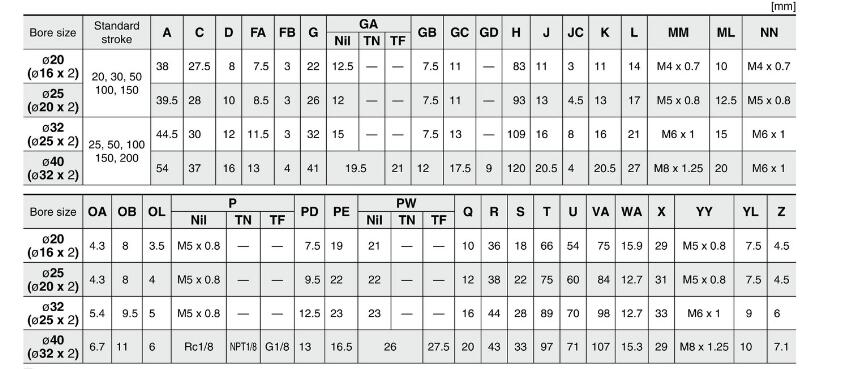

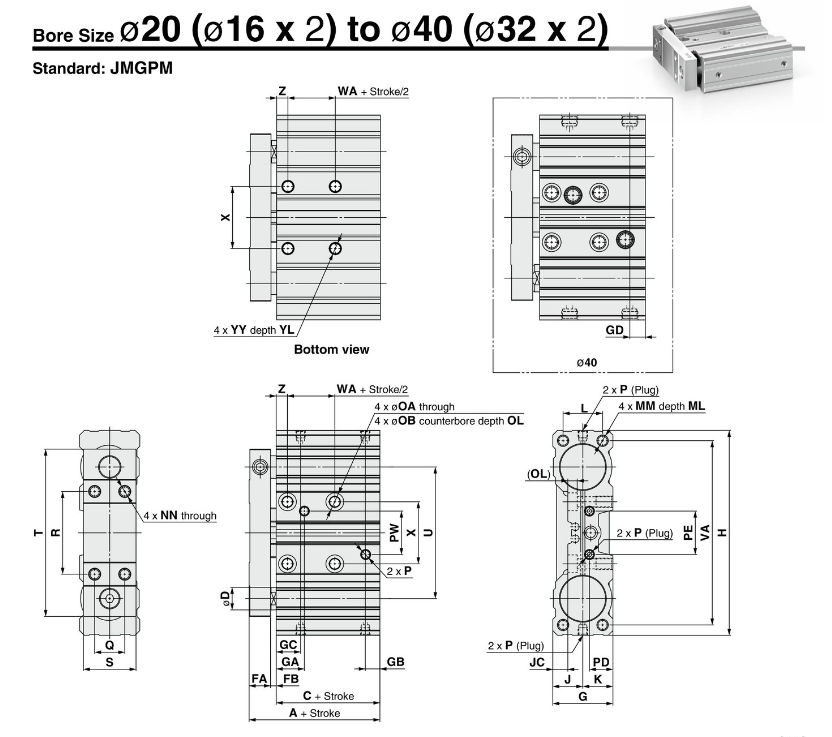

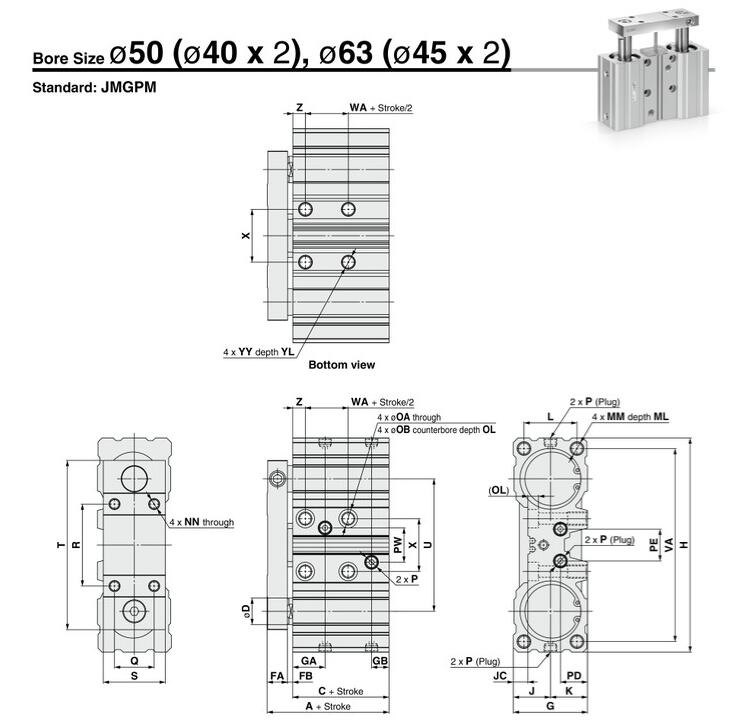

Bore Size	φ12	φ16	φ20	φ25	φ32	φ40	φ50	φ63	φ80	φ100
Action	Double Acting
Fluid	Air
Proof pressure	1.05MPa
Max operating pressure	0.7MPa
Min operating pressure	0.15MPa
Ambint and fluid temperatures	5 to 60℃
Piston speed	50 To 300 mm/S								50 to 250 mm/S
Cushion	Not required(non-lube)
Lubrication	Not required(non-lube)
