Compact Pneumatic Cylinders

Compact Powerhouses Redefining Industrial Automation

In the realm of pneumatic actuation, compact pneumatic cylinders stand out as a testament to engineering ingenuity, blending space efficiency with robust performance. Distinguished by their unique structural design, these cylinders diverge from standard models—their front and rear end caps are secured via internal circlips, while air ports are integrated directly into the Pneumatic cylinder tube, eliminating the need for external manifolds and streamlining their footprint.

Core Design & Functional Essence

Unlike conventional Pneumatic cylinders such as the SC, DNC, or SI series, compact pneumatic cylinders boast an optimized, space-saving structure that minimizes installation volume without compromising functionality. A key design highlight is their integrated magnetic switch mounting sleeves, which eliminate the need for additional brackets, simplifying the installation of reed switches and enhancing operational convenience.

At their core, these Pneumatic cylinders are linear pneumatic actuators powered by compressed air, converting pneumatic energy into precise linear motion. Their defining traits—short overall length, lightweight construction, and reliable performance—make them indispensable in modern industrial automation, where space constraints and efficiency are paramount.

Applications: Versatility in Compact Spaces

Compact pneumatic cylinders excel in environments where space is limited, proving critical in:

Robotic systems, particularly in end-effectors and joint actuation

Packaging machinery, for tasks like product clamping and positioning

Electronic manufacturing, including PCB assembly and component handling

Small-scale automation lines, where precise pushing, ejecting, or lifting is required

Their ability to deliver consistent force output within a compact envelope has solidified their role as a cornerstone of automated design, bridging the gap between space limitations and performance demands.

Key Characteristics: Beyond Small Size

While their compactness is their most recognizable feature, these cylinders offer a suite of advantages that drive their widespread adoption:

Optimized Dimensions: Engineered for minimal spatial footprint, with shorter overall lengths than standard Pneumatic cylinders, yet customizable stroke options (typically 70–160mm; strokes beyond this range are classified as custom-engineered).

Lightweight Construction: Often fabricated from high-strength aluminum alloys or advanced engineering plastics, reducing inertia and easing integration into dynamic systems.

Flexible Integration: Multiple mounting configurations (flange, foot, or axial) and modular designs enable seamless integration into diverse machinery.

Integrated Innovations: Many models include built-in magnetic rings (for position sensing), cushioning mechanisms (to reduce impact), or guiding structures (for enhanced stability).

High Efficiency: Despite their size, they operate within a 0.1–1.0MPa pressure range, delivering impressive force output suitable for high-speed, repetitive tasks.

Environmental Resilience: Capable of functioning in extreme temperatures (-20°C to 80°C), humid conditions, and environments with mechanical vibrations—critical for rugged industrial settings.

Leading Series: Tailored to Specific Needs

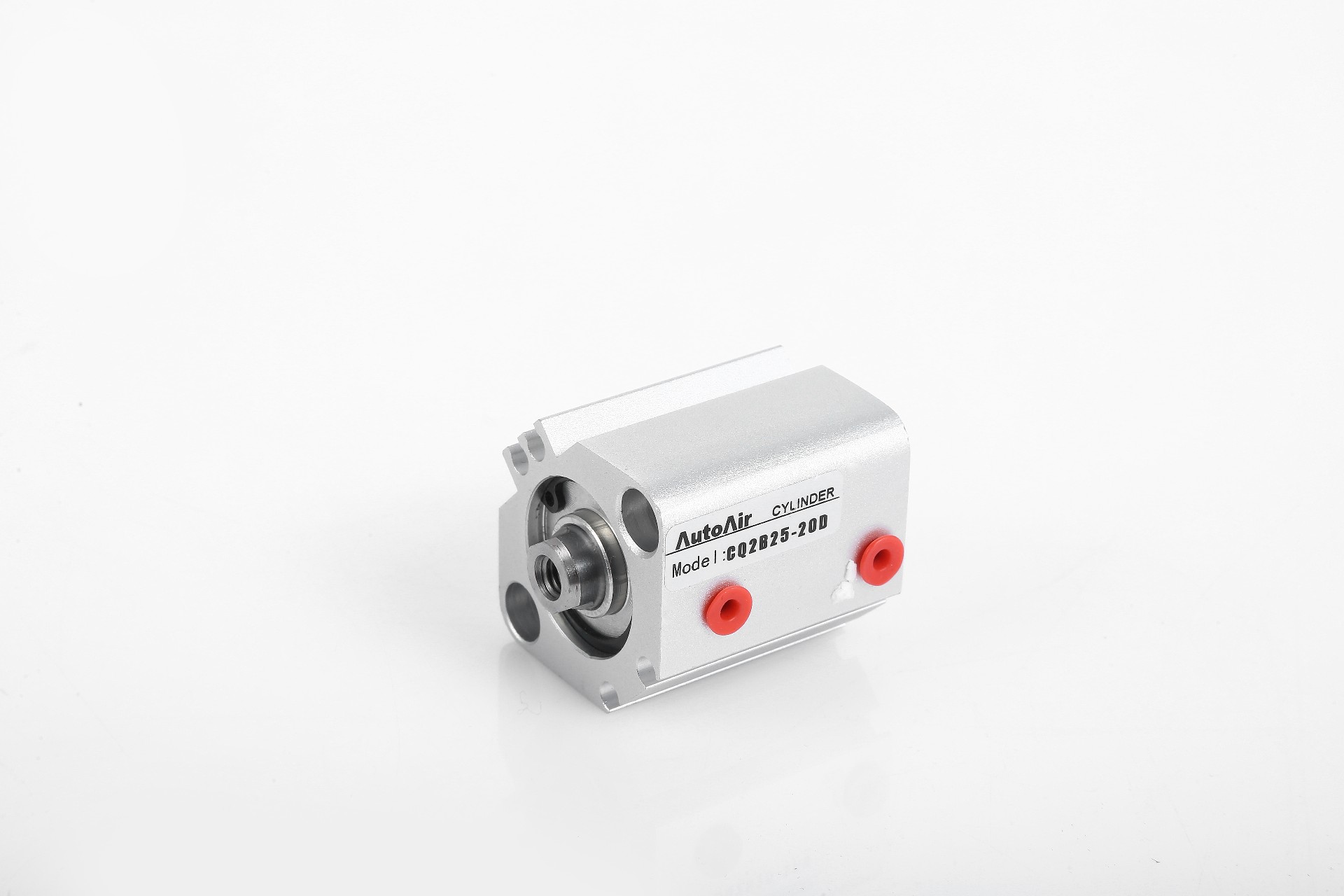

The market offers several prominent compact Pneumatic cylinder series, each designed for distinct applications:CQ2B25-20 with through bore compact cylinder thin cylinder-CQ2 CDQ2.JPG

SMC CQ2 Series: Ultra-thin, lightweight, and modular, ideal for precision tasks in electronics and robotics. Its sleek profile and compatibility with magnetic sensors make it a favorite for space-critical systems.

Airtac SDA Series: An economical alternative to the CQ2, with interchangeable dimensions, making it a cost-effective choice for general industrial use.

Festo ADVU Series: Renowned for high precision and rigidity, featuring versatile mounting options and advanced cushioning—perfect for high-speed motion in complex fixture systems.

SMC CU/CDU Series: Miniature Pneumatic cylinders designed for micro-precision tasks, fitting into ultra-tight spaces (e.g., medical device assembly or micro-robotics).

Technical Specifications

Operating Pressure: 0.1–1.0MPa

Temperature Range: -20°C to 80°C

Fluid Medium: Compressed air, non-corrosive gases

Operating Speed: 30–500mm/s

Compatible Sensors: Reed switches (e.g., CS1-J series) for position detection

Installation & Maintenance Best Practices

Proper installation and upkeep are critical to maximizing lifespan and performance:

Installation:

Verify model and dimensions align with design specifications.

Inspect for transportation damage, particularly to the piston rod and seals.

Secure mounting components to avoid stress-induced deformation.

Ensure air port connections (with quick-connect fittings) are airtight to prevent leakage.

Avoid lateral loads on the piston rod; use guiding systems if side forces are unavoidable.

Maintenance:

Regularly check for leaks using soapy water to identify aging or damaged seals.

Lubricate per manufacturer guidelines—some models require grease, while others rely on air-line oil mist systems.

Keep the Pneumatic cylinder body and piston rod clean to prevent debris from entering guide sleeves.

Replace seals promptly at signs of leakage or reduced thrust.

Use air treatment units (filters, regulators, lubricators) to ensure clean, dry air supply.

Conclusion

Compact pneumatic cylinders embody the marriage of form and function, proving that size need not limit performance. As industrial automation grows increasingly dense and precise, these compact powerhouses will continue to be pivotal—driving efficiency in robotics, electronics, packaging, and beyond. Their ability to deliver reliable, space-efficient actuation ensures they remain indispensable in the evolving landscape of modern manufacturing.
