Dual Rod Air Cylinders & Guided Pneumatic Cylinders: Precision Engineering for Industrial Automation
In the realm of modern industrial automation, pneumatic systems stand as cornerstones of efficiency, valued for their rapid response, streamlined design, and cost-effectiveness. As automation demands escalate—with stricter requirements for precision, stability, and load-bearing capacity—pneumatic actuators have evolved to meet these challenges. Among them, dual rod air cylinders and guided pneumatic cylinders emerge as critical components, offering specialized solutions to mitigate piston rod deflection, minimize positioning errors, and enhance operational reliability. This article delves into their design, functionality, and industrial applications, highlighting why they are indispensable in high-performance automation environments.
Dual Rod Air Cylinders: Symmetry & Stability Redefined
Dual rod air cylinders (or double rod pneumatic cylinders) represent a sophisticated evolution of traditional single-rod designs, engineered to address torsional and lateral load challenges. Unlike their single-rod counterparts, which rely on a single piston rod for force transmission, dual rod cylinders feature two parallel piston rods affixed to the internal piston, extending symmetrically from both ends of the Pneumatic cylinder barrel to connect with an external slider. This configuration inherently resists rotation of the piston rod and enhances stability under dynamic loads.
Key Attributes of Dual Rod Pneumatic cylinders
Anti-Torsion & Anti-Side Load Capability: The dual rod structure distributes lateral forces evenly, reducing bending stress on individual rods and enabling reliable operation in scenarios with eccentric loads or off-axis forces.
Symmetrical Force Output: With equal piston area on both sides, the Pneumatic cylinder delivers consistent thrust and tension in both extension and retraction, making it ideal for bidirectional applications requiring balanced force (e.g., clamping mechanisms or symmetric load handling).
High Repeatability: Dual-point support of the piston rods minimizes axial play, ensuring precise positioning with repeatability often within ±0.02mm—critical for automated assembly or inspection processes.
Common Series & Applications
Leading manufacturers offer specialized dual rod series tailored to diverse needs:

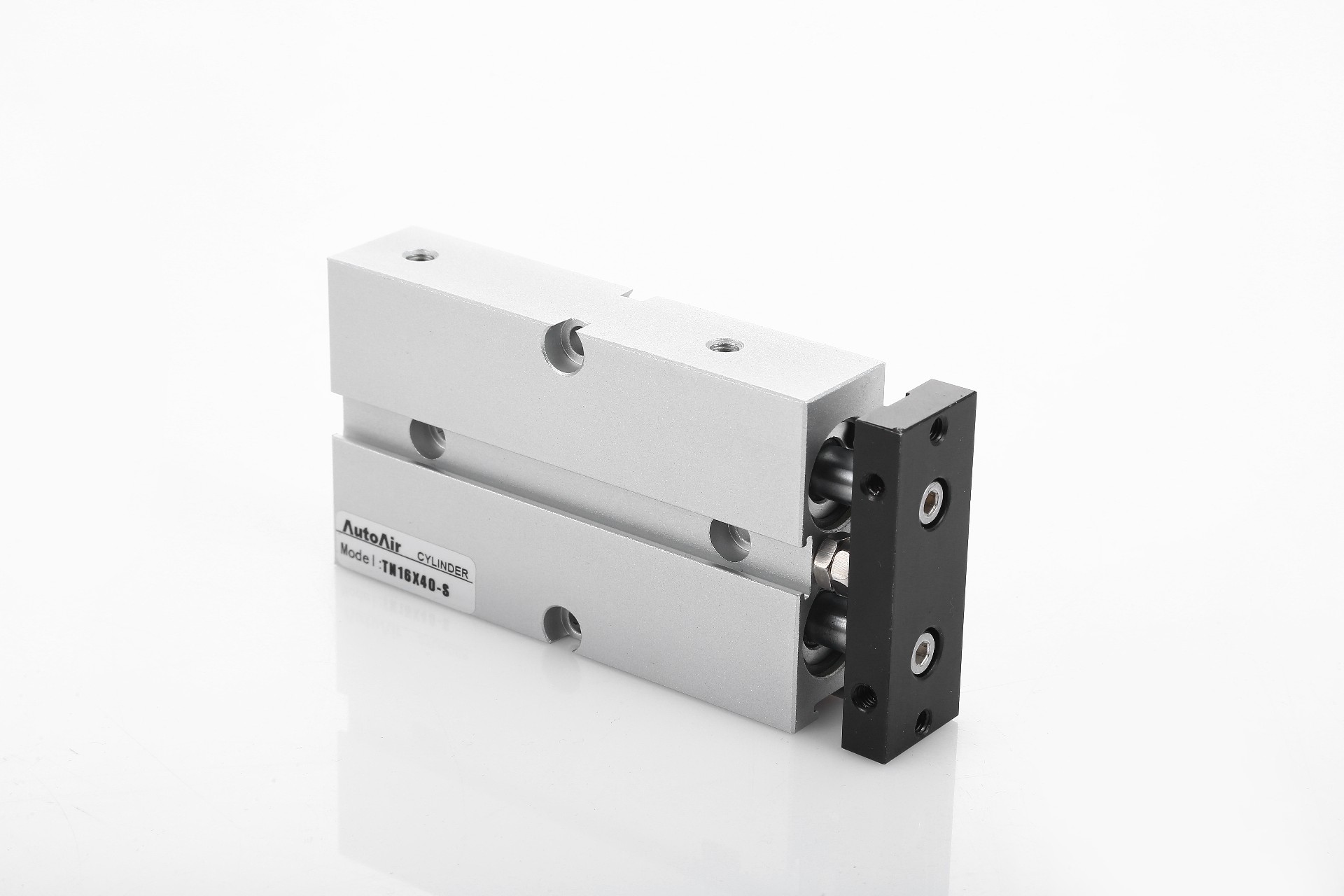

TN Series: Compact and lightweight, suited for small-scale automation (e.g., electronic component handling).
CXS Series: High-precision models with enhanced guiding, ideal for semiconductor or pharmaceutical equipment requiring micro-positioning.
STM Series: Heavy-duty variants with reinforced rods, designed for metalworking or automotive assembly lines with higher load demands.
Guided Pneumatic Cylinders: Enhanced Guidance for Demanding Environments
Guided pneumatic cylinders build on the foundation of single or dual rod designs by integrating additional guide rods and precision guiding mechanisms (e.g., linear bearings or slide rails). These components constrain the movement trajectory, drastically improving resistance to side loads and reducing lateral deflection—even under heavy or uneven loads.
Core Advantages of Guided Pneumatic cylinders
Superior Lateral Load Resistance: The supplementary guide rods act as structural supports, absorbing lateral forces that would otherwise deform piston rods or compromise alignment. This makes them suitable for applications with significant off-axis stress (e.g., pushing heavy workpieces onto conveyors).
Stabilized Motion Trajectory: Guiding systems (such as ball bearings or composite bushings) ensure the slider moves along a strictly linear path, eliminating "wobble" and maintaining accuracy in high-speed operations.
Extended Service Life: By distributing stress across multiple components, guided Pneumatic cylinders reduce wear on seals and piston rods, lowering maintenance costs in long-term industrial use.
Flagship Series: MGP
The MGP series stands as a benchmark for guided pneumatic cylinders, combining a compact footprint with robust performance. Its integrated guide rods and precision-machined slider make it ideal for space-constrained applications—such as automated packaging or robotic end-effectors—where stability and precision are non-negotiable.
Dual Rod Guided Pneumatic cylinders: Synergizing Strengths
Dual rod guided cylinders merge the symmetrical force output of dual rod designs with the enhanced stability of guided systems. This hybrid configuration features two parallel piston rods paired with auxiliary guide rods, creating a structure capable of withstanding extreme lateral loads, torsional forces, and high-precision positioning demands.
Key Features
Bidirectional Force Symmetry: Equal thrust in both directions, critical for applications like material clamping or symmetric pressing.
Exceptional Rigidity: Combined support from piston rods and guide rods minimizes deflection, even under heavy eccentric loads (up to 30% of rated load in some models).
High Motion Smoothness: Precision bearings reduce friction, enabling consistent operation at speeds ranging from 50 to 500mm/s—vital for delicate processes like glass handling.
Integrated Position Sensing: Most models include embedded magnetic rings, compatible with reed or Hall-effect sensors for real-time piston position monitoring, enhancing process control.
Working Principle
Air-Driven Actuation: Compressed air (typically 0.15–0.7MPa) enters one end of the Pneumatic cylinder, exerting pressure on the piston.
Symmetrical Rod Movement: The piston’s dual rods extend or retract in unison, driving the external slider.
Guided Stability: Guide rods and bearings constrain the slider to linear motion, counteracting lateral forces.
Reversing Action: A directional control valve switches air intake to the opposite end, reversing the slider’s movement—all while maintaining precision.
Single vs. Dual Guided Rod Pneumatic cylinders: A Comparative Overview
Attribute Single Guided Rod Pneumatic Cylinders Dual Guided Rod Pneumatic cylinders
Force Output Asymmetrical (due to unequal piston areas) Symmetrical (equal thrust/tension)
Side Load Resistance Moderate (relied on single rod + guide) Superior (dual rods + guides distribute stress)
Precision Suitable for low-to-moderate accuracy (±0.1mm repeatability) High precision (±0.02mm repeatability)
Applications Light loads, simple linear motion (e.g., door actuators) Heavy loads, high-precision tasks (e.g., CNC machine feeding)
Critical Role of the Slider in Guided Systems
In dual rod guided Pneumatic cylinders, the slider is far more than a load-bearing component—it is the linchpin of stability:
Rigidity: Machined from high-strength aluminum or steel, the slider rigidly connects piston rods and guide rods, preventing relative movement.
Load Distribution: Evenly distributes external forces across all rods, reducing stress concentration.
Sealing Integration: Houses secondary seals to protect guide mechanisms from contaminants (e.g., dust in factory environments).
Technical Specifications
To ensure optimal performance, key parameters include:
Operating Pressure: 0.15–0.7MPa (compatible with standard industrial compressed air systems).
Temperature Range: -20°C to 70°C (specialized seals available for extreme temperatures).
Media Compatibility: Dry, filtered compressed air; non-corrosive gases (custom variants for humid or chemical-rich environments).
Maximum Side Load: Dependent on rod diameter (e.g., 10mm rods handle ~500N lateral force).
Industrial Applications
Dual rod guided Pneumatic cylinders excel in scenarios demanding precision, stability, and durability:
Clamping & Positioning: Securing workpieces in CNC machining or 3D printing, where minimal deflection is critical.
Heavy-Duty Transport: Pushing/pulling metal sheets or automotive components along assembly lines.
Eccentric Load Handling: Operating robotic grippers or palletizers with off-center loads.
High-Speed Sorting: Directing packages in logistics systems, where smooth motion prevents product damage.
Installation Best Practices
Proper installation is pivotal to maximizing performance:
Alignment: Ensure the Pneumatic cylinder axis is collinear with the load’s motion path (use laser alignment tools for precision).
Mounting: Utilize multi-directional mounting holes (on three sides of the fixed plate) to minimize stress; avoid over-tightening bolts.
Load Connection: Use floating joints to compensate for minor misalignments, reducing wear on rods and bearings.
Customization: Tailored to Your Needs
Leading manufacturers offer bespoke solutions to address unique industrial challenges:
Stroke Length: Customizable from 10mm to 1000mm+ for specialized machinery.
Material Coatings: Hard chrome plating or PTFE coatings for corrosion resistance in food processing or marine environments.
Reinforced Designs: Thickened rods or high-strength alloys for heavy-load applications (e.g., construction equipment).
In summary, dual rod and guided pneumatic cylinders are indispensable in modern automation, offering a blend of precision, stability, and versatility. Whether in electronics manufacturing, automotive assembly, or logistics, these components continue to drive efficiency and reliability in industrial processes worldwide.
