Pneumatic Manifolds: Uses & Advantages

Date:2025-08-14    Visits:95

What is a Pneumatic Manifold?

A pneumatic manifold is a device that distributes liquid or air from a single source to multiple output ports. It acts as a central connection point in distribution systems, linking different outlets to streamline airflow or fluid management.

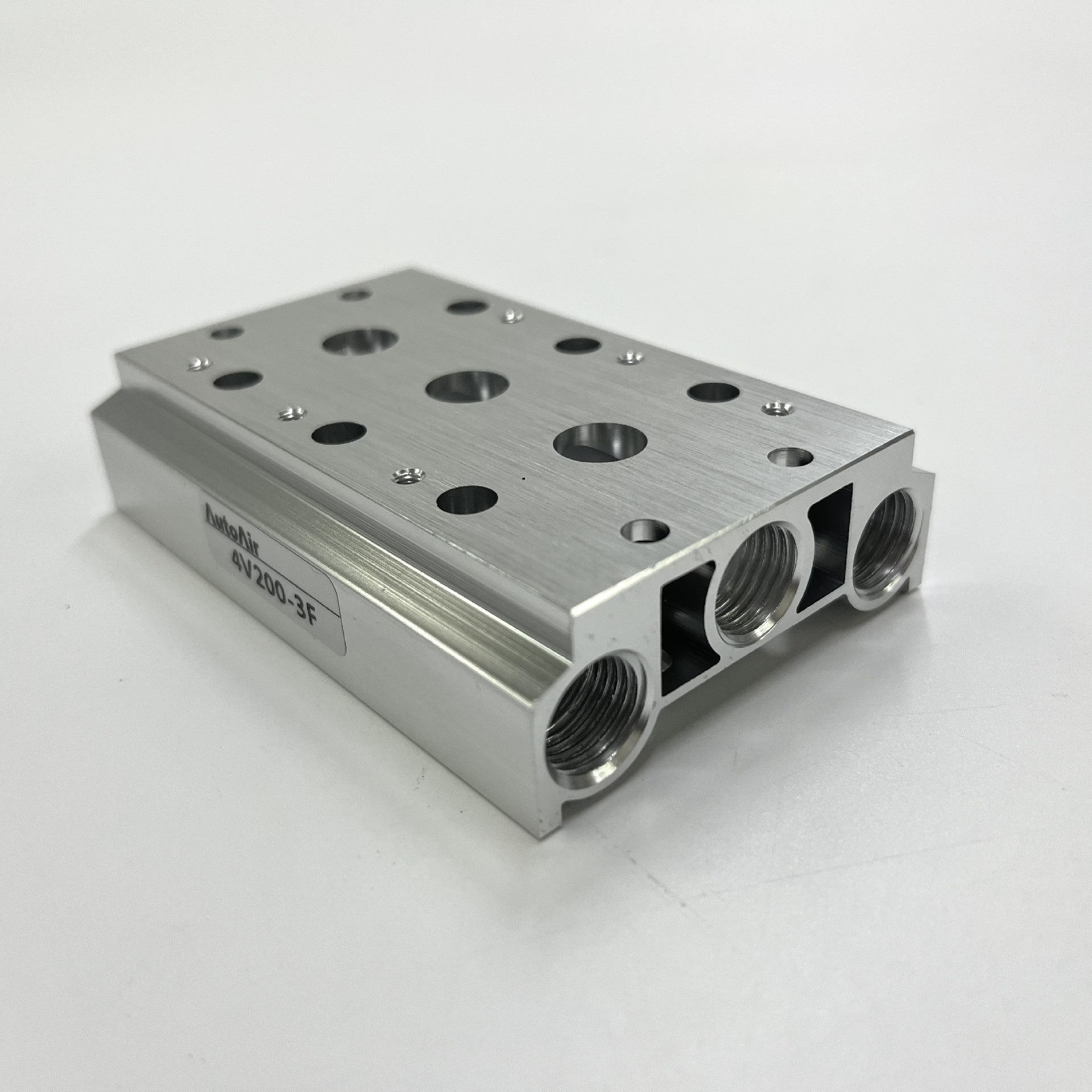

980E437A1480D16F85734B02E82E1600.pngWhy Use Pneumatic Manifolds?

Pneumatic manifolds are key for optimizing industrial systems, especially in scenarios requiring:

●Simultaneous execution of tasks (e.g., gas mixing, multi-valve control, or operating pneumatic/hydraulic systems).

Compact, organized layouts in space-constrained environments.

Core functions like pressure regulation, airflow direction control, and timing management.



They boost efficiency by delivering compressed air from one source to multiple endpoints, saving space for additional equipment or expansions.



A typical pneumatic manifold includes:

Manifold body: A hollow cylindrical core for distributing gas/liquid, made from materials like aluminum alloy, ductile iron, engineering plastics, carbon steel, or stainless steel (material choice depends on media type and environment).

Fittings: Tees, elbows, crosses, and plugs for connecting pipelines.

Valves: Integrated to control flow paths and manage airflow precisely.

Monitor the system’s operating: Pressure gauges, sensors, or switches for real-time feedback on system conditions.



How Do Pneumatic Manifolds Work?

They operate as "distribution hubs" through six key steps:

1. Air inlet: Compressed air enters via a port connected to a source (e.g., an air compressor).

2. Airflow distribution: The manifold splits air to multiple output ports, each linked to components like cylinders or solenoid valves, ensuring even or distribution.

3. Flow control: Valves (manual or automatic) regulate airflow direction and rate based on signals.

4. Pressure regulation: A pressure regulator maintains stable pressure, allowing ports to deliver air at varying pressures as needed.

5. Monitoring and feedback: Sensors/gauge track pressure and airflow, enabling adjustments for reliability.

6. Air return and exhaust: Used/excess air is vented via exhaust ports, supporting closed-loop operation.



Advantages of Pneumatic Manifolds

Space efficiency: Reduces hoses and piping, freeing space for expansions.

Improved organization: Simplifies system layouts, enhancing neatness and maintainability.

Energy efficiency: Shortened transmission paths minimize pressure loss and thermal fluctuations.

Cost savings: Lowers installation costs and reduces pipe fittings.

Enhanced reliability: Fewer connections decrease leak risks from fatigue or long-term use.



Common Applications

Pneumatic manifolds are used across industries:

Automotive: Air suspension, brake systems, and engine intake manifolds.

Industrial automation: Supplying air to robotic arms, cylinders, and production line workstations.

Medical/pharmaceutical: Gas distribution in ventilators, anesthesia systems, and lab instruments.

Food/beverage: Pneumatic actuators in filling/packaging and vacuum packaging systems.

Oil/gas/chemicals: Multi-channel fluid/gas distribution and pressure control.

HVAC: Managing refrigerant or hot water distribution in heating/cooling systems.



Need Pneumatic Manifold? Autoair has a wide range of Pneumatic Manifold to meet your specific needs.
