Air control valves (also called directional control valves) are core components for regulating pneumatic systems. Their key role is to manage the flow of compressed air or inert gases by adjusting gas flow rate and pressure. Given their importance, this guide covers their working mechanisms, main types, advantages, practical uses, and high-quality options from Autoair.
★3V Series Solenoid Valve 3A series Pneumatic Control Valve

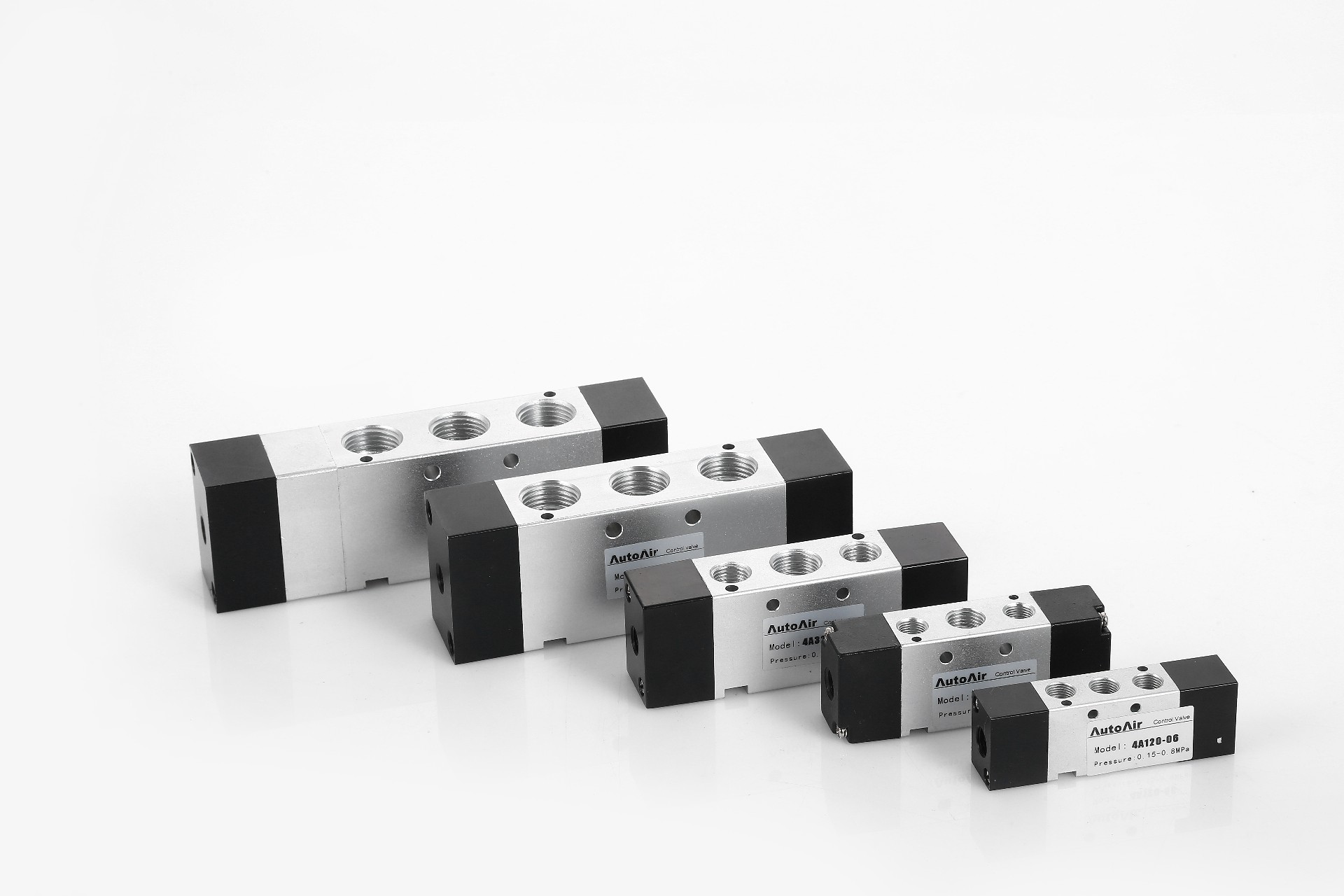

★4V Series Solenoid Valve 4A series Pneumatic Control Valve
How Do Air Control Valves Work?
Air control valves drive internal pistons back and forth through three common methods to output power externally:
Electromagnetic drive: Most common type. It uses a solenoid; when energized, the solenoid creates a magnetic field that moves the valve’s plunger or spool, opening/closing the gas flow path.
Manual control: Adjust via a lever or dial to regulate airflow in specific systems.
Pneumatic drive: Relies on air pressure itself. Increased pressure pushes valve components to open/close the air path.
Key Ports:
P (Port 1): Compressed air input
A (Port 2) / B (Port 4): Output ports (connect to cylinder ends)
R (Port 3) / S (Port 5): Exhaust ports (for A and B respectively)
Working State 1 (Inactive/Normally Closed):
1. Compressed air enters the valve from Port P.
2. The valve core stays in the default position: Air flows from P → A, pushing the cylinder piston forward/extend.
3. Air at Port B is exhausted via Port S (5).
4. The cylinder completes one directional action.
Working State 2 (Activated):
1. When the valve receives an activation signal, the core switches to the second position.
2. Air flows from P → B, pushing the cylinder piston backward/retract.
3. Air at Port A is exhausted via Port R (3).
4. Reset Note: For single-electronic control (with spring reset), the core returns automatically when the signal is removed. For dual-electronic control (no spring), a second signal is needed to reset.
Advantages of Air Control Valves
As critical parts of pneumatic systems, air control valves are widely used in industrial automation, machinery manufacturing, packaging, food, and electronics due to these advantages:
Fast response speed;Simple structure, small size;High safety performance;Easy operation, flexible control;Low maintenance costs; Clean and environmentally friendly;Strong environmental adaptability;Easy to integrate for automatic control,etc.
Feel free to contact us to learn more about our products, and we will recommend the most suitable pneumatic solution and the best price for you.
