Rodless Air Cylinders: Revolutionizing Linear Motion in Industrial Automation
In the realm of industrial automation and motion control, where space is often a scarce resource, the pneumatic rodless cylinder emerges as a game-changing solution. As a compact and efficient alternative to traditional rod-type cylinders, it has redefined how linear motion is achieved in modern manufacturing systems.
What is a Rodless Air Cylinder?
A rodless air cylinder is a type of pneumatic actuator that delivers linear motion without the need for an external piston rod. Unlike conventional cylinders, where the piston rod extends outward to drive movement, the rodless design relies on an internal piston that moves along the cylinder's axis in response to changes in air pressure. This innovative structure allows for seamless integration into systems requiring long travel distances, making it a staple in industrial automation.
The key feature of a rodless cylinder is its external carriage, which is directly or indirectly connected to the internal piston. This carriage serves as the load-bearing component, moving along the length of the cylinder to transport objects or drive machinery. By eliminating the protruding piston rod, the rodless cylinder offers a more streamlined and space-efficient solution for linear motion needs.
Characteristics of Rodless Air Cylinders
Rodless air cylinders possess a unique set of characteristics that distinguish them from traditional rod-type cylinders, making them suitable for specific industrial applications. When selecting a rodless cylinder, parameters such as operating temperature, air pressure, and movement speed must be considered to ensure optimal performance.
Magnetic Coupling Design: Many rodless cylinders utilize magnetic coupling, which means there is no physical connection between the internal piston and external carriage. This results in a cylinder block with no protruding piston rod, enhancing safety and reducing the risk of contamination.
Space Efficiency: The overall installation size of rodless cylinders is significantly smaller than that of standard cylinders, particularly in terms of axial space. They can save up to 44% of axial space, making them ideal for compact machinery and tight workspaces.
Ultra-Long Strokes: Magnetically coupled rodless cylinders are capable of achieving ultra-long strokes, far exceeding the practical limits of traditional rod-type cylinders. This makes them perfect for applications requiring extended linear movement.
Easy Installation: The compact shape of magnetic coupling rodless cylinders, combined with mounting threads and nuts at both ends, allows for direct installation on equipment, simplifying the setup process.
Load Capacity: While magnetic coupling rodless cylinders have a relatively smaller load capacity compared to some rod-type alternatives, they are well-suited for moving small workpieces or operating manipulators in light to medium-duty applications.
Understanding these structural characteristics and operational mechanisms is crucial for leveraging the full advantages and functions of rodless air cylinders in industrial settings.
Advantages of Rodless Air Cylinders
The unique design of rodless air cylinders brings forth a range of advantages that make them a preferred choice in various automation scenarios:
Space-Saving Design: By eliminating the external piston rod, rodless cylinders offer a more compact and streamlined form factor. This allows for the implementation of long strokes even in environments with limited space, maximizing the utilization of available workspace.
Enhanced Stability: The slide or slider of a rodless cylinder runs along a guide rail or operates via magnetic coupling, providing superior lateral stability. This reduces bending moments on the actuator compared to single rod cylinders, minimizing wear and improving overall system stability.
Cleaner Operation and Reduced Maintenance: Magnetically coupled rodless cylinders are typically sealed units, preventing the ingress of pollutants and reducing air leakage. This makes them suitable for clean rooms, pharmaceutical facilities, and other sanitary environments. Additionally, their sealed design results in lower maintenance requirements compared to traditional rod-type cylinders.
Types of Rodless Air Cylinders
Rodless air cylinders come in various types, each with distinct structures and characteristics tailored to specific industries and applications. For example, Autoair offers four main series, each designed to meet unique operational needs:

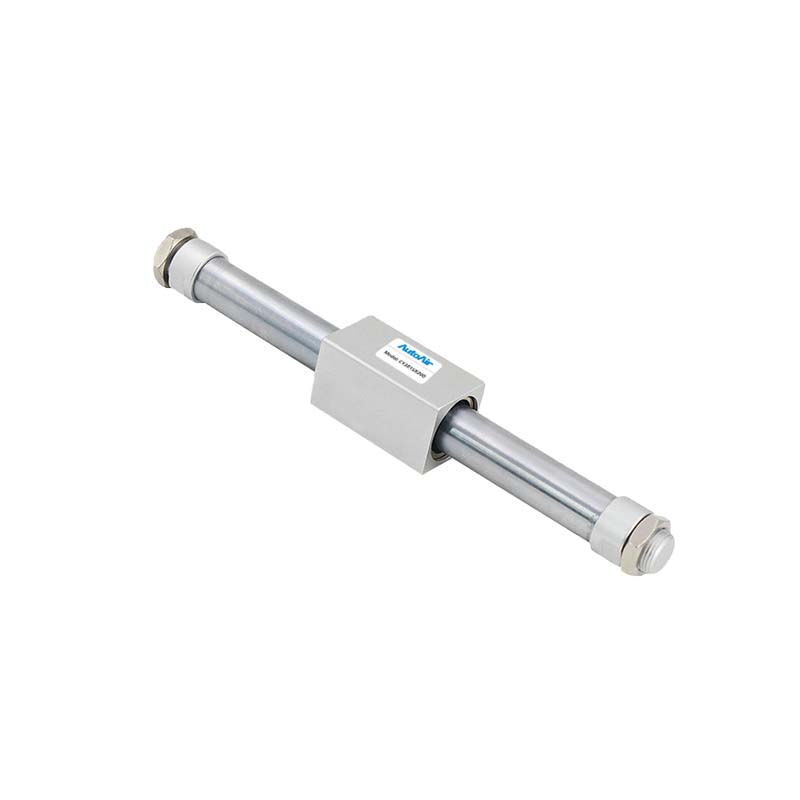

CY1BSeries: Ideal for light-duty pushing, simple slide tables, and space-saving conveyor lines. This series is well-suited for applications involving low loads, low precision requirements, and linear transfers without side loads.
CY1R Series: Equipped with a direct mounting base, this series provides improved guidance without the need for a slider rail. It is perfect for space-constrained environments where quick and easy installation is a priority.
CY1S Series: Fitted with a slide bearing guide, this series exhibits relatively higher friction, making it suitable for medium-load transfers, jig actuation, and various conveying mechanisms.
CY1L Series: Featuring a ball bushing bearing guide structure, this series offers high positioning accuracy. It is widely used in automated assembly lines, robotic sliders, and applications demanding repeated precision positioning.
How Does a Rodless Air Cylinder Work?
The working principle of a rodless air cylinder differs from that of a traditional rod-type cylinder. While rod-type cylinders use a piston rod to transmit force, rodless cylinders rely on alternative mechanisms—such as magnetic coupling—to connect the external load-bearing slider with the internal piston. Let’s take the magnetically coupled rodless cylinder as an example to understand its operation:
Construction of a Rodless Pneumatic Cylinder
A cylinder barrel
An internal piston
A slider that moves along the cylinder
A magnetic coupling mechanism
End caps and air ports
Sealing rings
Working Principle of a Rodless Pneumatic Cylinder
Regardless of the specific type, rodless cylinders operate under the prerequisite of maintaining a sealed state within the cylinder. This ensures proper air pressure retention and prevents the entry of pollutants. The working process can be broken down into four key steps:
Internal Piston Movement: When compressed air is introduced through one of the air ports, pressure builds up inside the cylinder barrel, causing the internal piston to move in the direction of the pressure differential.
Magnetic Coupling Transfer: As the internal piston moves, the magnetic coupling mechanism transfers this motion to the external slider. The magnets on the piston and the slider create a strong enough attraction to ensure synchronized movement.
External Carriage Movement: The external carriage, connected to the slider, moves along the length of the cylinder barrel, carrying the load or driving the attached machinery.
Direction Reversal: When air pressure is applied through the opposite port, the internal piston reverses direction, and the magnetic coupling ensures the external carriage follows suit, allowing for bidirectional linear motion.
This rodless design is particularly beneficial for applications in space-constrained industries, where long strokes and stable movement can significantly enhance operational efficiency.
Applications of Rodless Air Cylinders
Rodless air cylinders are not affected by issues such as rod overhang, bending, piston binding, or uneven seal wear, making them ideal for applications in confined areas and those requiring long strokes. Some common applications include:
Horizontal or vertical material handling systems
Linear sliding table drives in assembly lines
Paper box pushing and docking mechanisms in packaging
PCB board handling in electronics manufacturing
Drug packaging and sorting equipment in pharmaceutical industries
Car door and window testing platforms in automotive manufacturing
In each of these applications, rodless air cylinders provide reliable, efficient, and space-saving linear motion, contributing to the overall productivity and precision of industrial automation systems.
As industrial automation continues to evolve, the demand for compact, efficient, and versatile motion control solutions will only grow. Rodless air cylinders, with their unique design and array of benefits, are poised to remain a key component in this evolution, enabling innovation and efficiency across a wide range of manufacturing sectors.
