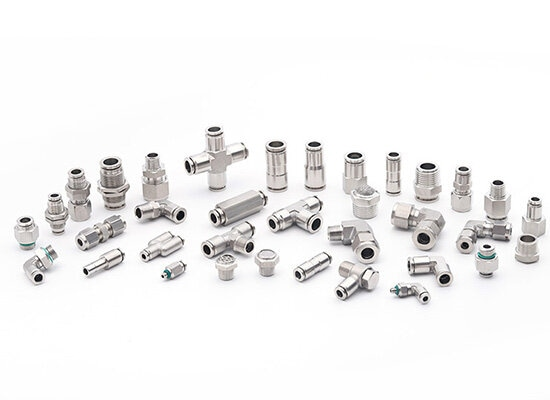

Selecting the ideal stainless steel push-to-connect fittings is key to ensuring secure, long-lasting connections in your pneumatic system. The process involves considering factors like application environment, material, thread type, and more. Below is a detailed guide to help you make the right choice, along with installation and maintenance tips for optimal performance of your stainless steel pneumatic fittings.
To pick the perfect stainless steel push-to-connect fittings, focus on these critical aspects:
The environment where the pneumatic fitting will operate directly dictates the material and type you need.
Food & Pharmaceutical Industry: Prioritize 316 stainless steel push-to-connect fittings. They offer superior corrosion resistance and comply with FDA hygiene standards, making them safe for contact with food, beverages, or pharmaceutical products.
Chemical & Corrosive Environments: 316 stainless steel is also the top choice here. Compared to 304 stainless steel, it better resists corrosion from acids, alkalis, and corrosive gases/liquids—critical for maintaining the integrity of your pneumatic system.
General Pneumatic Systems: 304 stainless steel push-to-connect fittings strike a balance between durability and cost-effectiveness. They work well for industrial automation equipment, standard compressed air systems, and other non-aggressive environments.
Thread compatibility ensures a tight, leak-free connection between the stainless steel push-to-connect fitting and other components. Common thread standards include:
NPT (National Pipe Taper): Widely used in North America, especially in high-pressure pneumatic systems. The tapered threads create a seal as they tighten.
BSPT (British Standard Pipe Taper): Popular in Europe and Asia. Unlike NPT, its thread angle and taper rate differ—always confirm compatibility with existing components to avoid leaks.
G Thread (Parallel Pipe Thread): Suitable for low-pressure fluid or air connections. It relies on a sealing ring (not the threads themselves) for tightness, making it easy to assemble and disassemble.
The tube size of the stainless steel push-to-connect fitting must align with your system’s flow requirements. Common sizes include 1/8", 1/4", 3/8", and 1/2".
A tube that’s too small can restrict flow, reducing system efficiency.
An oversized tube may increase costs unnecessarily and could lead to poor connection stability.
Always reference your system’s flow rate and tubing diameter to choose the right size for your stainless steel pneumatic fitting.
The sealing ring in a stainless steel push-to-connect fitting is critical for preventing leaks. Choose based on the medium and environment:
NBR (Nitrile Rubber): Offers good oil resistance and is cost-effective for general industrial environments. Ideal for compressed air or non-corrosive fluid systems.
FKM (Viton): Resistant to high temperatures (up to 200°C+) and chemical corrosion. Perfect for high-temperature pneumatic systems or applications involving oils, solvents, or aggressive media.
EPDM: Excels in water resistance and acid/alkali tolerance. Commonly used in pure water systems, food-grade applications, or environments with mild chemicals.
High-quality stainless steel push-to-connect fittings undergo rigorous testing—including pressure resistance, corrosion resistance, and leak testing—to ensure performance. Choose suppliers with ISO, CE, or other relevant certifications to guarantee:
Consistent quality in every pneumatic fitting.
Compliance with industry safety standards.
Access to technical support and reliable after-sales service.
Proper installation of stainless steel push-to-connect fittings is vital for a secure seal, minimal leakage, and long-term system stability. Follow these steps:
Use a sharp tubing cutter to cut the pneumatic tubing straight. A smooth, burr-free end prevents damage to the internal sealing ring of the stainless steel fitting—rough or uneven cuts can cause leaks or premature wear.
Remove dust, oil, debris, or moisture from both the tubing and the stainless steel push-to-connect fitting. Even small particles can contaminate the system or damage the seal. Use compressed air to blow out any remaining particles inside the tubing for thorough cleaning.
First, check the internal sealing ring of the stainless steel fitting to ensure it’s intact (no cracks, tears, or deformation).
Insert the tubing straight into the fitting, pushing firmly until it locks in place. You may feel resistance or hear a faint “click”—this confirms a secure connection.
After installation, gradually apply pressure (air, fluid, or gas) to the system. Use a soap solution or leak-detection spray on the stainless steel push-to-connect fitting: if bubbles form, there’s a leak. In this case, remove the tubing, inspect the seal and tubing end, then reinsert (or replace the sealing ring if damaged).
To disconnect the tubing, press the release ring on the stainless steel fitting firmly while gently pulling out the tubing. Avoid excessive force—this prevents deformation of the fitting or damage to the release mechanism.
Regular maintenance extends the life of your stainless steel pneumatic fittings and ensures consistent performance:
Inspect the joints and tubing connections monthly (or quarterly for less frequent use) for leaks, bulges, or loose connections. Even small leaks can reduce system efficiency or lead to pressure loss.
Wipe the stainless steel push-to-connect fittings with a clean cloth and neutral cleaning agent (especially in food, chemical, or humid environments). This removes dust, oil stains, or residual corrosive media that could damage the material or seal over time.
Sealing rings (NBR, FKM, EPDM) can crack, harden, or deform with age. Check them during routine inspections—replace immediately if signs of wear appear. Keep spare sealing rings on hand for quick replacements.
After installation, use fixed clamps or conduit brackets to secure the tubing. This prevents hanging, pulling, or bending of the tubing, which can loosen the stainless steel push-to-connect fitting or cause fatigue damage to the connection.
By following these guidelines for selection, installation, and maintenance, your stainless steel push-to-connect fittings will deliver reliable, leak-free performance in your pneumatic system for years to come. For more personalized advice or to explore our range of high-quality stainless steel pneumatic fittings, feel free to contact us!
