5404 High Pressure,High Temperature Solenoid Valve

Working Medium

Air Water  Oil Gas

Motion Pattern

Guide Type

Type

Normal Close Type

Working-pressure(kgf/cm )

Gas:1~50,Liguid:1~50

Gas:1~40,Liguid:1~25

Gas:1~40, Liguid:1~25

Max. Pressure Resistance(kgf/cm2)

75

60

Control Pressure Rang

0.3~0.6MPa

(mm)Aperture of Flow Rate

12

20

25

KV Value

2.0

5.0

10.0

Joint Pipe Bore

G1/2"

G3/4"

G1"

Operating Temperature Range

-5~+150

Voltage Range

±10%

Protect Class Power

IP65

Consumption

AC:5.5VA DC:9W

Insulation

F Class

Material of Body

Brass

Material of Oil Seal

PTFE

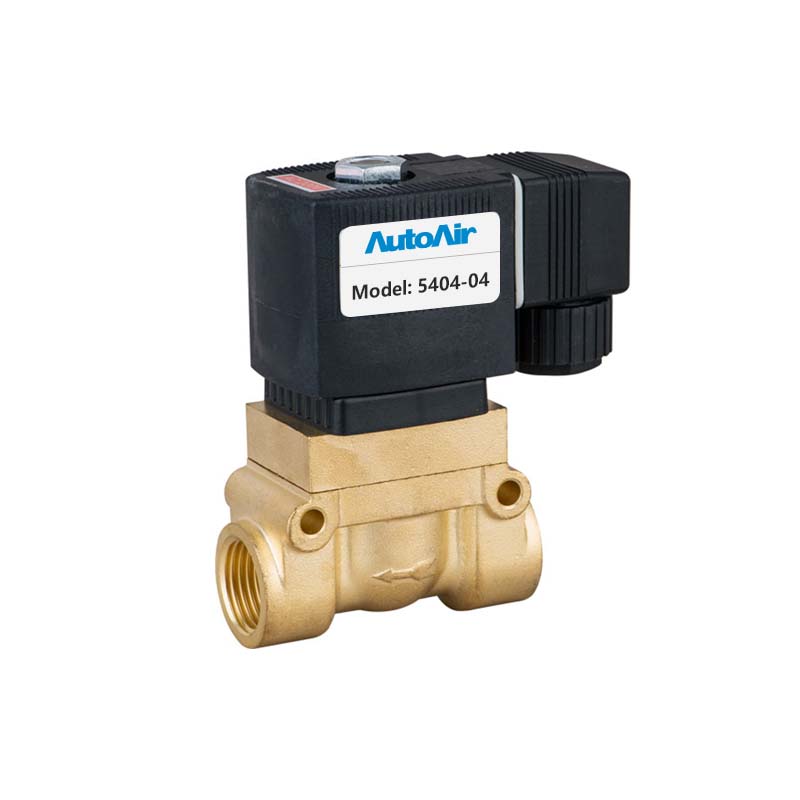

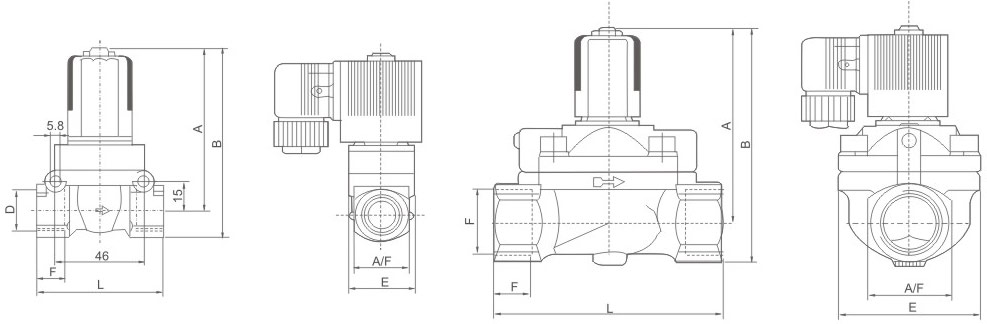

5404-04

12.0

G1/2"

83.0

98

14

32

65

27

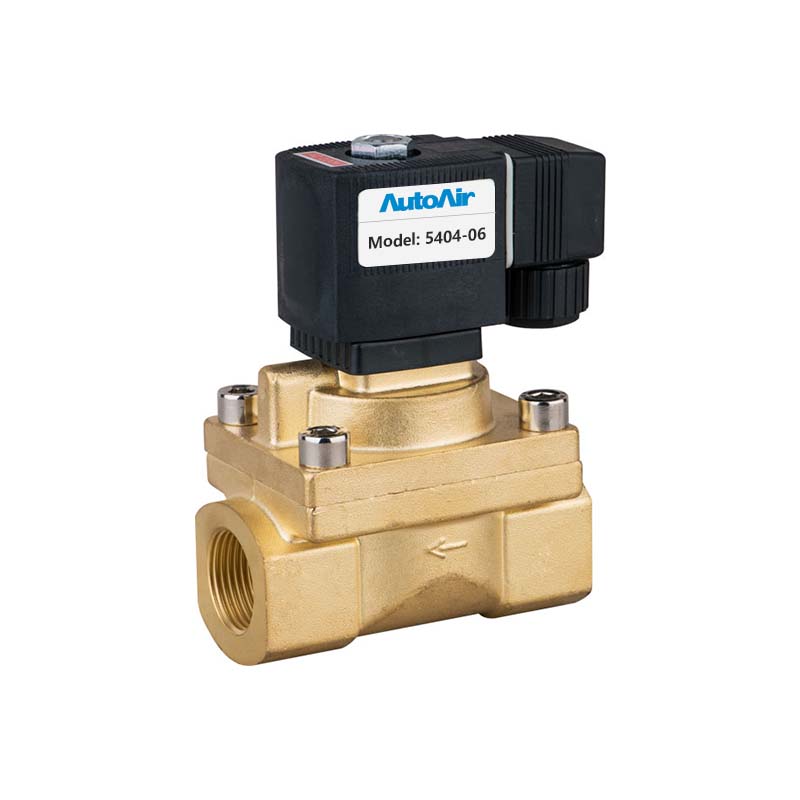

5404-06

20.0

G3/4"

99.5

125

16

60

92

40

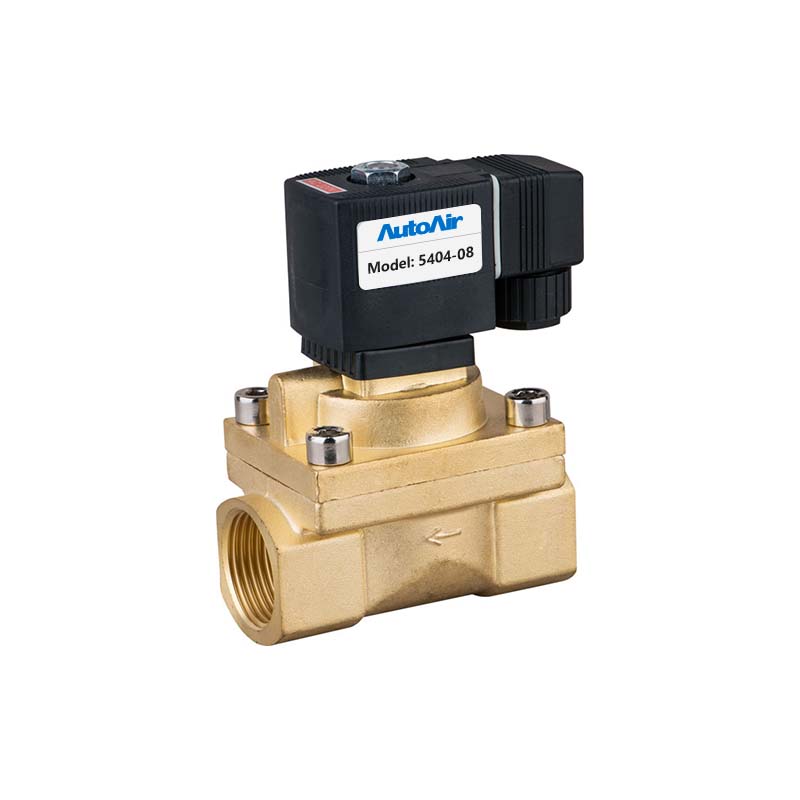

5404-08

25.0

G1"

99.5

125

16

70

92

40
