Home > Products > Fluid Solenoid Valve > Pulse Solenoid Valve

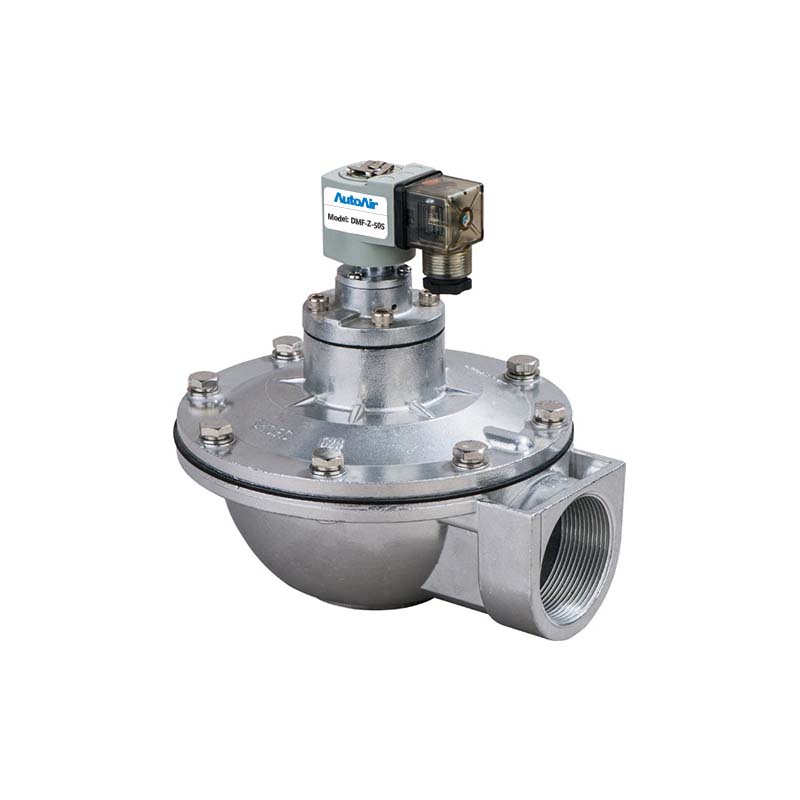

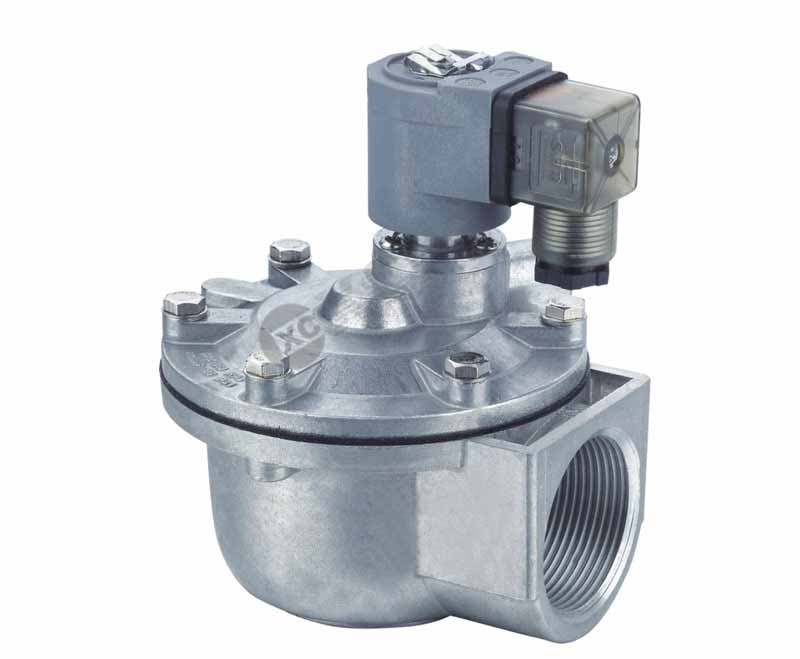

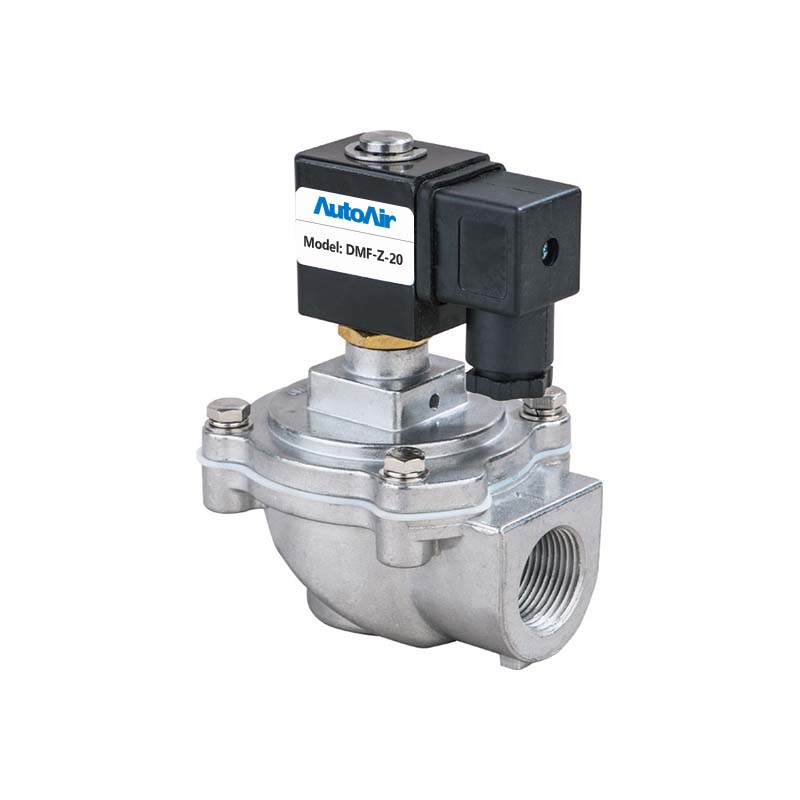

DMFZ Right Angle Pulse Valve

< >

DMFZ Right Angle Pulse Valve

Working Pressure	0.3~0.8MPa
Ambient Temperature	-5~55℃
Relatively Humidity	＜85%
Working Medium	Clean Air
VoItage	AC110V/AC220V/DC24V
Diaphragm Life Cycles	Over 1000k Cycles

~~Consult Immediately~~

Product Details

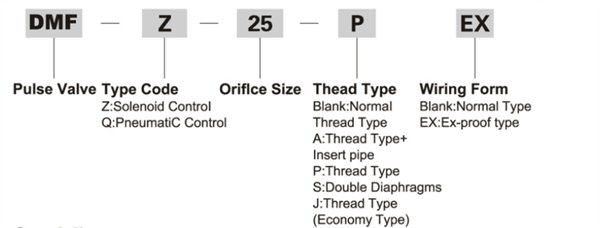

Ordering Code


Specification

Model	DMF-Z-20A	DMF-Z-20P	DMF-Z-20	DMF-Z-25	DMF-Z-25P	DMF-Z-35P	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-100S
Working Pressure	0.3~0.8MPa
Ambient Temperature	-5~55℃
Relatively Humidity	＜85%
Working Medium	Clean Air
VoItage	AC110V/AC220V/DC24V
Diaphragm Life Cycles	Over 1000k Cycles
Orifice(mm)	φ20	φ20	φ20	φ25	φ25	φ35	φ40	φ50	φ62	φ76	φ100
Connection Port	G3/4"	G3/4"	G3/4"	G1"	G1"	G1 1/2"	G1 1/2"	G2"	G1 1/2"	G3"	φ100

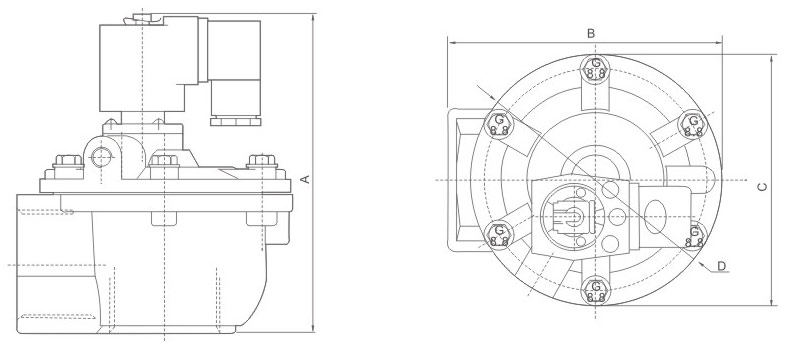

Overall Dimensions

Model	DMF-Z-20A	DMF-Z-20P	DMF-Z-20	DMF-Z-25	DMF-Z-25P	DMF-Z-35P	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-100S
A	173	124	110	110	124	142	166	202	222	245	356.5
B	145	105	90.5	90.5	105	121	132	210	210	230.5	286.5
C	-	82.5	75	75	82.5	-	-	-	-	-	-
D	φ90	-	-	-	-	φ112	φ137	φ185	φ185	φ200	φ221
