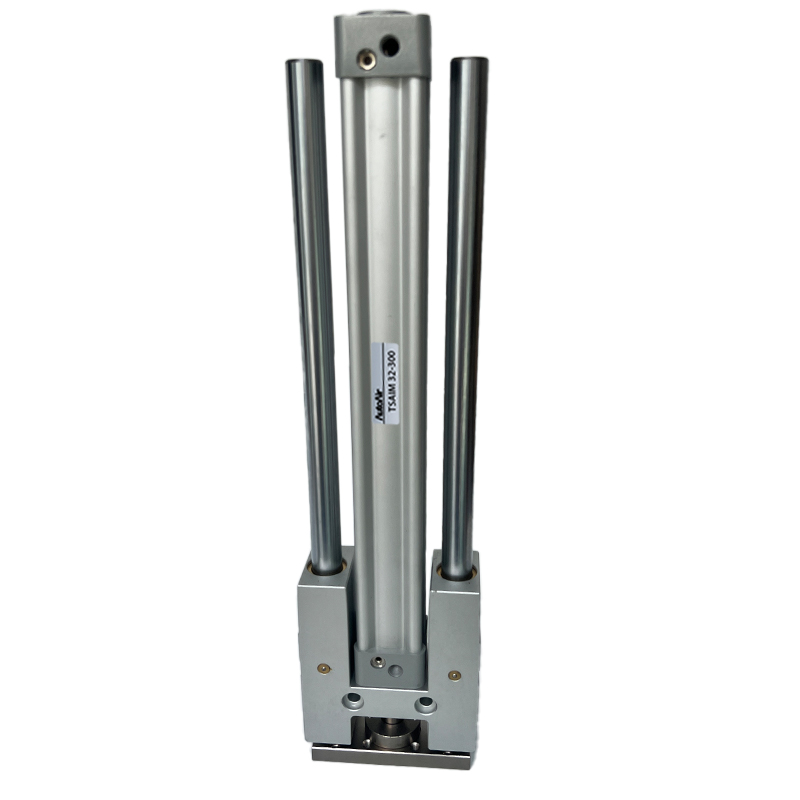

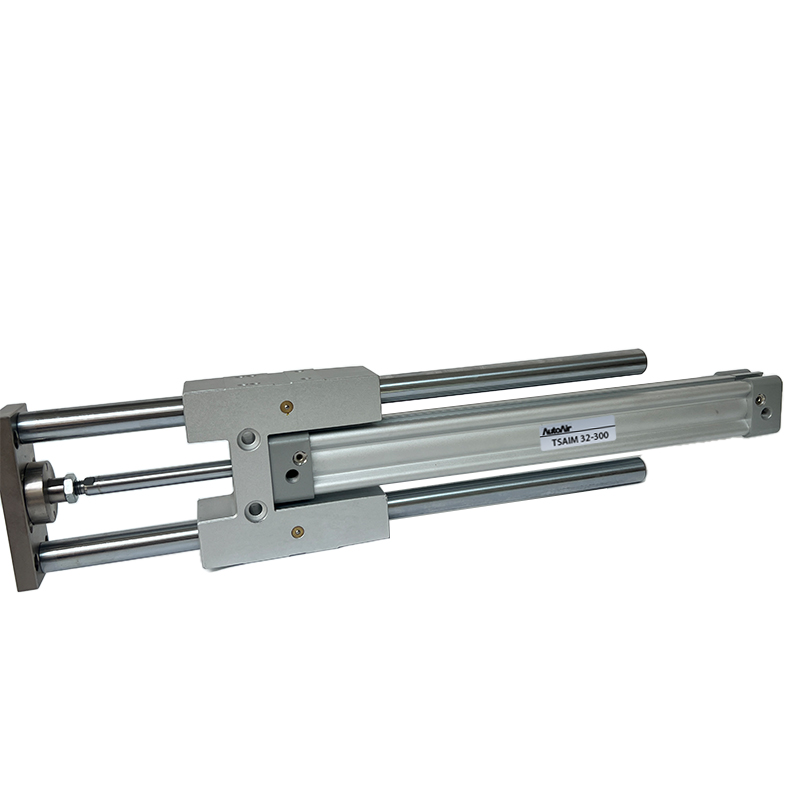

1. Anew type of cylinder combined with guide frame and standard cylinder.
2. Brass bearing: It is suitable for the action that has radial load
resistance. with greater torsion stiffness.Linear bearing
It is suitable for push-up action, or where highprecision and high
load capacity are required,especially for occasions requiring low friction.
3. The special design of the guide frame body provides amulti-directional mounting.
4. The buffer adjustment of cylinder is smooth and steady.
5. According to the actual use requirements, combined with
sensor holder can to change the sensor installation location
