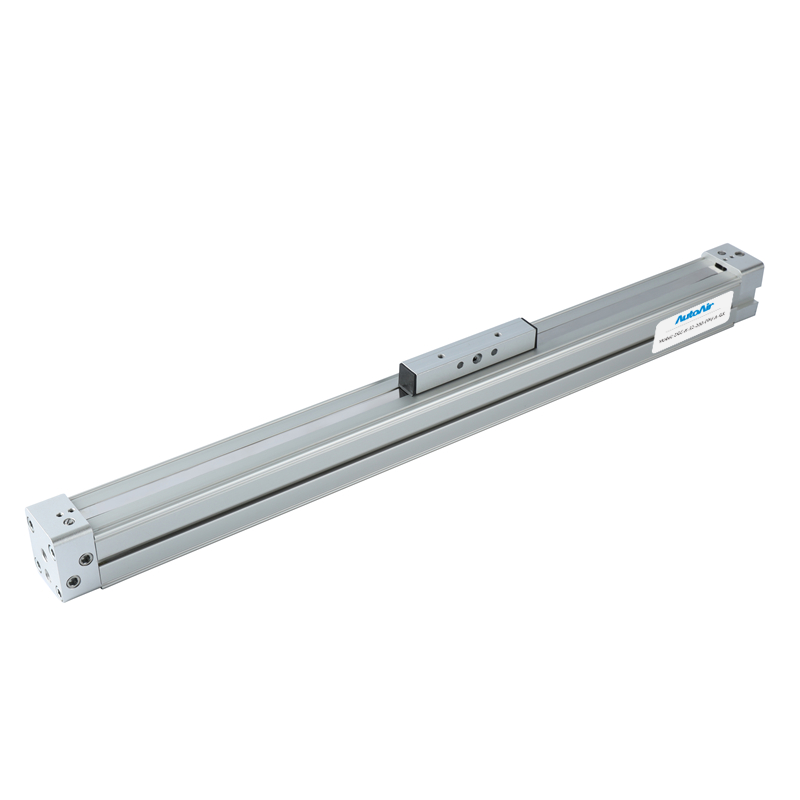

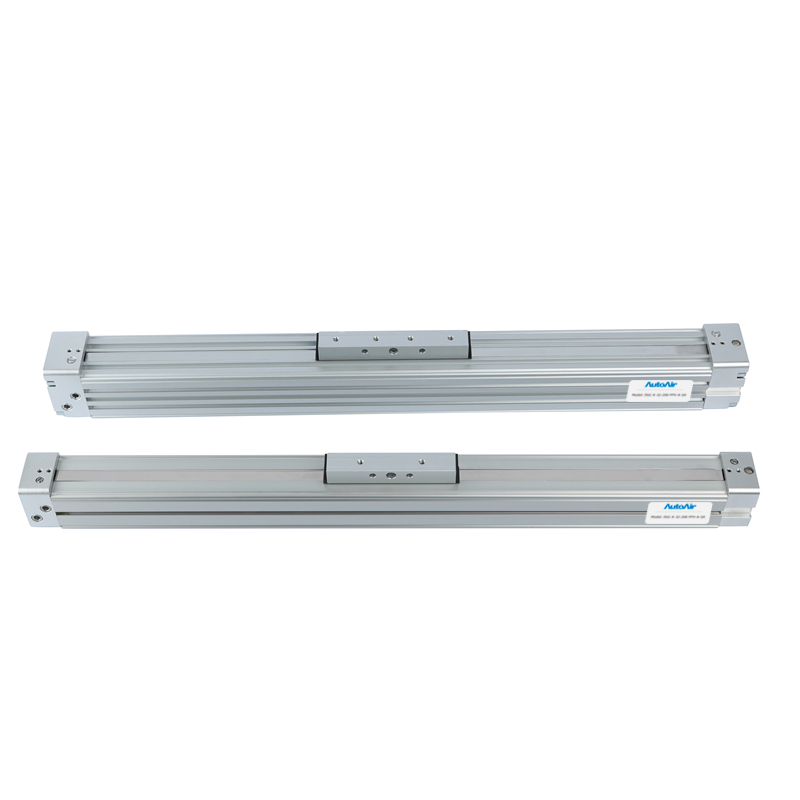

DGC-K Series Pneumatic Rodless Cylinders - Magnetically Coupled Rodless Actuators -Industrial Pneumatic Air Cylinders

< >

DGC-K Series Pneumatic Rodless Cylinders - Magnetically Coupled Rodless Actuators -Industrial Pneumatic Air Cylinders

·Without guide rod, suitable for simple drive mode

·Compact Installation length related to stroke

·Easy installation and integration

~~Consult Immediately~~

Product Details

Specification

Cylinder Bore Diameter	18	25	32	40	50	63	80
Structural Features	Rodless cylinder with slide block
Guide	Cylinder barrel with groove
Mode of Operation	Double - acting
Stroke [mm]	1...3000	1...8500			1...6000	1...5000	1...3000
Air Inlet Interface	M5	G1/8		G1/4		G3/8	G1/2
Cushion [PPV]	Double - end adjustable
Cushion Stroke [mm]	16	18	20	30	30	30	83
Maximum speed
With PPV Cushion [m/s]	2
With External Cushion [m/s]	3
Position Sensing	Detected by proximity switch
Installation Method	Via attachments
Installation Position	Any

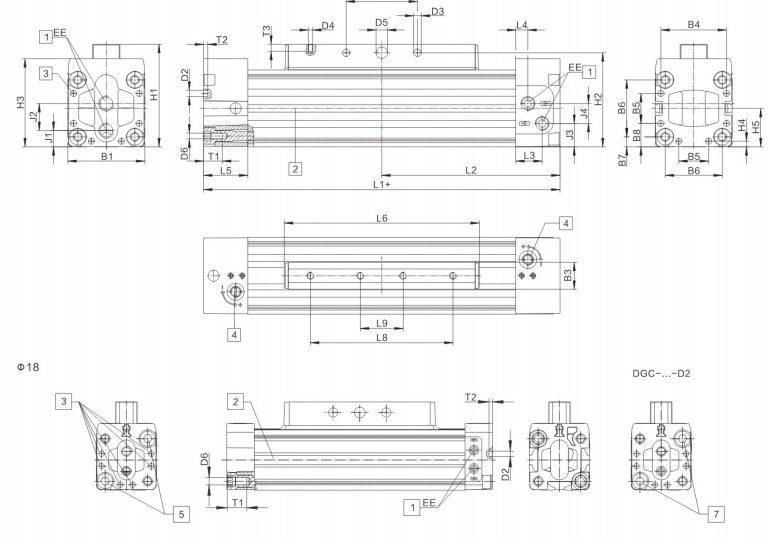

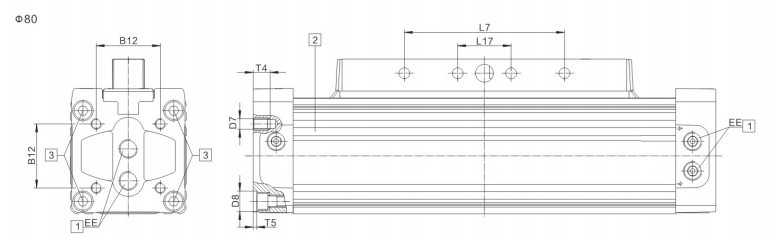

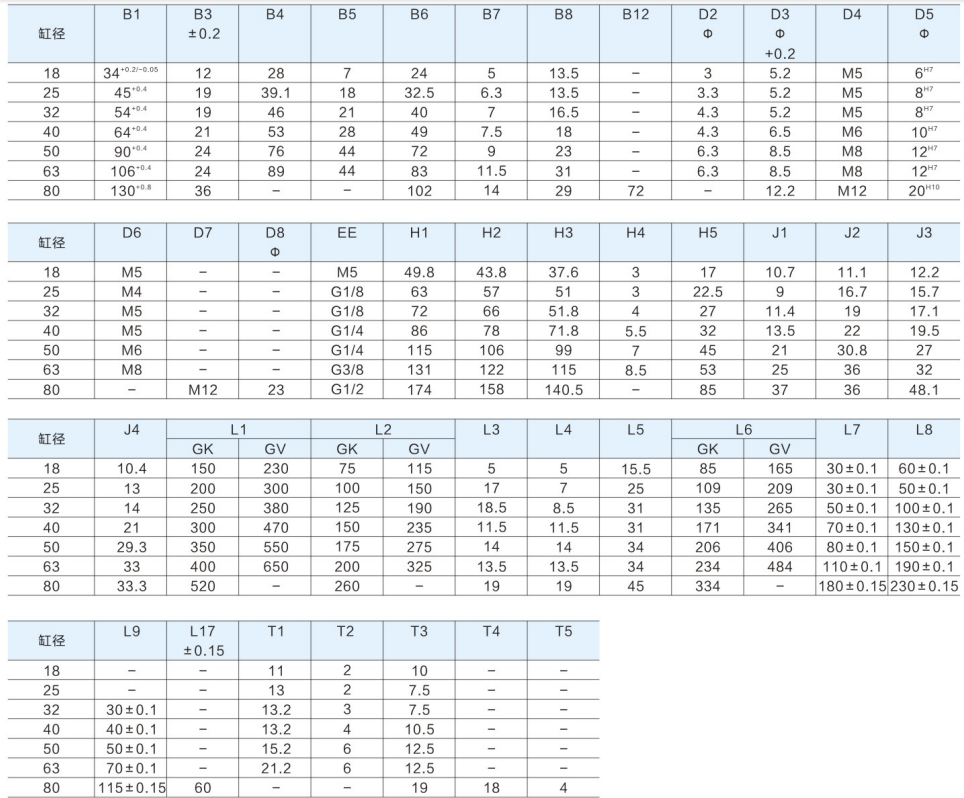

Dimensions
