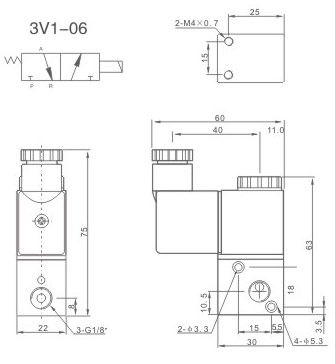

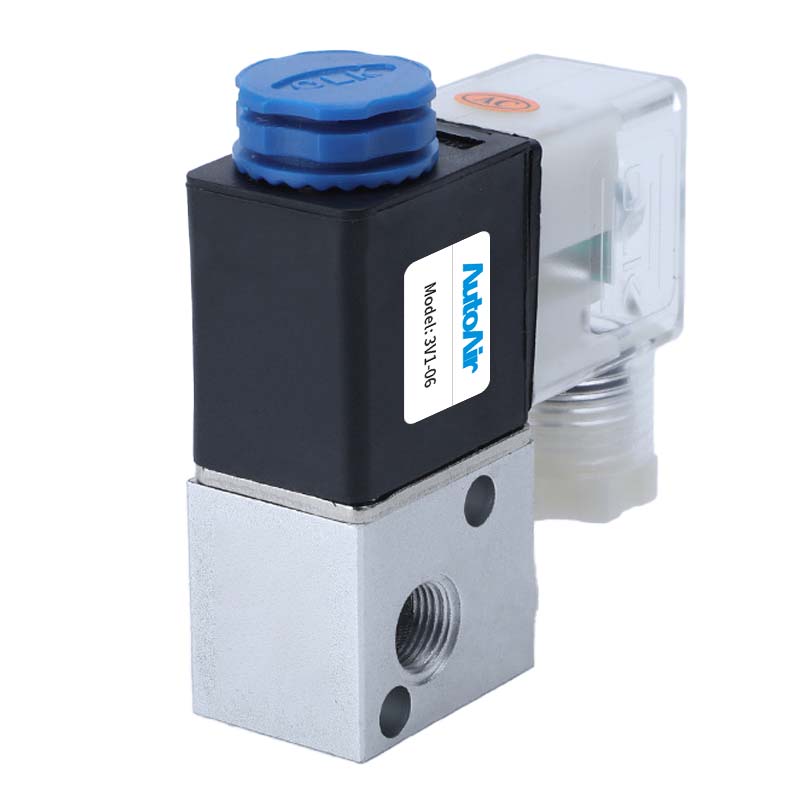

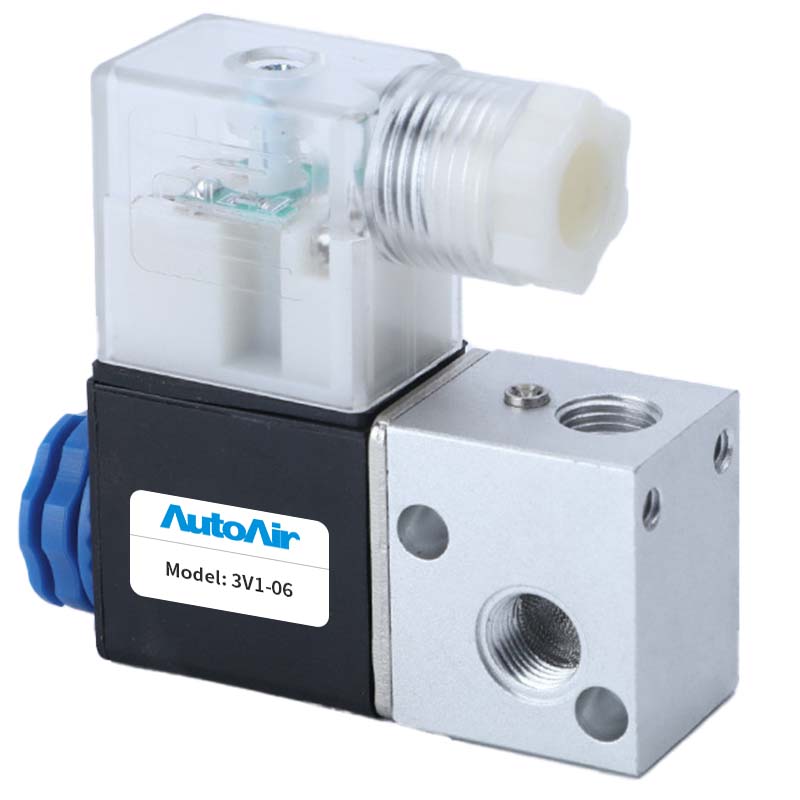

3V1 Series Solenoid Valve

Working Medium

40 Micron Filtered Air

Motion Pattern

Direct Drive Type

Joint Pipe Bore

M5

1/8"

Ambient Temperature

-10~+60℃

Gas Temperature

5~60℃

Air Outlet Diameter

1.0mm

Lubrication

Not Necessary

Working-Pressure

0~0.8MPa

Max.Pressure Resistance

1.2MPa

Power Consumption

AC:4.5VA DC:3.0W

Protect Class

IP65

Power Connection Form

Gorl

Material of Body

Aluminum alloy

Highest Action Frequency

10Cycle / Sec

Insulation

F Class

Voltage Range

±10%

Shortest Excitation Time

0.05 Second
