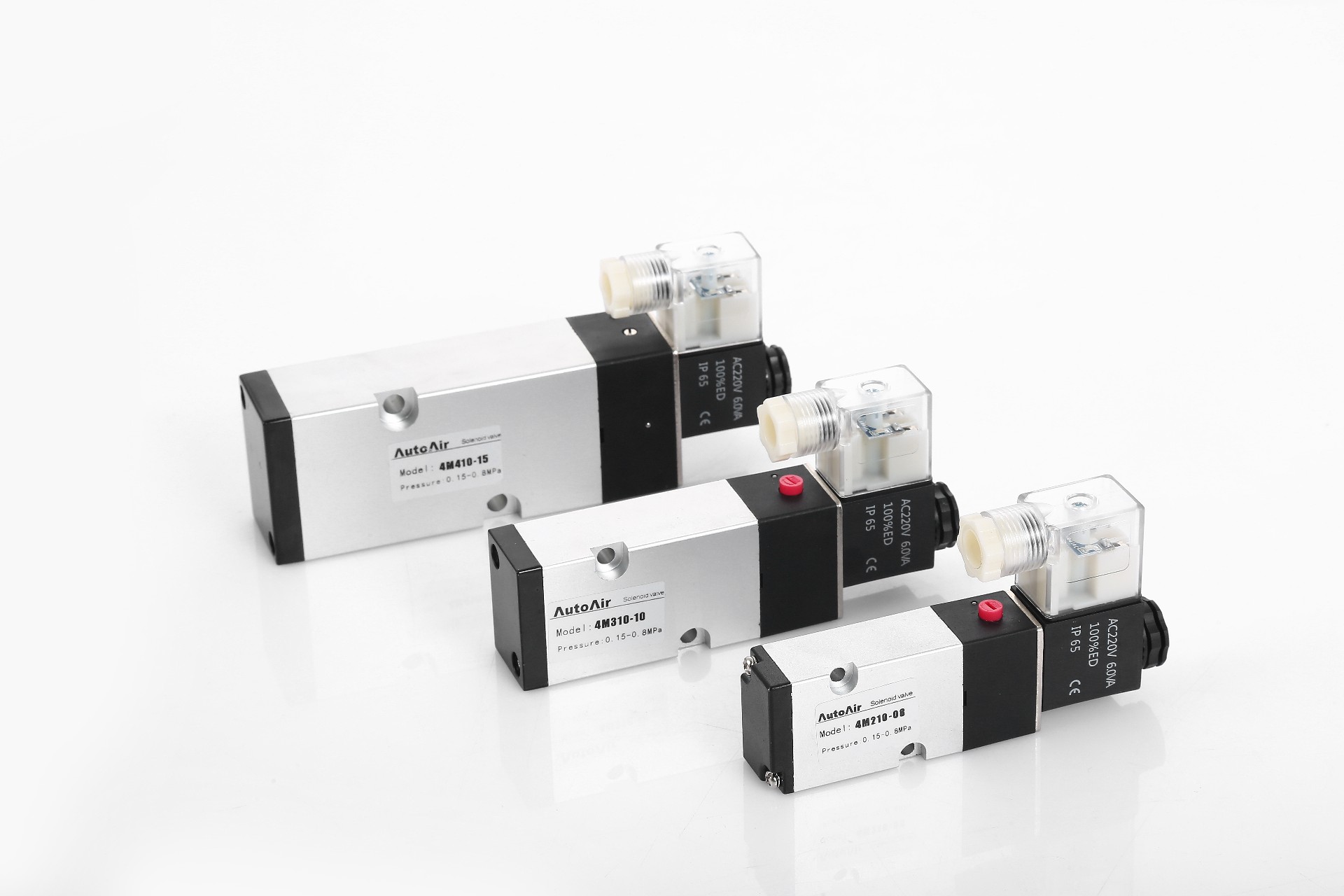

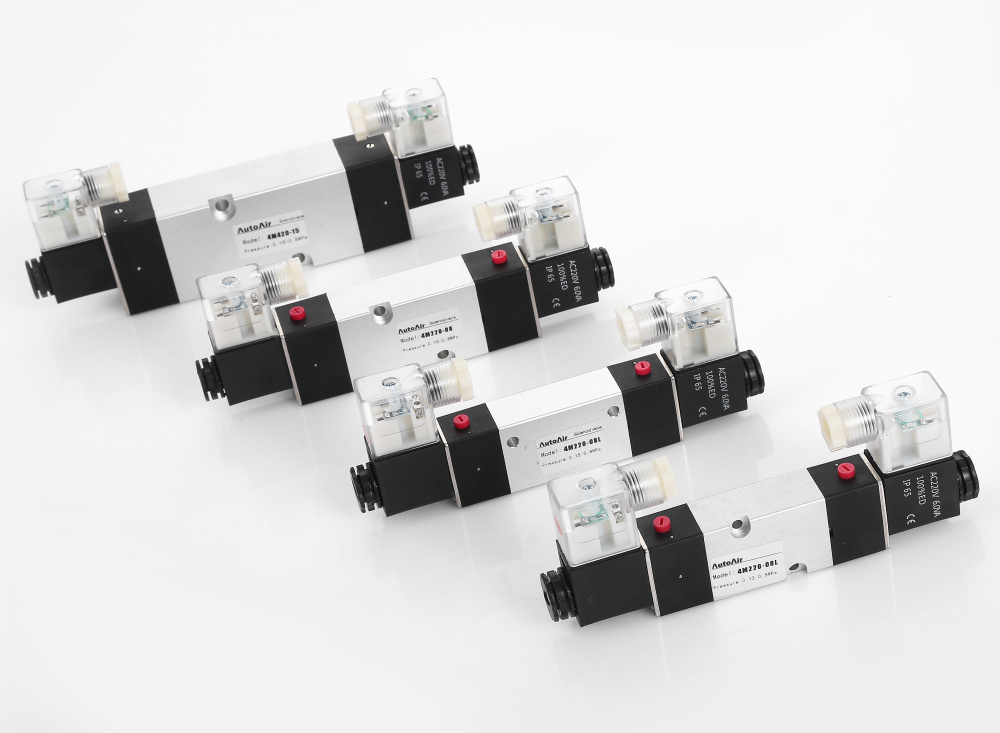

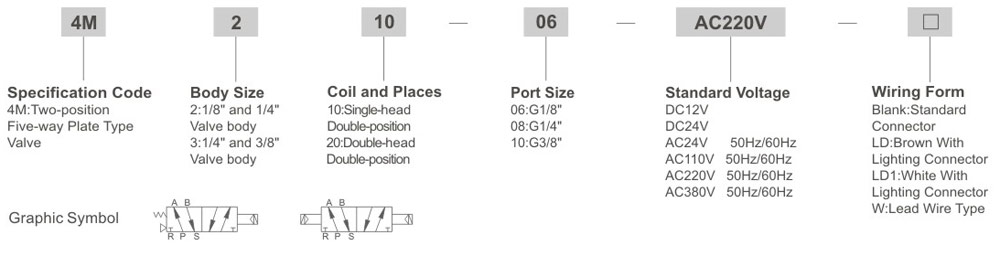

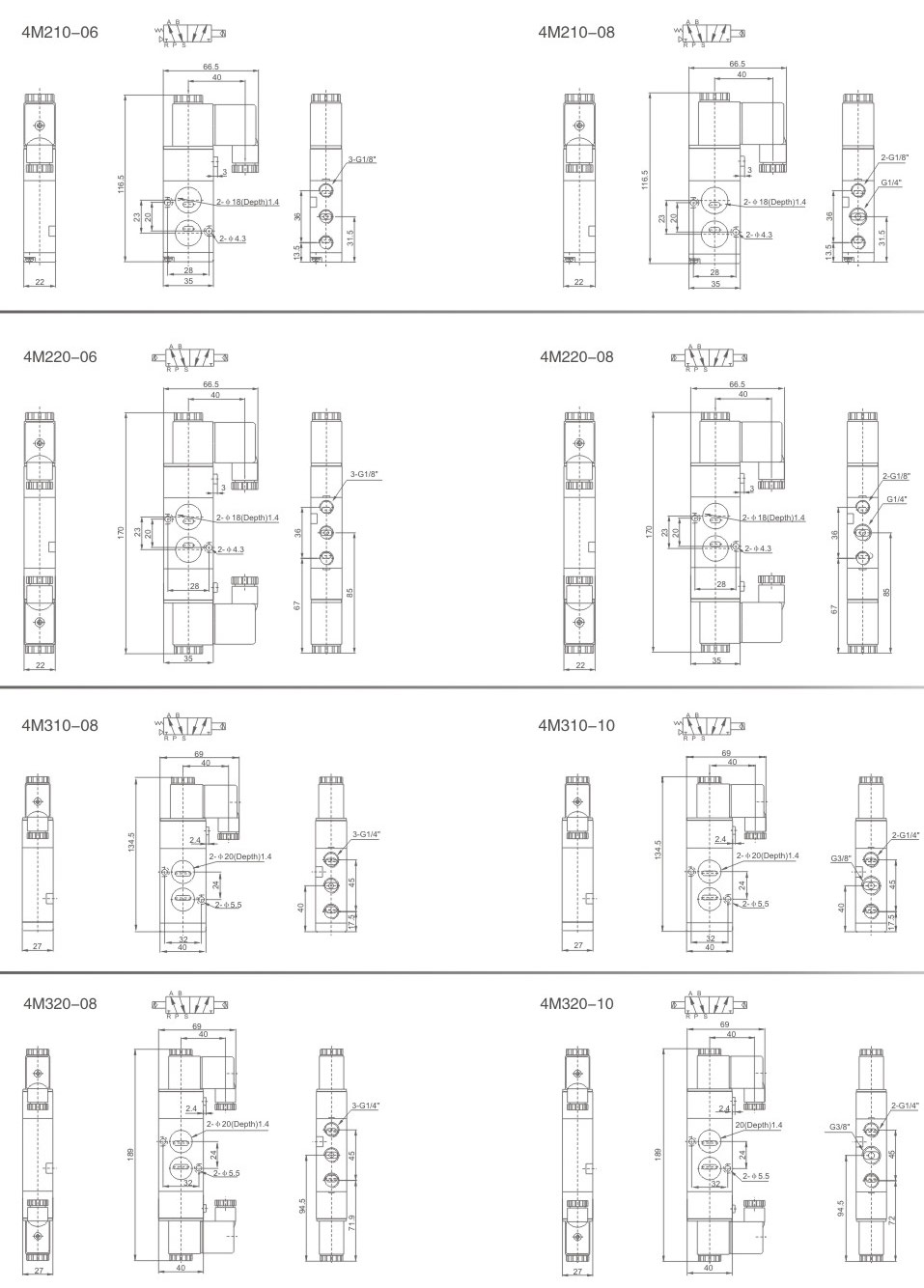

4M Series Plate Type Valve

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Position and Way NO.

Two-position three-way

Effective Section Area

14mm 2(CV=0.78)

16mm 2(CV=0.89)

25mm 2(CV=1.39)

30mm 2(CV=1.67)

Port Size

Air Inlet=Exhaust=G1/8”

Air Inlet=G1/4”/Exhaust=G1/8”

Air Inlet=Exhaust=G1/4”

Air Inlet=G3/8”Exhaust=G1/4”

Lubricate

Not Necessary

Working-Pressure

0.15~0.8MPa

Max.Pressure Resistance

1.2MPa

Operating Temperature

5~60℃

Voltage Range

-15%~+10%

Power Consumption

AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA,DC24V:3.0W,DC12V:2.5W

Insulation & Protection Class

F CIass.IP65

Wiring Form

Lead wire or Connector type

Highest Action Frequency

5 Cycle / Sec

Shortest Excitation Time

0.05 Second
