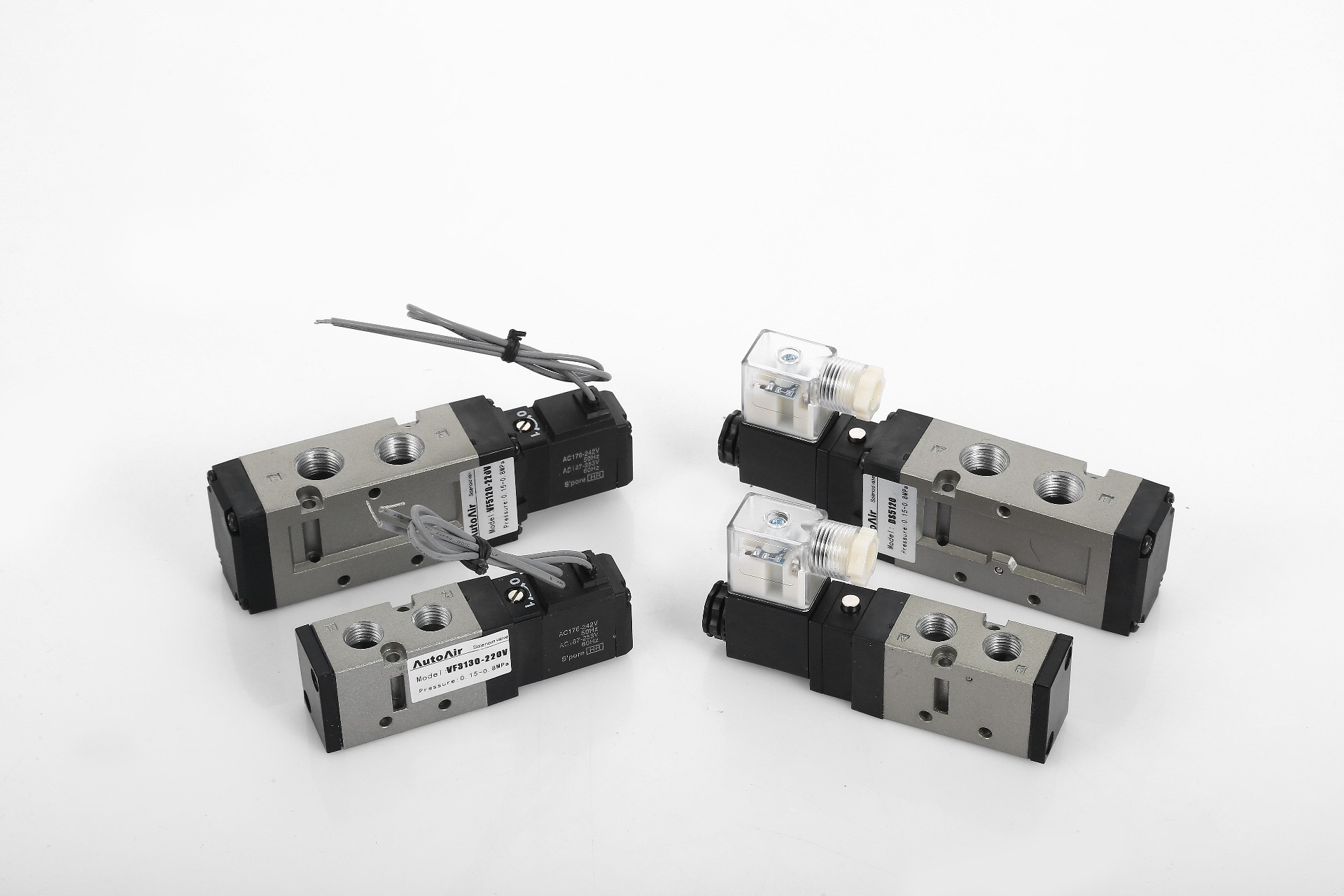

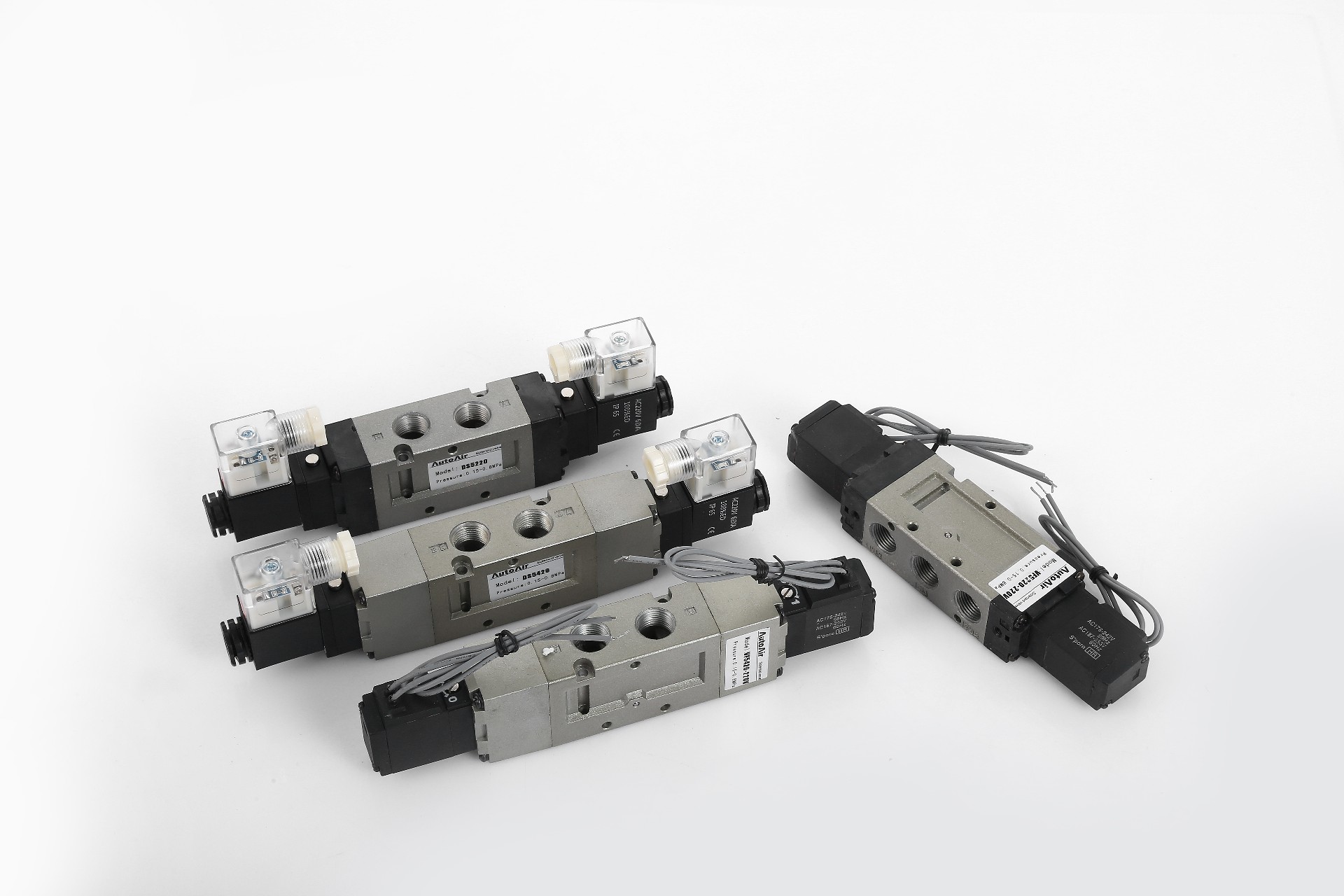

VF/DS Series Solenoid Valve

< >

VF/DS Series Solenoid Valve

Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%

~~Consult Immediately~~

Product Details

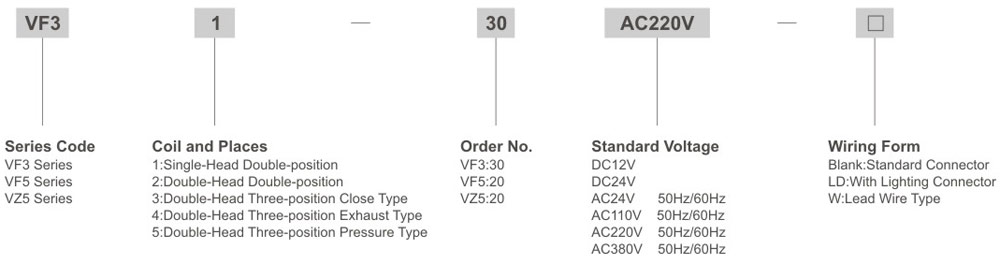

Ordering Code

Specification

Model	VF3130	VF3230	VF33(4/5)30	VF5120	VF5220	VF53(4/5)20	DS5120	DS5220	DS53(3/4)20
Position and Way No.	Two-position Five-way		Three-position Five-way	Two-position Five-way		Three-position Five-way	Two-position Five-way		Three-position Five-way
Effective Section Area	16mm2(CV=0.89)		12mm2(CV=0.67)	25mm2(CV=1.40)		18mm2(CV=1.00)	12mm2(CV=0.67)		9mm2(CV=0.50)
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC:4.5VA DC:3W
Insulation & Protection Class	IP65/F CIass.IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

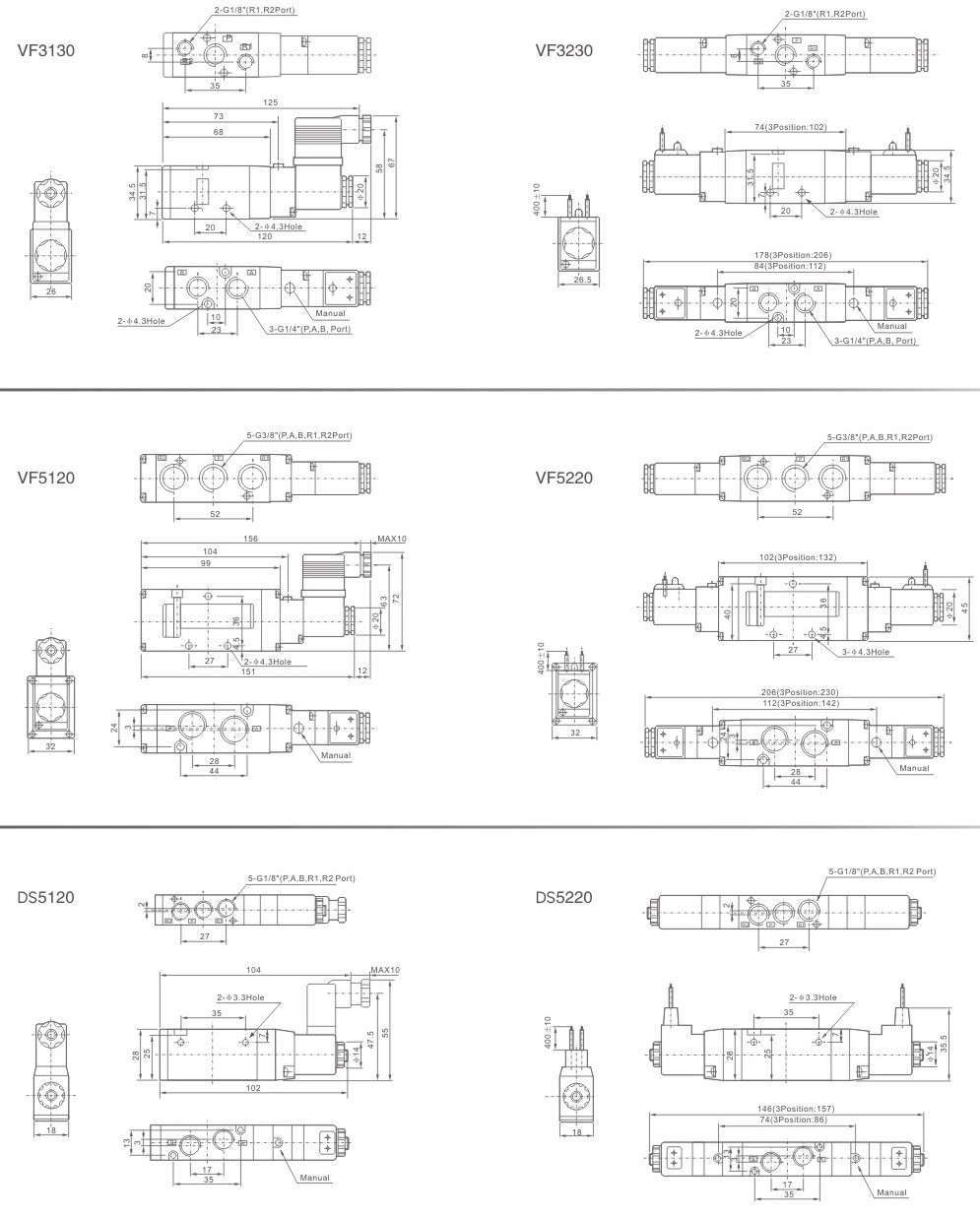

Overall Dimensions
