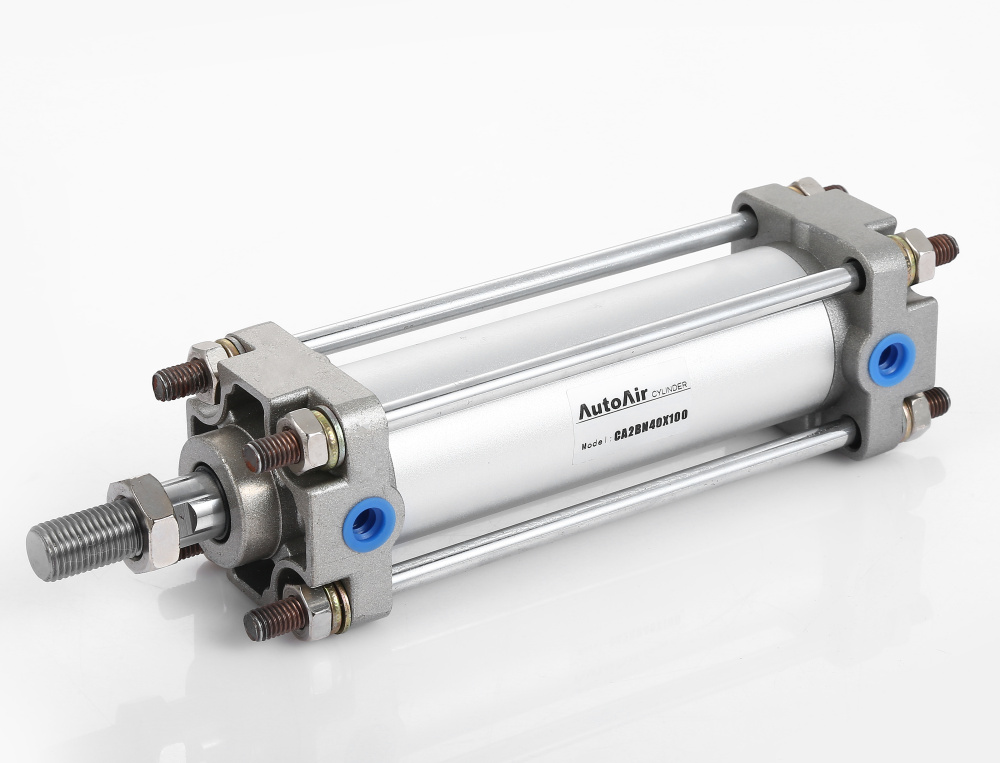

CA2 Series Standard Cylinder

Bore(mm)

40

50

63

80

100

Working Medium

Air

Motion Pattern

Double action Type

Ensured Pressure Resistance

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Min.pressure

0.5kgf/cm2(0.05Mpa)

Operating Temperature Range

5~+60℃

Operating Speed Range

50~500mm/s

Buffering

Air buffering

Margin of Stroke Error(mm)

~0~250+10 251~1000+1.4 1001~1500+1.8

Port size

G1/4"

G3/8"

G3/8"

G1/2"

G1/2"

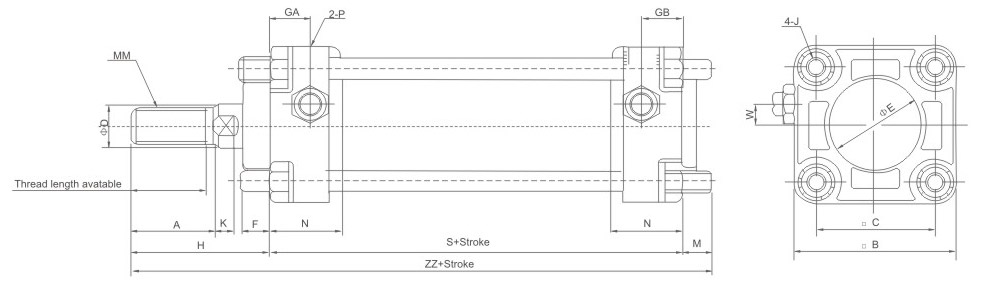

Diameter

Stroke range

Thread length available

A

□B

□C

φD

φE

F

GA

GB

J

K

M

MM

N

P

S

W

H

ZZ

40

~500

27

30

60

44

16

32

10

15

15

M8×1.25

6

11

M14×1.5

27

1/4

84

8

51

146

50

~600

32

35

70

52

20

40

10

17

17

M8×1.25

7

11

M18×1.5

30

3/8

90

0

58

159

63

~600

32

35

85

64

20

40

10

17

17

M10×1.25

7

14

M18×1.5

31

3/8

98

0

58

170

80

~750

37

40

102

78

25

52

14

21

21

M12×1.75

11

17

M22×1.5

37

1/2

116

0

71

204

100

~750

37

40

116

92

30

52

14

21

21

M12×1.75

11

17

M26×1.5

40

1/2

126

0

72

215
