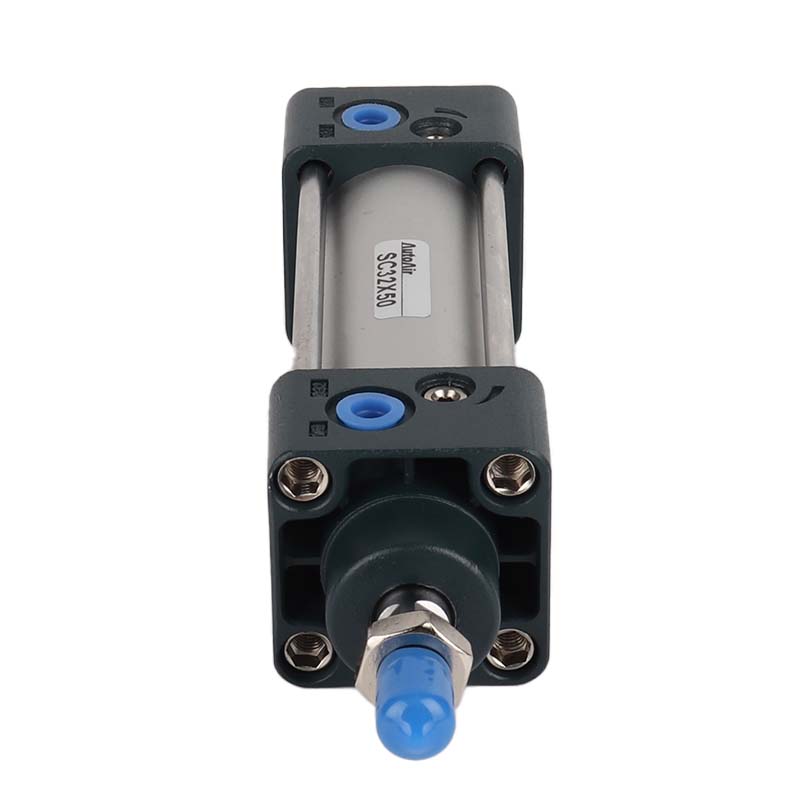

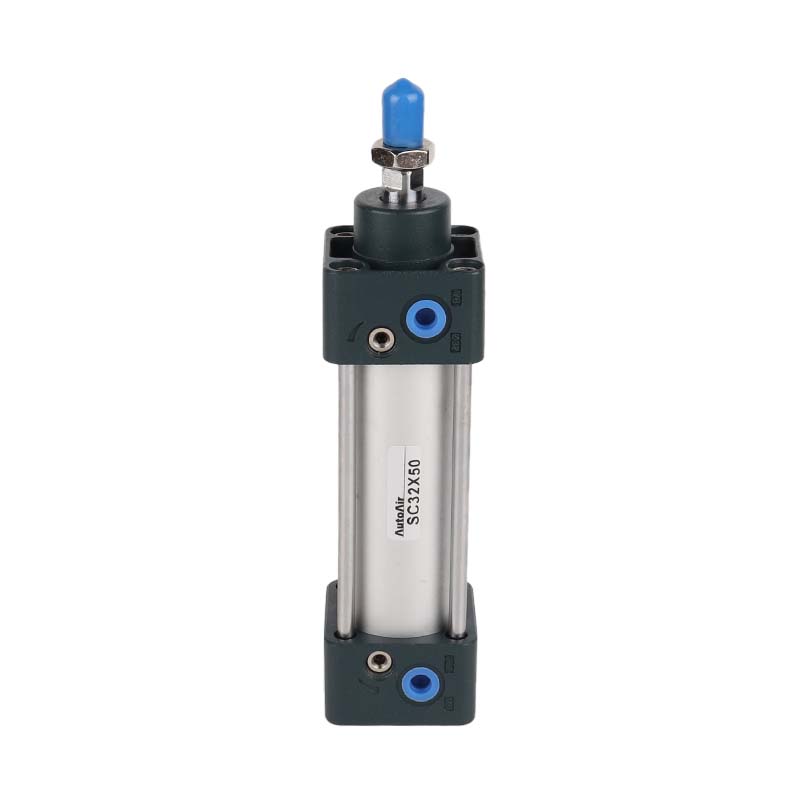

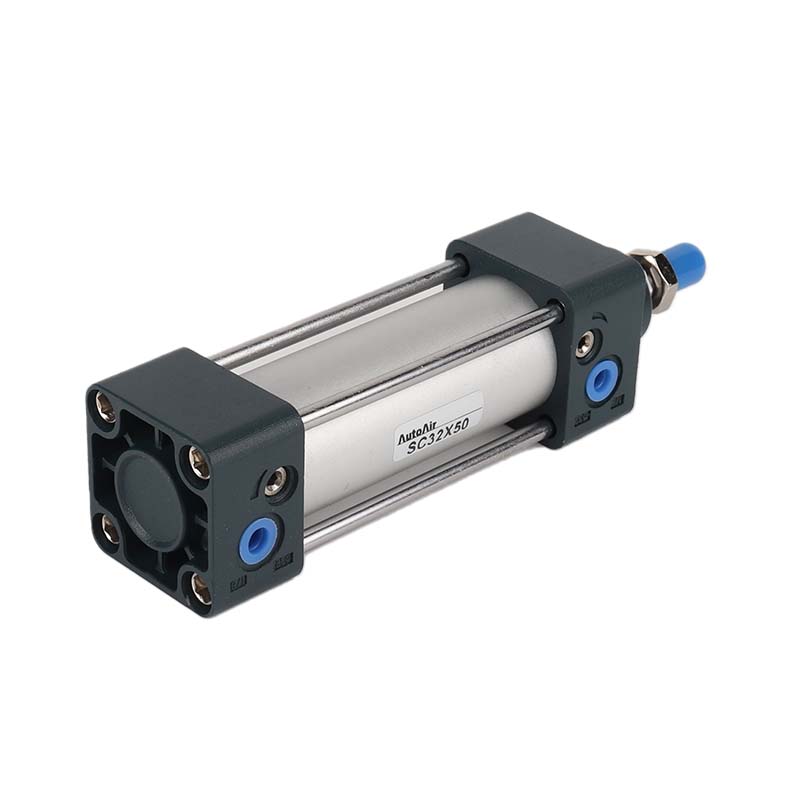

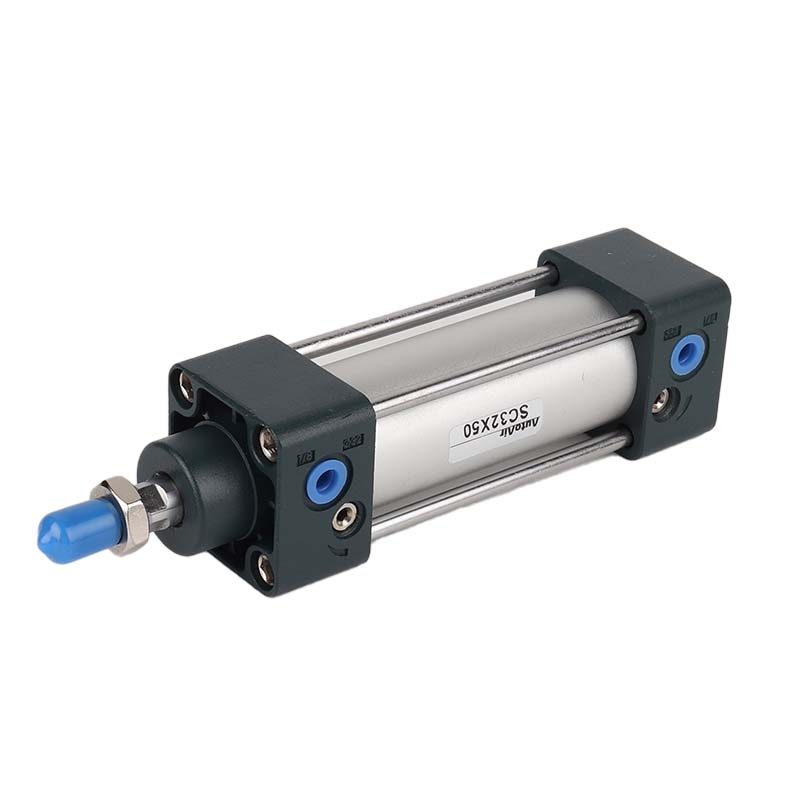

SC/SU Series Standard Cylinder-Autoair Pneumatic CO., LTD

Product Details

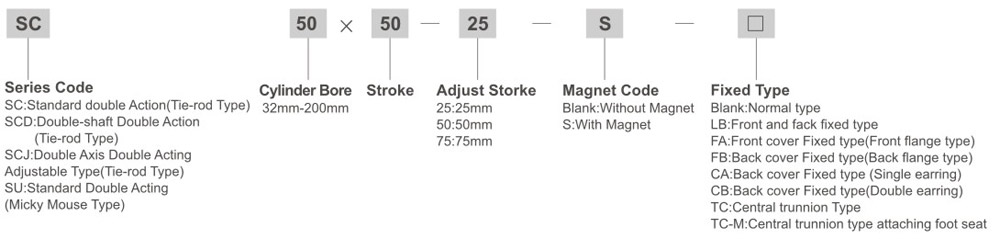

Ordering Code

Specification

Bore(mm)	32	40	50	63	80	100	125	160	200
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Normal type FA/Type FB/Type CA/Type CB/Type LB/Type TC/Type TC-M/ type
Operating Voltage Range	0.1~0.9kgf/cm2
Ensured Pressure Resistance	1.35Mpa
Operating Temperature Range	-5~70℃
Operating Speed Range	30~800mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24				32
Port Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"

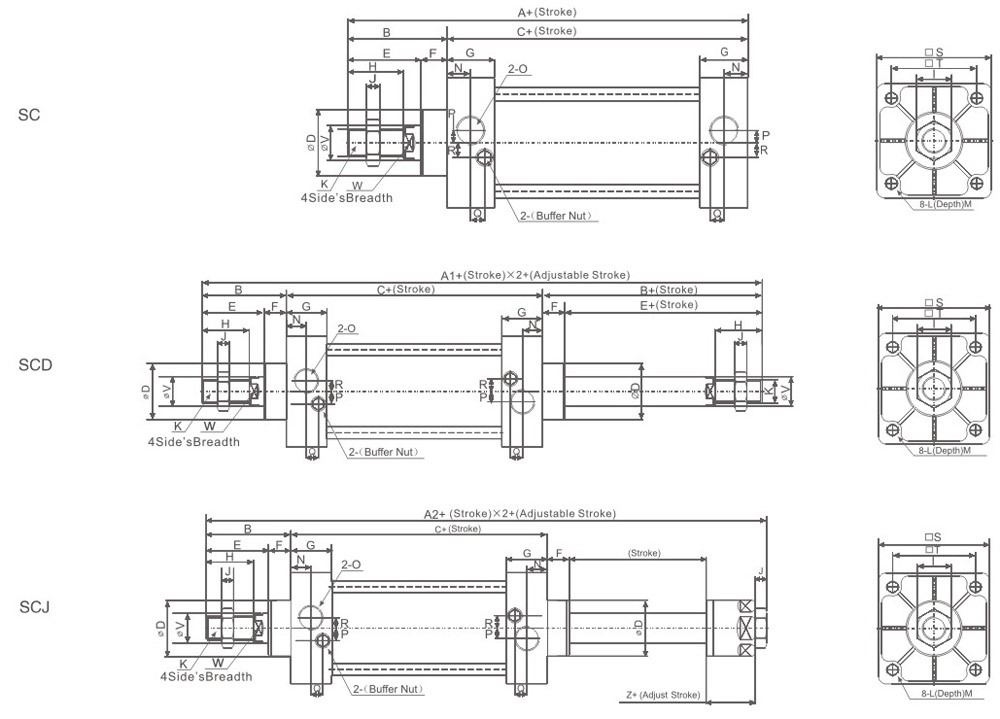

Overall Dimensions

Bore/Symbol	A	A1	A2	B	C	D	E	F	G	H	I	J	K
32	140	187	182	47	93	26	32	15	27.5	22	17	6	M10×1.25
40	142	191	185	49	93	32	34	15	27.5	24	17	7	M12×1.25
50	150	207	196	57	93	36	42	15	27.5	32	24	8	M16×1.5
63	153	210	199	57	96	36	42	15	27.5	32	24	8	M16×1.5
80	182	257	242	75	107	47	54	21	33	40	26	10	M20×1.5
100	188	263	248	75	108	47	54	21	33	40	26	10	M20×1.5
125	203	291	265.5	88	115	52	68	20	38	54	41	9	M27×2
160	293	352	332	113	126	62	88	25	38	72	55	16	M36×2
200	244	362	342	118	126	62	88	30	38	72	55	16	M36×2

Bore/Symbol	L	M	N	O	P	Q	R	S	T	V	W	Z
32	M6×1	9.5	13.7	G1/8"	3.5	7.5	7	45	33	12	10	21
40	M6×1	9.5	13.5	G1/4"	6	8.2	9	50	37	16	14	21
50	M6×1	9.5	13.5	G1/4"	8.5	8.2	9	62	47	20	17	23
63	M8×1.25	9.5	13.5	G3/8"	7	8.2	8.5	75	56	20	17	23
80	M10×1.5	11.5	16.5	G3/8"	10	9.5	14	94	70	25	22	29
100	M10×1.5	11.5	16.5	G1/2"	11	9.5	14	112	84	25	22	29
125	M12×1.75	16	20	G1/2"	14	6.5	14	136	104	32	27	42.5
160	M16×2	15	20	G3/4"	15	5	15	174	134	40	36	68
200	M16×2	15	20	G3/4"	15	3	15	214	163	40	36	68

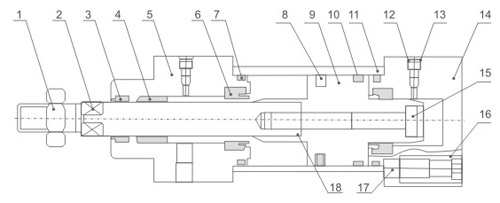

Other info

NO.	Designation
1	Piston Rod Nut
3	Front cover seal ring
5	Front cover
7	Pipe wall O-ring
9	Piston
11	Barrel
13	Damping adjustable screw
15	Hex socket screw
17	Tie rod

NO.	Designation
2	Piston rod
4	Bearing
6	Buffering o-ring
8	Piston O-ring
10	Wear Ring
12	Buffe seal ring
14	Back cover
16	Tie Rod Nut
18	Piston rod o-ring

Cylinder inside Diameter	Extern Diameter of Piston Rod	Mation Patterm		Compression Area(cm2)	Air Pressure(kgf/cm2)
Cylinder inside Diameter	Extern Diameter of Piston Rod	Mation Patterm		Compression Area(cm2)	1	2	3	4	5	6	7	8	9
32	12	Double Action	Press Side	8.04	8.04	16.08	24.12	32.16	40.20	48.24	56.28	64.32	72.36
32	12	Double Action	Pull Side	6.90	6.90	13.80	20.07	27.60	34.50	41.40	48.30	55.20	62.10
40	16	Double Action	Press Side	12.56	12.56	25.12	37.68	50.24	62.80	75.36	87.92	100.24	113.04
40	16	Double Action	Pull Side	10.55	10.55	21.10	31.65	42.20	52.75	63.30	73.85	84.40	94.95
50	20	Double Action	Press Side	19.63	19.63	39.26	58.89	78.52	98.15	117.78	137.41	157.04	176.67
50	20	Double Action	Pull Side	16.49	16.49	32.98	49.47	65.96	82.45	98.94	115.43	139.92	148.41
63	20	Double Action	Press Side	31.17	31.17	62.34	93.51	124.68	155.85	187.02	218.19	249.36	280.53
63	20	Double Action	Pull Side	28.03	28.03	56.06	84.09	112.12	140.15	168.18	196.21	224.24	252.27
80	25	Double Action	Press Side	50.26	50.26	100.52	150.78	201.04	251.30	301.56	351.82	402.08	452.34
80	25	Double Action	Pull Side	45.36	45.36	90.72	136.08	181.44	226.80	272.16	317.52	326.88	408.24
100	25	Double Action	Press Side	78.53	78.53	157.06	235.59	314.12	392.65	471.18	428.82	628.24	706.77
100	25	Double Action	Pull Side	71.47	71.47	142.94	214.41	285.88	357.35	428.82	500.29	517.76	643.43
125	32	Double Action	Press Side	122.72	122.72	245.44	368.16	490.88	613.60	736.32	859.04	981.76	1104.48
125	32	Double Action	Pull Side	114.68	114.68	229.36	344.04	458.72	573.40	688.08	802.76	917.44	1032.12
160	40	Double Action	Press Side	201.06	201.06	402.12	603.18	804.24	1005.30	1206.36	1407.42	1608.48	1809.54
160	40	Double Action	Pull Side	188.49	188.49	376.98	565.47	753.96	942.45	1130.94	1319.43	1507.92	1696.41
200	40	Double Action	Press Side	314.16	314.16	628.32	942.48	1256.64	1570.80	1884.96	2199.12	2513.28	2827.44
200	40	Double Action	Pull Side	301.57	301.57	603.14	904.71	1206.28	1507.80	1809.42	2100.99	2412.56	2714.13

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Inquiry

If you have any comments and suggestions to our company, please leave a message here.

Your message will give me a great help, we will reply as soon as possible. Sincerely thank you for your attention and support!

Products RecommendedMore popular products+

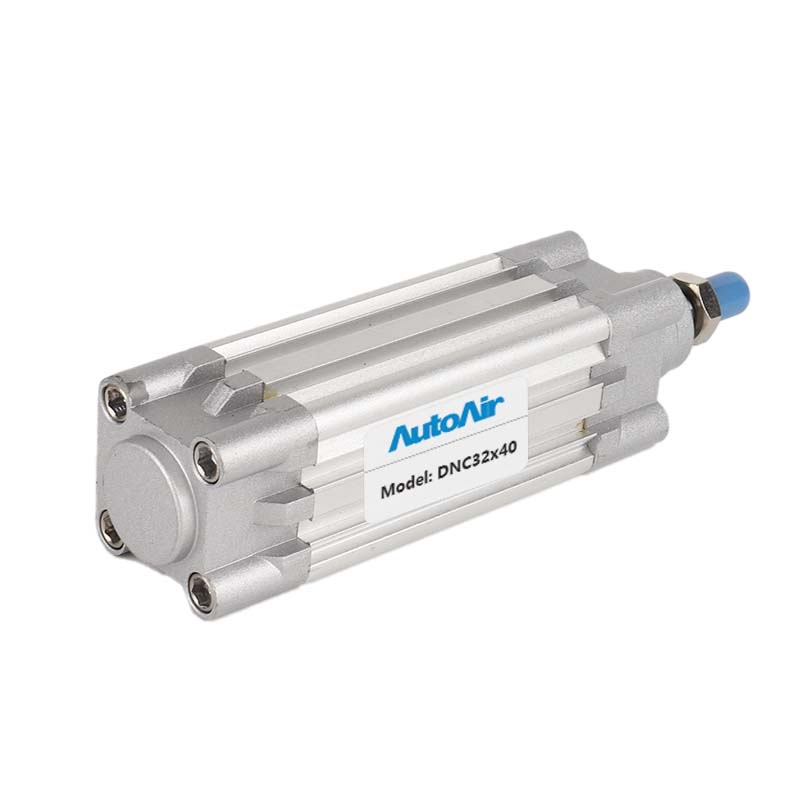

: DNC Series Standard Cylinder(ISO15552)

DNC Series Standard Cylinder(ISO15552)

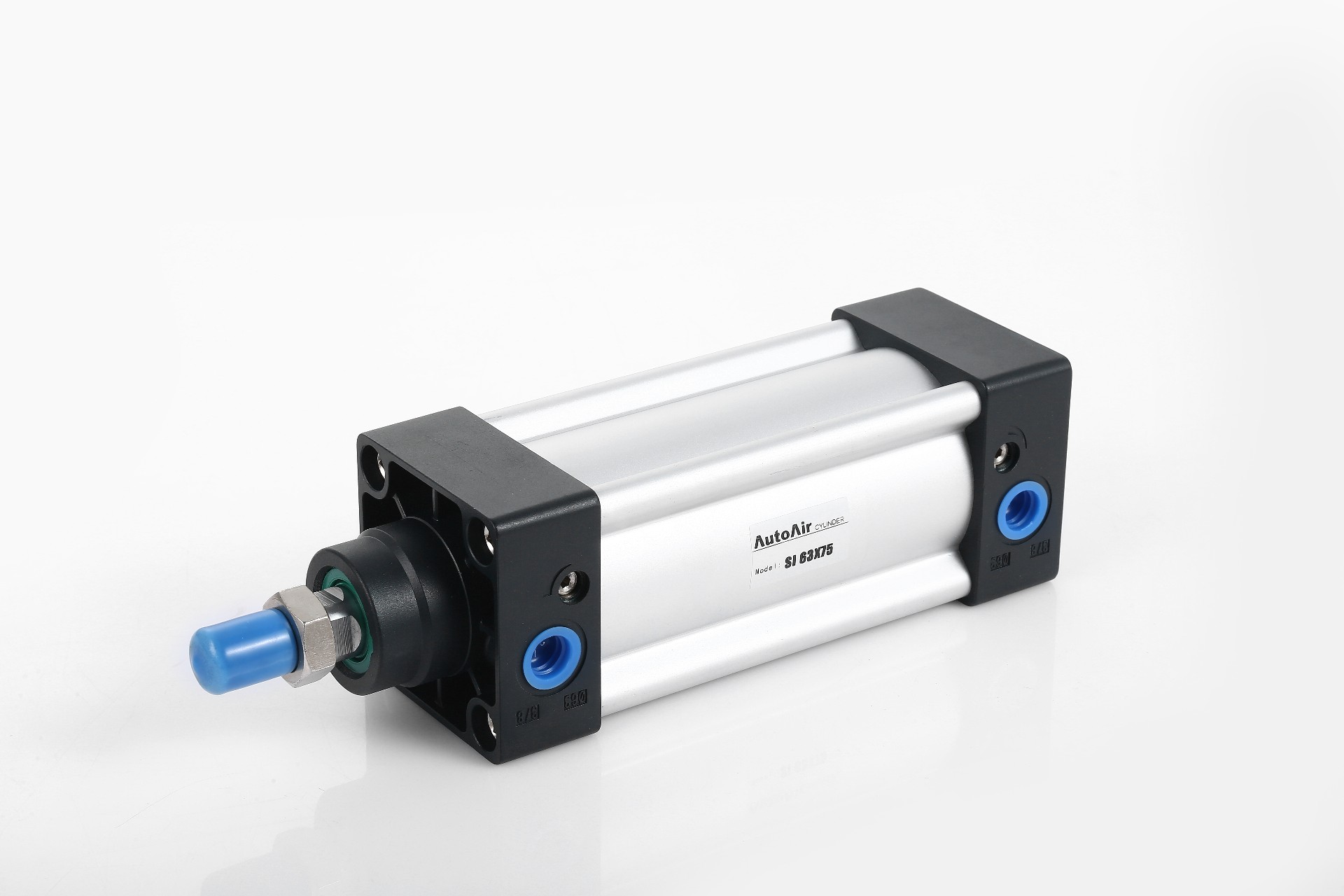

: SI Series Standard Cylinder(ISO6431)

SI Series Standard Cylinder(ISO6431)

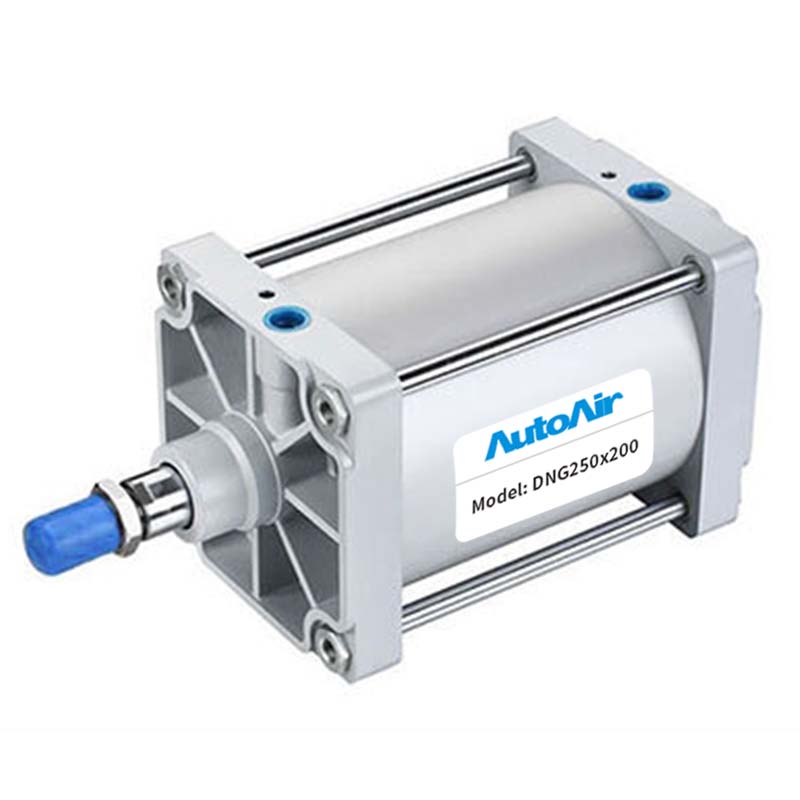

: DNG Series Standard Cylinder(ISO15552)
