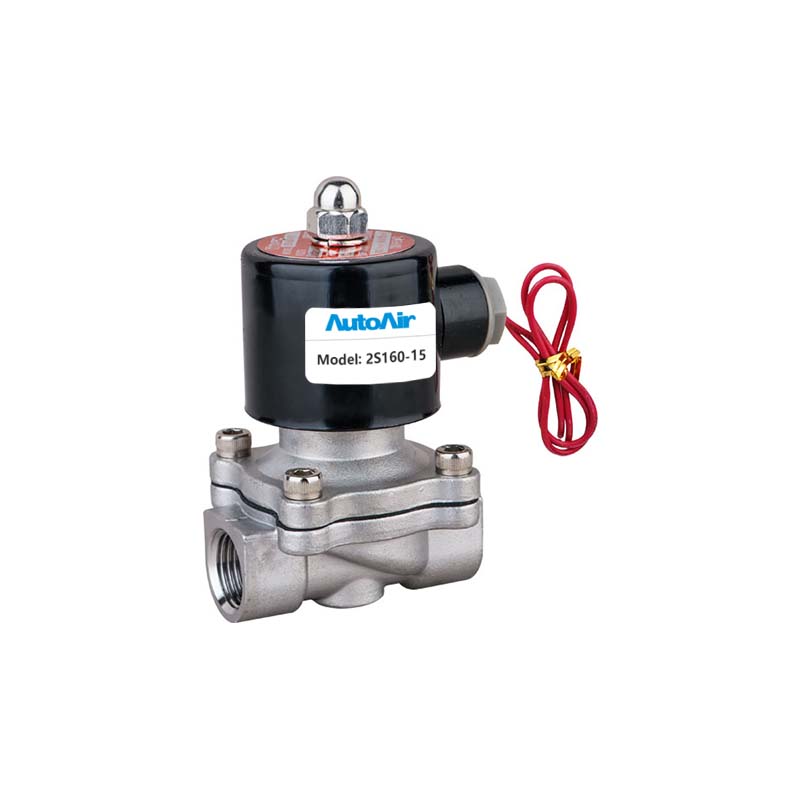

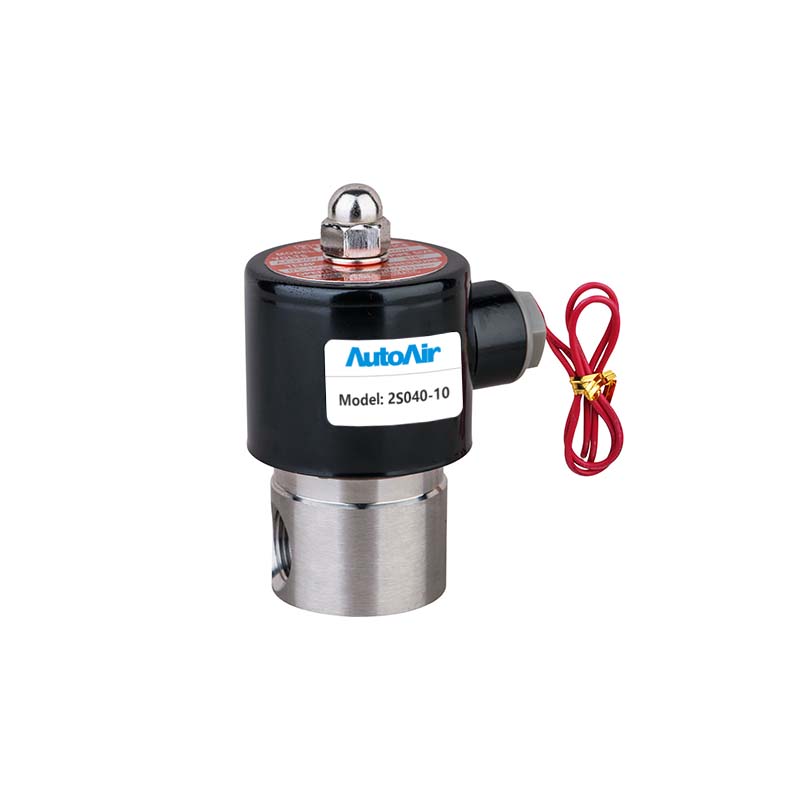

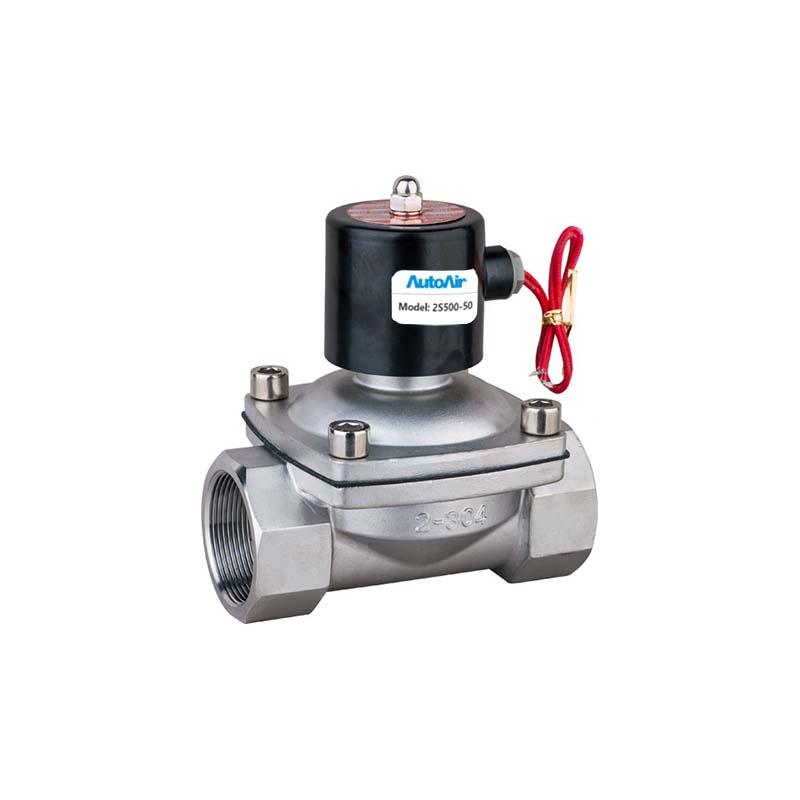

2S Series 2/2 Way Solenoid valve

Working Medium

Air,Water,Oil,Gas

Motion Pattern

Direct Drive Type

Type

Normal Close Type

Aperture of Flow Rate(mm)

2.5

5

16

20

35

40

50

CV Value

0.23

0.60

4.8

7.6

24

29

48

Joint Pipe Bore

1/8″ 1/4″

3/8″

3/8″ 1/2″

3/4″

1″

1/2″ 1/4″

2″

Operation Fluid Viscosity

20 CST(Below)

Working-pressure MPa

Air：0~0.7MPa

Water：0~0.5MPa; Air：0~0.7MPa; Oil：0~0.5MPaMPa; Gas: 0~0.7MPa

Max. Pressure Resistance MPa

1.0

Operating Temperature ℃

-5 ~ 80℃

Voltage Range

±10%

Material of Body

Stainless steel

Material of Oil Seal

NBR,EPDM or VITON
