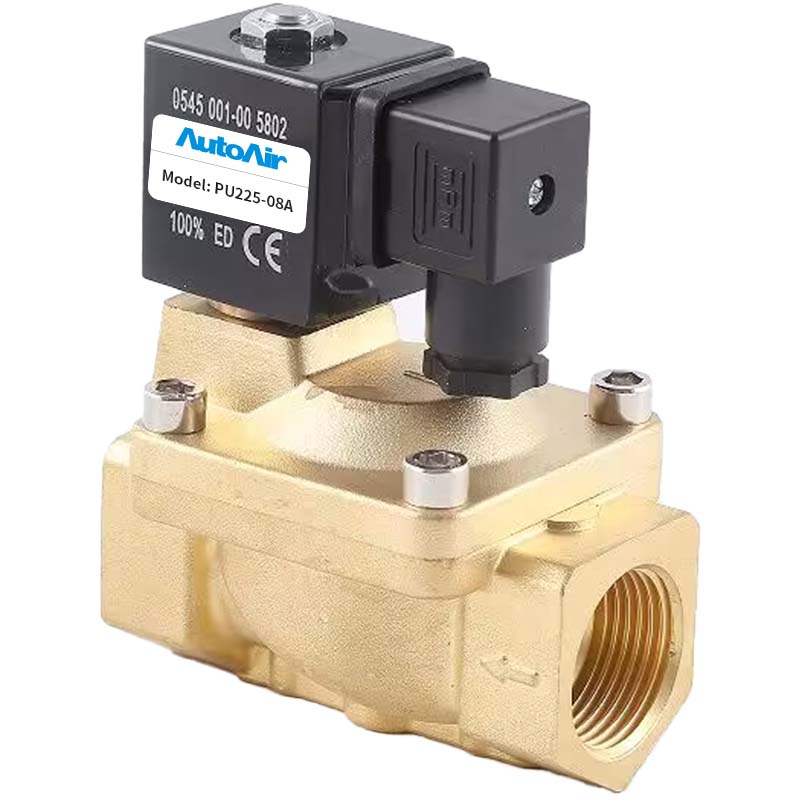

PU225 Guide Type Solenoid Valve

Working Medium

Air.Water.Oil

Motion Pattern

Guide Type

Type

Normal Close Type

Aperture of Flow Rate(mm)

13

13

25

25

38

38

50

CV Value

4.50

4.50

12.00

12.00

22.00

30.00

48.00

Port Size

G3/8"

G1/2"

G3/4"

G1"

G1/4"

G1/2"

G2"

Operation Fluid Viscosity

50 CST(Below)

Working-Pressure

0.05~1.0MPa

Max. Pressure Resistance

1.5MPa

Operating Temperature Range

-5~+80℃

Material of Body

Brass or steel

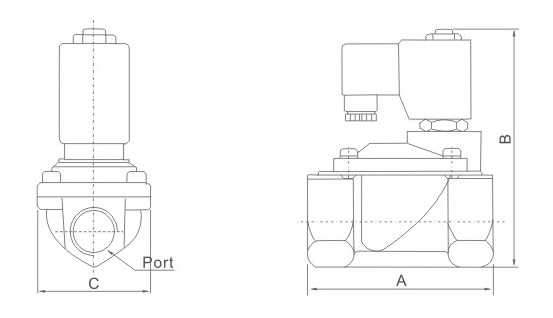

PU225-03A

G3/8"

66.5

106.5

48.0

PU225-04A

G1/2"

66.5

106.5

48.0

PU225-06A

G3/4"

72.0

113.0

58.0

PU225-08A

G1"

96.0

121.0

70.0

PU225-12A

G1/4"

128.0

145.5

96.0

PU225-14A

G1/2"

128.0

145.5

96.0

PU225-20A

G2"

161.0

160.5

112.0
