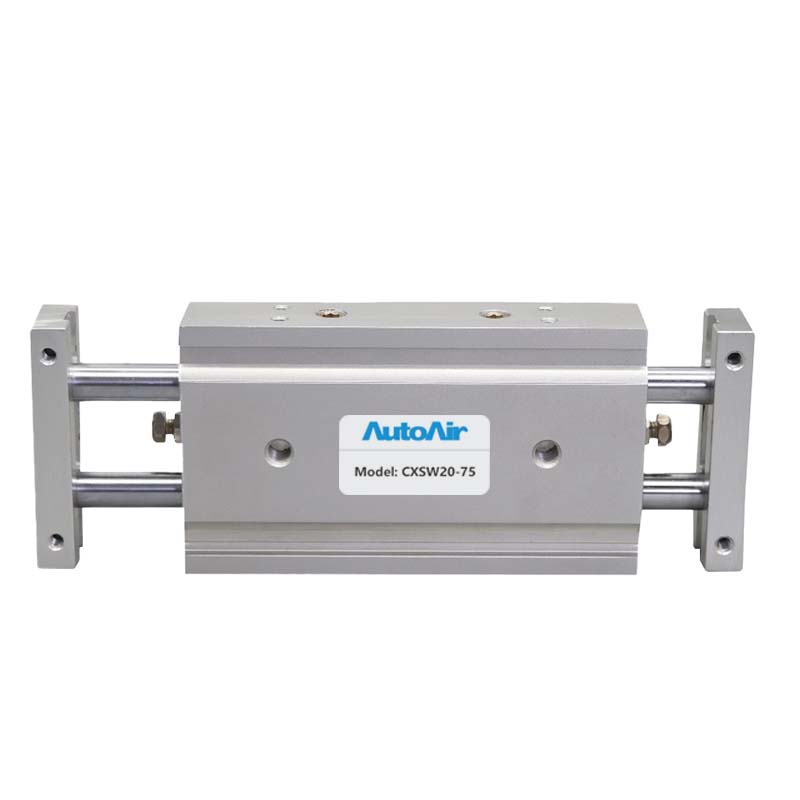

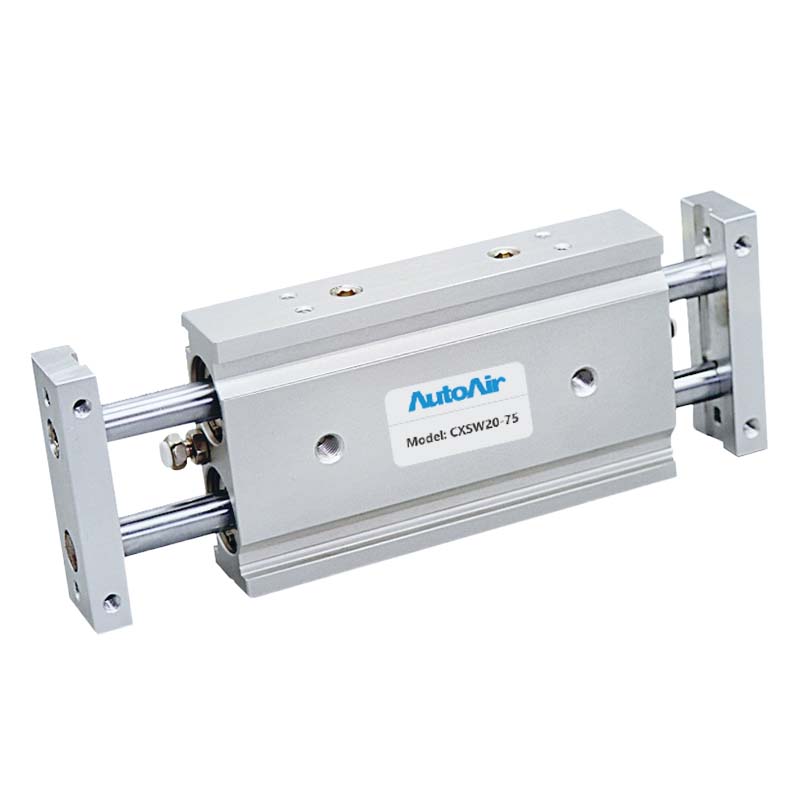

CXSW Series Dual Rod Pneumatic Slide Cylinders - China Twin Rod Guided Air Cylinders for Industrial Automation

Working Medium	Double action
Motion Pattern	Air
Operating Temperature Range	5﹣＋60℃
Working pressure(MPa)	0.1-1.0
Guaranteed pressure(MPa)	1.5
Speed range(mm/s)	50-200

Bore(mm)	10	16	20	25	32
Motion Pattern	Double action
Working Medium	Air
Operating Temperature Range	5~＋60℃
Working pressure(MPa)	0.1~1.0
Guaranteed pressure(MPa)	1.5
Speed range(mm/s)	50-200
Cushion Type	Both ends buffer
Oil supply	Not required
Non-ritating accuracy	±0.05°	±0.03°
Port Size	M5×0.8				G1/8"
