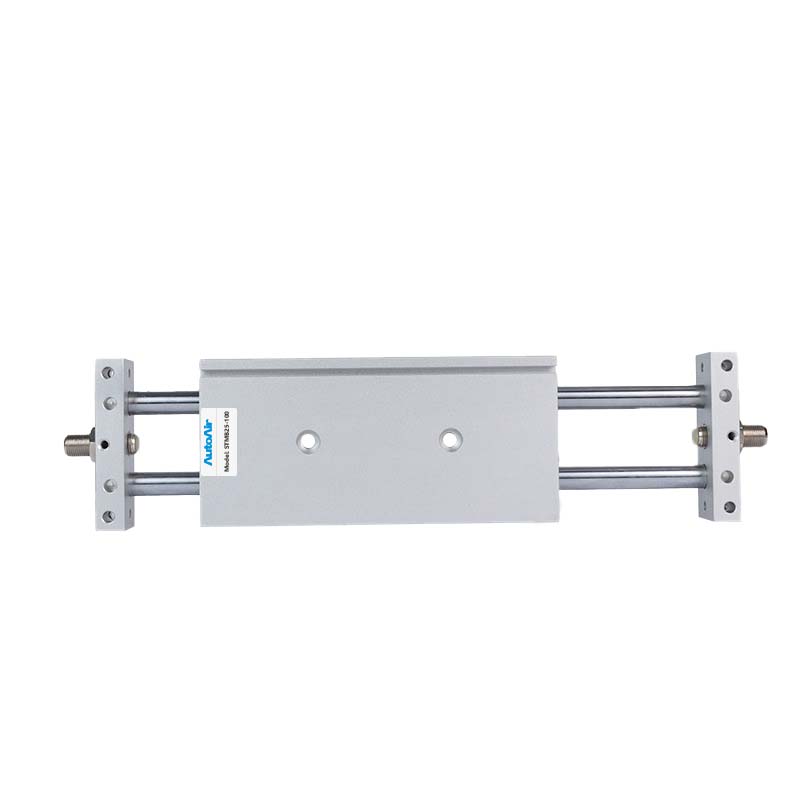

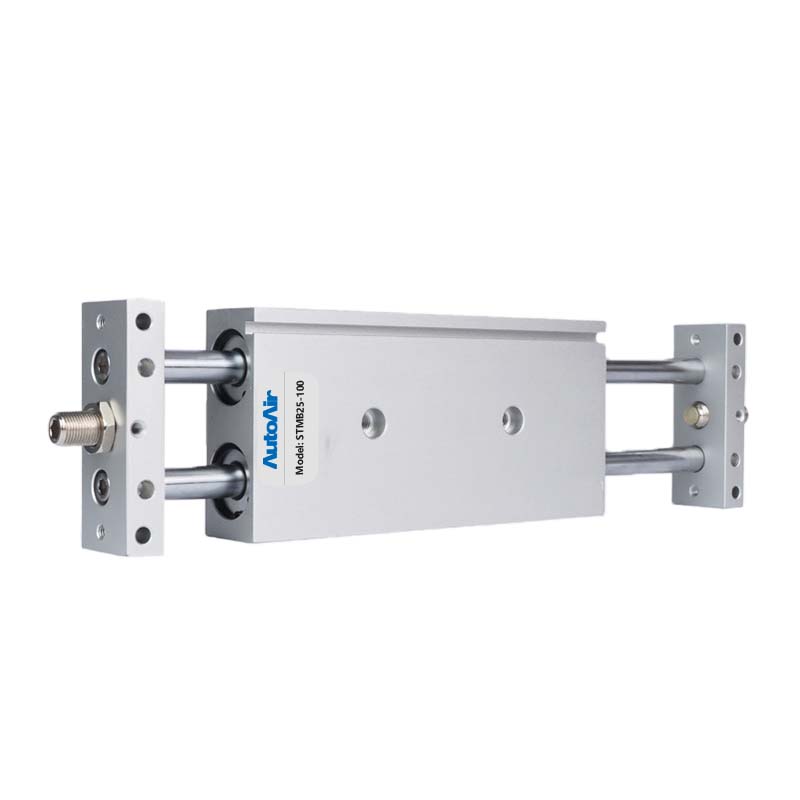

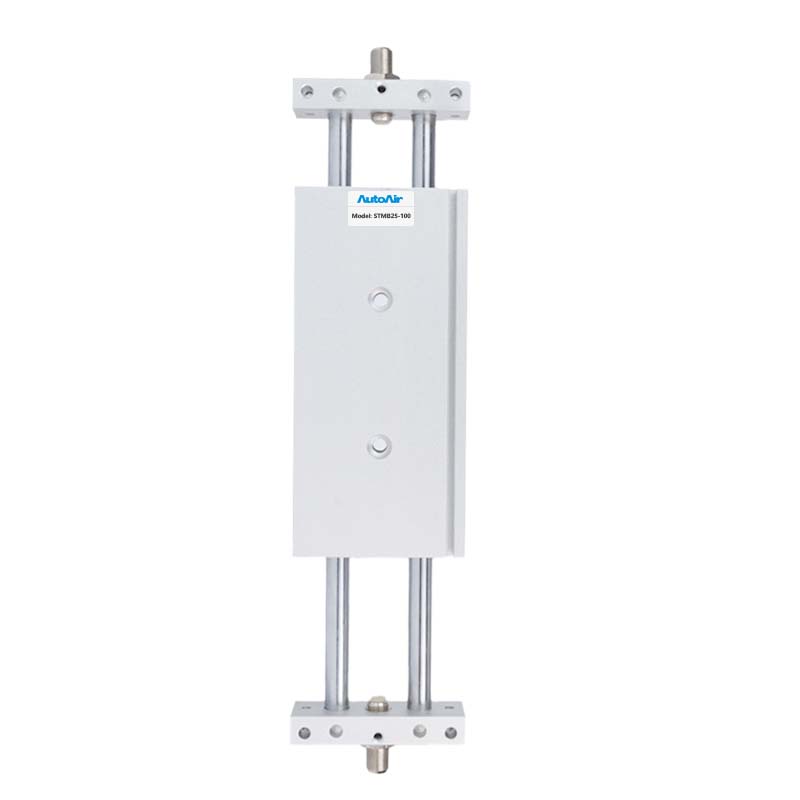

STM Series Dual Rod Double - Acting Pneumatic Slide Cylinders - China Twin Rod Guided Air Cylinders for Industrial Automation

< >

STM Series Dual Rod Double - Acting Pneumatic Slide Cylinders - China Twin Rod Guided Air Cylinders for Industrial Automation

Motion Pattern	Double action
Working Medium	Air
Operating Temperature Range	-5~+70℃
Operating VoltageRange	1.0~9.0kgf/cm2
Ensured Pressure Resistance	13.5kgf/cm2
Operating Speed Range	50~200mm/s

~~Consult Immediately~~

Product Details

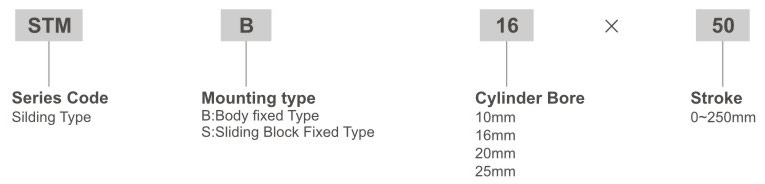

Ordering Code

Specification

Bore(mm)	10	16	20	25
Motion Pattern	Double action
Operating Temperature Range	-5~+70℃
Operating VoltageRange	1.0~9.0kgf/cm2
Ensured Pressure Resistance	13.5kgf/cm2
Operating Speed Range	50~200mm/s
Buffer Type	Shock Absorter
Lubrication	NO
Non-rotating Precision	±0.1°	±0.05°
Port size	M5×0.8			G1/8"

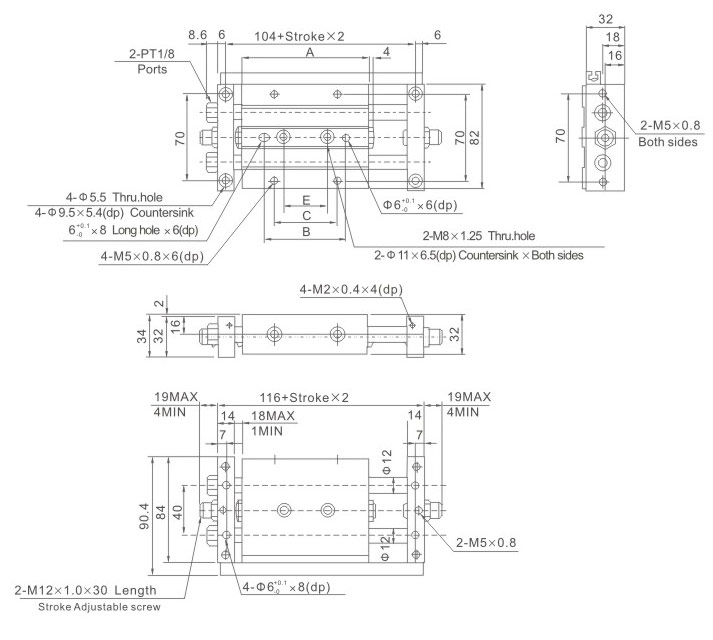

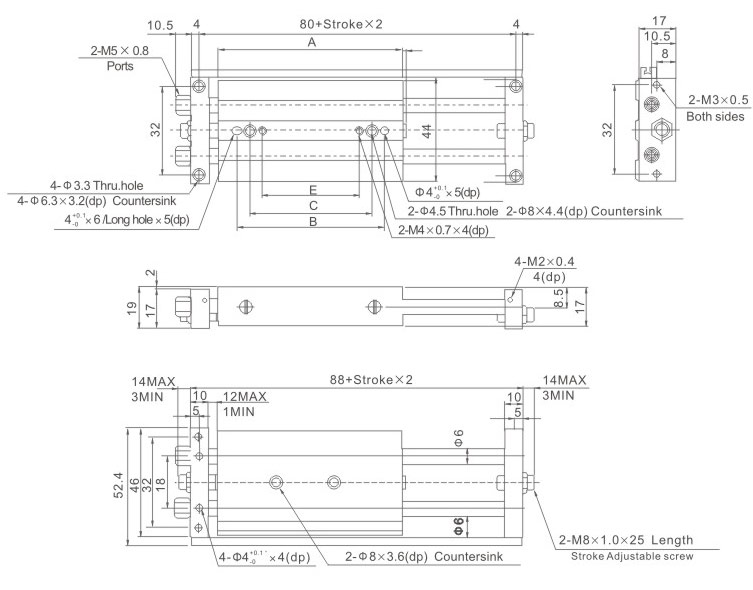

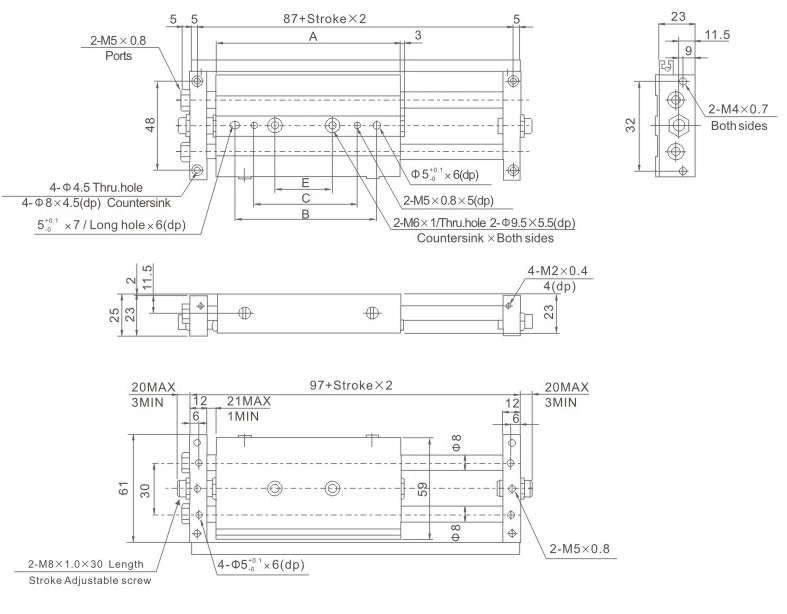

Overall Dimensions

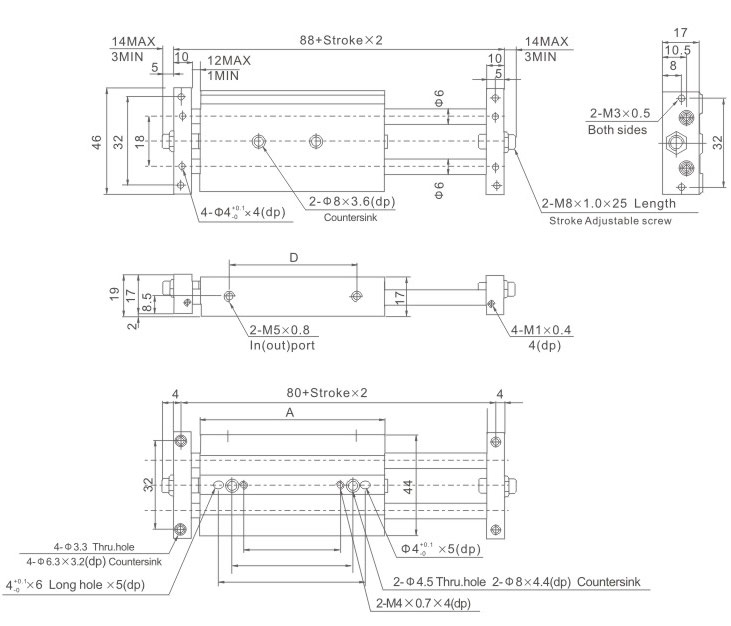

STMB-10

Item/Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	60
D	46	71	96	121
E	15	40	40	40

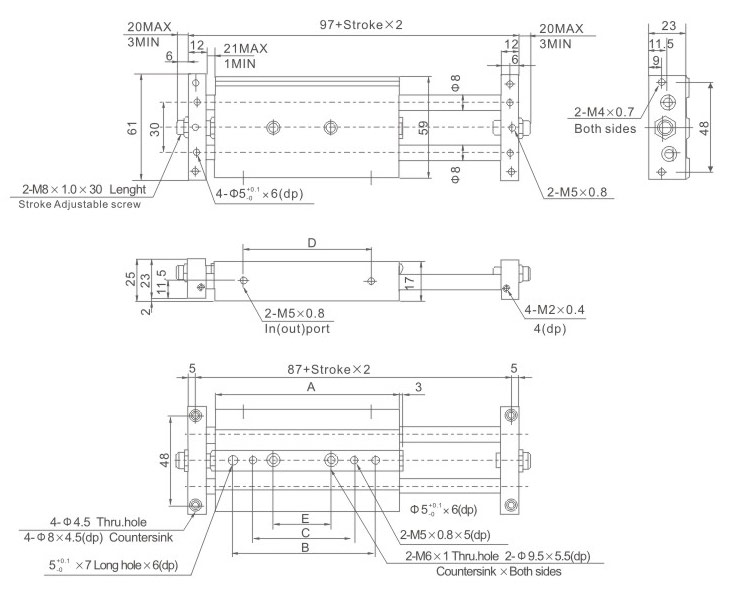

STMB-16

Item/Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
D	48	73	98	123	148	173	198	223
E	25	50	45	70	90	90	90	90

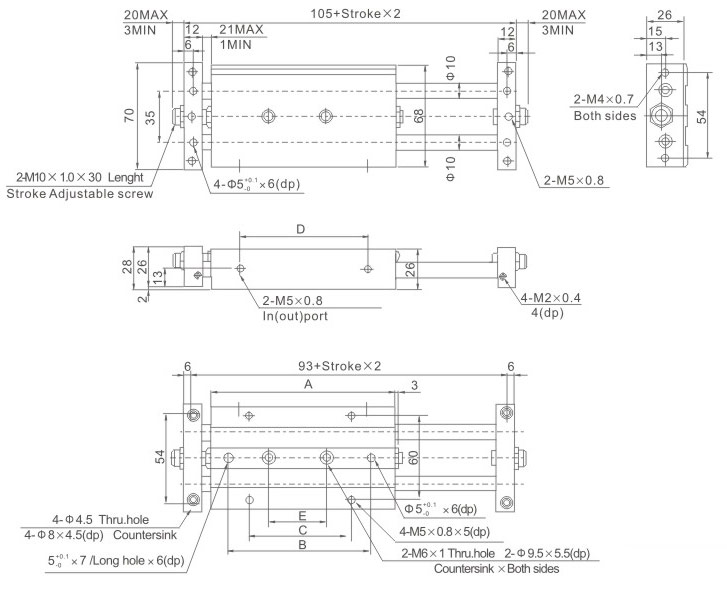

STMB-20

Item/Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
D	53	78	103	128	153	178	203	228	278
E	35	45	45	70	90	90	90	90	90

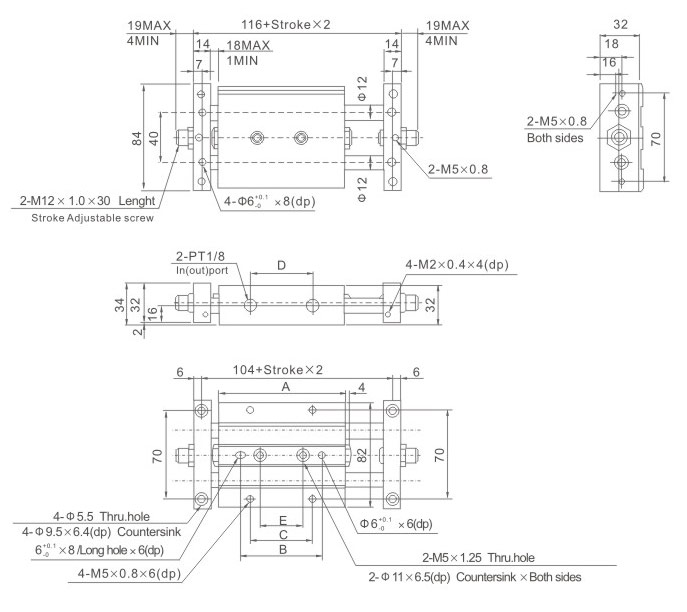

STMB-25

Item/Stroke	25	50	75	100	125	150	175	200	250
A	101	126	151	176	201	226	251	276	326
B	65	90	115	140	140	140	140	140	140
C	50	50	75	100	100	100	100	100	100
D	50	75	100	125	150	175	200	225	175
E	35	45	45	70	95	100	100	100	100

STMS-10

Item/Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	121
E	15	40	40	40

STMS-16

Item/Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
E	25	50	45	70	90	90	90	90

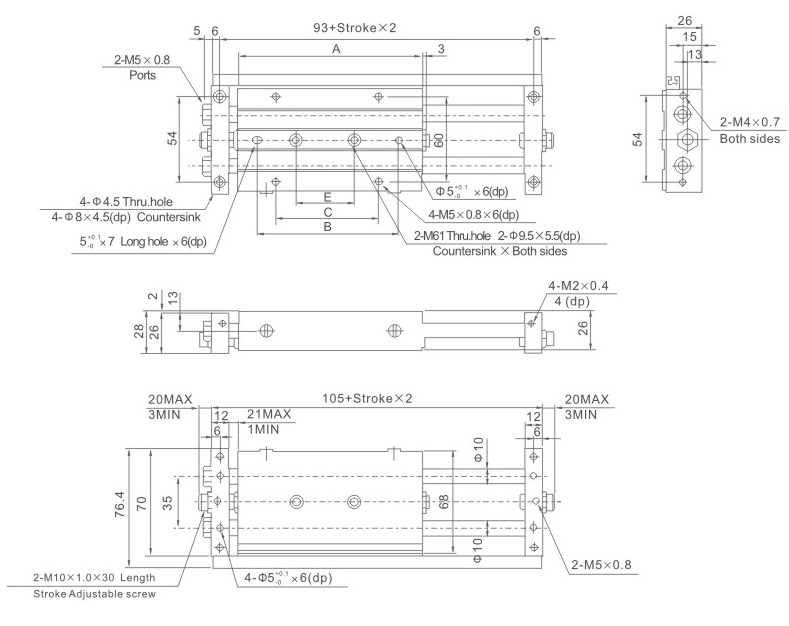

STMS-20

Item/Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
E	35	45	45	70	90	90	90	90	90

STMS-25

Item/Stroke	25	50	75	100	125	150	175	200	250
A	101	126	151	176	201	226	251	276	326
B	65	90	115	140	140	140	140	140	140
C	50	50	75	100	100	100	100	100	100
E	35	45	45	70	95	100	100	100	100

Other info

Bore size(mm)	Standard stroke(mm)
10	25 50 75 100
16	25 50 75 100 125 150 175 200
20	25 50 75 100 125 150 175 200 250
25	25 50 75 100 125 150 175 200 250

Bore size	Rod size(mm)	Pressure area(cm²)	Operating pressure(Kgf/cm²)
Bore size	Rod size(mm)	Pressure area(cm²)	1	2	3	4	5	6	7	8	9
10mm	6	0.50	0.48	0.95	1.43	1.9	2.38	2.85	3.43	3.8	4.28
16mm	8	1.51	1.43	2.87	4.30	5.74	7.17	8.61	10.04	11.48	12.91
20mm	10	2.36	2.24	4.48	6.73	8.97	11.21	13.45	15.69	17.94	20.18
25mm	12	3.78	.051	7.18	10.77	14.36	17.96	21.55	25.14	28.73	32.32
