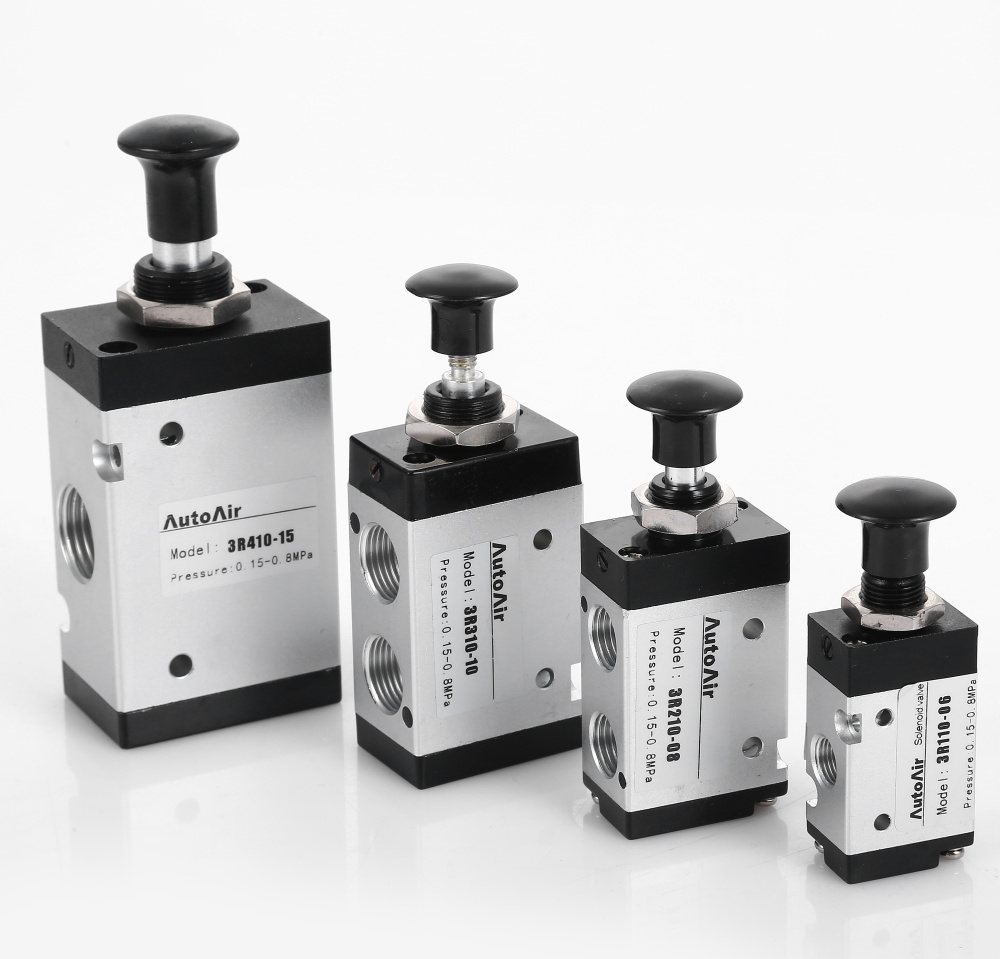

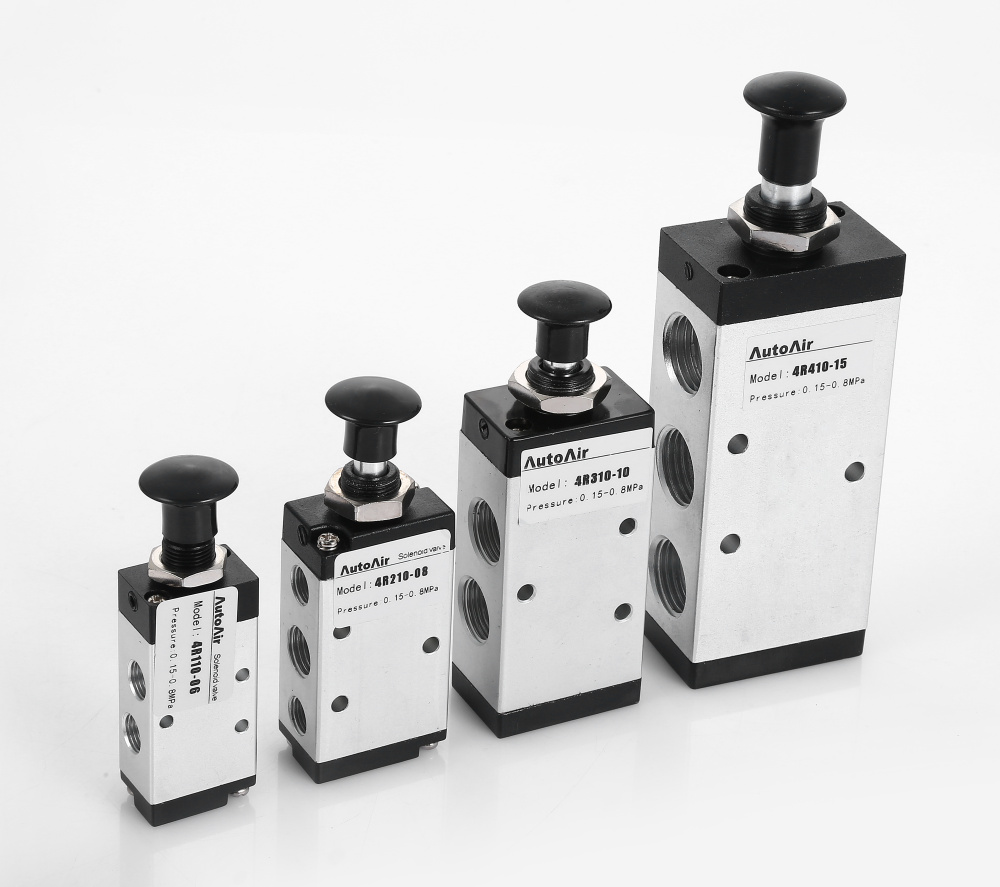

4R/3R Series Hand-Draw Valve

< >

4R/3R Series Hand-Draw Valve

Working Medium	Compresses Air
Working-pressure Range	0~1.0MPa
Operating Temperature Range	-5~60℃
Operating Method	Direct Action Type
Lubrication	Not Required

~~Consult Immediately~~

Product Details

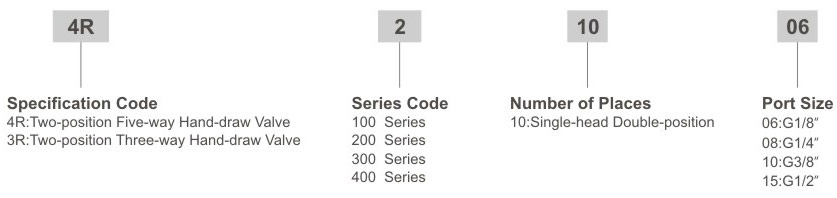

Ordering Code

Specification

Model	4R110-06	4R210-08	4R310-10	4R410-15	3R110-06	3R210-08	3R310-10	3R410-15
Working Medium	Compresses Air
Position and Way No.	Two-position Five-way				Two-position Three-way
Joint Pipe Bore	G1/8"	G1/4"	G3/8"	G1/2"	G1/8"	G1/4"	G3/8"	G1/2"
Working-pressure Range	0~1.0MPa
Operating Temperature Range	-5~60℃
Operating Method	Direct Action Type
Lubrication	Not Required

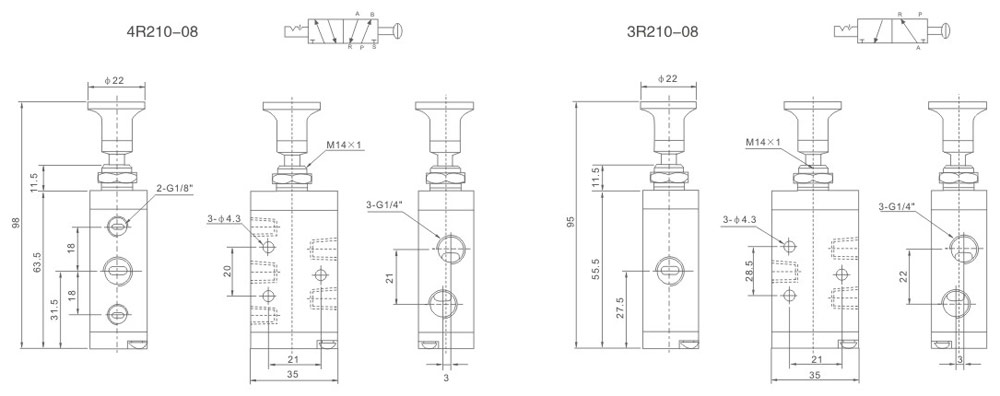

Overall Dimensions
