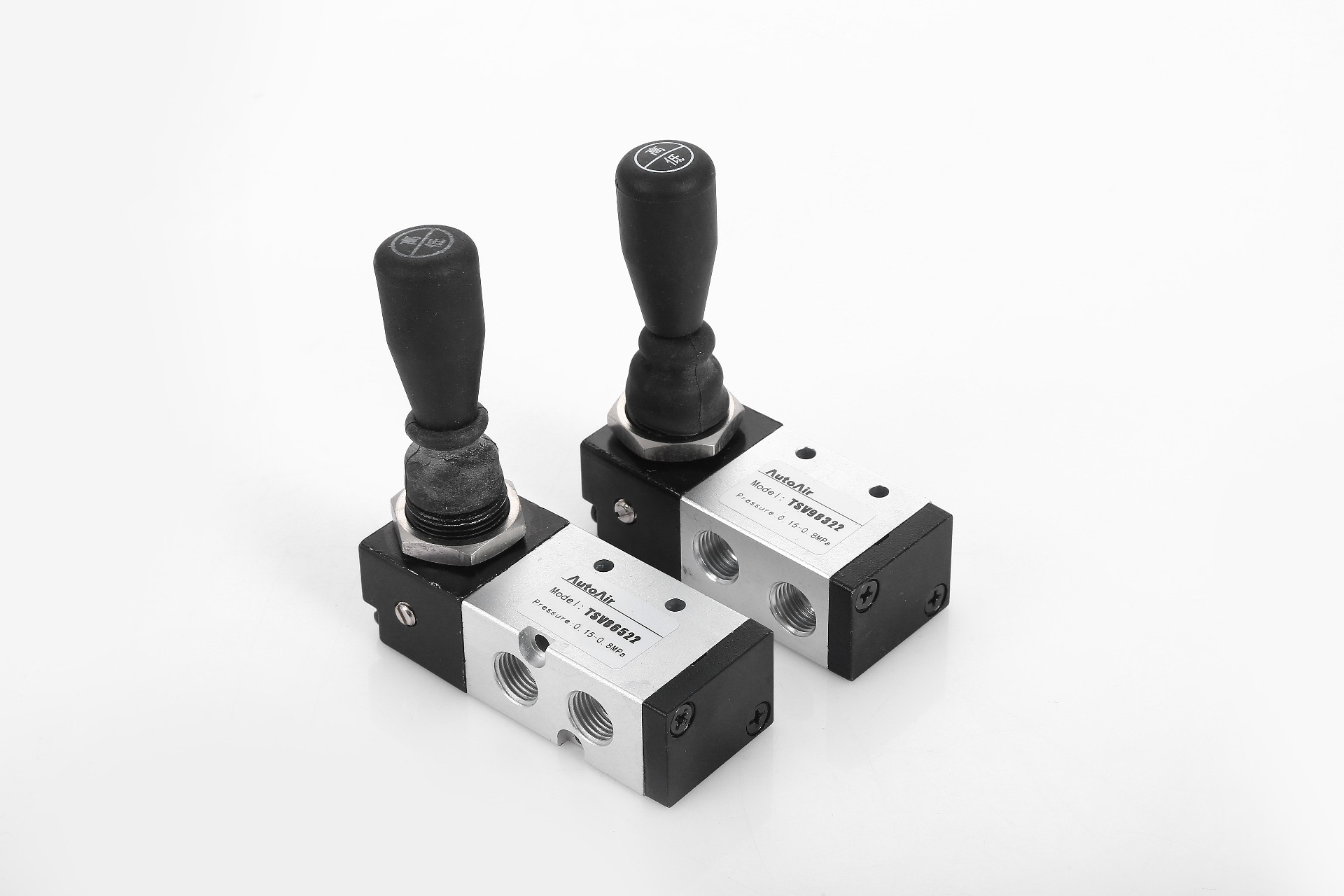

TSV/4H Series hand-pull Valve

Working Medium

40 Micron Filtered Air

Motion Pattern

Direct Drive Type

Effective Sectional Area

18mm2(CV=1.00)

Port Size

G1/4

Working-pressure Range

0~1.0MPa

Operating Temperature Range

0~60℃

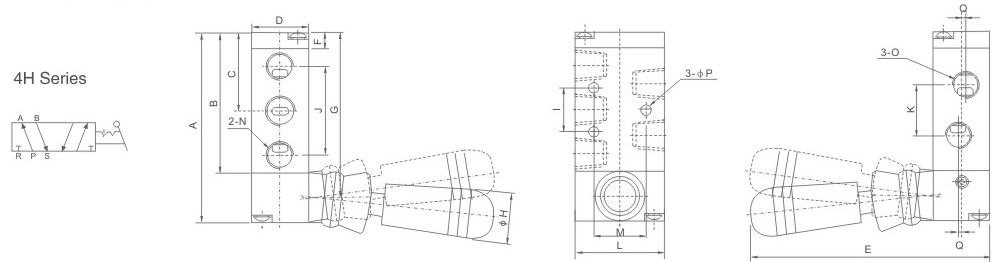

4H210-06

76

56.5

31.5

22

95

6.5

66.5

18

20

36

21

35

21

G1/8"

G1/8"

4.3

-

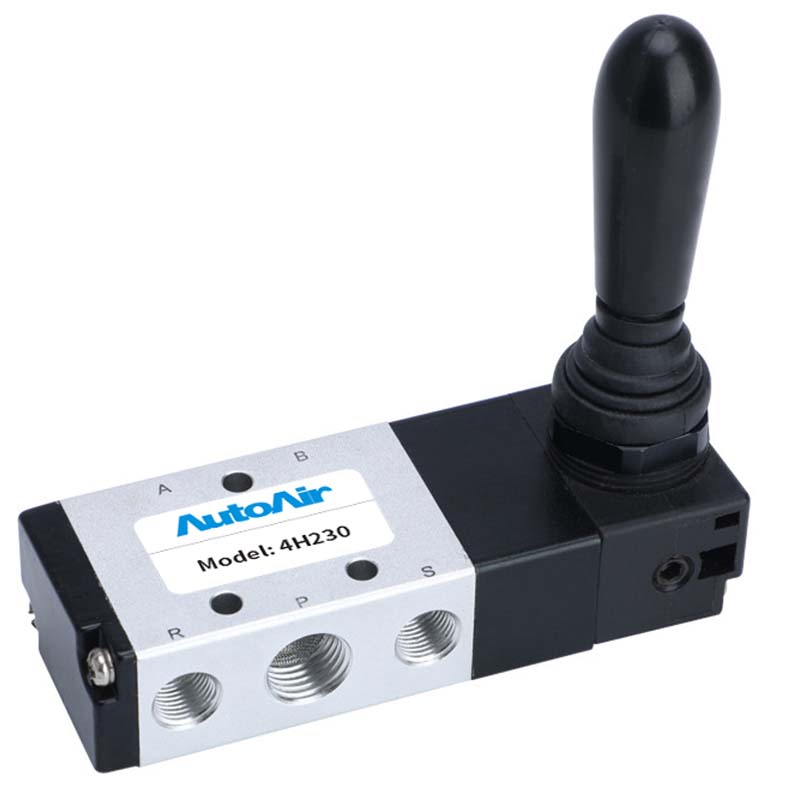

4H230-06

76

56.5

31.5

22

95

6.5

66.5

18

20

36

21

35

21

G1/8"

G1/8"

4.3

-

4H230-06(Automatic Reset)

95

75.5

31.5

22

95

6.5

85.5

18

20

36

21

35

21

G1/8"

G1/8"

4.3

-

4H210-08

76

56.5

31.5

22

95

6.5

66.5

18

20

36

21

35

21

G1/8"

G1/4"

4.3

1.5

4H230-08L

76

56.5

31.5

22

95

6.5

66.5

18

20

36

21

35

21

G1/8"

G1/4"

4.3

1.5

4H230-08(Automatic Reset)

95

72.5

31.5

22

95

6.5

85.5

18

20

36

21

35

21

G1/8"

G1/4"

4.3

1.5

4H310-08

92

72.5

40

27

100

7.5

82.5

18

24

45

24

40

27

G1/4"

G1/4"

4.3

-

4H310-10

92

72.5

40

27

100

7.5

52.5

18

24

45

24

40

27

G1/4"

G3/8"

4.3

2

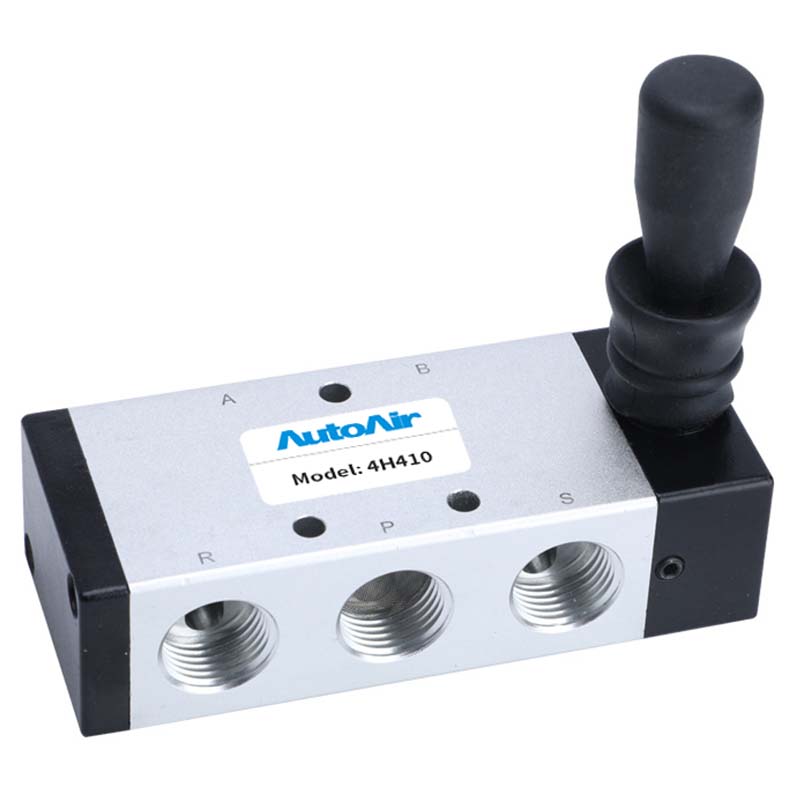

4H410-15

126

102

55.5

34

100

7.5

114

18

28

63

36

50

35

G1/2"

G1/2"

5.5

-
