1.We can offer SC/SU Pneumatic cylinder kits,Festo Standard DNC Pneumatic cylinder kits, ISO15552/6431European Standard Pneumatic cylinder kits Parts .
2.We provide a variety of cylinder models, a variety of cylinder bores, to meet the needs of most markets
| Pneumatic cylinder model | Bore size |
| Round Pneumatic cylinder | 32,40,50,63,80,100,125,160,200,250,320 |
| Airtac standard SI Pneumatic cylinder kits | 32,40,50,63,80,100,125,160,200 |
| Airtac SDA standard | 10,12,16,20,25,32,40,50,63,80,100 |
| Festo DNC standard | 32,40,50,63,80,100,125 |
| FESTO ADVU standard | 16,20,25,32,40,50,63,80 |
| Mini cylinder MAL | 16,20,25,32,40 |
| Mini Stainless Steel MA | 10,12,16,20,25,32,40 |

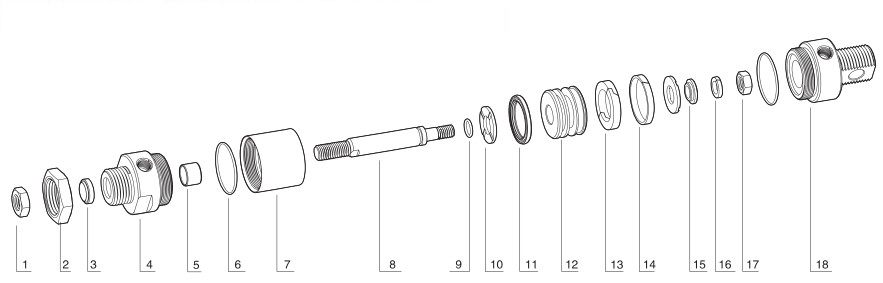

Pneumatic Standard Cylinder Kits
| No. | 1 | 2 | 3 | 4 | 5 |
| Item | Nut | Tie rod nut | Piston rod seal | Head cover | O-ring |
| No. | 12 | 13 | 14 | 15 | 16 |
| Item | Tie rod | Piston rod | O-ring | Piston seal | Wear ring |
| 6 | 7 | 8 | 9 | 10 | 11 |
| Adjustable screw | Block slip | Self lubricating bearing | Cushing ring | O-ring | Barrel |
| 17 | 18 | 19 | 20 | 21 |
|
| Piston | Plain cushion | Spring cushion | Hexagon nut | cover |
|

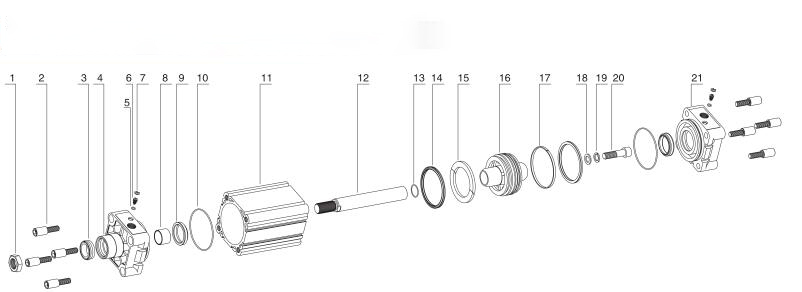

VDMA24562 Festo DNC Pneumatic Cylinder Kits
| No. | 1 | 2 | 3 | 4 | 5 |
| Item | Nut | Cover connection screw | Piston rod seal | Head cover | O-ring |
| No. | 12 | 13 | 14 | 15 | 16 |
| Item | Piston rod | O-ring | Piston seal | Magent | Piston |
| 6 | 7 | 8 | 9 | 10 | 11 |
| Adjustable screw | Block slip | Self lubricating bearing | Cushion ring | O-ring | Barrel |
| 17 | 18 | 19 | 20 | 21 |
|
| Wear ring | cushion | Spring cushion | Screw | cover |
|

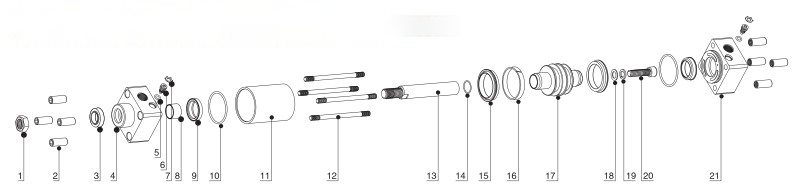

Airtac ISO6431 SI Pneumatic Cylinder Kits
| No. | 1 | 2 | 3 | 4 | 5 |
| Item | Nut | Cover connection screw | Piston rod seal | Head cover | O-ring |
| No. | 12 | 13 | 14 | 15 | 16 |
| Item | Piston rod | O-ring | Piston seal | Wear ring | Piston |
| 6 | 7 | 8 | 9 | 10 | 11 |
| Adjustable screw | Block slip | Self lubricating bearing | Cushion ring | O-ring | Barrel |
| 17 | 18 | 19 | 20 | 21 |
|
| Plain cushion | Spring cushion | Screw | cover |
|
|

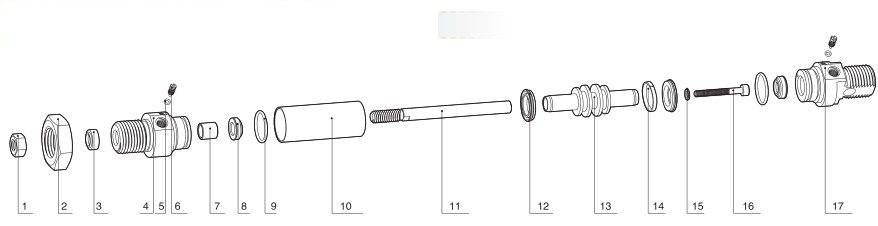

MA Mini Stainless Steel Pneumatic cylinder KITS
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Item | Nut | Nut | Piston rod seal | Head cover | O-ring | Adjustable screw |
| No. | 12 | 13 | 14 | 15 | 16 | 17 |
| Item | Piston seal | Piston | Wear ring | Spring cushion | Screw | Reae cover |
| 7 | 8 | 9 | 10 | 11 |
Self lubricating
bearing | Cushing ring | O-ring | Barrel | Piston rod |
MAL Mini Pneumatic cylinder KITS
| No. | 1 | 2 | 3 | 4 | 5 |
| Item | Nut | Nut | Piston rod seal | Head cover | Self lubricating
bearing |
| No. | 10 | 11 | 12 | 13 | 14 |
| Item | Anti-bump cushion | Piston seal | Piston | Magnet | Wear ring |
| 6 | 7 | 8 | 9 |
| O-ring | Barrel | Piston rod | O-ring |
| 15 | 16 | 17 | 18 |
| Impact gasket | Spring cushion | Nut | Cover |

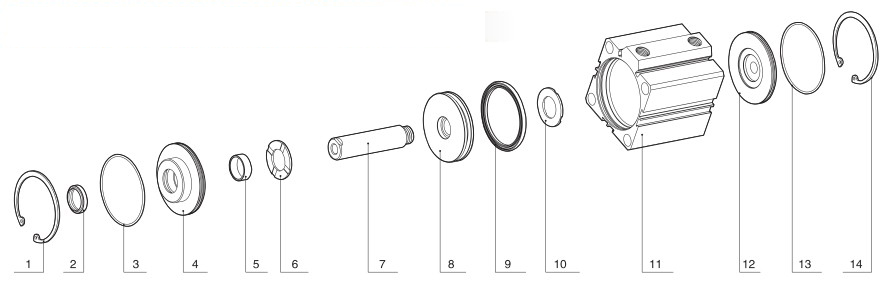

Airtac SDA Compact Pneumatic cylinder KITS
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Item | Buckle | Piston rod seal | O-ring | Head cover | Self lubricating
bearing | Cushion | Piston rod |
| No. | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Item | Piston | C-ring | Cushion | Barrel | Cover | O-ring | Buckle |
FAQ:
Q1:What is the pneumatic cylinder kits?
A:Pneumatic cylinder kit refers to the accessories of the cylinder other than the cylinder barrel and piston rod, including the cylinder end cover, cylinder piston, sealing ring, etc.
Q2:What is the material of pneumatic cylinder cover?
A:Due to the complex shape of the cylinder end cover, aluminum alloy casting is generally used. Compared with cast iron cylinder heads, aluminum alloy cylinder heads have the advantage of good thermal conductivity, which is beneficial to increase the compression ratio and improve work efficiency. In addition, compared with cast iron, aluminum alloy has an outstanding advantage in light weight, which is in line with the development direction of lightweight design.
Q3:What is the standard of your cylinder kit?
A:Our cylinder kits are produced in strict accordance with the size of the cylinder and cylinder. In order to avoid air leakage, the size of the end cover must match the size of the cylinder.
For example, the standard for SI pneumatic cylinders is ISO6431, and our kit standard is ISO6431; the standard for DNC pneumatic cylinders is VDMA24562, and our kit standard is VDMA24562.
