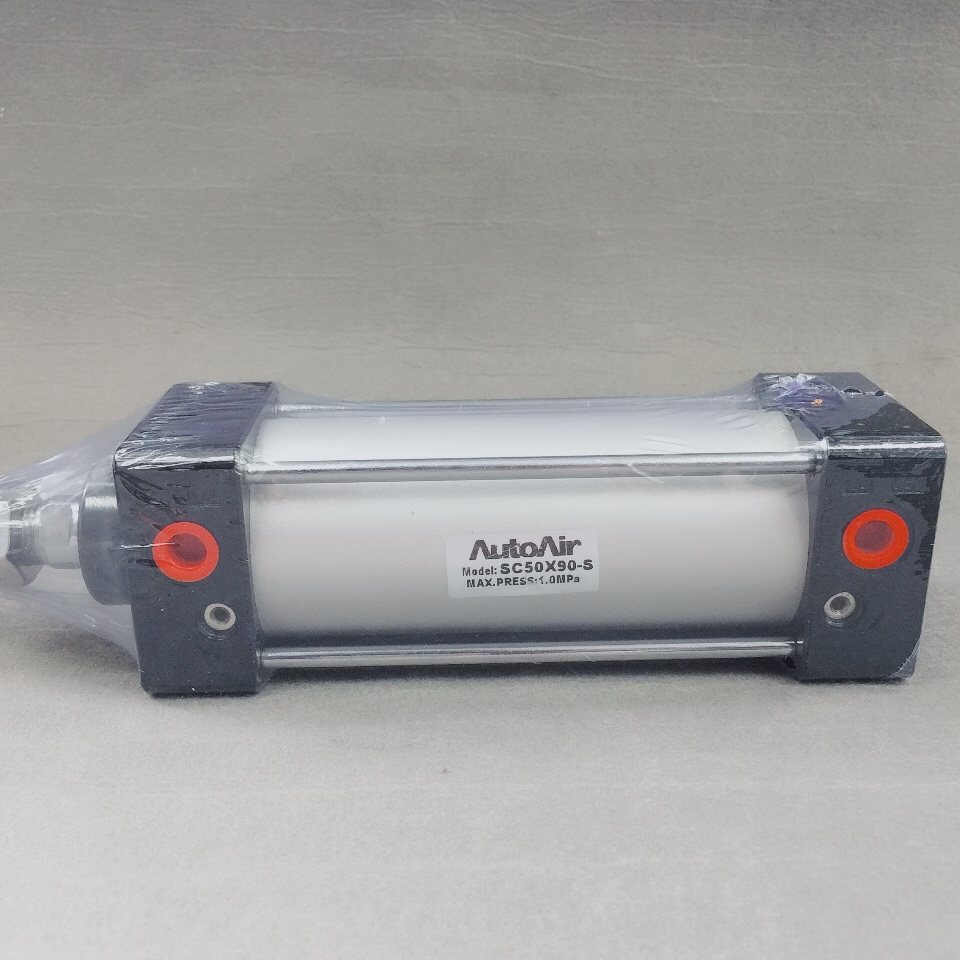

How To Disassemble The Sc Standard Pneumatic Cylinder Correctly?

Date:2021-11-25    Visits:520

The system where the Sc standard pneumatic cylinder is located requires after-sales maintenance and maintenance in order to be able to run longer. Maintenance includes disassembly and cleaning of some pneumatic components, replacement of old parts, etc Aluminum Profile Pneumatic. Autoair manufacturers share the relevant basic knowledge for everyone. For reference.

Before disassembling, clean the contaminants on the components and devices to keep the environment clean. After confirming that the driven object has been treated to prevent falling and runaway, be sure to cut off the power and air source, and confirm that the compressed air has been completely discharged before disassembly.

Only close the shut-off valve, there is not necessarily no compressed air in the system, because sometimes the compressed air is blocked in a certain part, so be sure to carefully analyze and check each part, and try to exhaust the remaining pressure.

cfdsf

When disassembling, loosen each screw slowly to prevent residual pressure in the component or pipeline. While disassembling, check the parts one by one to see if they are normal. It should be disassembled in units of components.

The parts of the sliding part (such as the inner surface of the cylinder and the outer surface of the piston rod should not be scratched, and should be carefully inspected. Pay attention to the wear, damage and deformation of the sealing ring and gasket.

AUTOAIR manufacturers remind you to pay attention to the clogging of the orifice, nozzle and filter element. Check plastic and glass products for cracks or damage.  When disassembling, the parts should be arranged in the order of the components, and the installation direction of the parts should be paid attention to for future assembly. Piping ports and hose ports must be protected with clean cloth to prevent dust and debris from entering.

The quality of replacement parts must be guaranteed. Corroded, damaged, or aging components must not be reused. The seal must be selected according to the use environment and working conditions to ensure the air-tightness of the components and stable work. The parts that are removed and ready for reuse should be cleaned in the cleaning fluid. Do not use organic solvents such as gasoline to clean rubber and plastic parts. Good kerosene can be used for cleaning.

After cleaning the parts, it is not allowed to dry them with cotton thread or chemical fiber products. It can be blown dry with dry clean air. Apply grease and assemble in units of components Pneumatic cylinder kit . Be careful not to miss the seals, and do not install the parts backwards. The tightening torque of screws and nuts should be uniform, and the torque should be reasonable.
