Specification

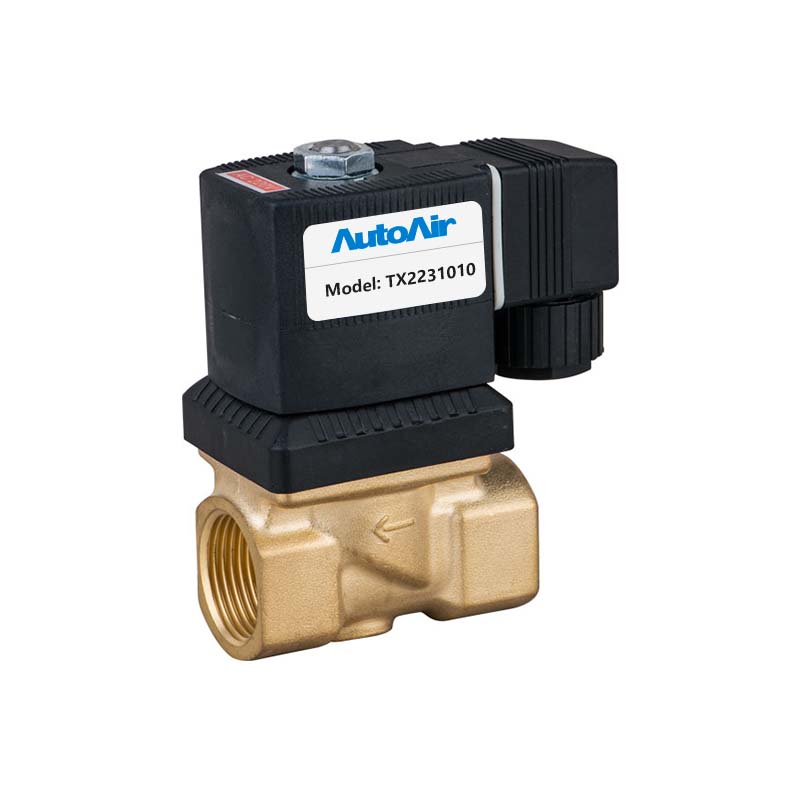

The electronic-drain valve is made of solid state electronic time-setting and solenoid valve,which can make the compress condensates water drain automatically.It is widely used in filter drier,oil/water segerator,refrigerant compressed air drying machine,drying machine,air compressor drip-feet,and son on.The time of drain and interval can be adjustable according to different needs.
Model | TX-16，TX-40,TX-80 |
Various pressure can be provided | 1.6MPa、 4.0MPa、 8.0MPa |
Various electric voltages can be provided | AC220V、AC110V、 DC24V |
Variety connects can be provided | G1/4"、 G3/8"、 G1/2" female thread |
Interval | (OFF)0.5~45 Minutes |
Drain time | (ON) 0.5~10 Second |
Manual test button | TEST |
Protection grade | IP65 |
Insulate grade | H class(Max/temp:180C ) |
• It is can susbsitute for the expensive process valve;
• Only one type applies all applications;
• It is can be installed simply,full-automatically,without maintenane,
• Sieve of ball valve can be mached
