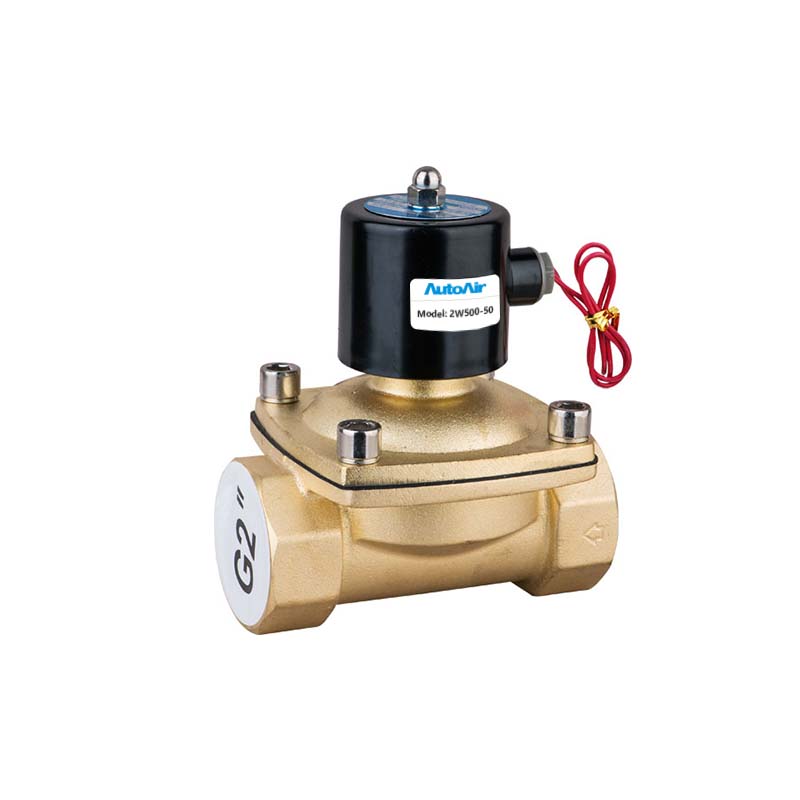

2W Series 2/2 Way Solenoid Valve (Small Apertur)

Working Medium

Air,Water,Oil,Gas

Motion Pattern

Direct Drive Type

Type

Normal Close Type

Aperture of Flow Rate(mm)

2.5

4

1.2

2

CV Value

0.23

0.60

0.05

0.15

Joint Pipe Bore

1/8″

1/4″

3/8″

1/8″

1/4″

3/8″

Operation Fluid Viscosity

20 CST(Below)

Working-pressure MPa

Air,Water,Oil,gas: 0~0.7

Air,Water,Oil: 0~2.0

Max. Pressure Resistance MPa

1.0

3.5

Operating Temperature ℃

-5 ~ 80℃

Voltage Range

±10%

Material of Body

Brass

Material of Oil Seal

NBR,EPDM or VITON

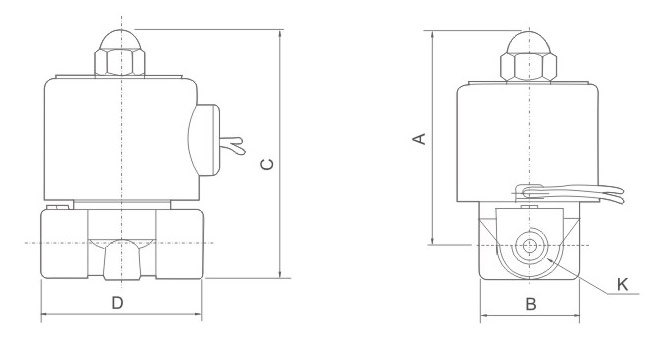

2W025-06

66

30.3

75

41.5

1/8″

2W025-08

66

30.3

75

41.5

1/4″

2W040-10

74

32.3

85.5

53

3/8″

2WH012-06

66

30.3

75

40.5

1/8″

2WH012-08

66

30.3

75

40.5

1/4″

2WH020-10

74

32.3

85.5

53

3/8″

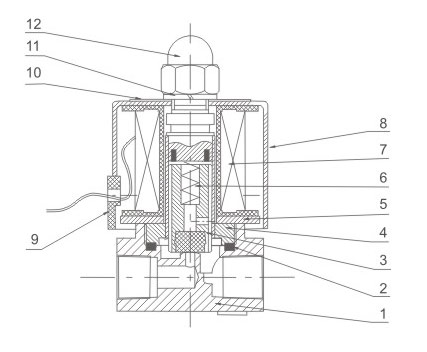

1

Body Of Valve

2

O-ring

3

Assembly Of Iron Core

4

Assembly Of Iron Core

5

Magnetic Plate

6

Spring

7

Assembly Of Coil

8

Iron Cover

9

Cord-locks

10

Name Plate

11

Gasket

12

Head Cover Nut
